| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_010T02_9000001222_08784cztM0_level2.evt | modeM0/AS1G07_010T02_9000001222_08784cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,726,400 | 102,389,760 |
| Size | 506.1 MB | 97.6 MB |
| Events in quadrant A | 3,963,866 | 673,835 |
| Events in quadrant B | 3,489,320 | 679,060 |
| Events in quadrant C | 3,346,691 | 662,256 |
| Events in quadrant D | 4,833,281 | 633,302 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16116 | 3 |
| B | 0 | 14492 | 2 |
| C | 0 | 14125 | 2 |
| D | 0 | 18644 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6491 | 212 | 3.266061% |
| B | 6491 | 155 | 2.387922% |
| C | 6491 | 131 | 2.018179% |
| D | 6491 | 460 | 7.086735% |

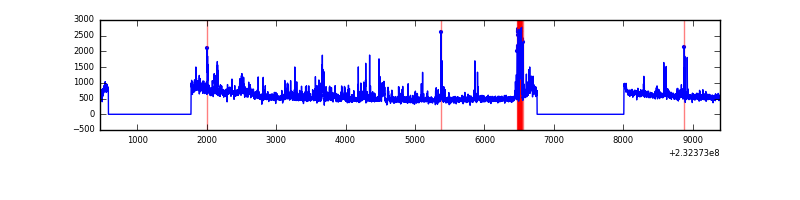

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8931 | 6491 | 45 | 45 | 0.50% | 0.69% |  |
| B | 8931 | 6491 | 16 | 16 | 0.18% | 0.25% |  |
| C | 8931 | 6491 | 12 | 12 | 0.13% | 0.18% |  |
| D | 8931 | 6491 | 309 | 309 | 3.46% | 4.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 323879 | 1875.21 | 856 | 838 | 172.3 |
| A | 15 | 223 | 203516 | 1176.52 | 856 | 838 | 172.3 |
| A | 15 | 239 | 76432 | 438.81 | 856 | 838 | 172.3 |
| B | 10 | 16 | 105013 | 644.21 | 849 | 828 | 161.7 |
| B | 4 | 173 | 70508 | 430.85 | 849 | 828 | 161.7 |
| B | 12 | 111 | 17131 | 100.81 | 849 | 828 | 161.7 |
| C | 14 | 234 | 63822 | 330.14 | 831 | 835 | 190.8 |
| C | 1 | 16 | 30693 | 156.5 | 831 | 835 | 190.8 |
| C | 9 | 68 | 9985 | 47.96 | 831 | 835 | 190.8 |
| D | 2 | 152 | 863127 | 4296.64 | 812 | 792 | 200.7 |
| D | 2 | 16 | 357185 | 1775.75 | 812 | 792 | 200.7 |
| D | 13 | 169 | 204330 | 1014.14 | 812 | 792 | 200.7 |

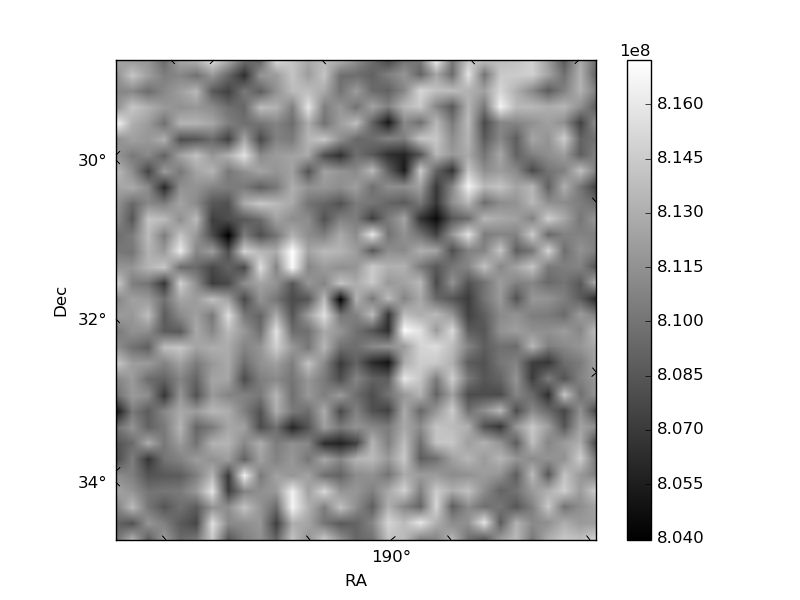

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

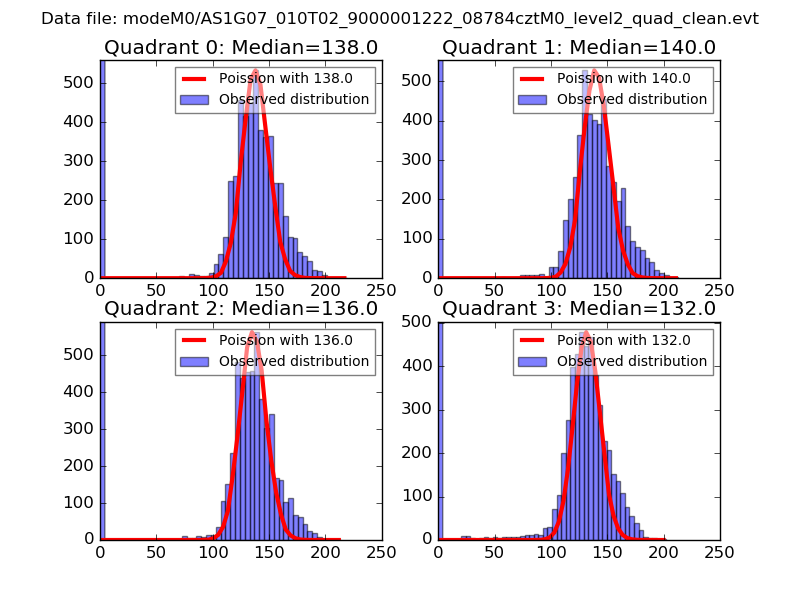

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

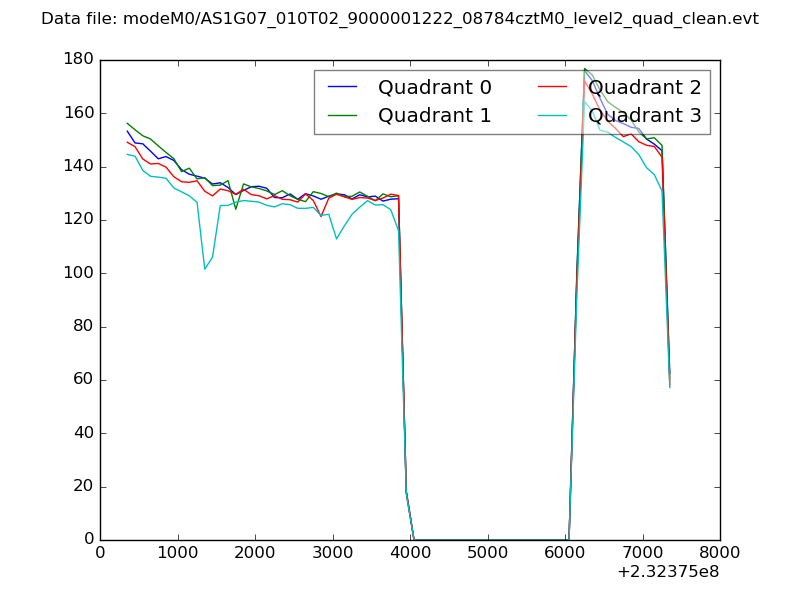

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

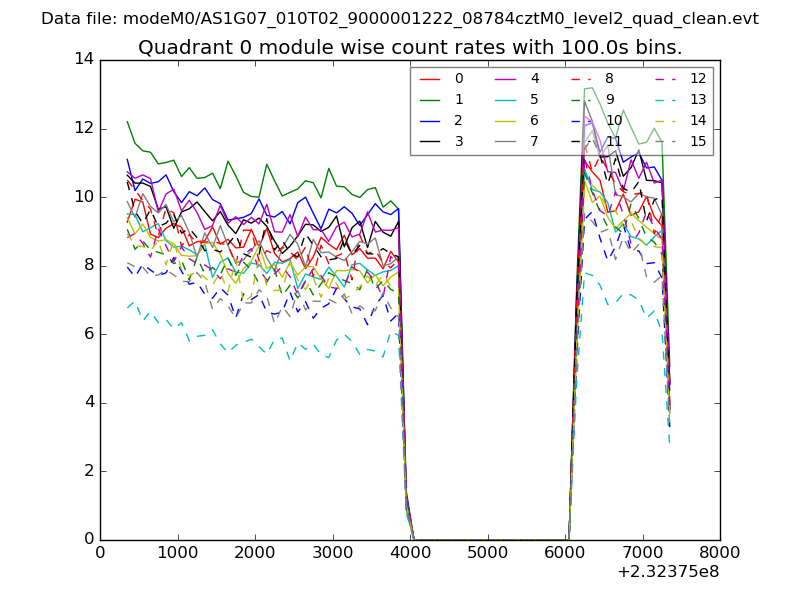

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

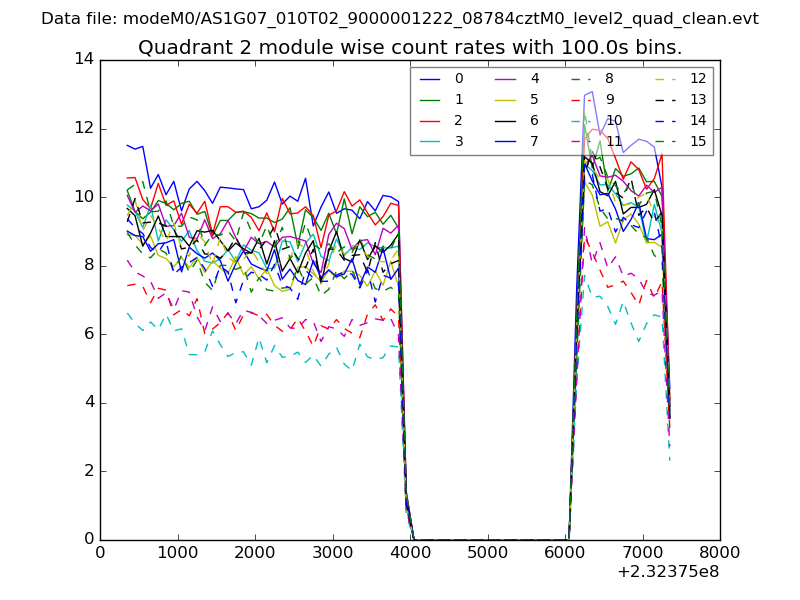

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

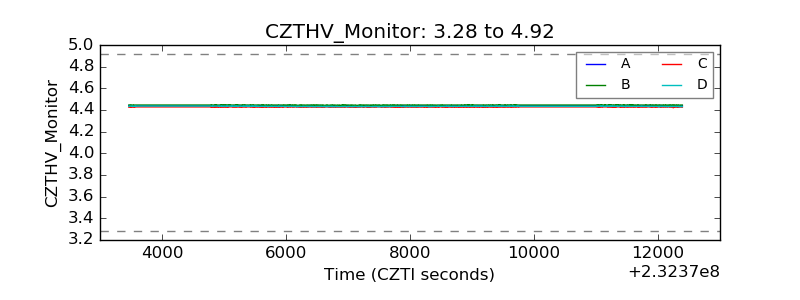

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

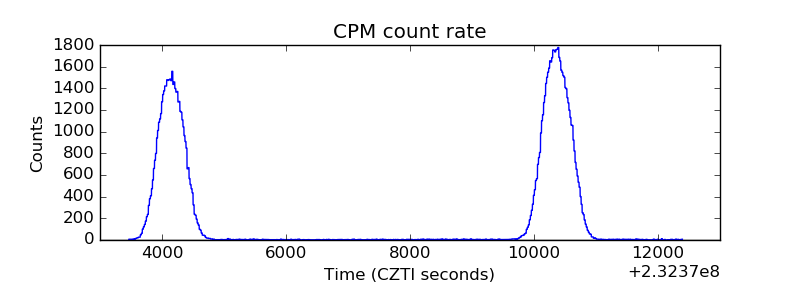

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
