| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_010T02_9000001222_08787cztM0_level2.evt | modeM0/AS1G07_010T02_9000001222_08787cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,353,920 | 94,155,840 |
| Size | 528.7 MB | 89.8 MB |
| Events in quadrant A | 3,305,285 | 607,845 |
| Events in quadrant B | 3,188,737 | 617,214 |
| Events in quadrant C | 3,155,273 | 610,451 |
| Events in quadrant D | 6,694,853 | 558,372 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14082 | 2 |
| B | 0 | 13810 | 2 |
| C | 0 | 13709 | 2 |
| D | 0 | 24587 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6555 | 85 | 1.296720% |
| B | 6555 | 74 | 1.128909% |
| C | 6555 | 54 | 0.823799% |
| D | 6555 | 760 | 11.594203% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7740 | 6555 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7740 | 6555 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7740 | 6555 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7739 | 6554 | 618 | 618 | 7.99% | 9.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 86728 | 519.59 | 816 | 799 | 165.4 |
| A | 15 | 223 | 38368 | 227.17 | 816 | 799 | 165.4 |
| A | 15 | 239 | 15826 | 90.86 | 816 | 799 | 165.4 |
| B | 4 | 173 | 27906 | 175.82 | 814 | 797 | 154.2 |
| B | 12 | 111 | 16946 | 104.74 | 814 | 797 | 154.2 |
| B | 11 | 111 | 13740 | 83.94 | 814 | 797 | 154.2 |
| C | 14 | 234 | 15522 | 79.16 | 800 | 804 | 185.9 |
| C | 9 | 68 | 15010 | 76.41 | 800 | 804 | 185.9 |
| C | 13 | 61 | 5934 | 27.59 | 800 | 804 | 185.9 |
| D | 2 | 16 | 3272705 | 17217.26 | 770 | 750 | 190.0 |
| D | 2 | 152 | 259949 | 1363.92 | 770 | 750 | 190.0 |
| D | 13 | 169 | 80766 | 421.05 | 770 | 750 | 190.0 |

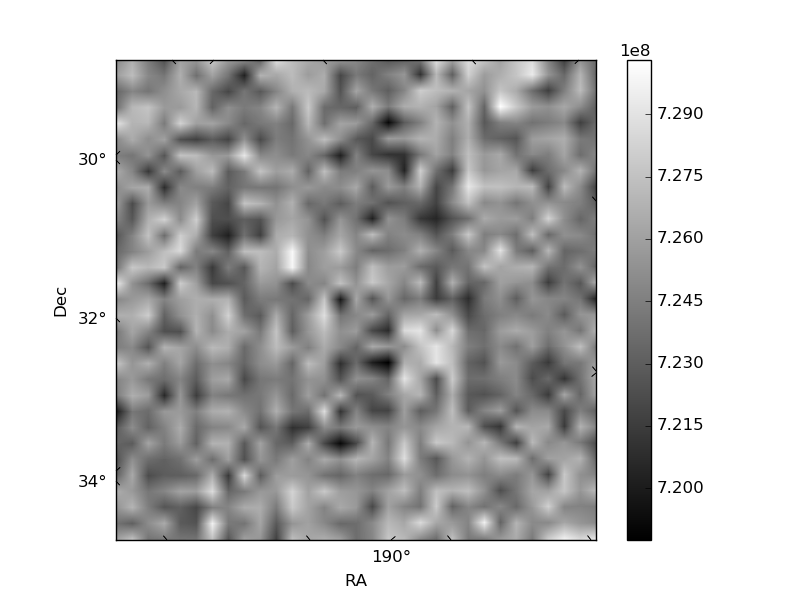

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

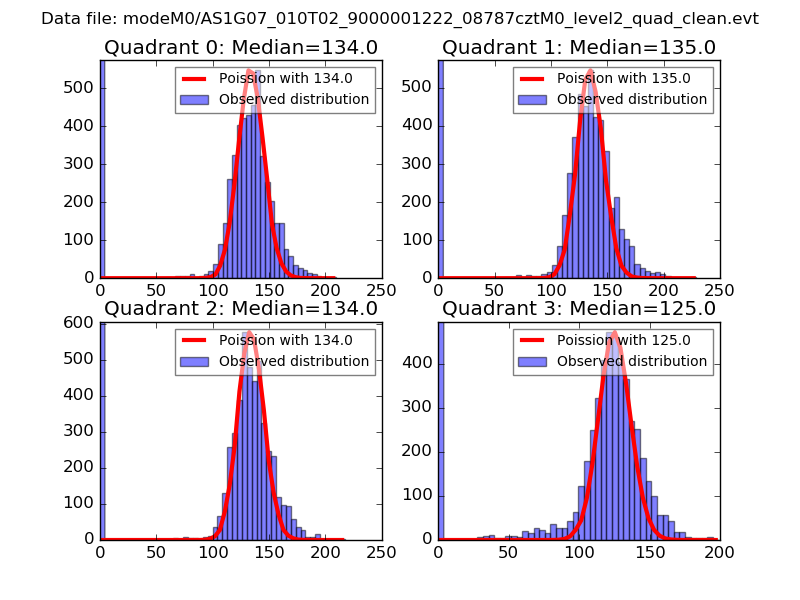

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

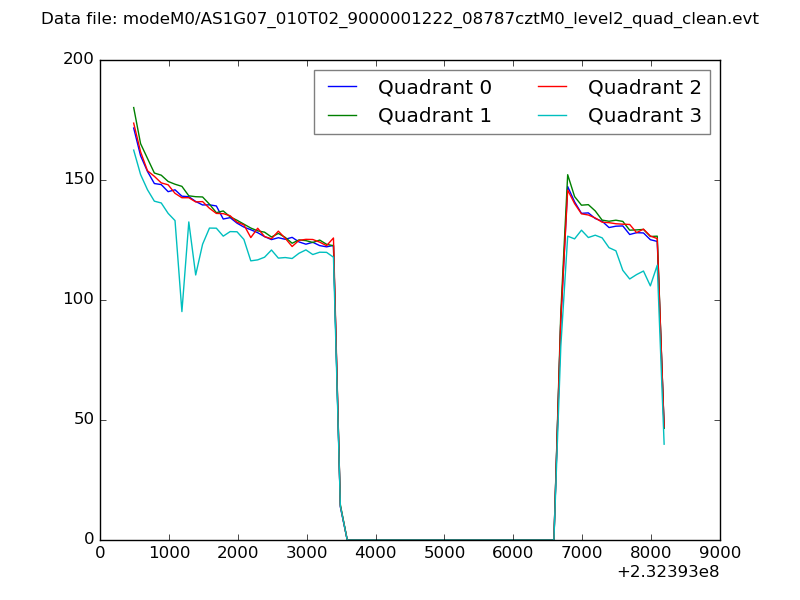

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

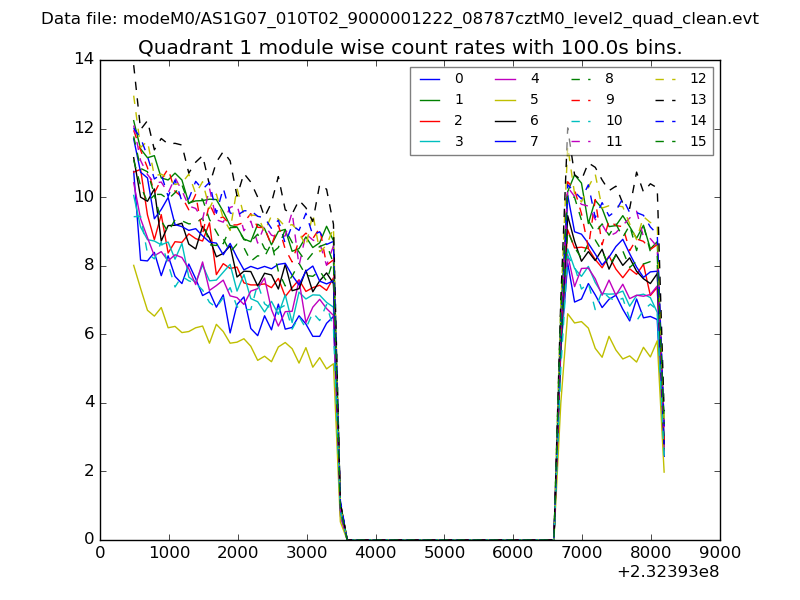

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

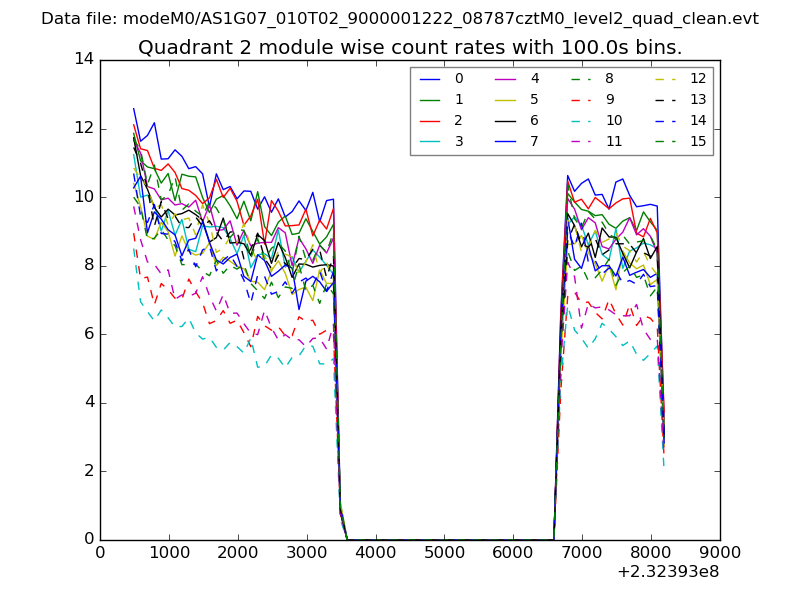

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

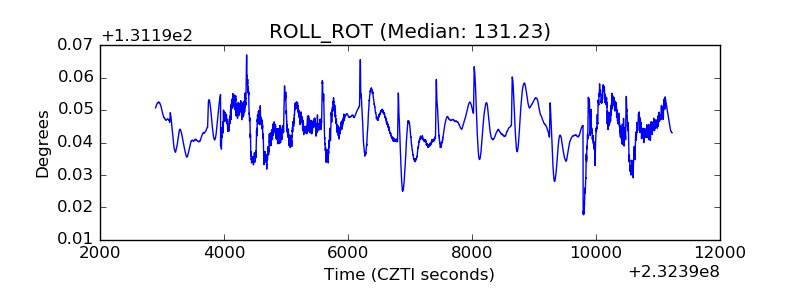

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

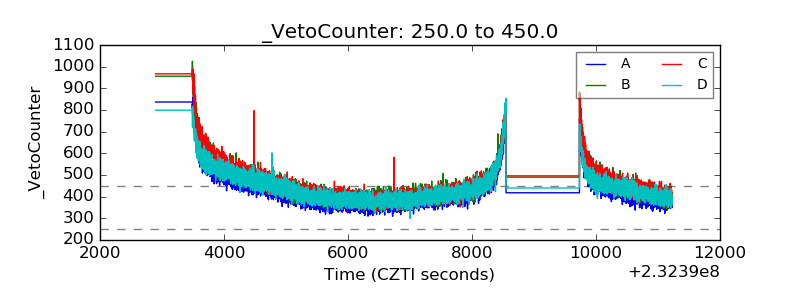

| Veto Counter |  |
