| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_135T01_9000001226_08805cztM0_level2.evt | modeM0/AS1A03_135T01_9000001226_08805cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,330,560 | 106,188,480 |
| Size | 559.2 MB | 101.3 MB |
| Events in quadrant A | 4,080,128 | 682,175 |
| Events in quadrant B | 4,512,432 | 671,308 |
| Events in quadrant C | 3,615,800 | 668,637 |
| Events in quadrant D | 5,008,100 | 639,606 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17203 | 7 |
| B | 0 | 18843 | 4 |
| C | 0 | 16429 | 2 |
| D | 0 | 20295 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7974 | 113 | 1.417106% |
| B | 7975 | 264 | 3.310345% |
| C | 7976 | 31 | 0.388666% |
| D | 7976 | 300 | 3.761284% |

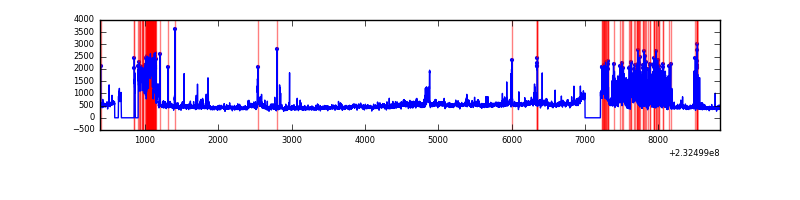

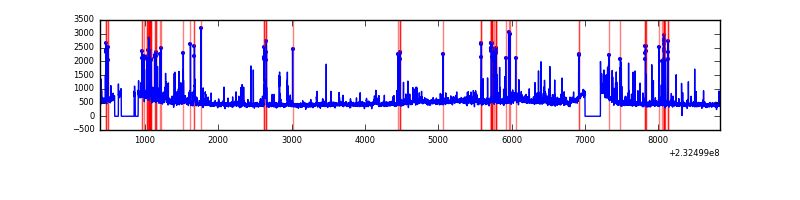

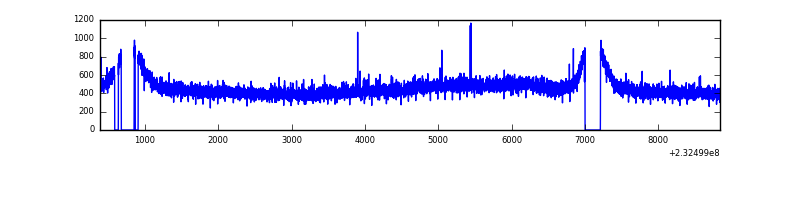

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

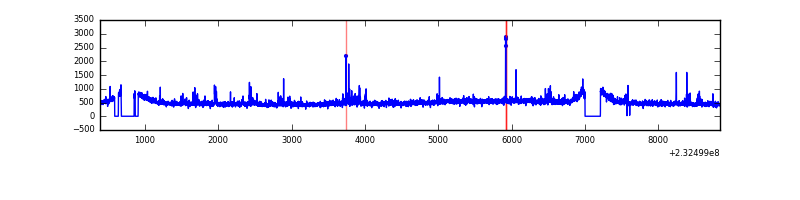

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8451 | 7979 | 4 | 4 | 0.05% | 0.05% |  |
| B | 8451 | 7979 | 100 | 100 | 1.18% | 1.25% |  |
| C | 8451 | 7979 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8451 | 7980 | 171 | 171 | 2.02% | 2.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 330025 | 1675.96 | 956 | 932 | 196.4 |
| A | 13 | 251 | 53119 | 265.77 | 956 | 932 | 196.4 |
| A | 5 | 16 | 13131 | 62.13 | 956 | 932 | 196.4 |
| B | 10 | 16 | 411192 | 2252.45 | 949 | 925 | 182.1 |
| B | 5 | 255 | 168032 | 917.45 | 949 | 925 | 182.1 |
| B | 4 | 48 | 74534 | 404.13 | 949 | 925 | 182.1 |
| C | 1 | 16 | 15134 | 65.63 | 921 | 923 | 216.5 |
| C | 13 | 61 | 7089 | 28.48 | 921 | 923 | 216.5 |
| C | 14 | 67 | 3693 | 12.79 | 921 | 923 | 216.5 |
| D | 2 | 16 | 1236345 | 5206.29 | 905 | 881 | 237.3 |
| D | 5 | 233 | 68282 | 284.03 | 905 | 881 | 237.3 |
| D | 7 | 71 | 63442 | 263.63 | 905 | 881 | 237.3 |

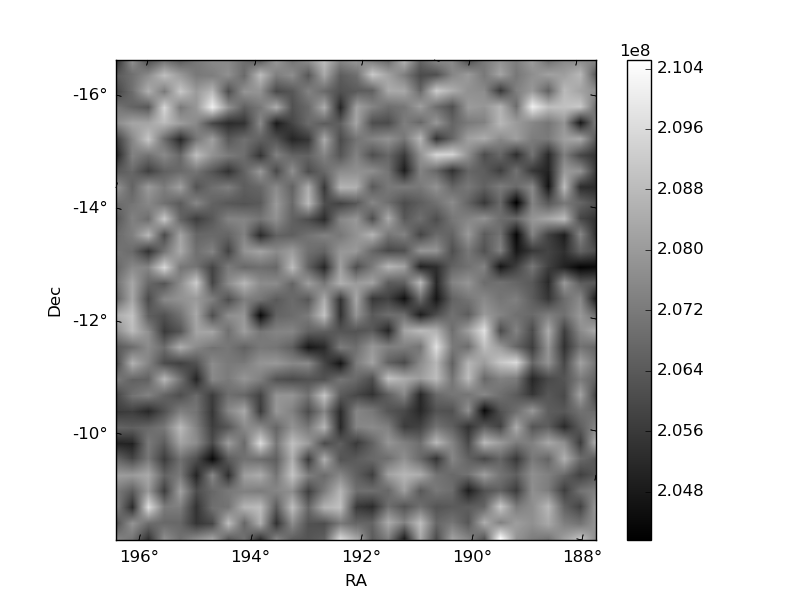

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

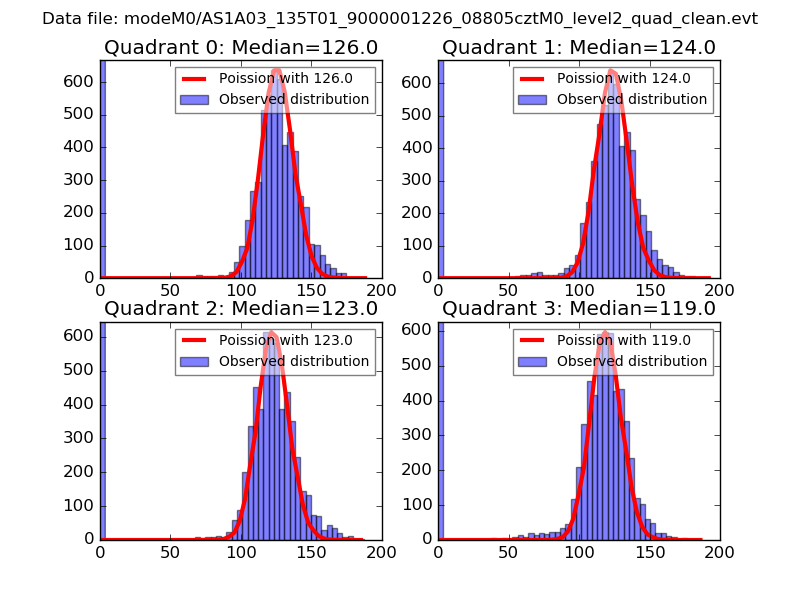

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

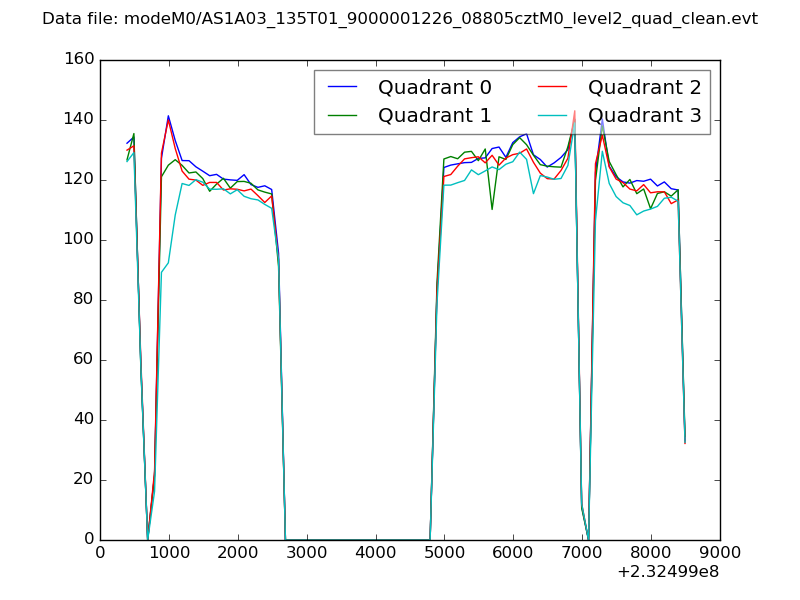

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

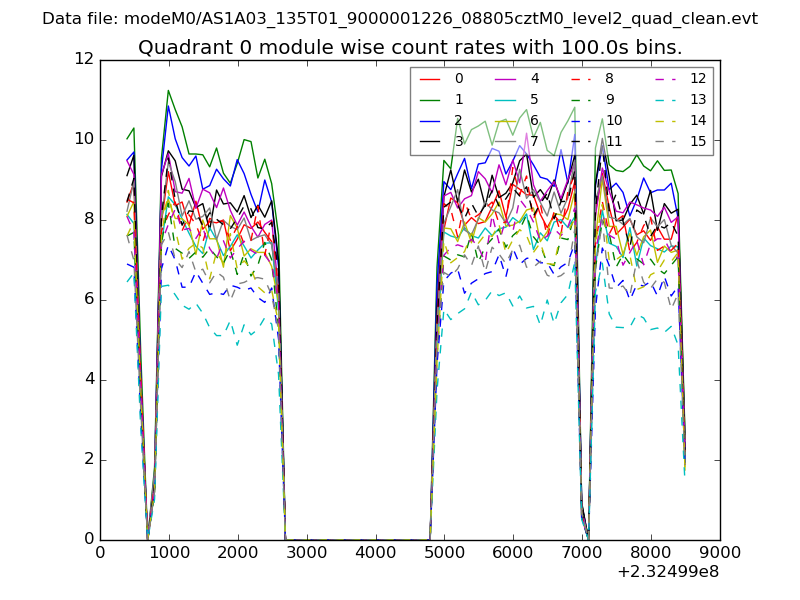

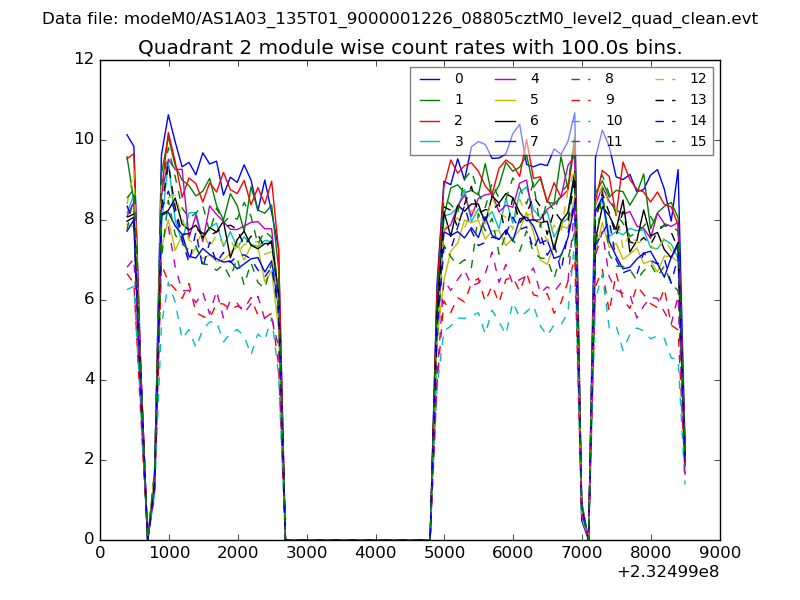

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

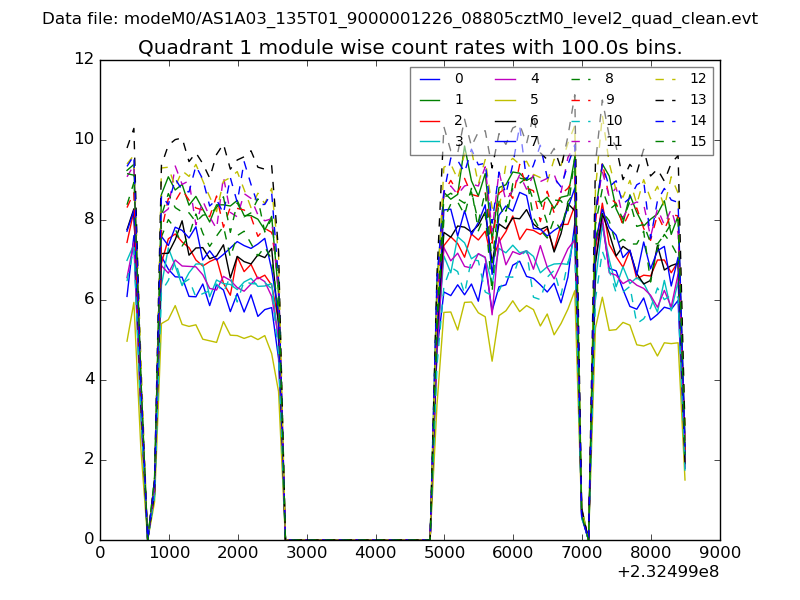

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

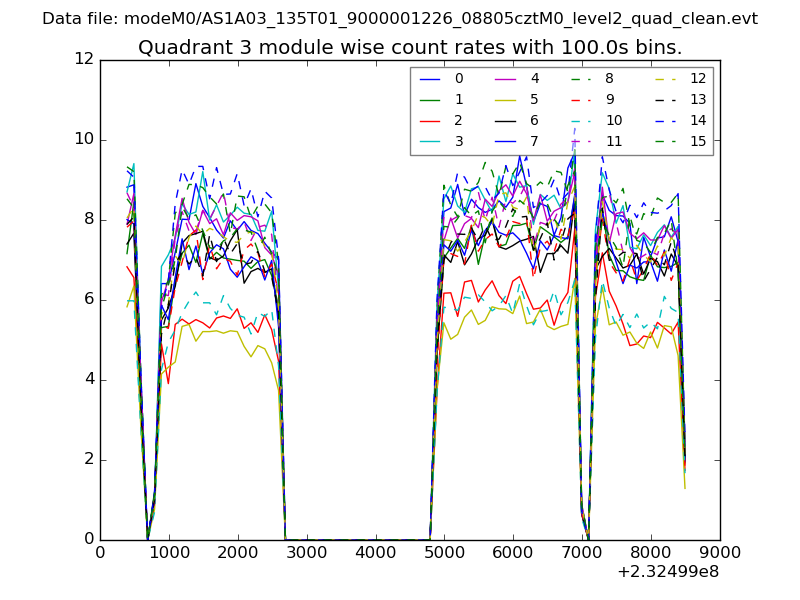

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

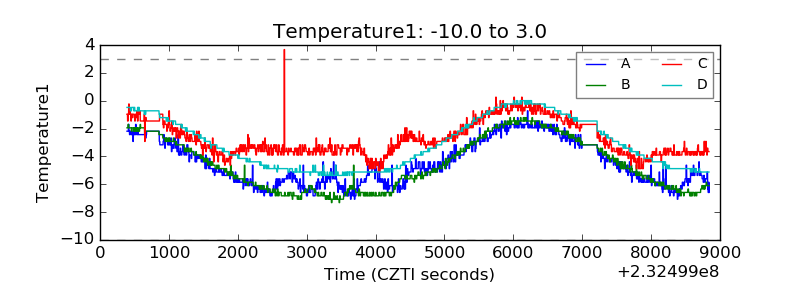

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

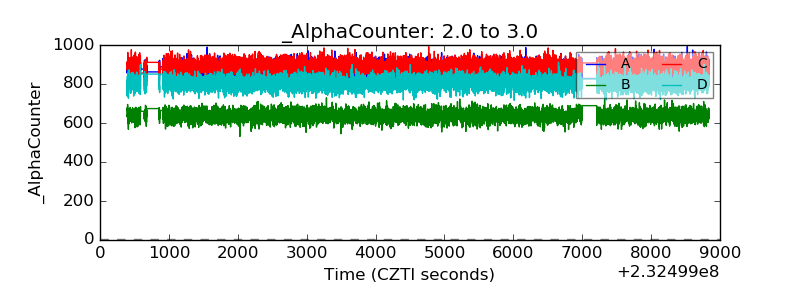

| Alpha Counter |  |

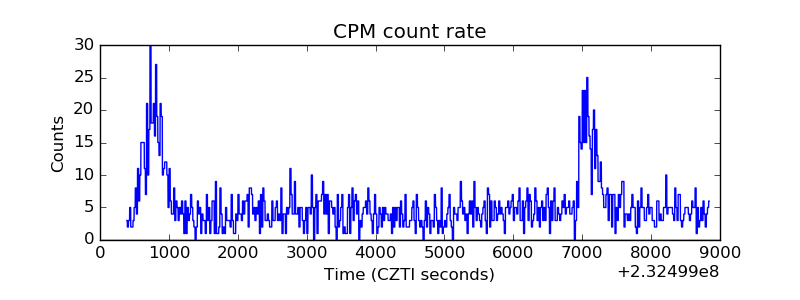

| _CPM_Rate |  |

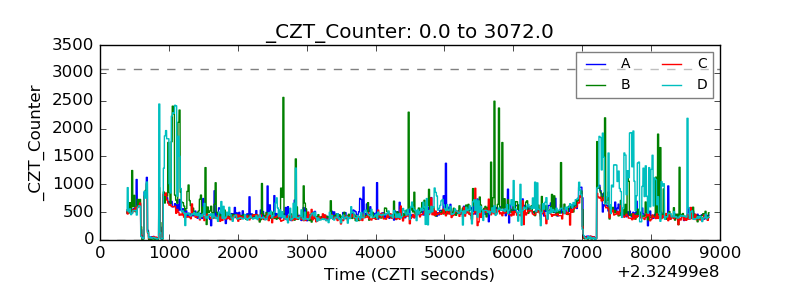

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

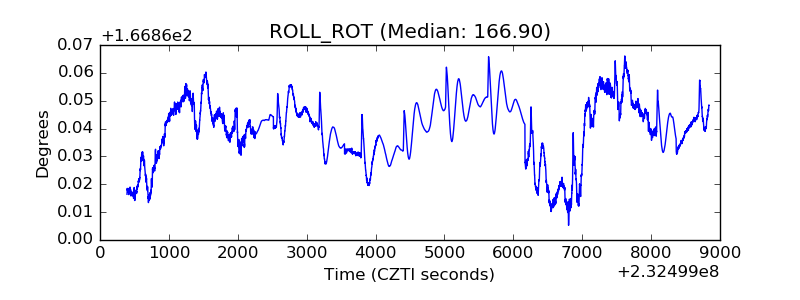

| _ROLL_ROT |  |

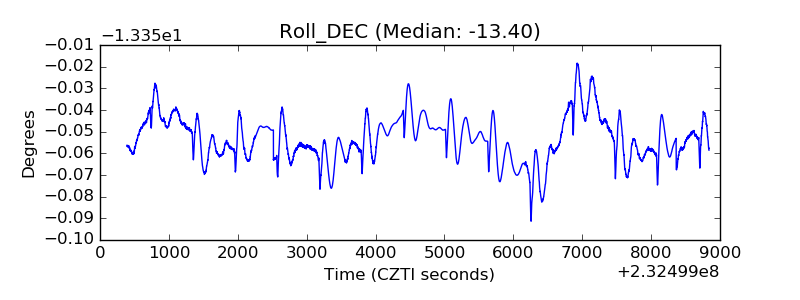

| _Roll_DEC |  |
| _Roll_RA |  |

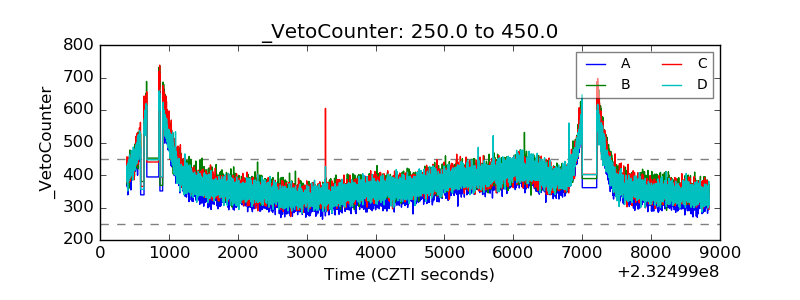

| Veto Counter |  |
