| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_087T01_9000001228_08830cztM0_level2.evt | modeM0/AS1G07_087T01_9000001228_08830cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,099,840 | 100,209,600 |
| Size | 426.4 MB | 95.6 MB |
| Events in quadrant A | 4,084,483 | 661,862 |
| Events in quadrant B | 3,120,008 | 674,259 |
| Events in quadrant C | 2,765,796 | 642,073 |
| Events in quadrant D | 3,154,669 | 629,808 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16158 | 2 |
| B | 0 | 13255 | 1 |
| C | 0 | 12548 | 1 |
| D | 0 | 13563 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6116 | 204 | 3.335513% |
| B | 6116 | 97 | 1.586004% |
| C | 6116 | 45 | 0.735775% |
| D | 6116 | 101 | 1.651406% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7386 | 6116 | 81 | 81 | 1.10% | 1.32% |  |
| B | 7386 | 6116 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7386 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7386 | 6116 | 28 | 28 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 632879 | 4218.64 | 745 | 732 | 149.8 |
| A | 15 | 223 | 325448 | 2167.0 | 745 | 732 | 149.8 |
| A | 15 | 239 | 105376 | 698.34 | 745 | 732 | 149.8 |
| B | 10 | 16 | 124567 | 868.21 | 749 | 733 | 142.6 |
| B | 0 | 214 | 53825 | 372.23 | 749 | 733 | 142.6 |
| B | 0 | 219 | 19054 | 128.45 | 749 | 733 | 142.6 |
| C | 13 | 61 | 5455 | 29.38 | 707 | 710 | 161.5 |
| C | 1 | 16 | 2859 | 13.31 | 707 | 710 | 161.5 |
| C | 12 | 4 | 2662 | 12.09 | 707 | 710 | 161.5 |
| D | 2 | 14 | 134349 | 707.98 | 711 | 694 | 188.8 |
| D | 2 | 152 | 112265 | 591.0 | 711 | 694 | 188.8 |
| D | 1 | 52 | 80210 | 421.2 | 711 | 694 | 188.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

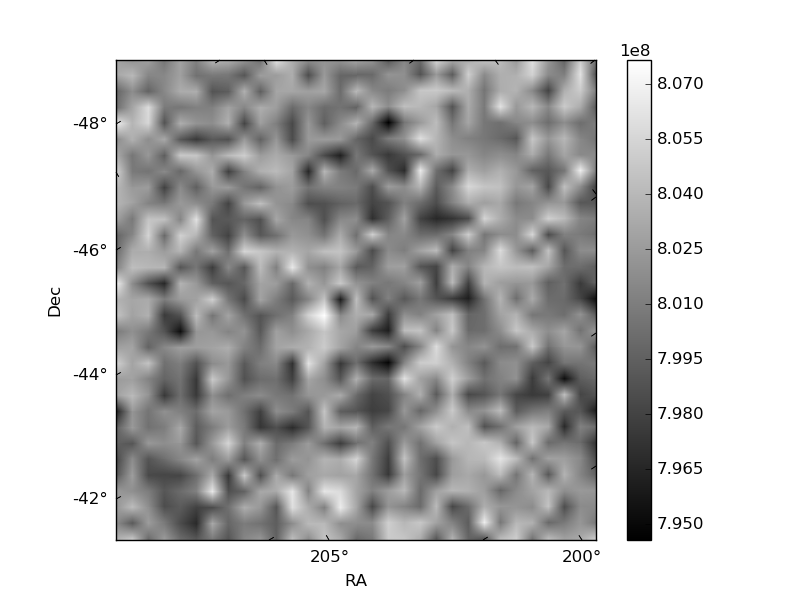

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

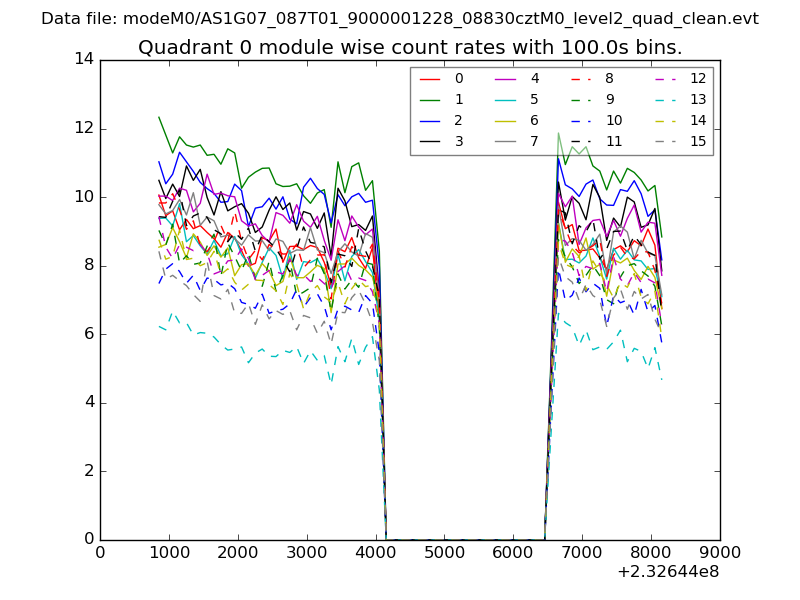

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

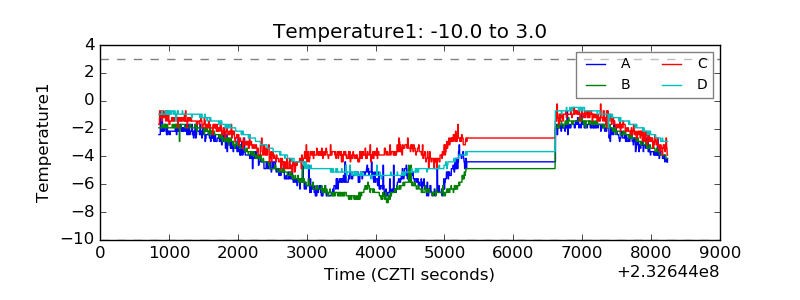

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

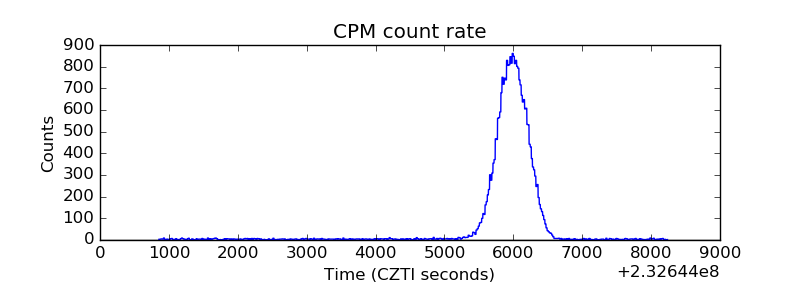

| _CPM_Rate |  |

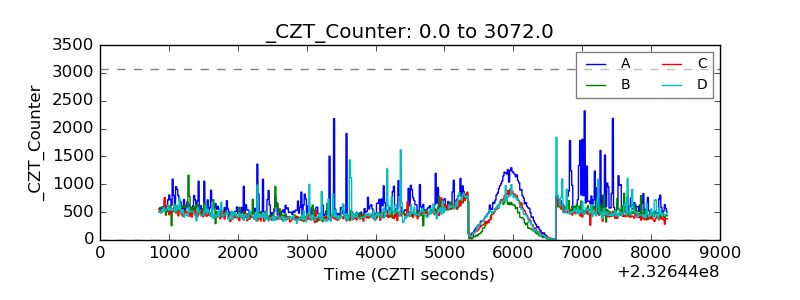

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

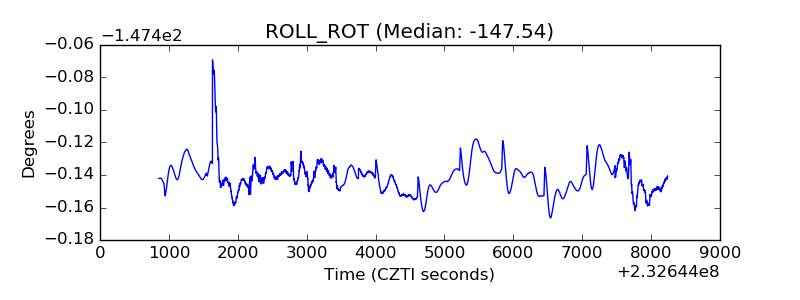

| _ROLL_ROT |  |

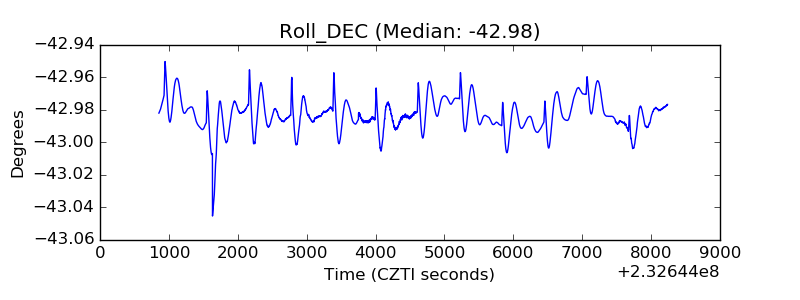

| _Roll_DEC |  |

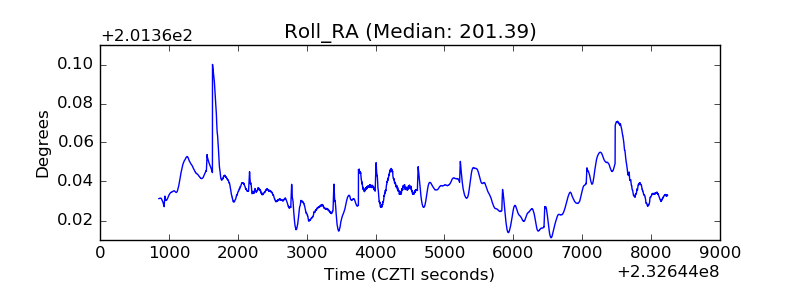

| _Roll_RA |  |
| Veto Counter |  |
