| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_087T01_9000001228_08832cztM0_level2.evt | modeM0/AS1G07_087T01_9000001228_08832cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,675,200 | 98,280,000 |
| Size | 488.0 MB | 93.7 MB |
| Events in quadrant A | 4,342,867 | 632,424 |
| Events in quadrant B | 3,309,228 | 642,547 |
| Events in quadrant C | 3,096,931 | 617,312 |
| Events in quadrant D | 4,274,793 | 599,299 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17610 | 3 |
| B | 0 | 14571 | 2 |
| C | 0 | 14280 | 2 |
| D | 0 | 17441 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6964 | 149 | 2.139575% |
| B | 6964 | 54 | 0.775416% |
| C | 6964 | 11 | 0.157955% |
| D | 6964 | 77 | 1.105686% |

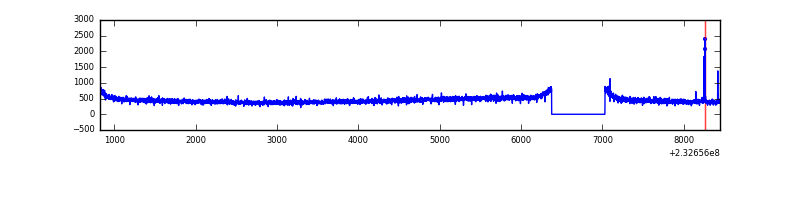

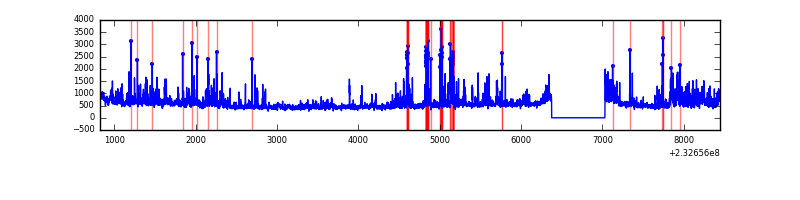

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7619 | 6965 | 66 | 66 | 0.87% | 0.95% |  |
| B | 7618 | 6964 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7619 | 6965 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7619 | 6965 | 48 | 48 | 0.63% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 661686 | 3957.11 | 817 | 799 | 167.0 |
| A | 15 | 223 | 346080 | 2067.4 | 817 | 799 | 167.0 |
| A | 15 | 239 | 111294 | 661.6 | 817 | 799 | 167.0 |
| B | 0 | 214 | 40388 | 247.97 | 828 | 808 | 159.6 |
| B | 10 | 16 | 32176 | 196.52 | 828 | 808 | 159.6 |
| B | 12 | 111 | 16230 | 96.62 | 828 | 808 | 159.6 |
| C | 1 | 16 | 16277 | 85.82 | 785 | 789 | 180.5 |
| C | 14 | 234 | 14526 | 76.11 | 785 | 789 | 180.5 |
| C | 13 | 61 | 6059 | 29.2 | 785 | 789 | 180.5 |
| D | 1 | 52 | 684743 | 3325.38 | 781 | 759 | 205.7 |
| D | 2 | 152 | 202728 | 981.93 | 781 | 759 | 205.7 |
| D | 8 | 195 | 144496 | 698.82 | 781 | 759 | 205.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

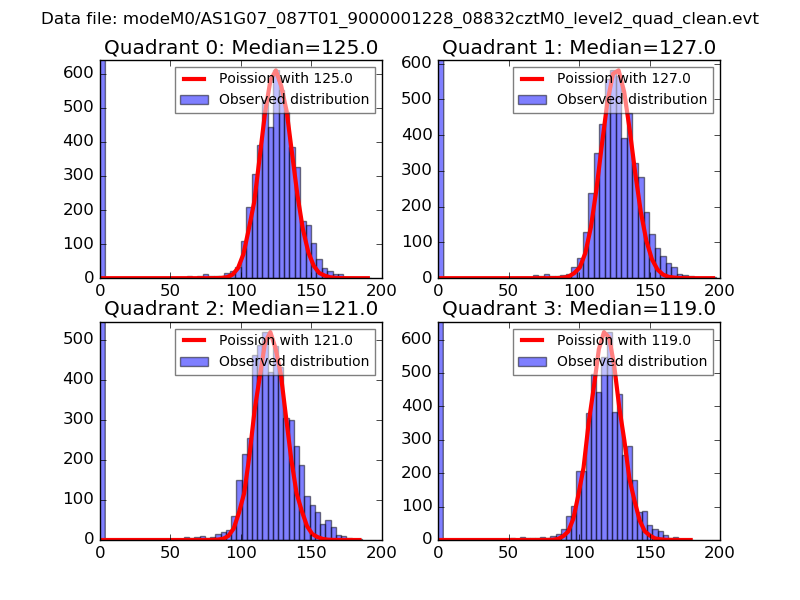

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

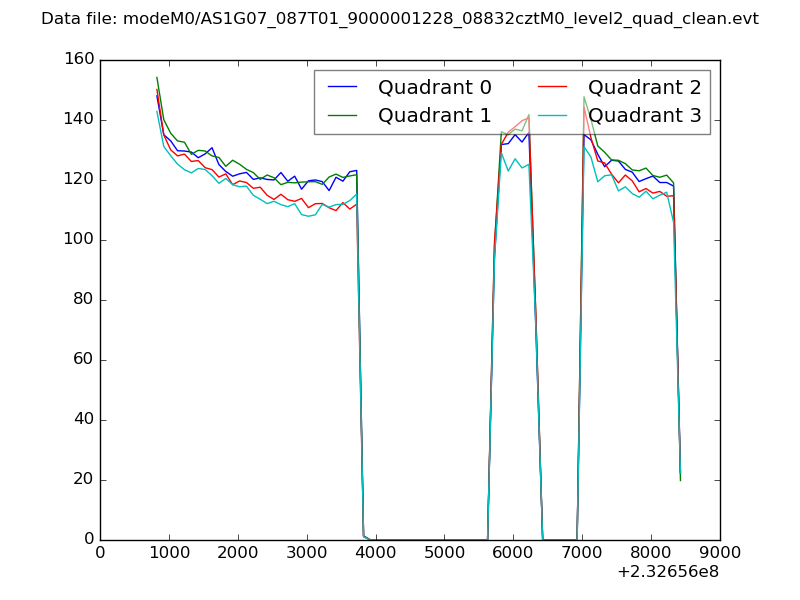

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

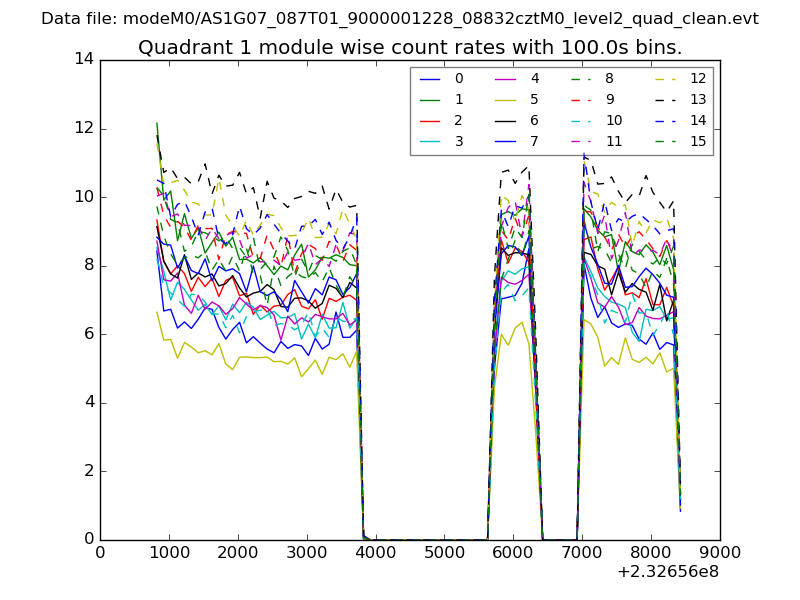

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

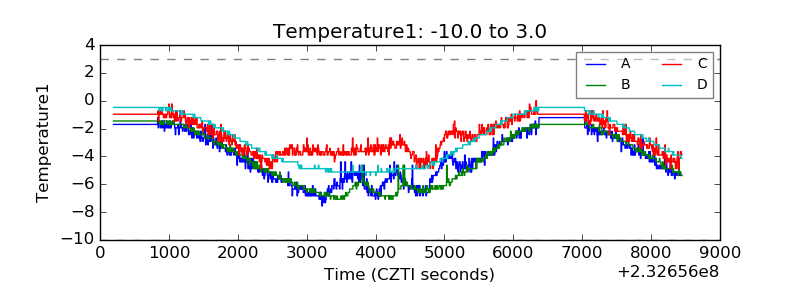

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

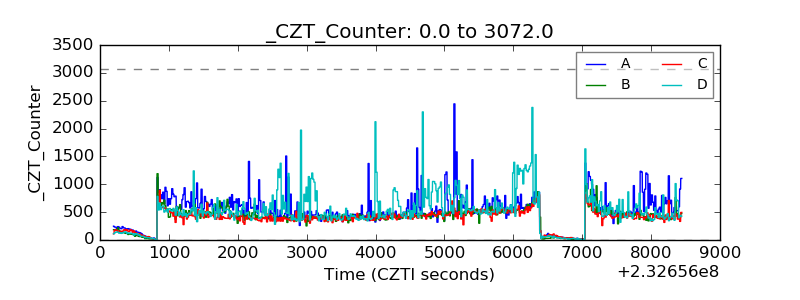

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

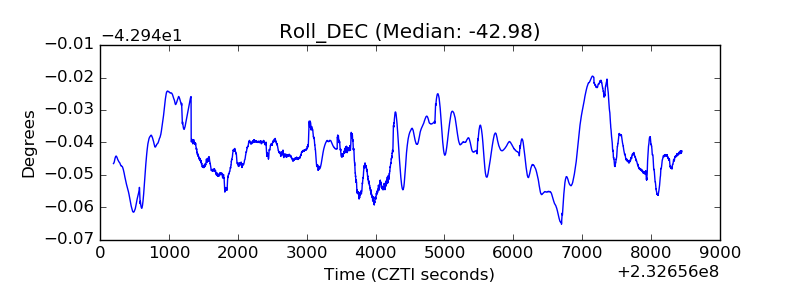

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
