| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_087T01_9000001228_08837cztM0_level2.evt | modeM0/AS1G07_087T01_9000001228_08837cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,564,943,040 | 212,624,640 |
| Size | 1.5 GB | 202.8 MB |
| Events in quadrant A | 10,664,833 | 1,355,855 |
| Events in quadrant B | 8,618,596 | 1,396,163 |
| Events in quadrant C | 7,904,627 | 1,348,331 |
| Events in quadrant D | 18,981,879 | 1,088,245 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44391 | 838 |
| B | 0 | 38598 | 632 |
| C | 0 | 37123 | 447 |
| D | 0 | 69005 | 667 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 2 |
| B | 0 | 372 | 6 |
| C | 0 | 372 | 4 |
| D | 0 | 372 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18122 | 394 | 2.174153% |
| B | 18142 | 125 | 0.689009% |
| C | 18152 | 46 | 0.253416% |
| D | 18138 | 4203 | 23.172345% |

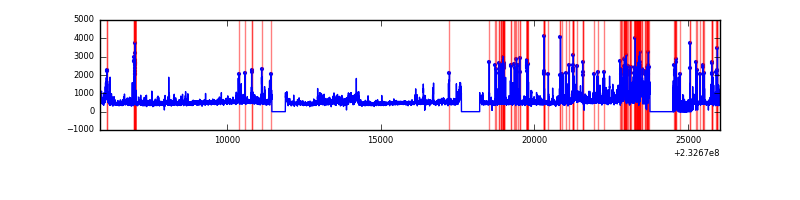

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20162 | 18241 | 182 | 182 | 0.90% | 1.00% |  |
| B | 20162 | 18266 | 33 | 33 | 0.16% | 0.18% |  |
| C | 20162 | 18266 | 1 | 1 | 0.00% | 0.01% |  |
| D | 20162 | 18269 | 4085 | 4085 | 20.26% | 22.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1410611 | 3382.6 | 2057 | 2010 | 416.4 |
| A | 15 | 223 | 508729 | 1216.83 | 2057 | 2010 | 416.4 |
| A | 7 | 144 | 323634 | 772.34 | 2057 | 2010 | 416.4 |
| B | 4 | 48 | 265862 | 663.47 | 2090 | 2039 | 397.6 |
| B | 0 | 214 | 116430 | 287.68 | 2090 | 2039 | 397.6 |
| B | 5 | 255 | 62971 | 153.23 | 2090 | 2039 | 397.6 |
| C | 14 | 234 | 20550 | 39.76 | 2010 | 2017 | 466.1 |
| C | 13 | 61 | 15505 | 28.94 | 2010 | 2017 | 466.1 |
| C | 8 | 222 | 13858 | 25.4 | 2010 | 2017 | 466.1 |
| D | 2 | 16 | 11086527 | 27010.47 | 1627 | 1580 | 410.4 |
| D | 1 | 52 | 834270 | 2029.0 | 1627 | 1580 | 410.4 |
| D | 8 | 195 | 526500 | 1279.06 | 1627 | 1580 | 410.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

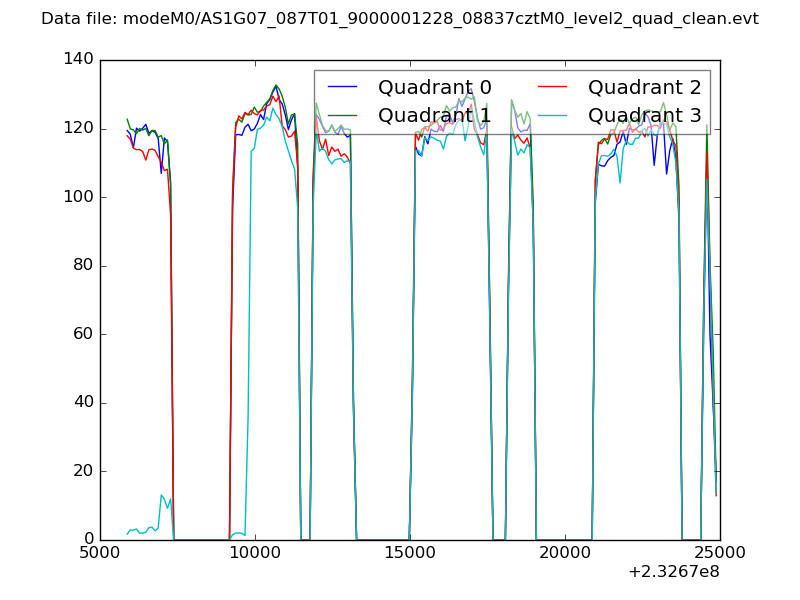

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

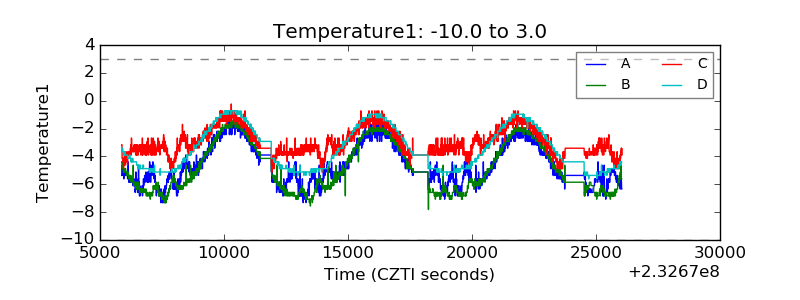

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

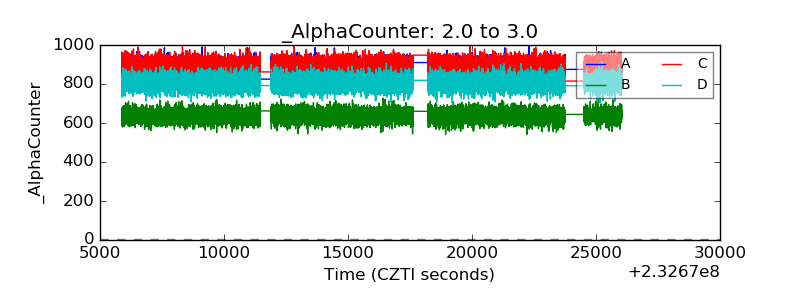

| Alpha Counter |  |

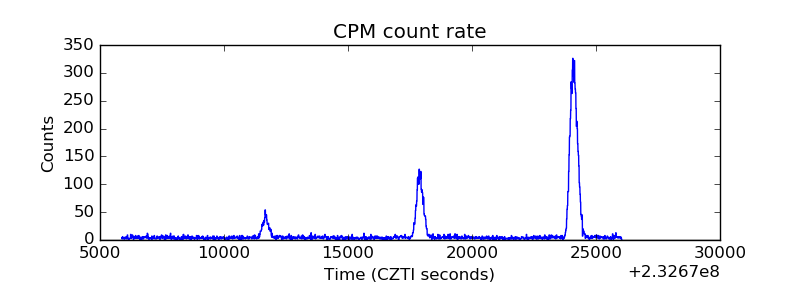

| _CPM_Rate |  |

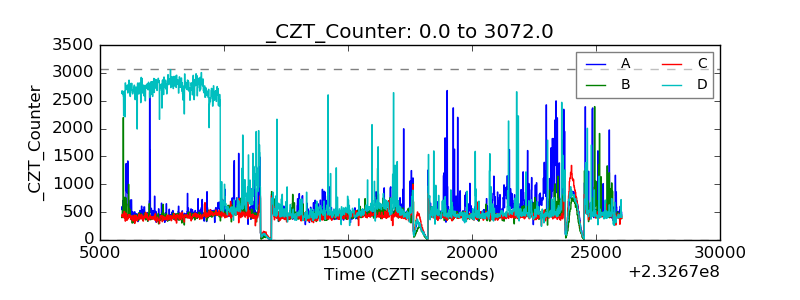

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

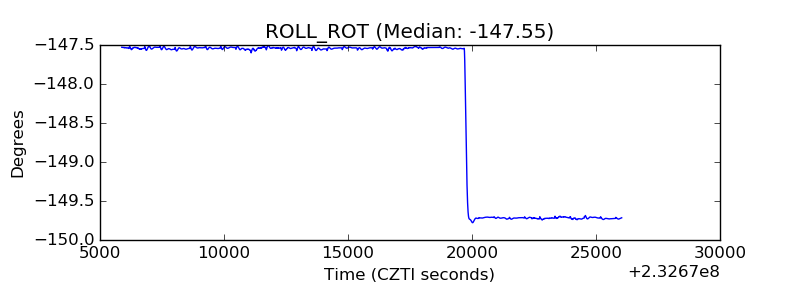

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
