| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001230_08849cztM0_level2.evt | modeM0/AS1A03_036T01_9000001230_08849cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,935,360 | 103,412,160 |
| Size | 559.7 MB | 98.6 MB |
| Events in quadrant A | 4,874,956 | 633,056 |
| Events in quadrant B | 4,063,132 | 659,702 |
| Events in quadrant C | 3,681,854 | 648,058 |
| Events in quadrant D | 4,601,743 | 623,591 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20073 | 3 |
| B | 0 | 17698 | 4 |
| C | 0 | 16786 | 6 |
| D | 0 | 19252 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8167 | 314 | 3.844741% |
| B | 8166 | 169 | 2.069557% |
| C | 8165 | 51 | 0.624617% |
| D | 8165 | 112 | 1.371709% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8682 | 8169 | 166 | 166 | 1.91% | 2.03% |  |
| B | 8682 | 8170 | 15 | 15 | 0.17% | 0.18% |  |
| C | 8682 | 8170 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8682 | 8170 | 48 | 48 | 0.55% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 746242 | 3875.21 | 938 | 917 | 192.3 |
| A | 15 | 174 | 470741 | 2442.78 | 938 | 917 | 192.3 |
| A | 13 | 251 | 15214 | 74.34 | 938 | 917 | 192.3 |
| B | 0 | 213 | 82894 | 443.66 | 962 | 938 | 184.7 |
| B | 0 | 219 | 53739 | 285.83 | 962 | 938 | 184.7 |
| B | 4 | 173 | 48175 | 255.71 | 962 | 938 | 184.7 |
| C | 8 | 128 | 10281 | 43.1 | 936 | 939 | 216.8 |
| C | 13 | 61 | 7285 | 29.28 | 936 | 939 | 216.8 |
| C | 8 | 112 | 6783 | 26.96 | 936 | 939 | 216.8 |
| D | 2 | 152 | 578672 | 2566.16 | 929 | 897 | 225.2 |
| D | 1 | 52 | 197199 | 871.87 | 929 | 897 | 225.2 |
| D | 8 | 195 | 126363 | 557.25 | 929 | 897 | 225.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

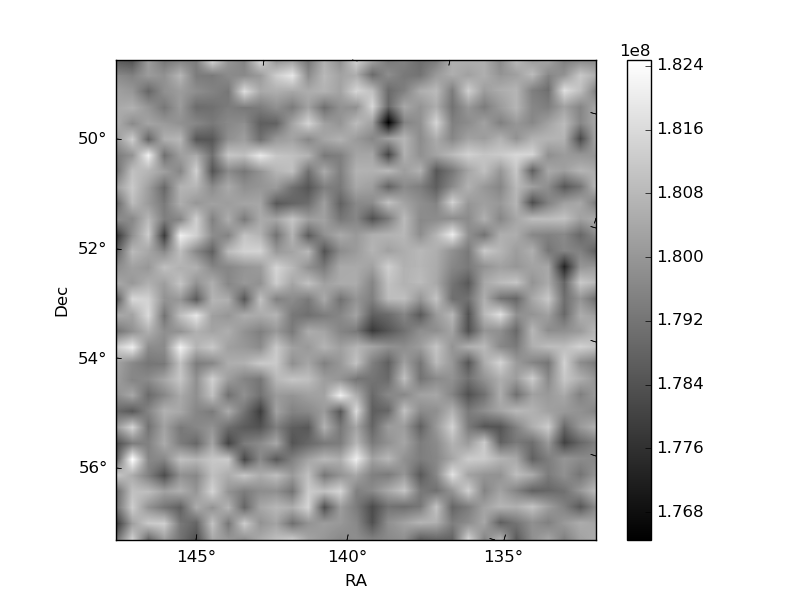

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

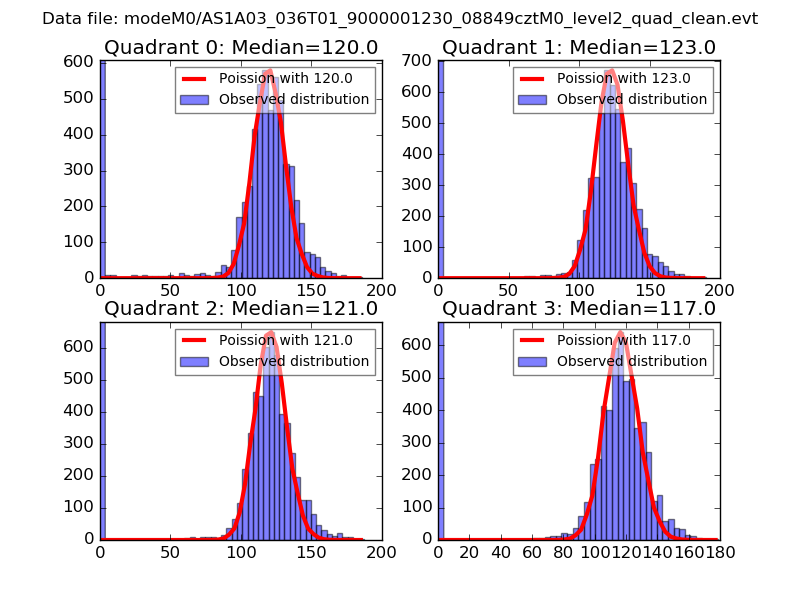

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

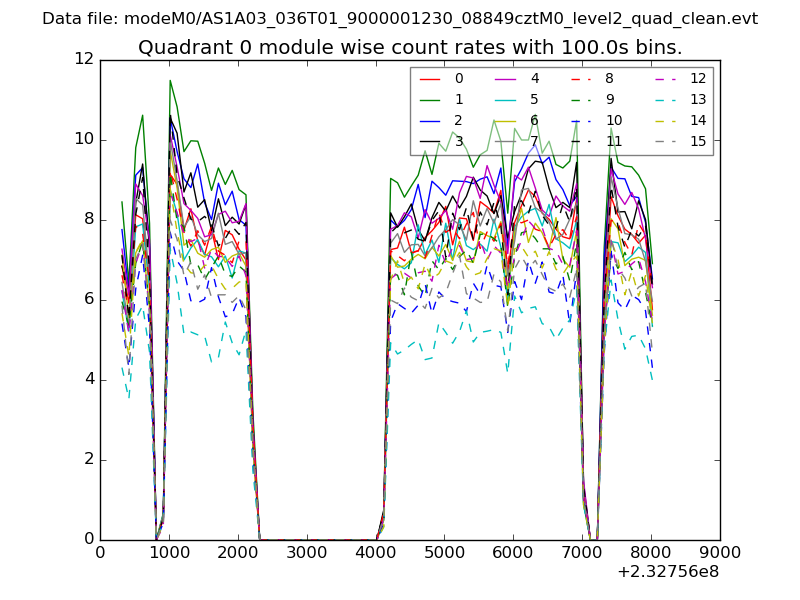

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

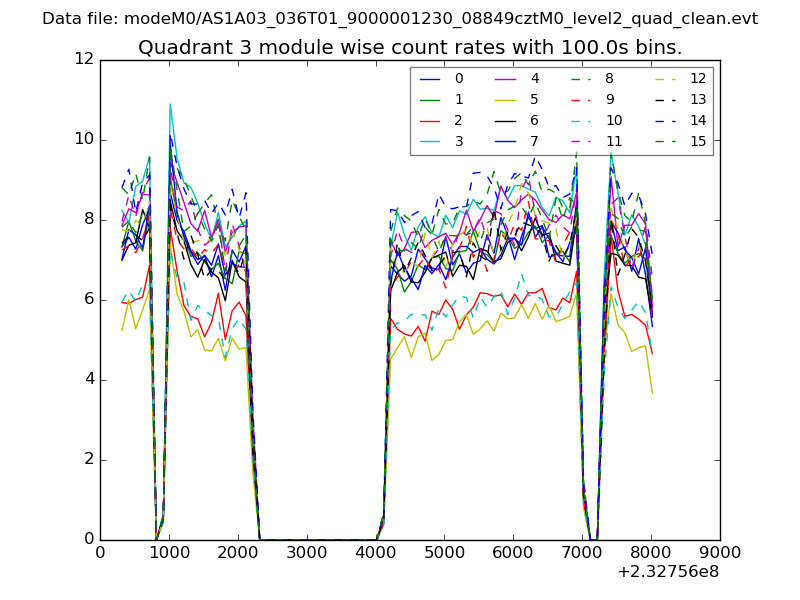

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

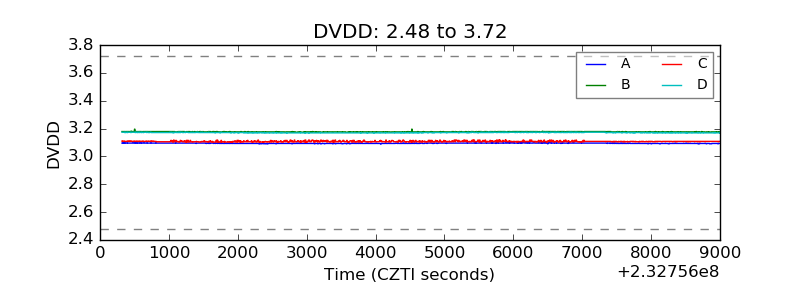

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

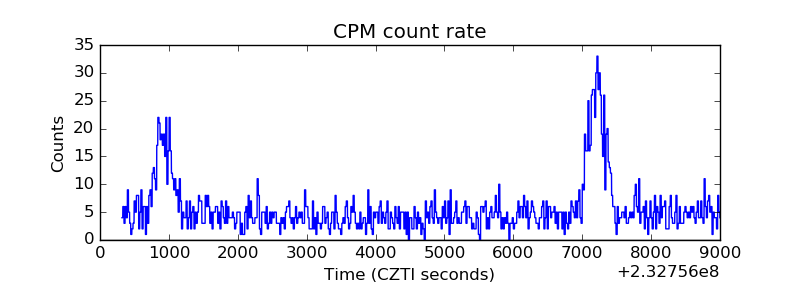

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

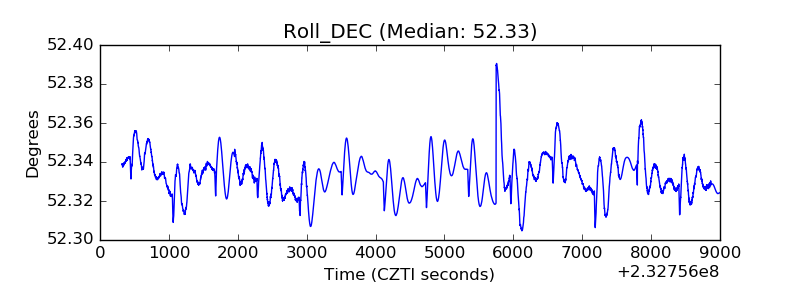

| _Roll_DEC |  |
| _Roll_RA |  |

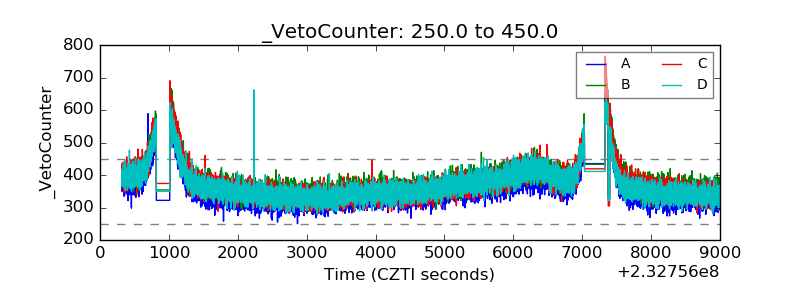

| Veto Counter |  |
