| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001230_08852cztM0_level2.evt | modeM0/AS1A03_036T01_9000001230_08852cztM0_level2_quad_clean.evt |
| Size (bytes) | 702,702,720 | 124,119,360 |
| Size | 670.1 MB | 118.4 MB |
| Events in quadrant A | 6,025,017 | 775,496 |
| Events in quadrant B | 4,734,565 | 791,599 |
| Events in quadrant C | 4,279,662 | 775,864 |
| Events in quadrant D | 5,591,219 | 749,639 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 196 | 0 |
| B | 0 | 196 | 0 |
| C | 0 | 196 | 0 |
| D | 0 | 196 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24176 | 10 |
| B | 0 | 20084 | 6 |
| C | 0 | 19436 | 4 |
| D | 0 | 22806 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9613 | 197 | 2.049308% |
| B | 9614 | 78 | 0.811317% |
| C | 9615 | 37 | 0.384815% |
| D | 9614 | 102 | 1.060953% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11086 | 9616 | 57 | 57 | 0.51% | 0.59% |  |
| B | 11086 | 9616 | 1 | 1 | 0.01% | 0.01% |  |
| C | 11086 | 9618 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11086 | 9617 | 45 | 45 | 0.41% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1580861 | 6929.04 | 1121 | 1096 | 228.0 |
| A | 13 | 164 | 34505 | 146.53 | 1121 | 1096 | 228.0 |
| A | 15 | 174 | 31123 | 131.7 | 1121 | 1096 | 228.0 |
| B | 0 | 214 | 92774 | 418.16 | 1132 | 1103 | 219.2 |
| B | 0 | 219 | 78210 | 351.72 | 1132 | 1103 | 219.2 |
| B | 0 | 213 | 54279 | 242.56 | 1132 | 1103 | 219.2 |
| C | 13 | 61 | 8411 | 28.86 | 1094 | 1100 | 253.3 |
| C | 12 | 4 | 6736 | 22.25 | 1094 | 1100 | 253.3 |
| C | 1 | 16 | 2932 | 7.23 | 1094 | 1100 | 253.3 |
| D | 8 | 195 | 434407 | 1479.88 | 1086 | 1060 | 292.8 |
| D | 2 | 152 | 255958 | 870.47 | 1086 | 1060 | 292.8 |
| D | 12 | 221 | 175528 | 595.81 | 1086 | 1060 | 292.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

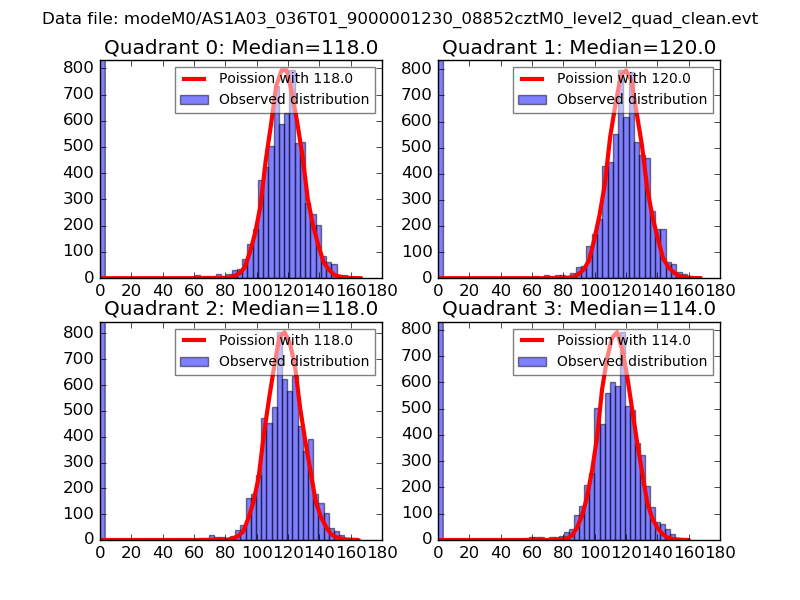

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

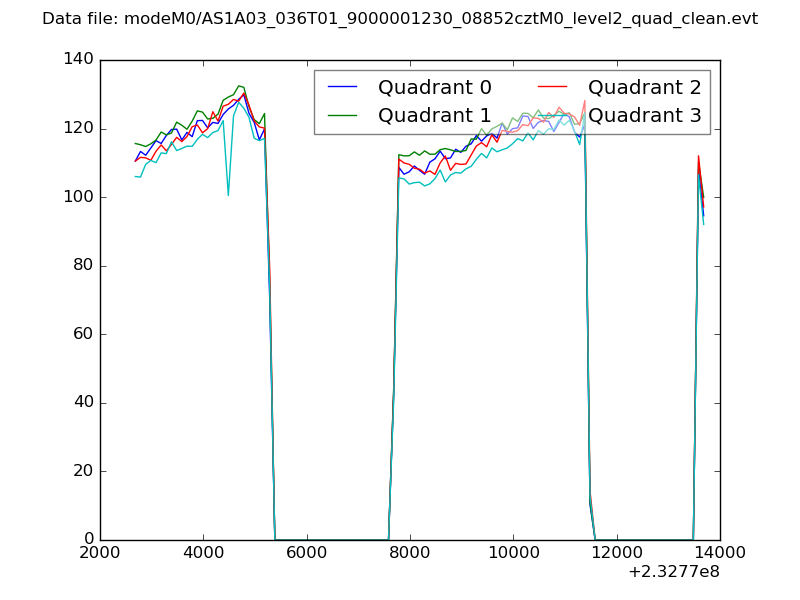

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

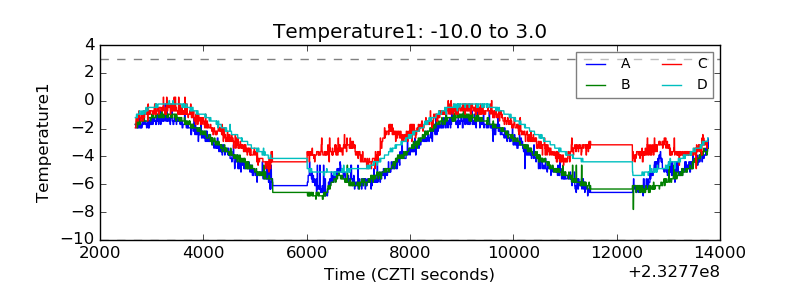

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

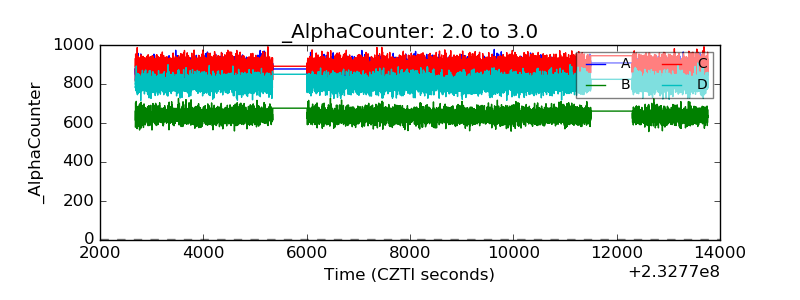

| Alpha Counter |  |

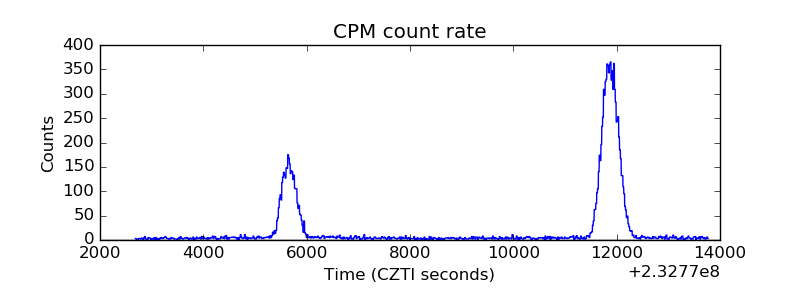

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

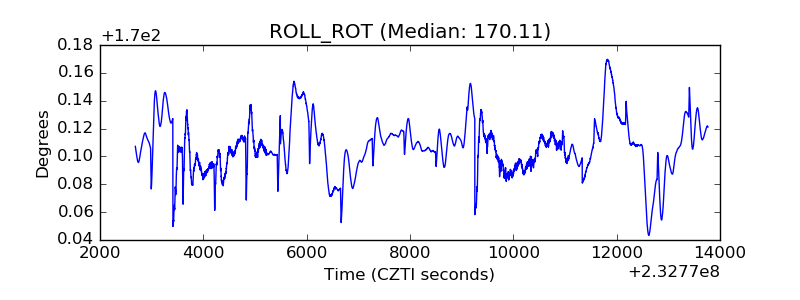

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
