| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001230_08861cztM0_level2.evt | modeM0/AS1A03_036T01_9000001230_08861cztM0_level2_quad_clean.evt |
| Size (bytes) | 323,614,080 | 53,167,680 |
| Size | 308.6 MB | 50.7 MB |
| Events in quadrant A | 2,304,109 | 329,002 |
| Events in quadrant B | 2,472,066 | 331,231 |
| Events in quadrant C | 2,061,866 | 329,223 |
| Events in quadrant D | 2,655,113 | 303,544 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 122 |
| B | 0 | 212 | 120 |
| C | 0 | 212 | 112 |
| D | 0 | 212 | 122 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 7 |
| B | 0 | 24 | 9 |
| C | 0 | 23 | 10 |
| D | 0 | 24 | 10 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22626 | 12796 |
| B | 0 | 23269 | 12968 |
| C | 0 | 21164 | 11872 |
| D | 0 | 25360 | 14721 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4502 | 45 | 0.999556% |
| B | 4535 | 93 | 2.050717% |
| C | 4531 | 26 | 0.573825% |
| D | 4390 | 79 | 1.799544% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12655 | 5057 | 7 | 7 | 0.06% | 0.14% |  |
| B | 12655 | 5100 | 51 | 51 | 0.40% | 1.00% |  |
| C | 12655 | 5087 | 0 | 0 | 0.00% | 0.00% |  |
| D | 12655 | 4941 | 59 | 59 | 0.47% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 270631 | 2528.22 | 524 | 513 | 106.8 |
| A | 5 | 16 | 6821 | 59.04 | 524 | 513 | 106.8 |
| A | 0 | 226 | 4974 | 41.75 | 524 | 513 | 106.8 |
| B | 4 | 48 | 142288 | 1413.57 | 530 | 519 | 100.3 |
| B | 10 | 16 | 104046 | 1032.26 | 530 | 519 | 100.3 |
| B | 0 | 219 | 99392 | 985.86 | 530 | 519 | 100.3 |
| C | 9 | 54 | 13617 | 108.47 | 520 | 523 | 120.7 |
| C | 14 | 234 | 10109 | 79.41 | 520 | 523 | 120.7 |
| C | 13 | 61 | 3951 | 28.4 | 520 | 523 | 120.7 |
| D | 8 | 195 | 241475 | 1970.04 | 499 | 483 | 122.3 |
| D | 1 | 52 | 232448 | 1896.24 | 499 | 483 | 122.3 |
| D | 12 | 233 | 73352 | 595.68 | 499 | 483 | 122.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

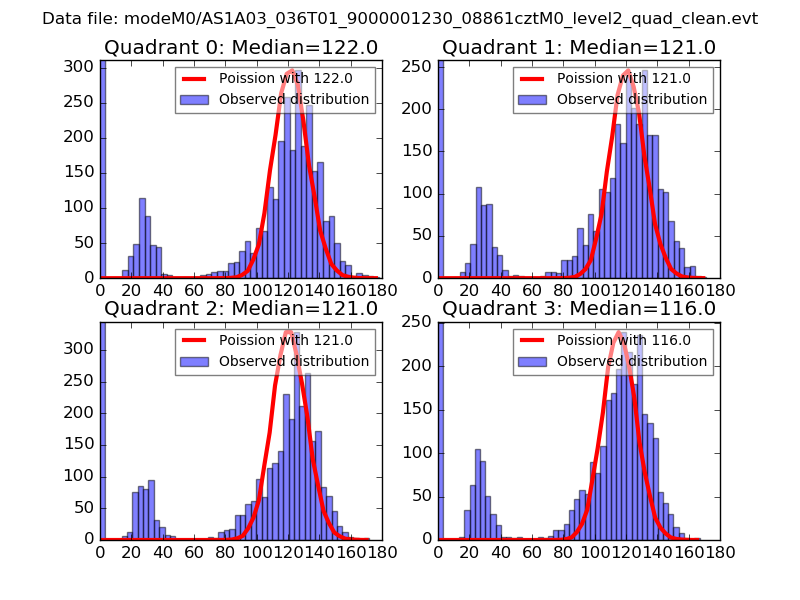

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

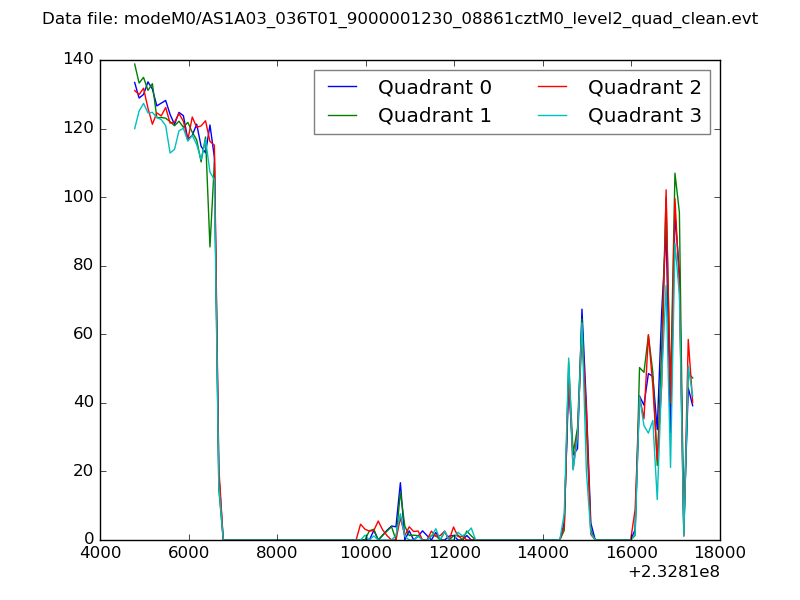

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

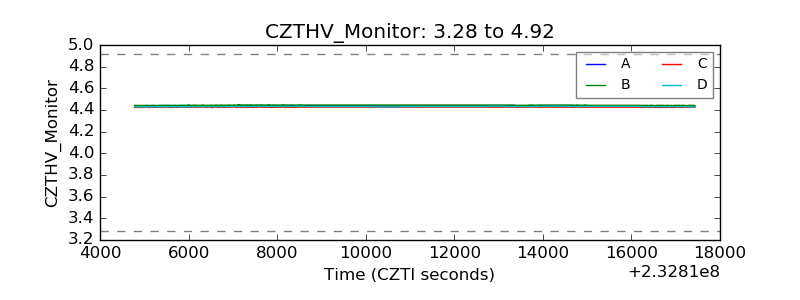

| CZT HV Monitor |  |

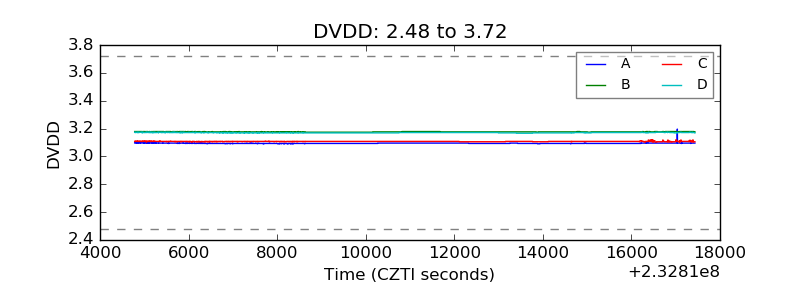

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

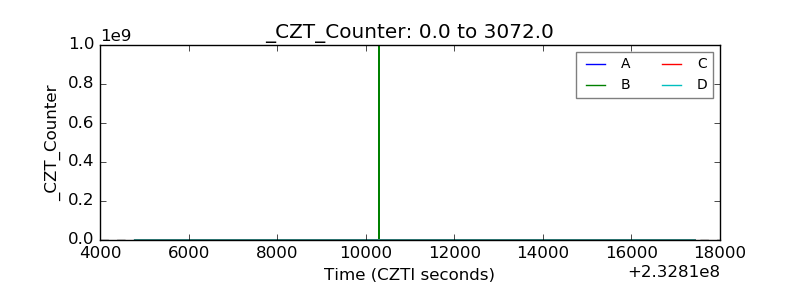

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

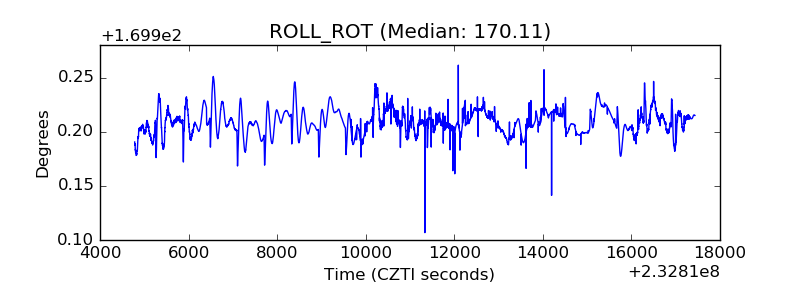

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
