| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_009T01_9000001234_08866cztM0_level2.evt | modeM0/AS1A03_009T01_9000001234_08866cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,067,492,160 | 196,375,680 |
| Size | 1018.0 MB | 187.3 MB |
| Events in quadrant A | 8,705,708 | 1,232,356 |
| Events in quadrant B | 7,362,103 | 1,258,006 |
| Events in quadrant C | 6,907,052 | 1,215,111 |
| Events in quadrant D | 8,299,585 | 1,166,468 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 316 | 0 |
| B | 0 | 316 | 0 |
| C | 0 | 316 | 0 |
| D | 0 | 316 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35744 | 4 |
| B | 0 | 32174 | 3 |
| C | 0 | 31481 | 3 |
| D | 0 | 35069 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15596 | 189 | 1.211849% |
| B | 15596 | 146 | 0.936137% |
| C | 15596 | 84 | 0.538600% |
| D | 15596 | 237 | 1.519620% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

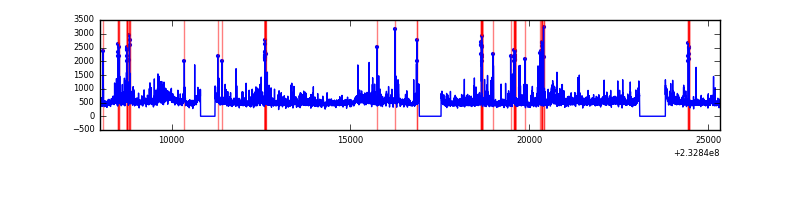

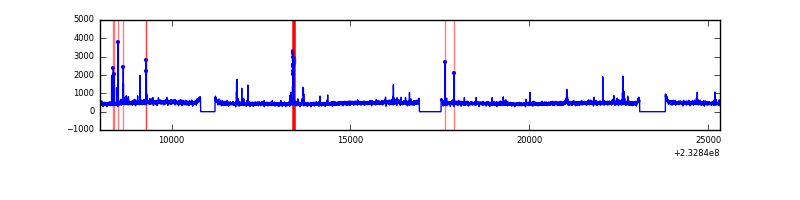

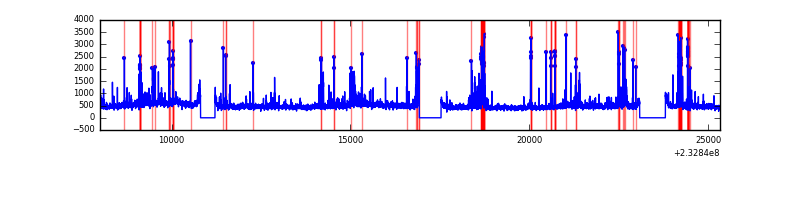

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17331 | 15598 | 72 | 72 | 0.42% | 0.46% |  |
| B | 17331 | 15598 | 34 | 34 | 0.20% | 0.22% |  |
| C | 17331 | 15598 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17331 | 15596 | 141 | 141 | 0.81% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1516916 | 4106.2 | 1805 | 1766 | 369.0 |
| A | 15 | 174 | 72834 | 192.6 | 1805 | 1766 | 369.0 |
| A | 13 | 248 | 67606 | 178.43 | 1805 | 1766 | 369.0 |
| B | 10 | 16 | 146100 | 415.54 | 1820 | 1772 | 347.3 |
| B | 4 | 48 | 52723 | 146.7 | 1820 | 1772 | 347.3 |
| B | 12 | 111 | 37942 | 104.14 | 1820 | 1772 | 347.3 |
| C | 14 | 67 | 18477 | 40.87 | 1764 | 1773 | 408.7 |
| C | 13 | 61 | 13018 | 27.52 | 1764 | 1773 | 408.7 |
| C | 1 | 3 | 7841 | 14.85 | 1764 | 1773 | 408.7 |
| D | 8 | 195 | 601939 | 1428.91 | 1742 | 1700 | 420.1 |
| D | 2 | 14 | 454307 | 1077.46 | 1742 | 1700 | 420.1 |
| D | 1 | 52 | 358180 | 848.62 | 1742 | 1700 | 420.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

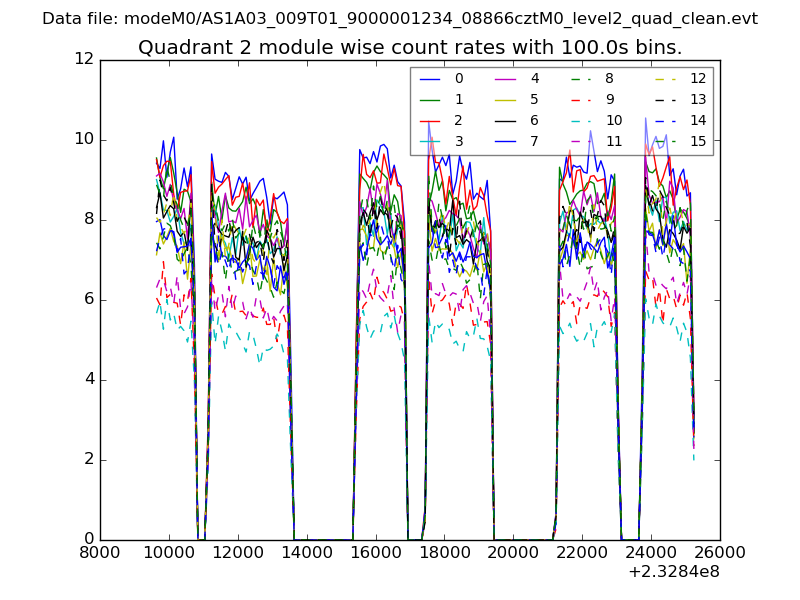

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

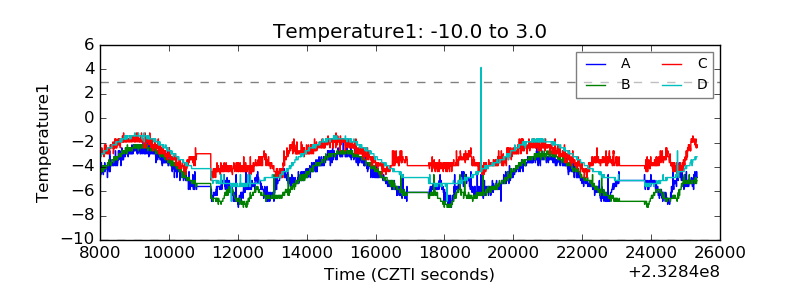

| Temperature 1 |  |

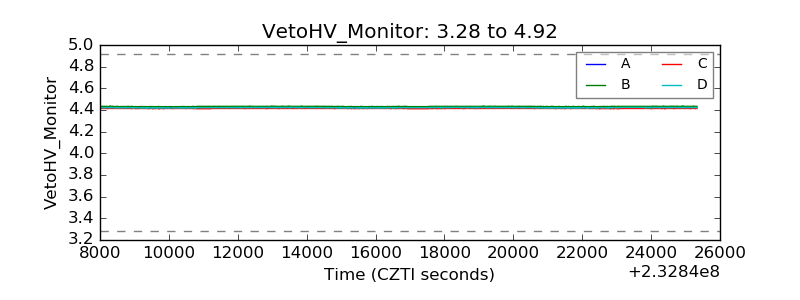

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

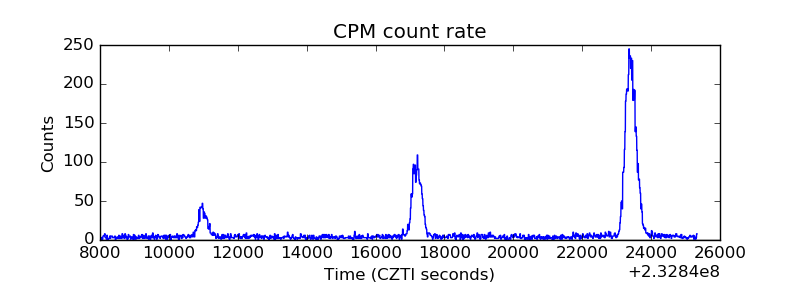

| _CPM_Rate |  |

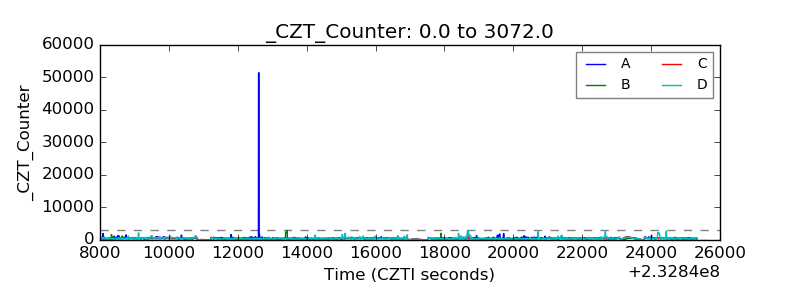

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
