| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_065T01_9000001238_08885cztM0_level2.evt | modeM0/AS1A03_065T01_9000001238_08885cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,048,640 | 76,518,720 |
| Size | 468.3 MB | 73.0 MB |
| Events in quadrant A | 3,953,251 | 467,491 |
| Events in quadrant B | 3,346,960 | 475,725 |
| Events in quadrant C | 3,225,682 | 463,088 |
| Events in quadrant D | 3,897,079 | 449,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15886 | 3 |
| B | 0 | 14035 | 2 |
| C | 0 | 13693 | 2 |
| D | 0 | 15449 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6610 | 114 | 1.724660% |
| B | 6610 | 80 | 1.210287% |
| C | 6610 | 51 | 0.771558% |
| D | 6610 | 91 | 1.376702% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7800 | 6610 | 23 | 23 | 0.29% | 0.35% |  |
| B | 7800 | 6610 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7800 | 6610 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7800 | 6610 | 29 | 29 | 0.37% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 454800 | 2617.54 | 856 | 843 | 173.4 |
| A | 15 | 174 | 172948 | 992.37 | 856 | 843 | 173.4 |
| A | 5 | 16 | 35265 | 198.48 | 856 | 843 | 173.4 |
| B | 12 | 111 | 18092 | 107.66 | 853 | 834 | 160.3 |
| B | 4 | 80 | 15982 | 94.5 | 853 | 834 | 160.3 |
| B | 11 | 111 | 14634 | 86.09 | 853 | 834 | 160.3 |
| C | 8 | 128 | 15586 | 77.44 | 819 | 823 | 190.6 |
| C | 8 | 112 | 6538 | 29.98 | 819 | 823 | 190.6 |
| C | 13 | 61 | 6238 | 28.41 | 819 | 823 | 190.6 |
| D | 8 | 195 | 433262 | 2110.96 | 819 | 799 | 204.9 |
| D | 2 | 14 | 67317 | 324.69 | 819 | 799 | 204.9 |
| D | 7 | 71 | 60656 | 292.18 | 819 | 799 | 204.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

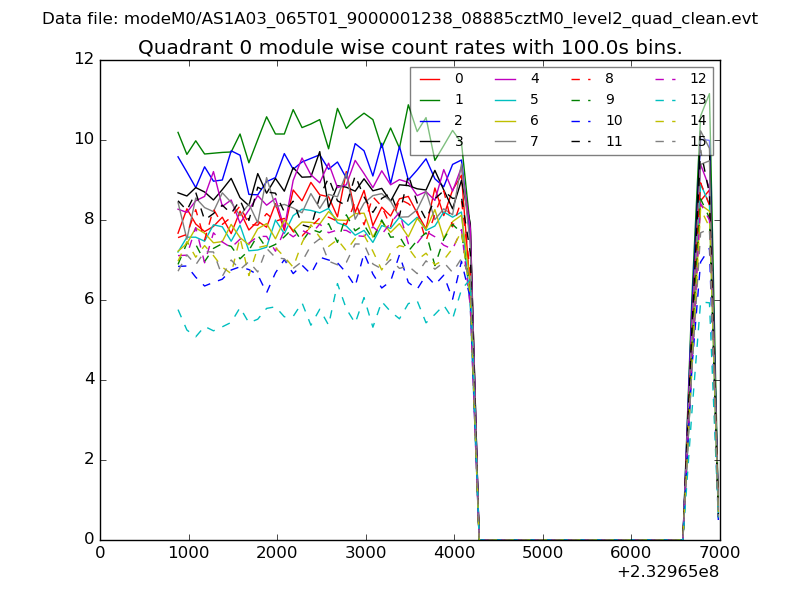

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

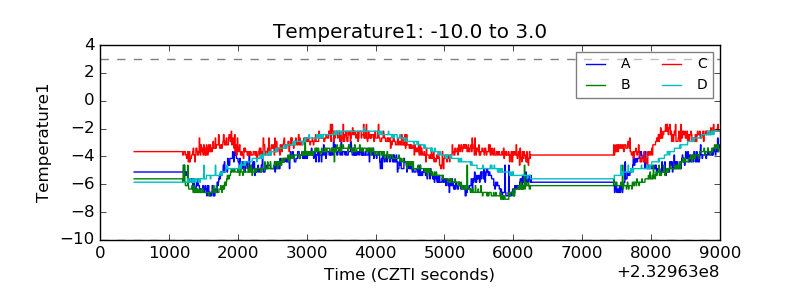

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

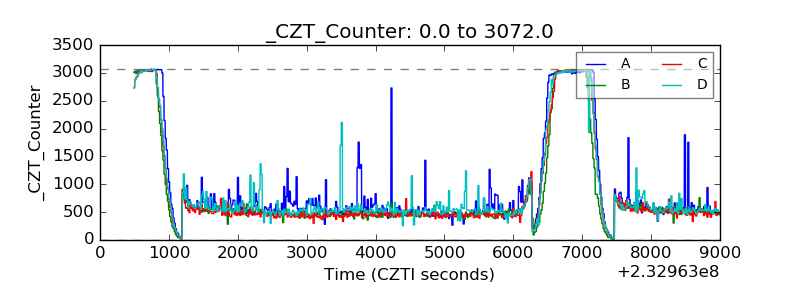

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

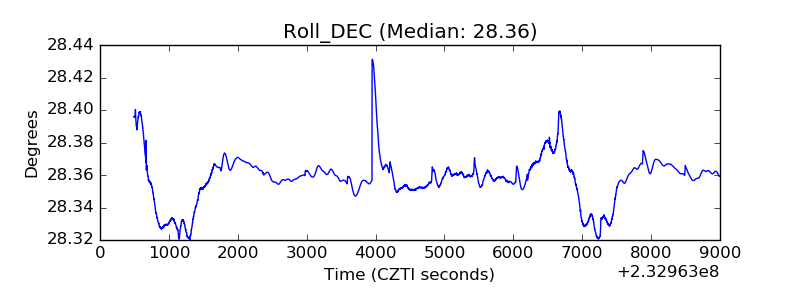

| _Roll_DEC |  |

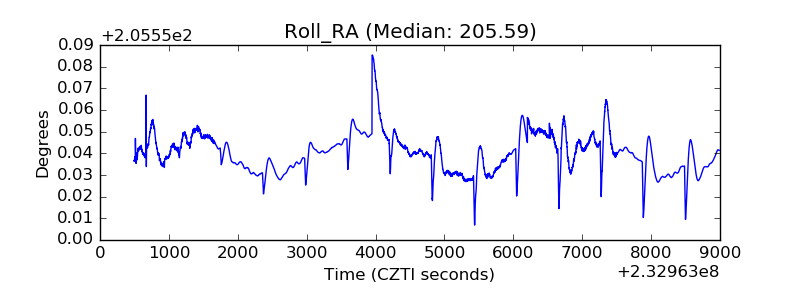

| _Roll_RA |  |

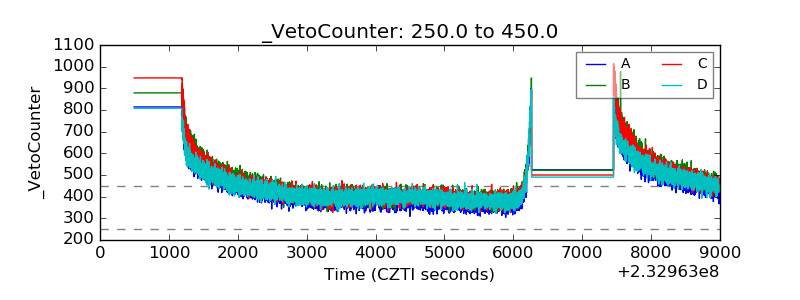

| Veto Counter |  |
