| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_046T01_9000001236_08874cztM0_level2.evt | modeM0/AS1G07_046T01_9000001236_08874cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,083,520 | 79,649,280 |
| Size | 463.6 MB | 76.0 MB |
| Events in quadrant A | 3,710,322 | 497,803 |
| Events in quadrant B | 3,243,792 | 500,916 |
| Events in quadrant C | 3,811,357 | 489,107 |
| Events in quadrant D | 3,526,078 | 482,194 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15223 | 3 |
| B | 0 | 13498 | 2 |
| C | 0 | 15539 | 2 |
| D | 0 | 14254 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6325 | 103 | 1.628458% |
| B | 6325 | 82 | 1.296443% |
| C | 6325 | 193 | 3.051383% |
| D | 6325 | 59 | 0.932806% |

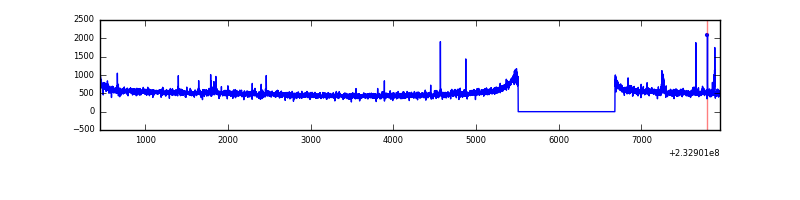

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 6325 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7495 | 6325 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7495 | 6325 | 132 | 132 | 1.76% | 2.09% |  |
| D | 7495 | 6326 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 549352 | 3310.85 | 817 | 801 | 165.7 |
| A | 5 | 16 | 8347 | 45.54 | 817 | 801 | 165.7 |
| A | 0 | 226 | 7663 | 41.42 | 817 | 801 | 165.7 |
| B | 12 | 111 | 16412 | 99.1 | 822 | 806 | 157.5 |
| B | 10 | 252 | 15152 | 91.1 | 822 | 806 | 157.5 |
| B | 0 | 213 | 15031 | 90.33 | 822 | 806 | 157.5 |
| C | 9 | 68 | 702929 | 3829.9 | 793 | 800 | 183.3 |
| C | 1 | 3 | 12791 | 65.41 | 793 | 800 | 183.3 |
| C | 13 | 61 | 5978 | 28.24 | 793 | 800 | 183.3 |
| D | 8 | 195 | 322874 | 1619.26 | 796 | 780 | 198.9 |
| D | 1 | 52 | 143807 | 719.04 | 796 | 780 | 198.9 |
| D | 2 | 234 | 21497 | 104.15 | 796 | 780 | 198.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

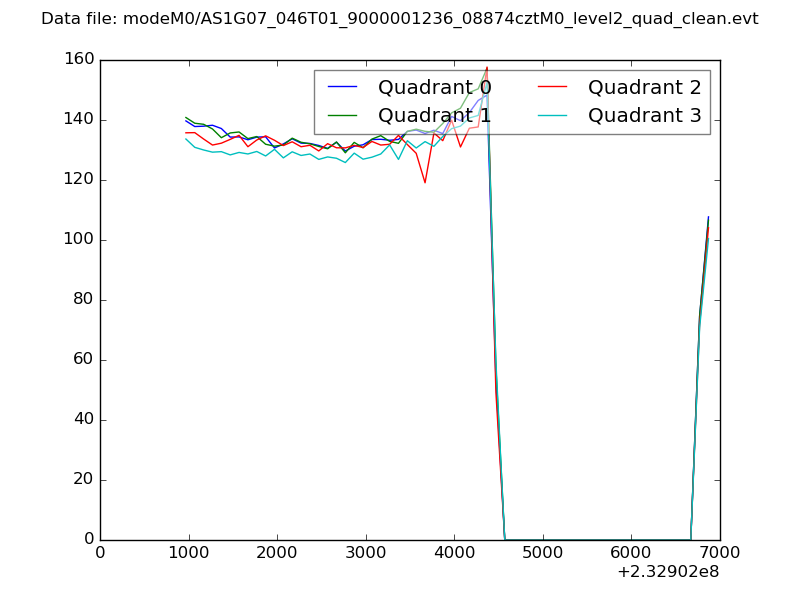

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

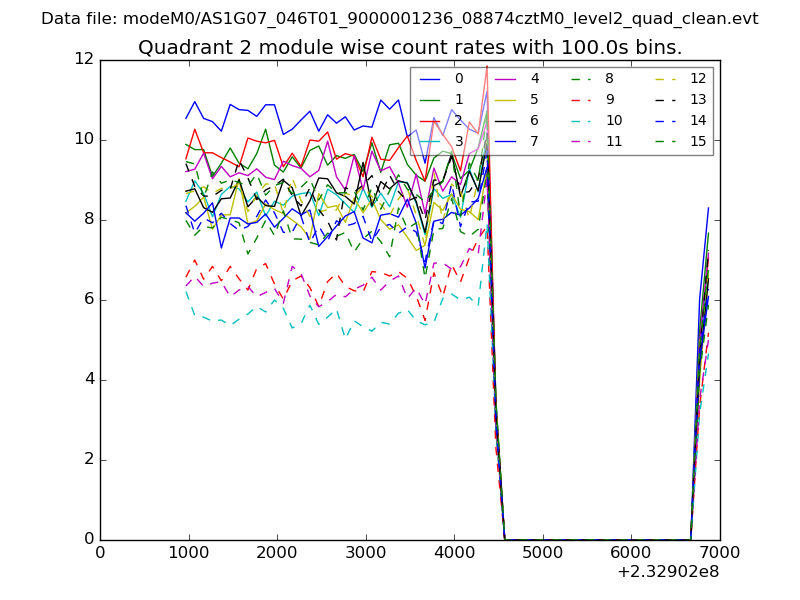

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

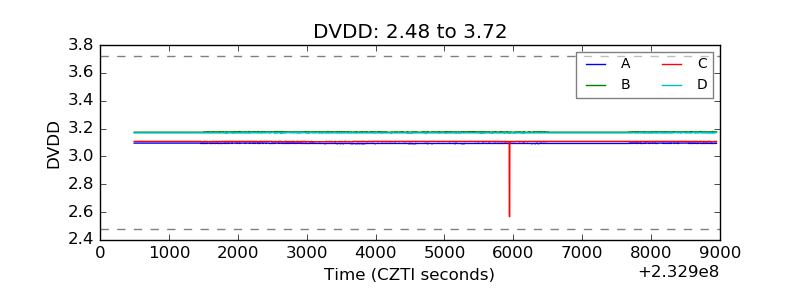

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

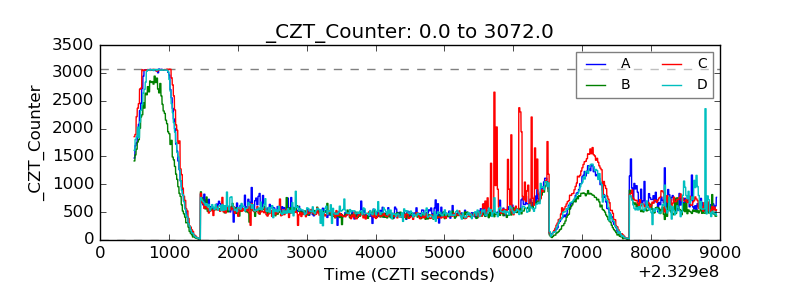

| CZT Counter |  |
| +2.5 Volts monitor |  |

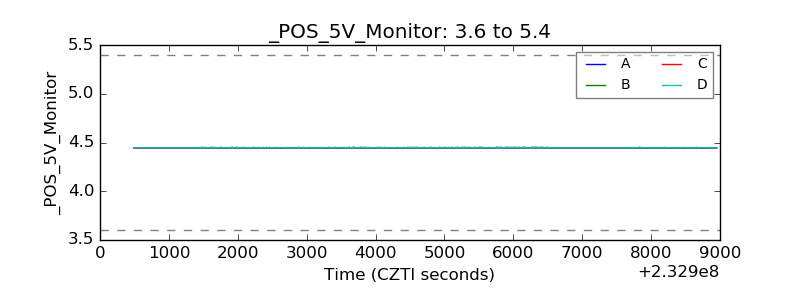

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
