| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08895cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08895cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,627,588,160 | 444,669,120 |
| Size | 2.4 GB | 424.1 MB |
| Events in quadrant A | 21,340,328 | 2,789,592 |
| Events in quadrant B | 17,613,344 | 2,830,250 |
| Events in quadrant C | 15,768,496 | 2,742,625 |
| Events in quadrant D | 22,450,286 | 2,656,890 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 726 | 0 |
| B | 0 | 726 | 0 |
| C | 0 | 726 | 0 |
| D | 0 | 726 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 87039 | 7 |
| B | 0 | 76074 | 6 |
| C | 0 | 72906 | 6 |
| D | 0 | 90032 | 11 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 35658 | 439 | 1.231140% |
| B | 35658 | 278 | 0.779629% |
| C | 35658 | 105 | 0.294464% |
| D | 35656 | 975 | 2.734463% |

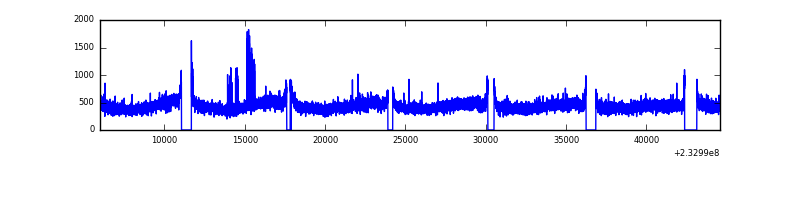

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38588 | 35663 | 128 | 128 | 0.33% | 0.36% |  |
| B | 38588 | 35664 | 42 | 42 | 0.11% | 0.12% |  |
| C | 38588 | 35665 | 0 | 0 | 0.00% | 0.00% |  |
| D | 38588 | 35664 | 695 | 695 | 1.80% | 1.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 4840812 | 5735.52 | 4137 | 4049 | 843.3 |
| A | 0 | 128 | 335706 | 393.28 | 4137 | 4049 | 843.3 |
| A | 15 | 174 | 73556 | 82.42 | 4137 | 4049 | 843.3 |
| B | 4 | 173 | 311807 | 394.1 | 4158 | 4060 | 780.9 |
| B | 6 | 51 | 307546 | 388.65 | 4158 | 4060 | 780.9 |
| B | 0 | 214 | 282775 | 356.93 | 4158 | 4060 | 780.9 |
| C | 9 | 68 | 190295 | 202.72 | 3984 | 4000 | 919.0 |
| C | 13 | 61 | 31009 | 29.39 | 3984 | 4000 | 919.0 |
| C | 8 | 128 | 15868 | 12.91 | 3984 | 4000 | 919.0 |
| D | 8 | 195 | 2993425 | 2924.98 | 3938 | 3847 | 1022.1 |
| D | 1 | 52 | 1690184 | 1649.9 | 3938 | 3847 | 1022.1 |
| D | 7 | 71 | 1079975 | 1052.87 | 3938 | 3847 | 1022.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

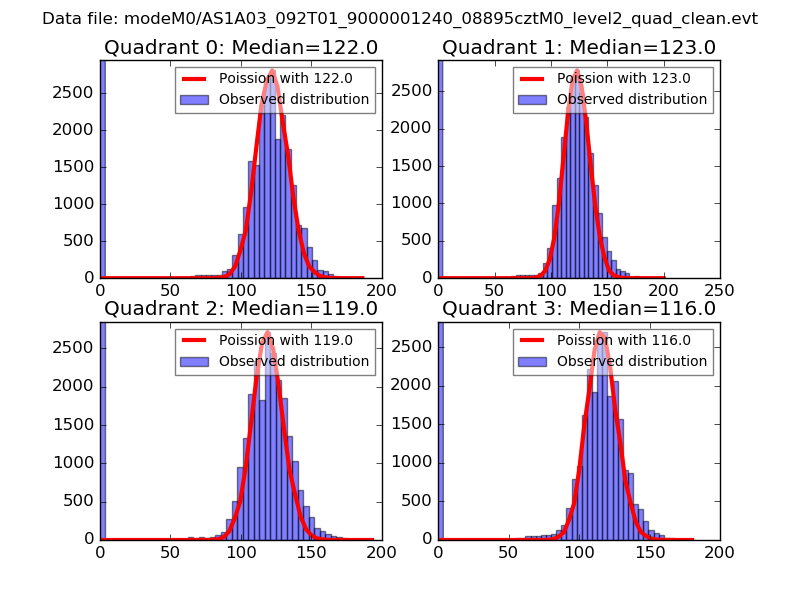

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

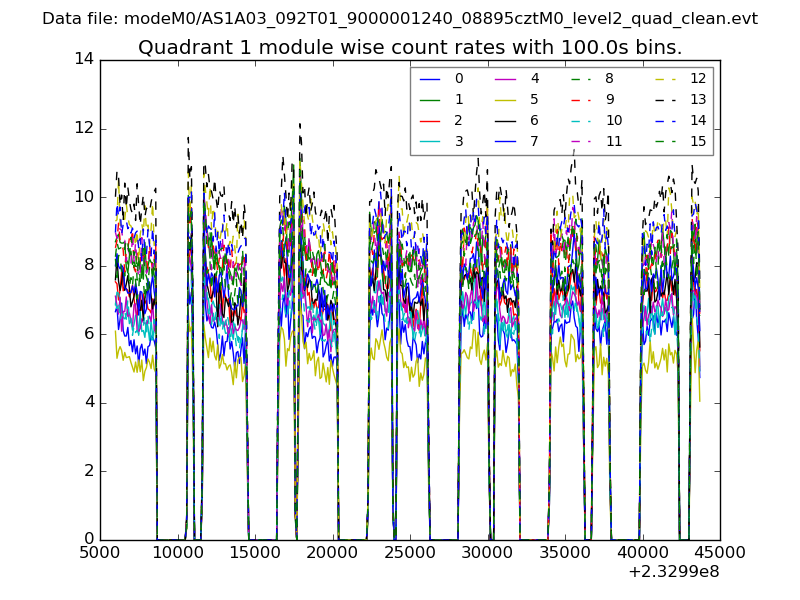

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

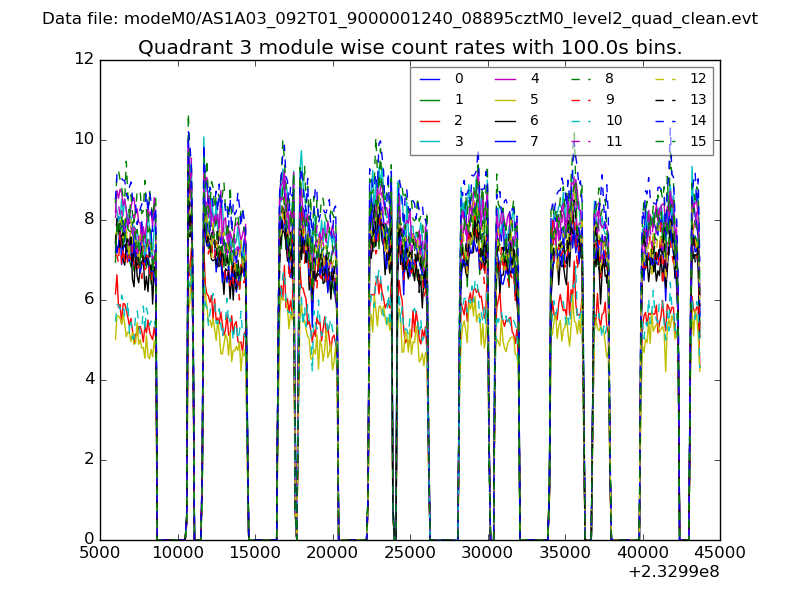

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

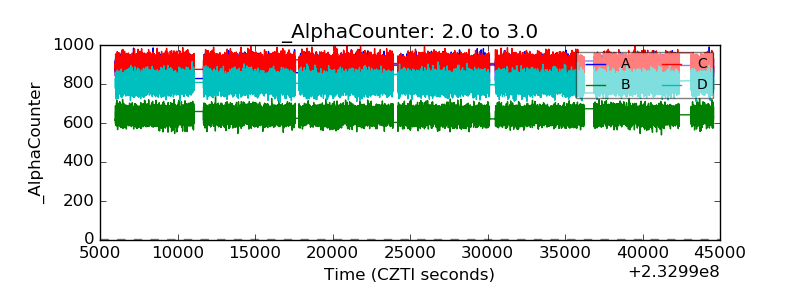

| Alpha Counter |  |

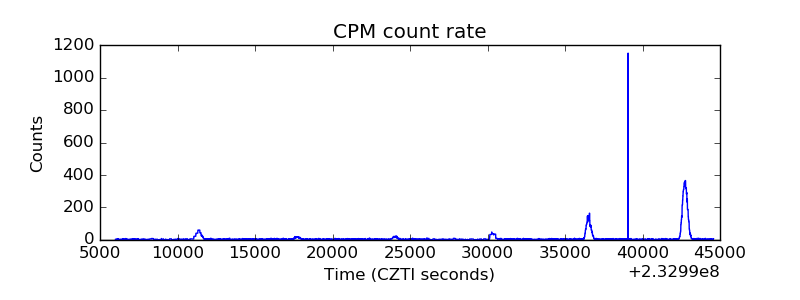

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

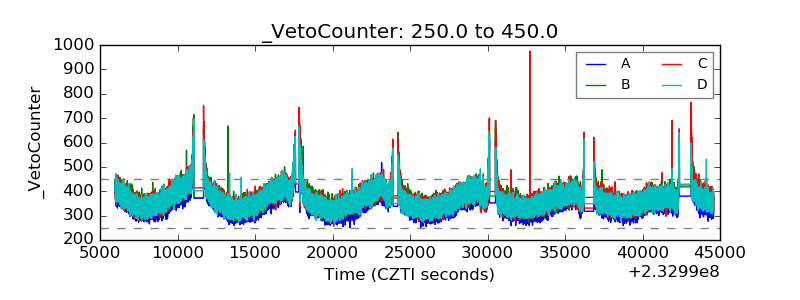

| Veto Counter |  |
