| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08902cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08902cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,367,680 | 108,457,920 |
| Size | 469.6 MB | 103.4 MB |
| Events in quadrant A | 3,631,415 | 723,810 |
| Events in quadrant B | 3,242,357 | 733,034 |
| Events in quadrant C | 2,881,260 | 712,353 |
| Events in quadrant D | 4,738,922 | 685,928 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14621 | 2 |
| B | 0 | 13421 | 1 |
| C | 0 | 12650 | 1 |
| D | 0 | 18322 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6153 | 116 | 1.885259% |
| B | 6153 | 80 | 1.300179% |
| C | 6153 | 56 | 0.910125% |
| D | 6153 | 123 | 1.999025% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7428 | 6153 | 36 | 36 | 0.48% | 0.59% |  |
| B | 7428 | 6153 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7428 | 6153 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7428 | 6153 | 84 | 84 | 1.13% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 533716 | 3405.11 | 774 | 759 | 156.5 |
| A | 5 | 16 | 106906 | 678.18 | 774 | 759 | 156.5 |
| A | 0 | 226 | 7403 | 42.45 | 774 | 759 | 156.5 |
| B | 10 | 16 | 162153 | 1096.75 | 769 | 750 | 147.2 |
| B | 0 | 214 | 53503 | 358.46 | 769 | 750 | 147.2 |
| B | 12 | 111 | 14898 | 96.13 | 769 | 750 | 147.2 |
| C | 12 | 4 | 5855 | 30.34 | 737 | 740 | 168.6 |
| C | 13 | 61 | 5729 | 29.6 | 737 | 740 | 168.6 |
| C | 3 | 202 | 1815 | 6.38 | 737 | 740 | 168.6 |
| D | 1 | 52 | 1071150 | 5590.66 | 739 | 723 | 191.5 |
| D | 8 | 195 | 414868 | 2163.01 | 739 | 723 | 191.5 |
| D | 2 | 16 | 112537 | 583.99 | 739 | 723 | 191.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

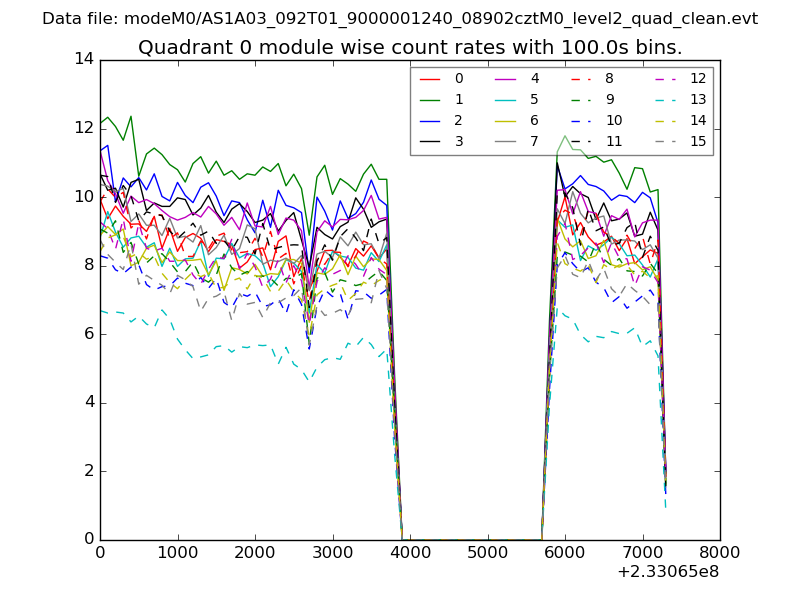

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

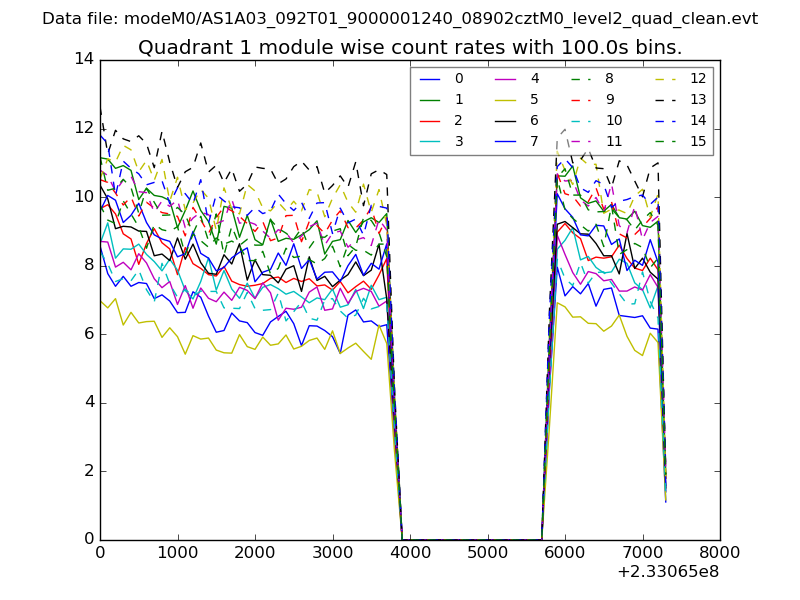

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

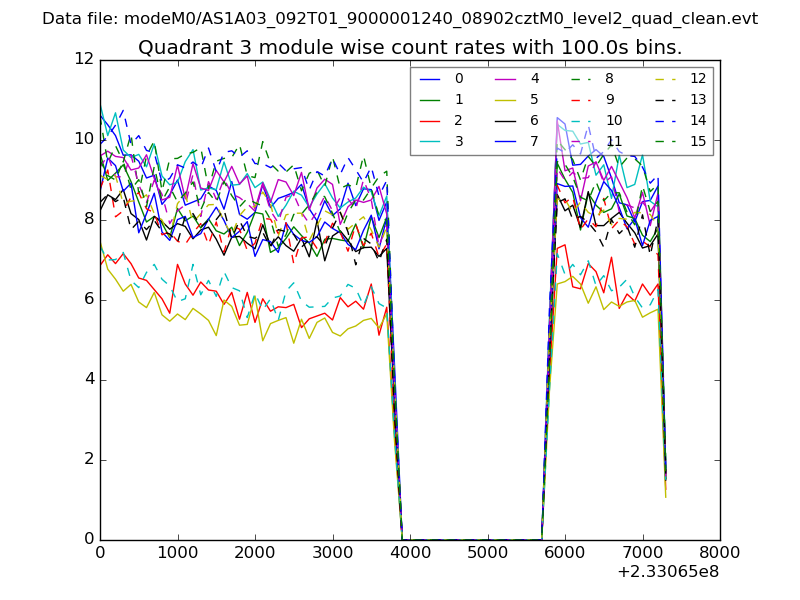

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

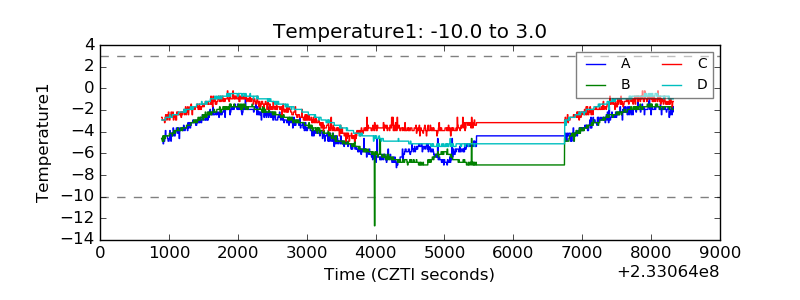

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

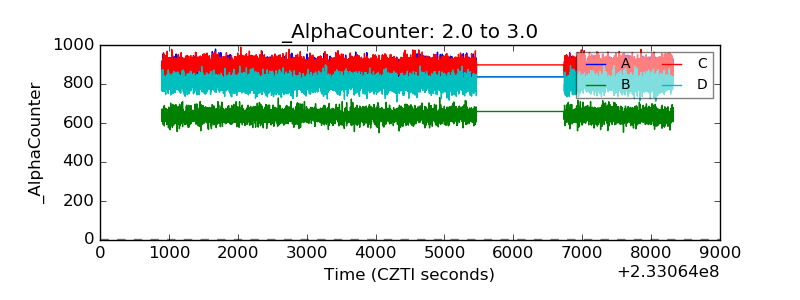

| Alpha Counter |  |

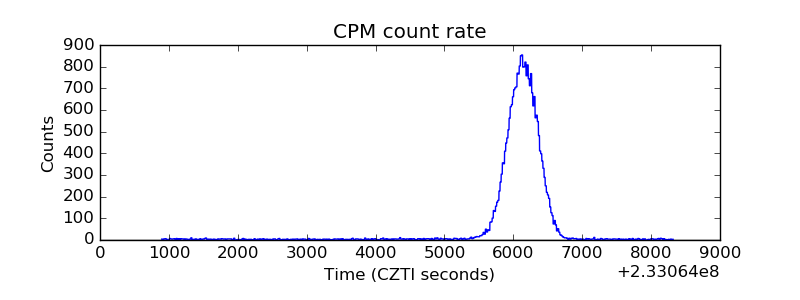

| _CPM_Rate |  |

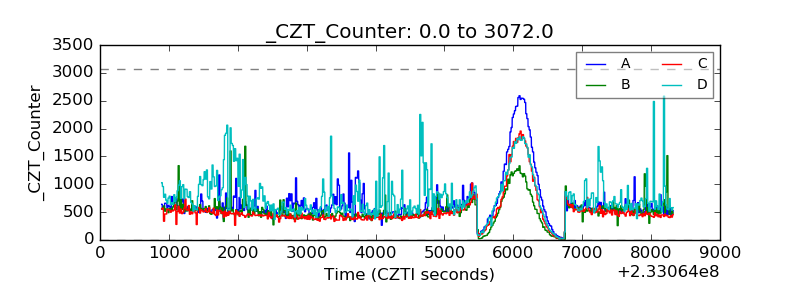

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
