| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08903cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08903cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,908,480 | 98,697,600 |
| Size | 445.3 MB | 94.1 MB |
| Events in quadrant A | 3,593,231 | 645,558 |
| Events in quadrant B | 3,258,313 | 655,411 |
| Events in quadrant C | 2,770,013 | 638,160 |
| Events in quadrant D | 4,098,858 | 618,319 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14486 | 2 |
| B | 0 | 13761 | 1 |
| C | 0 | 12625 | 1 |
| D | 0 | 16182 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6190 | 172 | 2.778675% |
| B | 6190 | 83 | 1.340872% |
| C | 6190 | 16 | 0.258481% |
| D | 6190 | 199 | 3.214863% |

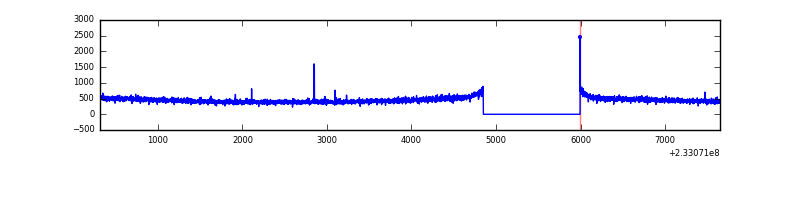

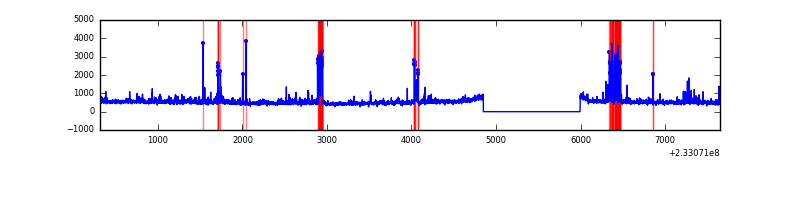

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7335 | 6191 | 106 | 106 | 1.45% | 1.71% |  |
| B | 7335 | 6191 | 25 | 25 | 0.34% | 0.40% |  |
| C | 7335 | 6191 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7335 | 6190 | 119 | 119 | 1.62% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 398844 | 2656.67 | 739 | 724 | 149.9 |
| A | 5 | 16 | 305070 | 2030.92 | 739 | 724 | 149.9 |
| A | 15 | 174 | 36836 | 240.98 | 739 | 724 | 149.9 |
| B | 10 | 16 | 243370 | 1705.62 | 743 | 726 | 142.3 |
| B | 0 | 214 | 88322 | 615.74 | 743 | 726 | 142.3 |
| B | 0 | 231 | 14574 | 97.34 | 743 | 726 | 142.3 |
| C | 3 | 233 | 8158 | 45.68 | 707 | 710 | 163.0 |
| C | 13 | 61 | 5545 | 29.65 | 707 | 710 | 163.0 |
| C | 10 | 223 | 2596 | 11.57 | 707 | 710 | 163.0 |
| D | 1 | 52 | 516221 | 2745.44 | 706 | 689 | 187.8 |
| D | 8 | 195 | 435722 | 2316.75 | 706 | 689 | 187.8 |
| D | 2 | 14 | 107460 | 568.6 | 706 | 689 | 187.8 |

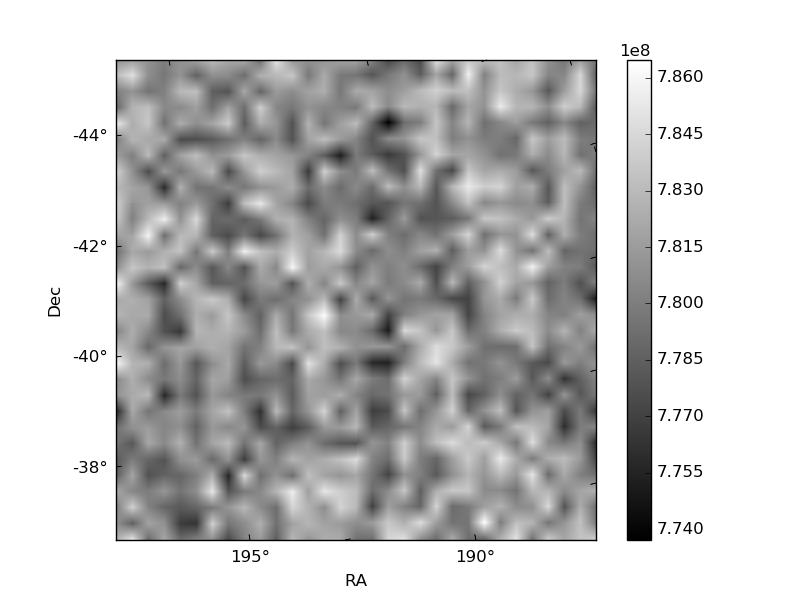

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

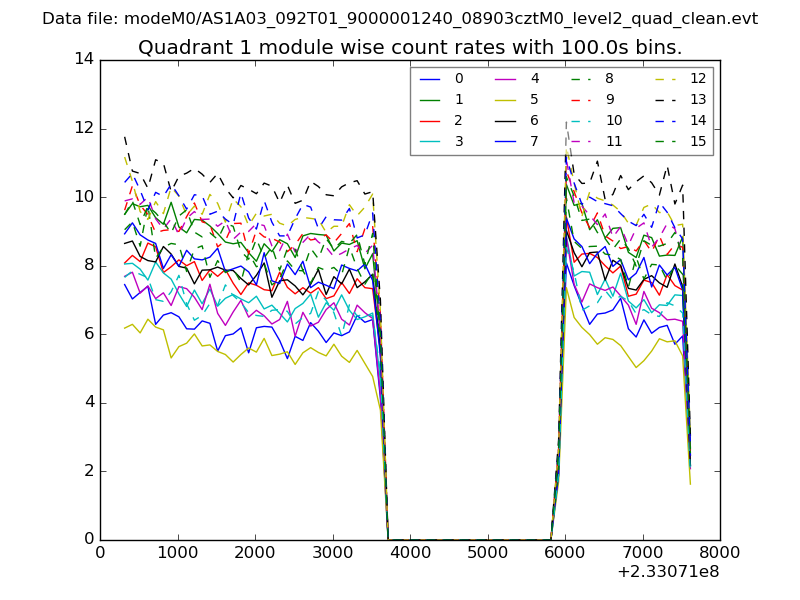

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

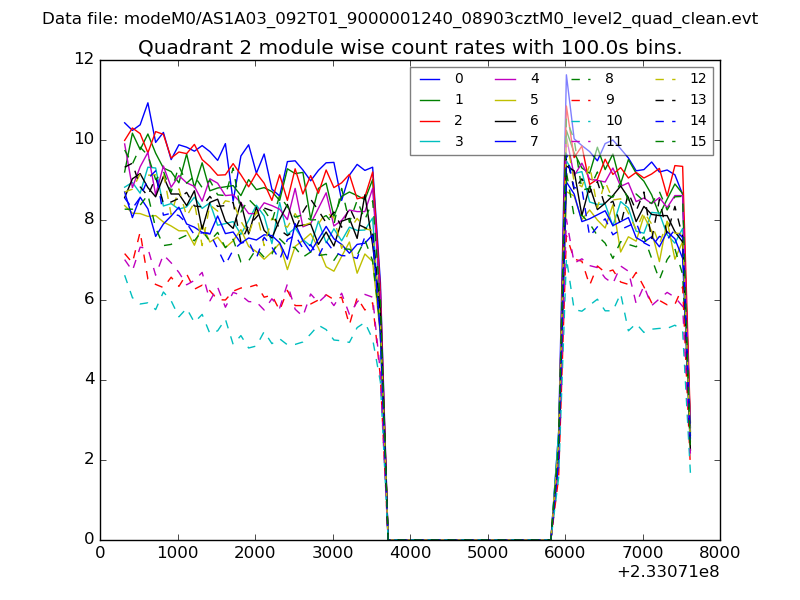

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

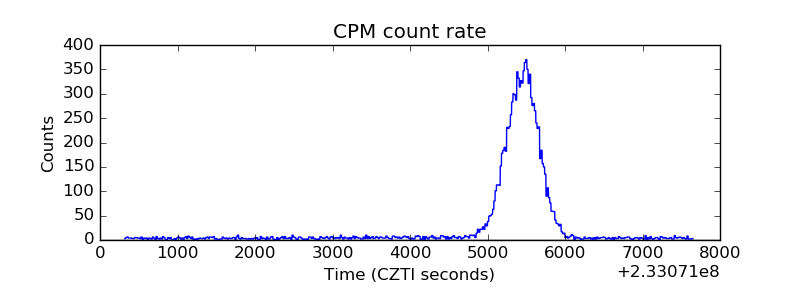

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

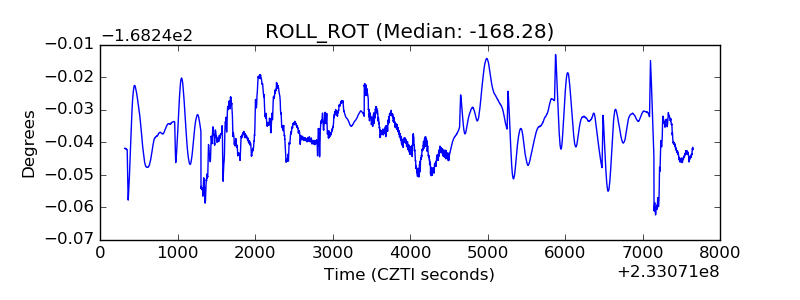

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

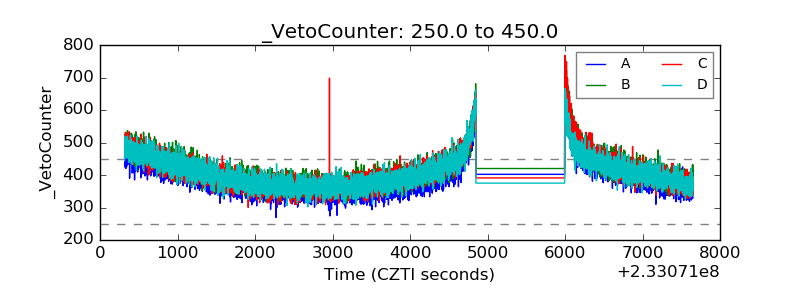

| Veto Counter |  |
