| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08924cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08924cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,259,686,080 | 232,868,160 |
| Size | 1.2 GB | 222.1 MB |
| Events in quadrant A | 9,591,509 | 1,458,295 |
| Events in quadrant B | 8,674,324 | 1,473,798 |
| Events in quadrant C | 8,082,064 | 1,438,391 |
| Events in quadrant D | 10,543,466 | 1,400,225 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40495 | 7 |
| B | 0 | 38406 | 6 |
| C | 0 | 37573 | 4 |
| D | 0 | 44784 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18602 | 227 | 1.220299% |
| B | 18602 | 86 | 0.462316% |
| C | 18603 | 41 | 0.220395% |
| D | 18603 | 251 | 1.349245% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20833 | 18608 | 139 | 139 | 0.67% | 0.75% |  |
| B | 20833 | 18607 | 9 | 9 | 0.04% | 0.05% |  |
| C | 20833 | 18608 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20833 | 18608 | 179 | 179 | 0.86% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 790148 | 1812.84 | 2133 | 2084 | 434.7 |
| A | 15 | 174 | 440608 | 1008.77 | 2133 | 2084 | 434.7 |
| A | 5 | 16 | 127661 | 288.87 | 2133 | 2084 | 434.7 |
| B | 10 | 16 | 73101 | 174.81 | 2150 | 2095 | 406.2 |
| B | 0 | 214 | 70614 | 168.69 | 2150 | 2095 | 406.2 |
| B | 0 | 231 | 45120 | 105.92 | 2150 | 2095 | 406.2 |
| C | 13 | 61 | 15644 | 28.41 | 2064 | 2066 | 477.9 |
| C | 8 | 128 | 13804 | 24.56 | 2064 | 2066 | 477.9 |
| C | 8 | 112 | 7930 | 12.27 | 2064 | 2066 | 477.9 |
| D | 12 | 233 | 955221 | 1766.71 | 2050 | 1998 | 539.5 |
| D | 13 | 105 | 646521 | 1194.56 | 2050 | 1998 | 539.5 |
| D | 8 | 195 | 435800 | 804.01 | 2050 | 1998 | 539.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

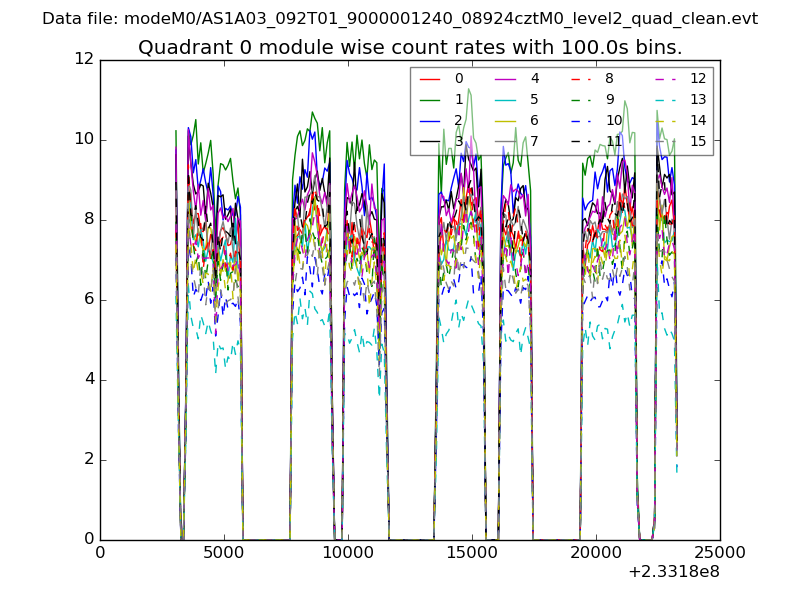

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

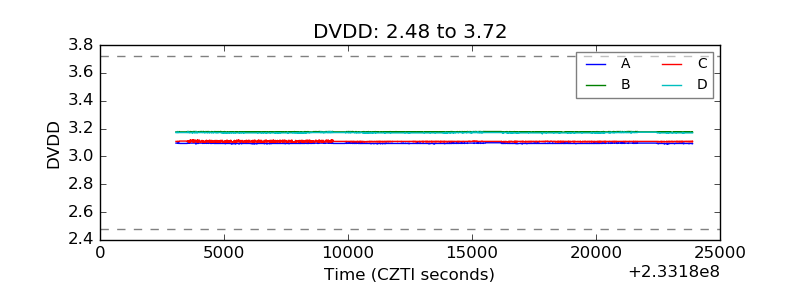

| D_VDD |  |

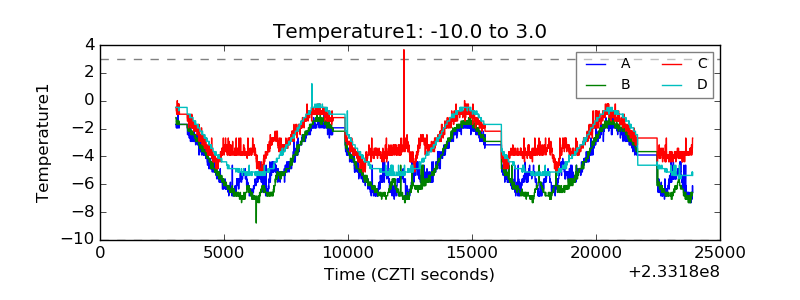

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

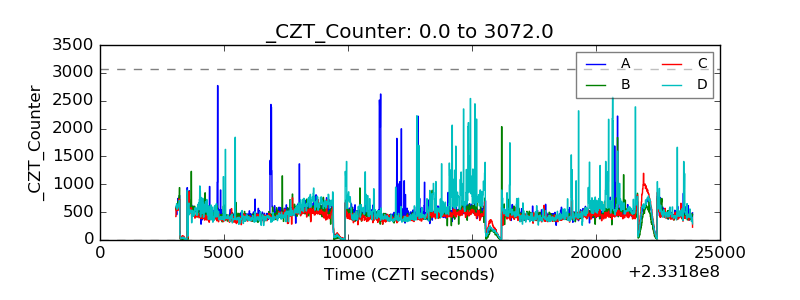

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

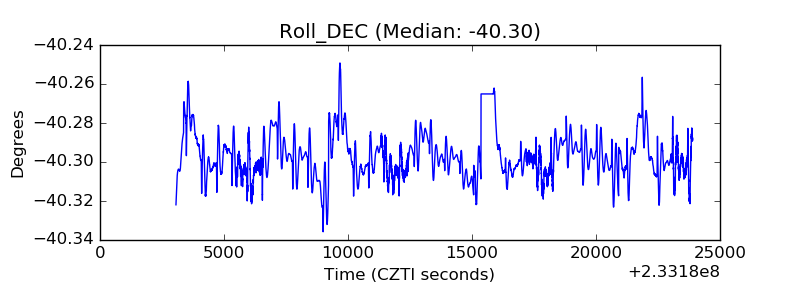

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
