| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08927cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08927cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,589,440 | 71,012,160 |
| Size | 444.0 MB | 67.7 MB |
| Events in quadrant A | 3,689,505 | 422,135 |
| Events in quadrant B | 3,175,595 | 429,822 |
| Events in quadrant C | 3,054,851 | 422,204 |
| Events in quadrant D | 3,726,577 | 410,230 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15199 | 3 |
| B | 0 | 13750 | 2 |
| C | 0 | 13679 | 2 |
| D | 0 | 15183 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6680 | 72 | 1.077844% |
| B | 6680 | 54 | 0.808383% |
| C | 6680 | 44 | 0.658683% |
| D | 6680 | 65 | 0.973054% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8685 | 6681 | 17 | 17 | 0.20% | 0.25% |  |
| B | 8685 | 6682 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8685 | 6682 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8685 | 6681 | 23 | 23 | 0.26% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 468059 | 2870.81 | 800 | 782 | 162.8 |
| A | 13 | 248 | 89645 | 545.95 | 800 | 782 | 162.8 |
| A | 15 | 174 | 23764 | 141.19 | 800 | 782 | 162.8 |
| B | 0 | 214 | 16482 | 101.83 | 809 | 790 | 154.1 |
| B | 12 | 111 | 16411 | 101.37 | 809 | 790 | 154.1 |
| B | 0 | 219 | 15399 | 94.8 | 809 | 790 | 154.1 |
| C | 13 | 61 | 5945 | 28.39 | 782 | 787 | 181.7 |
| C | 14 | 234 | 3398 | 14.37 | 782 | 787 | 181.7 |
| C | 8 | 222 | 1936 | 6.32 | 782 | 787 | 181.7 |
| D | 12 | 233 | 325465 | 1662.16 | 774 | 755 | 195.4 |
| D | 8 | 195 | 268274 | 1369.41 | 774 | 755 | 195.4 |
| D | 1 | 52 | 106713 | 542.39 | 774 | 755 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

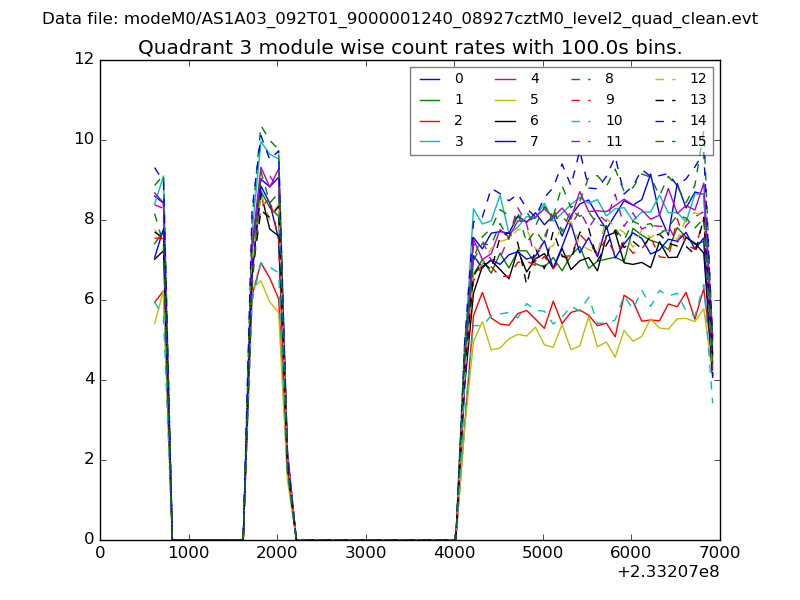

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

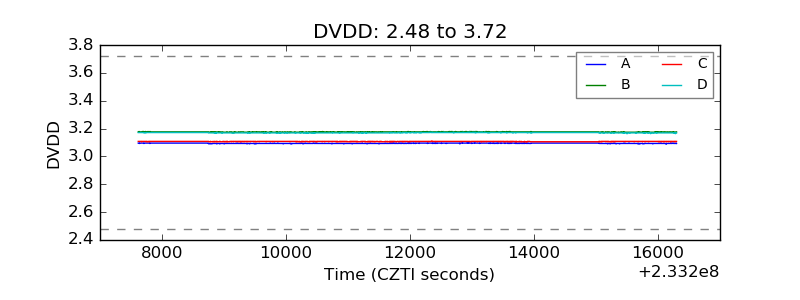

| D_VDD |  |

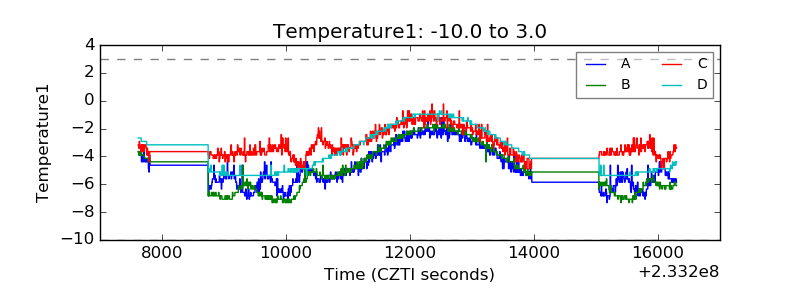

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

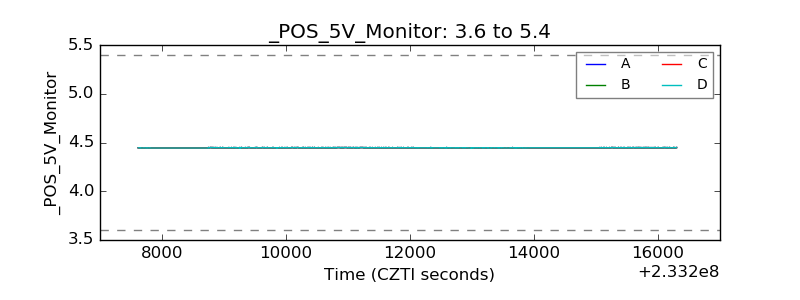

| +5 Volts monitor |  |
| _ROLL_ROT |  |

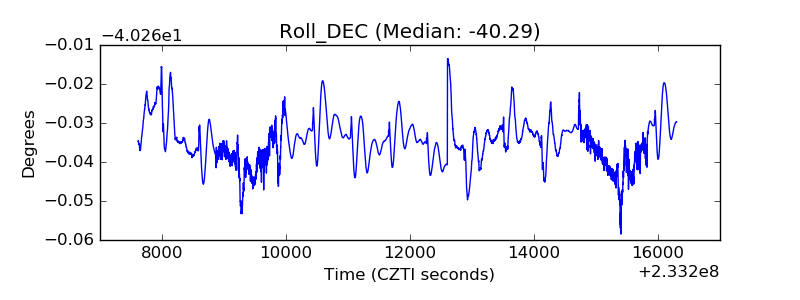

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
