| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08931cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08931cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,056,320 | 99,198,720 |
| Size | 482.6 MB | 94.6 MB |
| Events in quadrant A | 3,790,861 | 647,678 |
| Events in quadrant B | 3,230,940 | 657,791 |
| Events in quadrant C | 3,085,806 | 639,869 |
| Events in quadrant D | 4,786,687 | 615,102 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15136 | 3 |
| B | 0 | 13500 | 2 |
| C | 0 | 13305 | 2 |
| D | 0 | 18208 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6362 | 211 | 3.316567% |
| B | 6362 | 176 | 2.766426% |
| C | 6362 | 132 | 2.074819% |
| D | 6362 | 368 | 5.784345% |

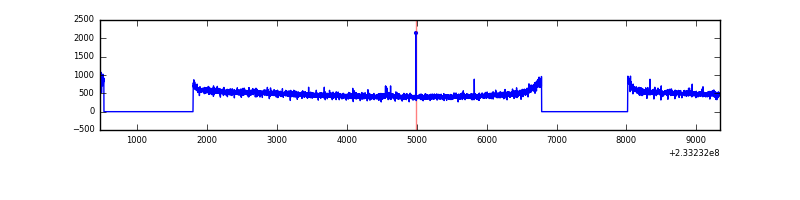

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8867 | 6362 | 5 | 5 | 0.06% | 0.08% |  |
| B | 8867 | 6362 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8867 | 6362 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8867 | 6362 | 268 | 268 | 3.02% | 4.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 591440 | 3569.39 | 820 | 805 | 165.5 |
| A | 5 | 16 | 18043 | 104.17 | 820 | 805 | 165.5 |
| A | 13 | 251 | 13647 | 77.61 | 820 | 805 | 165.5 |
| B | 0 | 214 | 16175 | 100.43 | 816 | 800 | 153.1 |
| B | 12 | 111 | 15693 | 97.28 | 816 | 800 | 153.1 |
| B | 10 | 252 | 14511 | 89.56 | 816 | 800 | 153.1 |
| C | 13 | 61 | 6076 | 29.31 | 789 | 792 | 180.3 |
| C | 9 | 68 | 5366 | 25.37 | 789 | 792 | 180.3 |
| C | 12 | 4 | 3526 | 15.17 | 789 | 792 | 180.3 |
| D | 1 | 52 | 740791 | 3694.24 | 789 | 768 | 200.3 |
| D | 12 | 233 | 705973 | 3520.43 | 789 | 768 | 200.3 |
| D | 8 | 195 | 161008 | 799.93 | 789 | 768 | 200.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

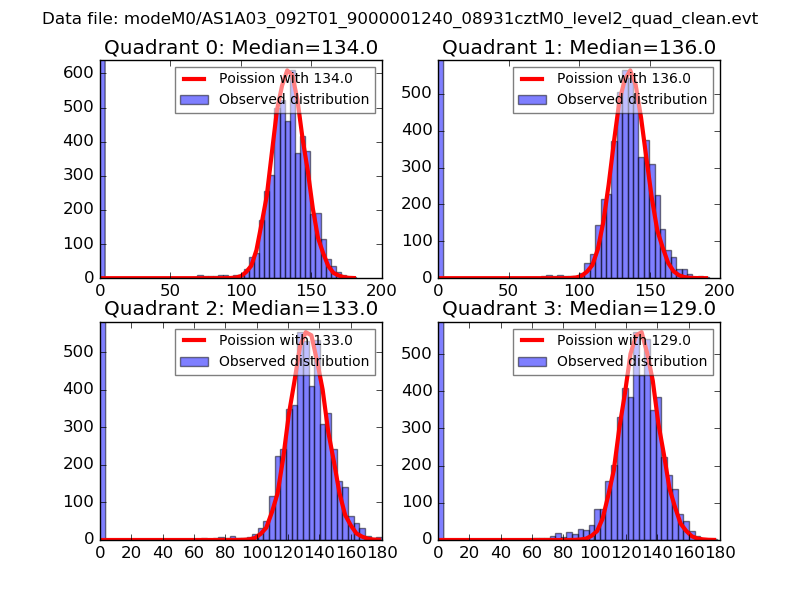

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

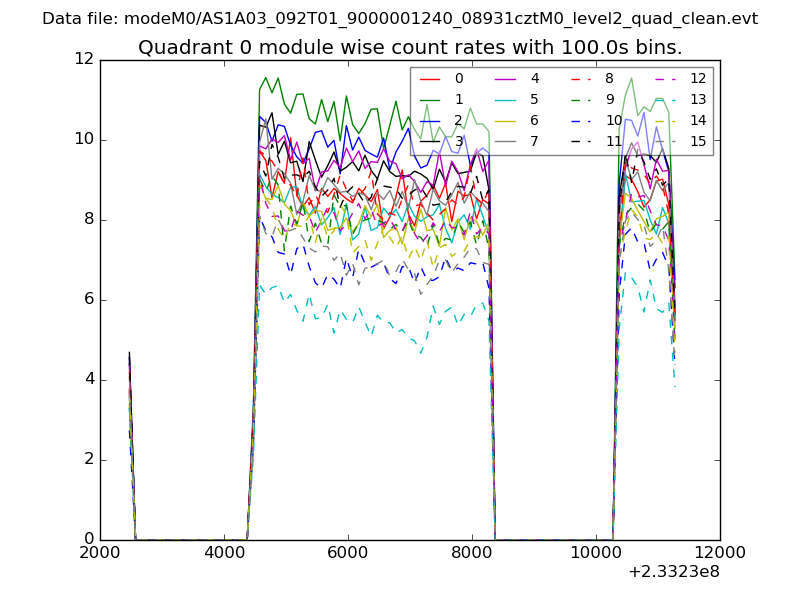

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

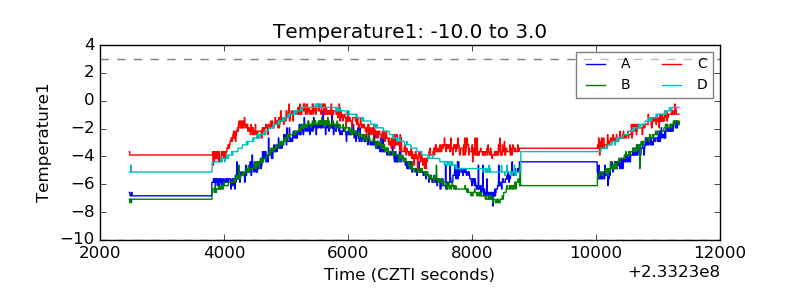

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

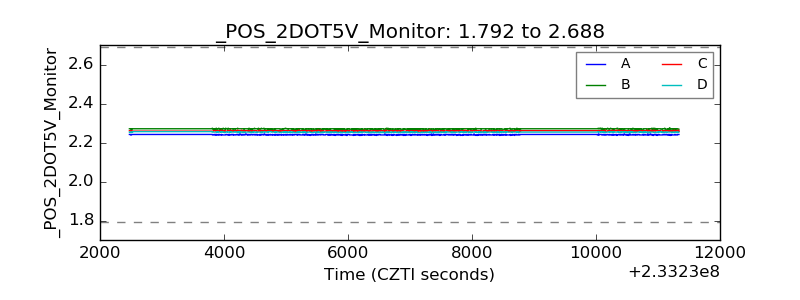

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

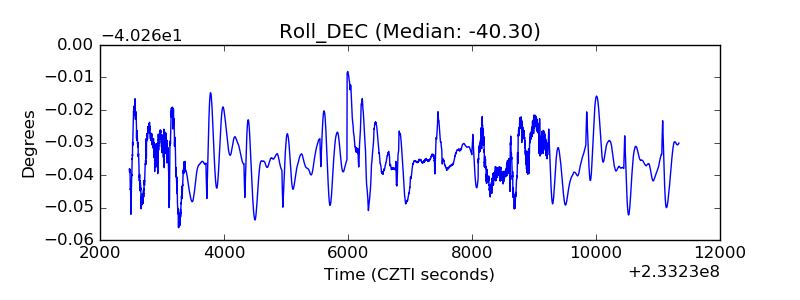

| _Roll_DEC |  |
| _Roll_RA |  |

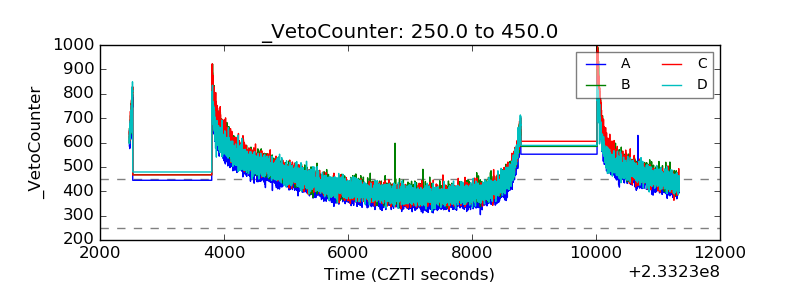

| Veto Counter |  |
