| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08935cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08935cztM0_level2_quad_clean.evt |
| Size (bytes) | 644,417,280 | 104,420,160 |
| Size | 614.6 MB | 99.6 MB |
| Events in quadrant A | 6,795,103 | 645,954 |
| Events in quadrant B | 3,718,327 | 685,185 |
| Events in quadrant C | 3,398,653 | 669,254 |
| Events in quadrant D | 5,090,861 | 633,972 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25485 | 127 |
| B | 0 | 16221 | 36 |
| C | 0 | 15659 | 50 |
| D | 0 | 20293 | 67 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7575 | 691 | 9.122112% |
| B | 7587 | 54 | 0.711744% |
| C | 7580 | 20 | 0.263852% |
| D | 7578 | 308 | 4.064397% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7848 | 7602 | 582 | 582 | 7.42% | 7.66% |  |
| B | 7848 | 7603 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7848 | 7604 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7848 | 7603 | 282 | 282 | 3.59% | 3.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 2469689 | 13862.5 | 872 | 853 | 178.1 |
| A | 8 | 5 | 846753 | 4749.72 | 872 | 853 | 178.1 |
| A | 3 | 1 | 86639 | 481.69 | 872 | 853 | 178.1 |
| B | 0 | 168 | 79534 | 452.86 | 897 | 874 | 173.7 |
| B | 10 | 252 | 35424 | 198.91 | 897 | 874 | 173.7 |
| B | 0 | 219 | 31586 | 176.82 | 897 | 874 | 173.7 |
| C | 5 | 128 | 49291 | 243.97 | 856 | 859 | 198.5 |
| C | 1 | 3 | 8691 | 39.45 | 856 | 859 | 198.5 |
| C | 13 | 61 | 6705 | 29.45 | 856 | 859 | 198.5 |
| D | 12 | 233 | 951939 | 4549.83 | 850 | 822 | 209.0 |
| D | 13 | 104 | 359964 | 1718.01 | 850 | 822 | 209.0 |
| D | 1 | 52 | 269596 | 1285.72 | 850 | 822 | 209.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

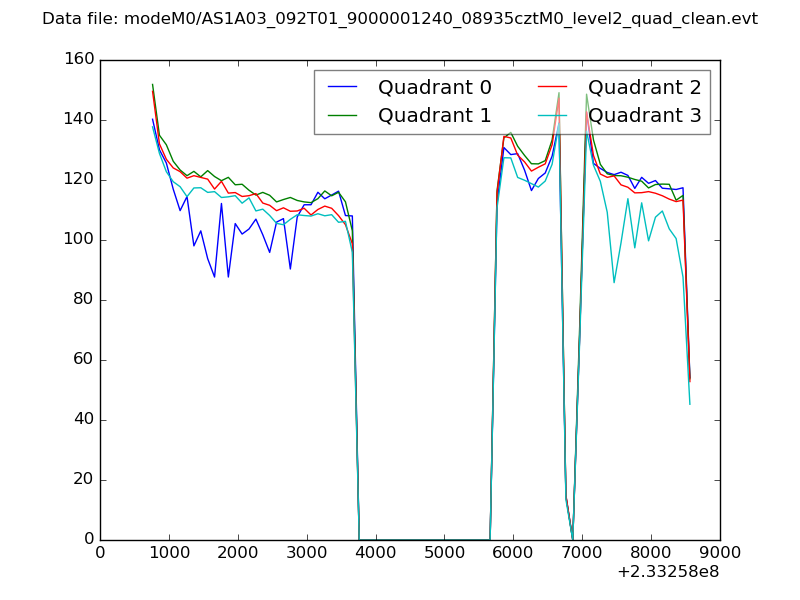

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

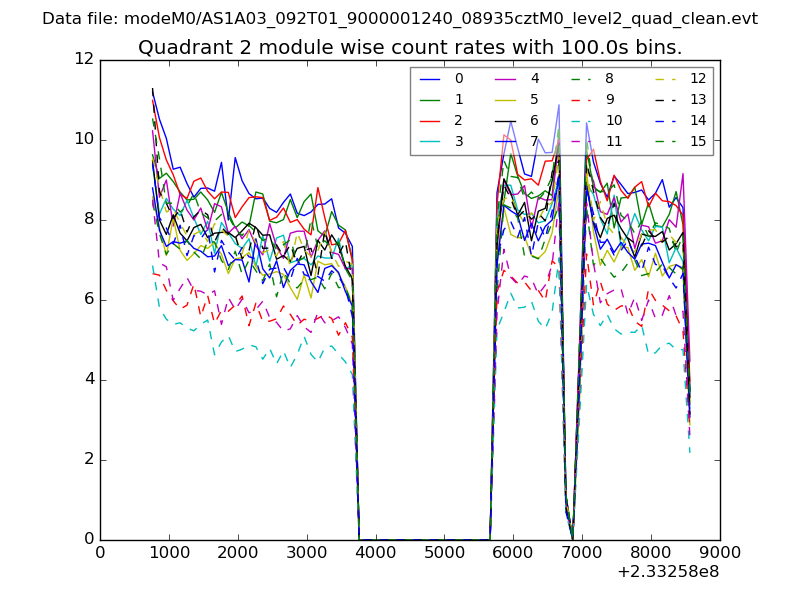

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

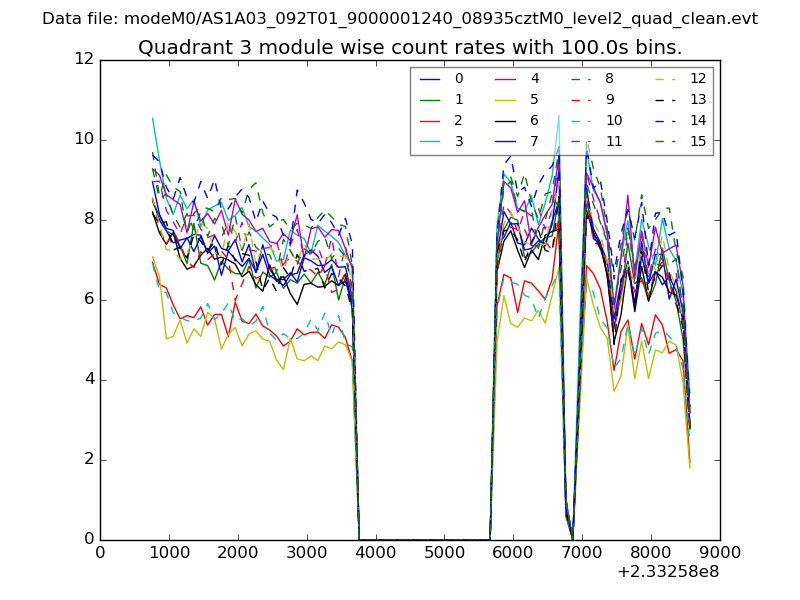

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

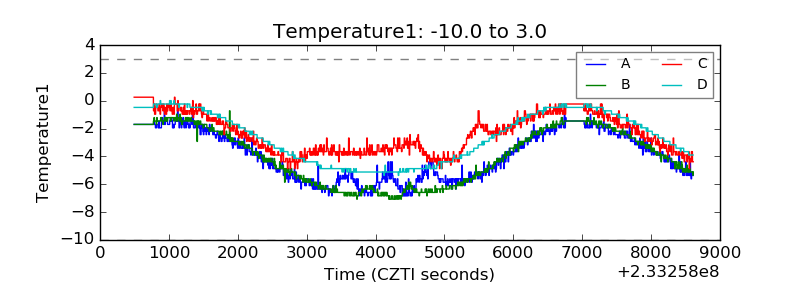

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

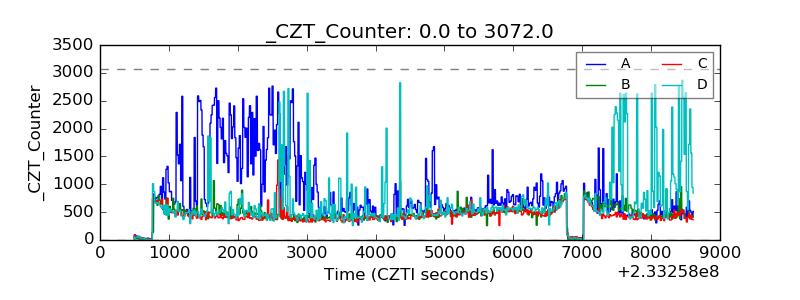

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

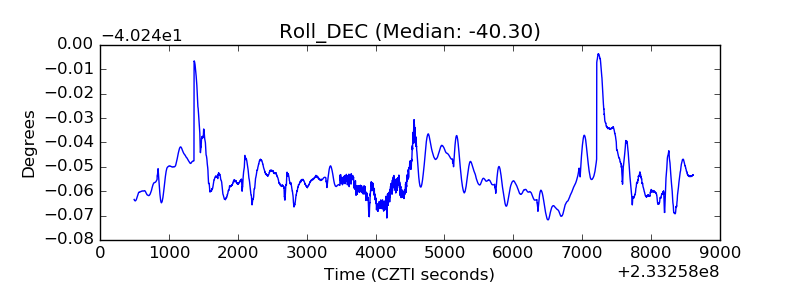

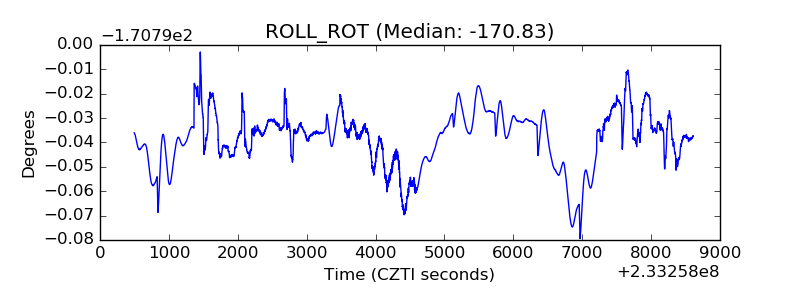

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
