| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_092T01_9000001240_08939cztM0_level2.evt | modeM0/AS1A03_092T01_9000001240_08939cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,039,680 | 82,071,360 |
| Size | 430.1 MB | 78.3 MB |
| Events in quadrant A | 3,677,188 | 505,963 |
| Events in quadrant B | 3,159,110 | 513,196 |
| Events in quadrant C | 3,021,308 | 501,544 |
| Events in quadrant D | 3,338,137 | 488,875 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15239 | 3 |
| B | 0 | 13972 | 2 |
| C | 0 | 13905 | 2 |
| D | 0 | 14673 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6821 | 32 | 0.469139% |
| B | 6821 | 42 | 0.615745% |
| C | 6821 | 23 | 0.337194% |
| D | 6821 | 44 | 0.645067% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

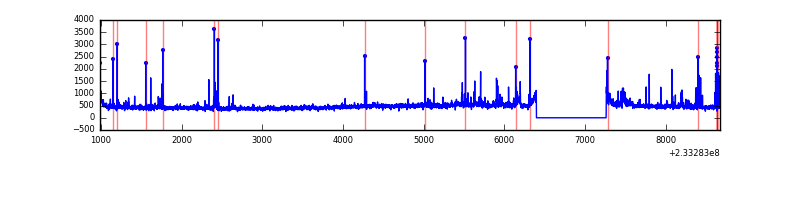

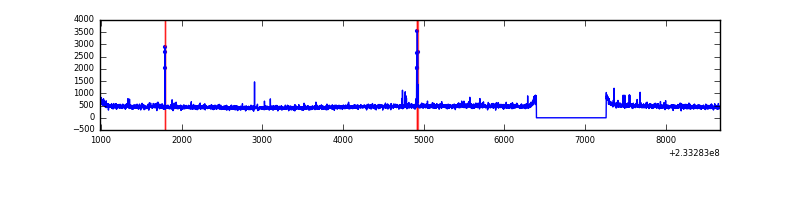

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7686 | 6822 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7686 | 6822 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7686 | 6822 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7686 | 6822 | 19 | 19 | 0.25% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 589123 | 3680.1 | 782 | 766 | 159.9 |
| A | 5 | 16 | 49439 | 304.44 | 782 | 766 | 159.9 |
| A | 15 | 174 | 13230 | 77.96 | 782 | 766 | 159.9 |
| B | 10 | 252 | 34125 | 219.54 | 793 | 774 | 151.9 |
| B | 0 | 219 | 18796 | 118.64 | 793 | 774 | 151.9 |
| B | 12 | 111 | 16151 | 101.22 | 793 | 774 | 151.9 |
| C | 14 | 234 | 48474 | 270.44 | 760 | 763 | 176.4 |
| C | 1 | 3 | 8148 | 41.86 | 760 | 763 | 176.4 |
| C | 13 | 61 | 5832 | 28.73 | 760 | 763 | 176.4 |
| D | 8 | 195 | 120210 | 588.22 | 753 | 735 | 203.1 |
| D | 1 | 52 | 118125 | 577.96 | 753 | 735 | 203.1 |
| D | 7 | 71 | 91386 | 446.31 | 753 | 735 | 203.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

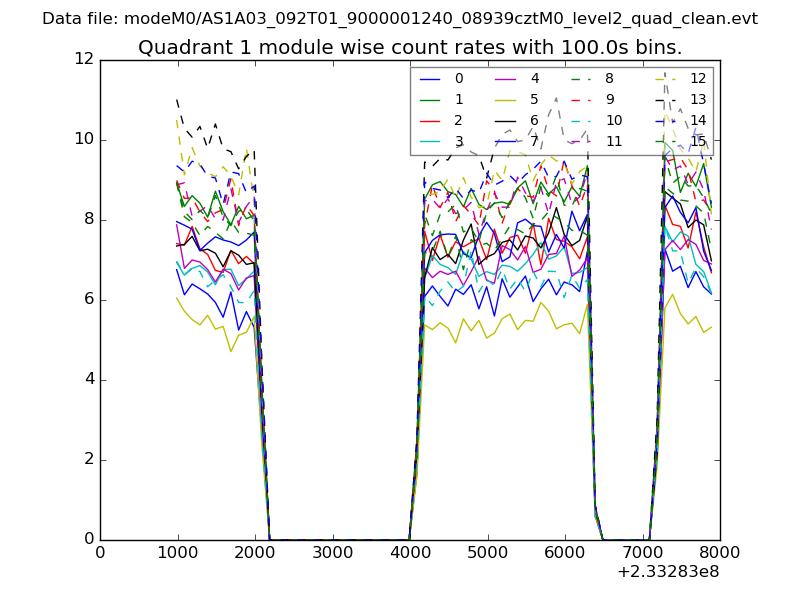

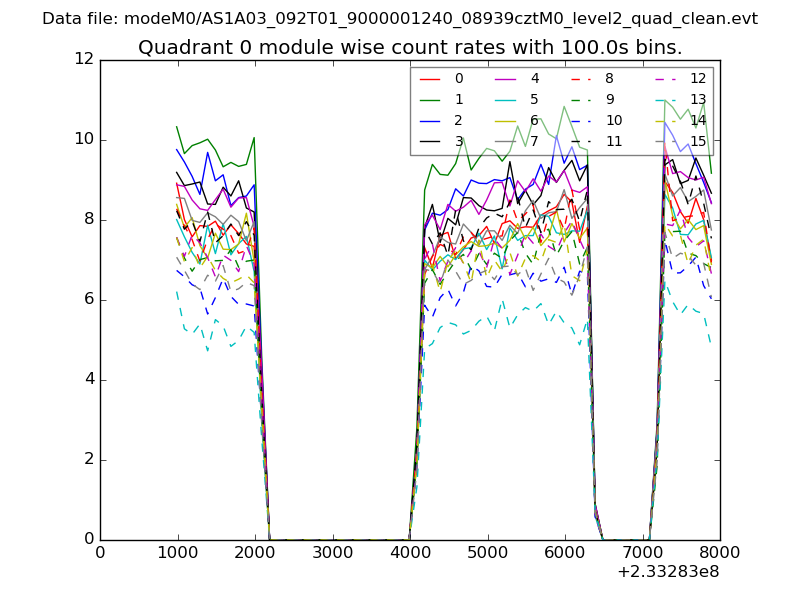

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

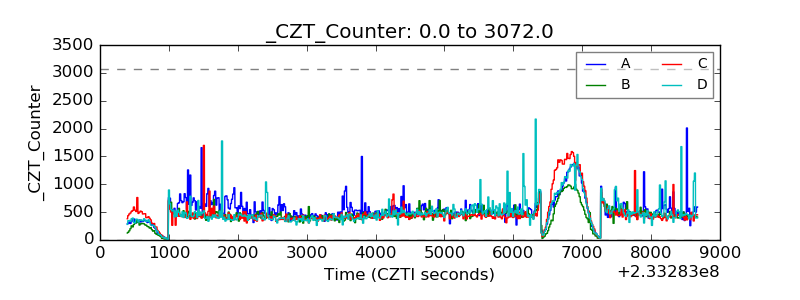

| CZT HV Monitor |  |
| D_VDD |  |

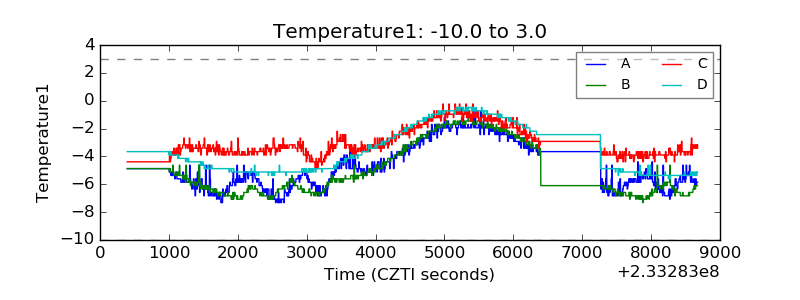

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

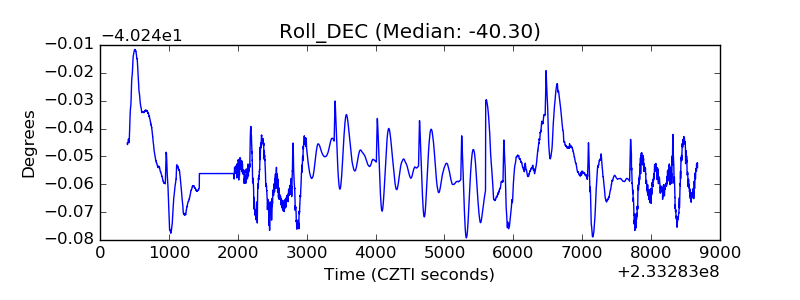

| _Roll_DEC |  |
| _Roll_RA |  |

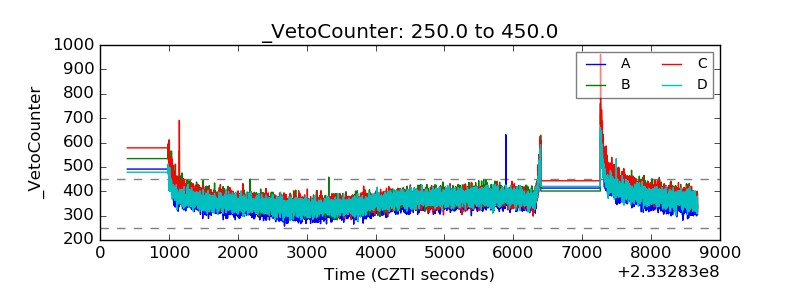

| Veto Counter |  |
