| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_051T01_9000001242_08958cztM0_level2.evt | modeM0/AS1A03_051T01_9000001242_08958cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,886,720 | 70,459,200 |
| Size | 477.7 MB | 67.2 MB |
| Events in quadrant A | 3,821,892 | 420,030 |
| Events in quadrant B | 3,406,932 | 428,656 |
| Events in quadrant C | 3,303,235 | 421,714 |
| Events in quadrant D | 4,186,874 | 400,147 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15471 | 32 |
| B | 0 | 14154 | 28 |
| C | 0 | 14009 | 12 |
| D | 0 | 16484 | 19 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 2 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6630 | 144 | 2.171946% |
| B | 6632 | 113 | 1.703860% |
| C | 6639 | 104 | 1.566501% |
| D | 6636 | 265 | 3.993369% |

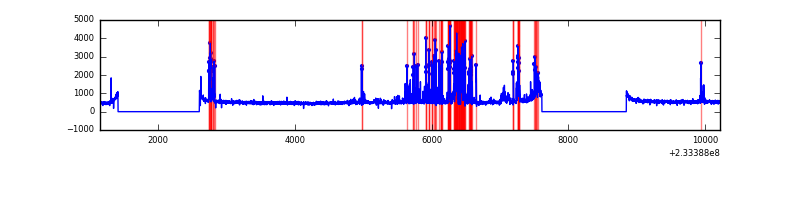

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9068 | 6644 | 38 | 38 | 0.42% | 0.57% |  |
| B | 9068 | 6644 | 1 | 1 | 0.01% | 0.02% |  |
| C | 9068 | 6644 | 1 | 1 | 0.01% | 0.02% |  |
| D | 9068 | 6644 | 154 | 154 | 1.70% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 236621 | 1377.93 | 859 | 843 | 171.1 |
| A | 5 | 16 | 227951 | 1327.26 | 859 | 843 | 171.1 |
| A | 13 | 164 | 31967 | 181.89 | 859 | 843 | 171.1 |
| B | 0 | 214 | 16986 | 99.99 | 866 | 847 | 161.4 |
| B | 12 | 111 | 16960 | 99.83 | 866 | 847 | 161.4 |
| B | 11 | 111 | 13792 | 80.2 | 866 | 847 | 161.4 |
| C | 4 | 254 | 17475 | 86.5 | 842 | 847 | 192.2 |
| C | 13 | 61 | 6369 | 28.72 | 842 | 847 | 192.2 |
| C | 4 | 253 | 3739 | 15.04 | 842 | 847 | 192.2 |
| D | 13 | 104 | 587942 | 2835.18 | 829 | 809 | 207.1 |
| D | 8 | 195 | 224606 | 1080.68 | 829 | 809 | 207.1 |
| D | 7 | 71 | 75827 | 362.25 | 829 | 809 | 207.1 |

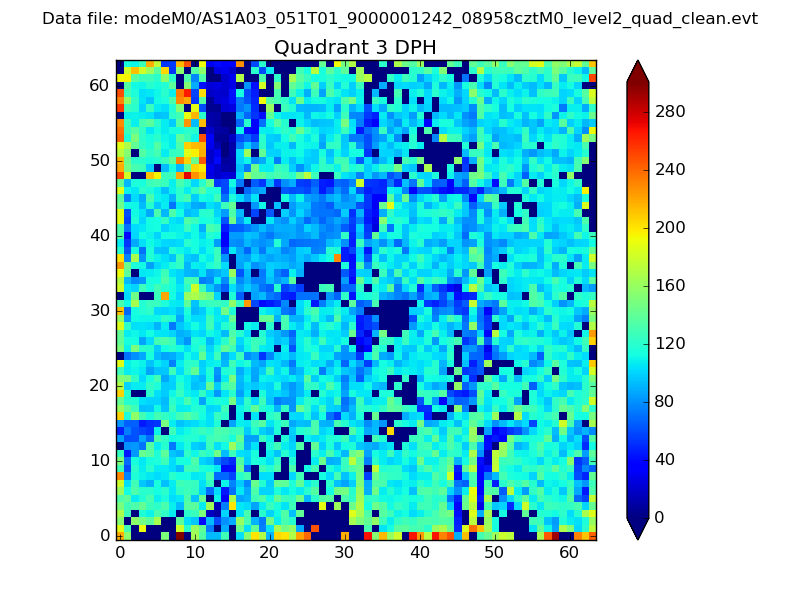

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

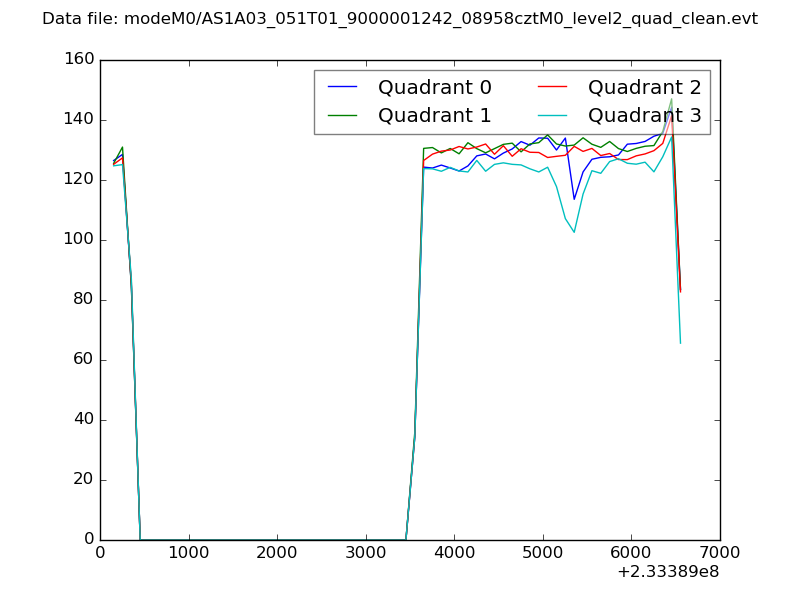

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

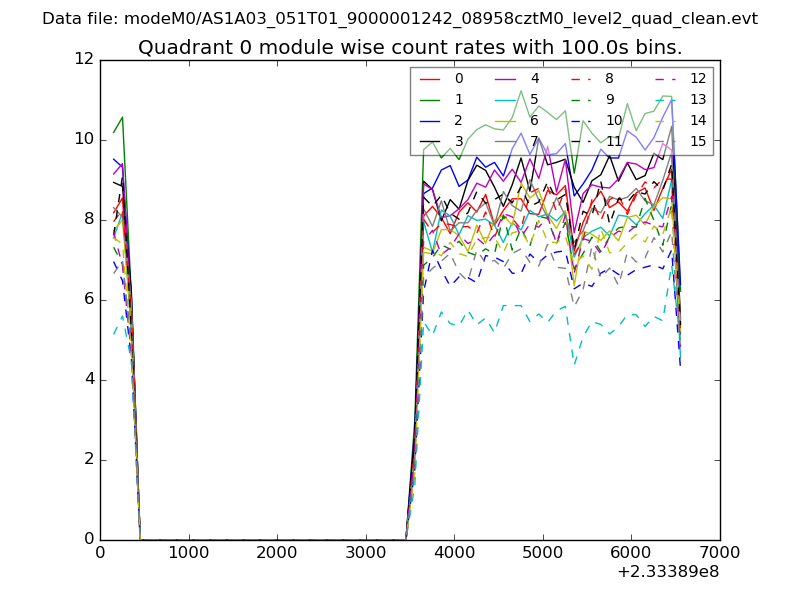

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

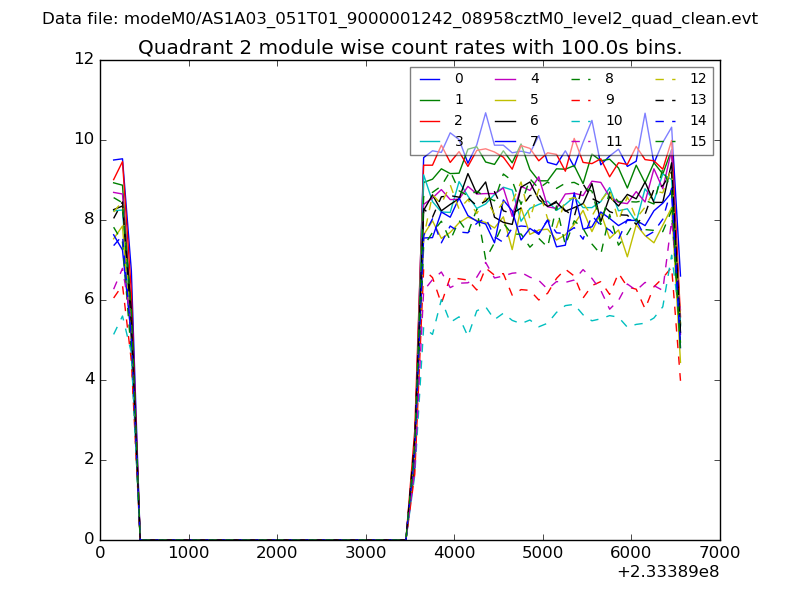

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

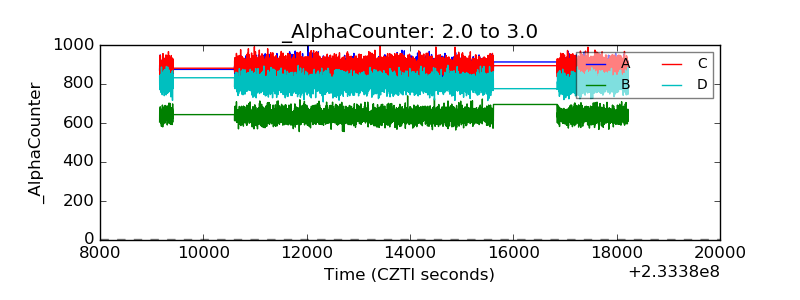

| Alpha Counter |  |
| _CPM_Rate |  |

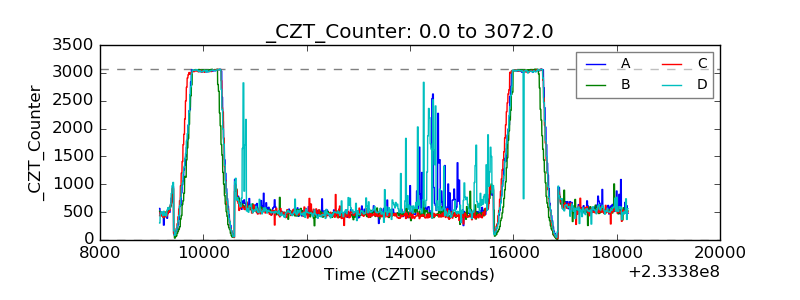

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

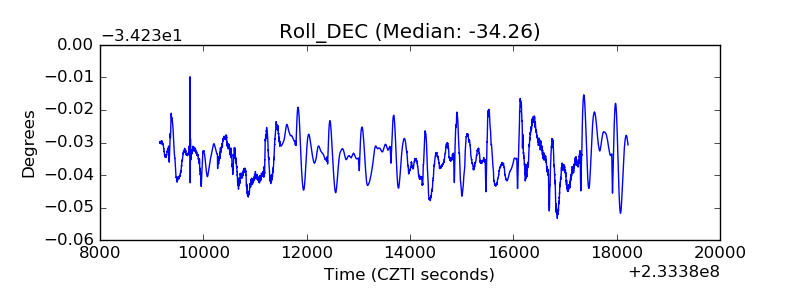

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
