| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_019T01_9000001244_08963cztM0_level2.evt | modeM0/AS1G07_019T01_9000001244_08963cztM0_level2_quad_clean.evt |
| Size (bytes) | 274,109,760 | 42,891,840 |
| Size | 261.4 MB | 40.9 MB |
| Events in quadrant A | 1,823,929 | 268,476 |
| Events in quadrant B | 1,787,179 | 273,047 |
| Events in quadrant C | 2,137,847 | 262,604 |
| Events in quadrant D | 2,316,587 | 249,689 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7564 | 2 |
| B | 0 | 7499 | 1 |
| C | 0 | 8665 | 1 |
| D | 0 | 9142 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3444 | 80 | 2.322880% |
| B | 3444 | 91 | 2.642276% |
| C | 3444 | 161 | 4.674797% |
| D | 3444 | 165 | 4.790941% |

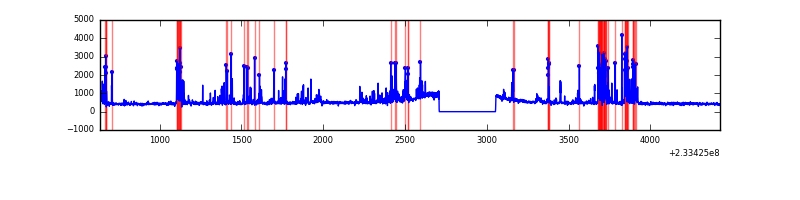

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3789 | 3445 | 3 | 3 | 0.08% | 0.09% |  |
| B | 3789 | 3445 | 5 | 5 | 0.13% | 0.15% |  |
| C | 3789 | 3445 | 83 | 83 | 2.19% | 2.41% |  |
| D | 3789 | 3445 | 59 | 59 | 1.56% | 1.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 87568 | 941.86 | 440 | 429 | 92.5 |
| A | 15 | 174 | 16038 | 168.71 | 440 | 429 | 92.5 |
| A | 5 | 16 | 14428 | 151.31 | 440 | 429 | 92.5 |
| B | 0 | 246 | 13388 | 147.81 | 441 | 428 | 87.7 |
| B | 0 | 229 | 12817 | 141.3 | 441 | 428 | 87.7 |
| B | 12 | 111 | 8719 | 94.56 | 441 | 428 | 87.7 |
| C | 4 | 254 | 478600 | 4754.06 | 421 | 422 | 100.6 |
| C | 14 | 234 | 7048 | 65.88 | 421 | 422 | 100.6 |
| C | 1 | 3 | 5964 | 55.1 | 421 | 422 | 100.6 |
| D | 8 | 195 | 181237 | 1715.95 | 425 | 412 | 105.4 |
| D | 1 | 52 | 178127 | 1686.44 | 425 | 412 | 105.4 |
| D | 13 | 104 | 137509 | 1300.99 | 425 | 412 | 105.4 |

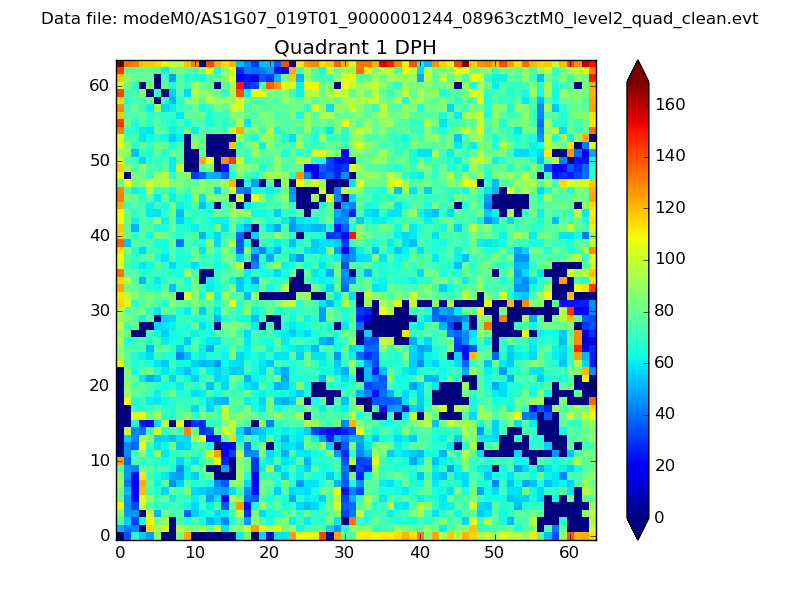

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

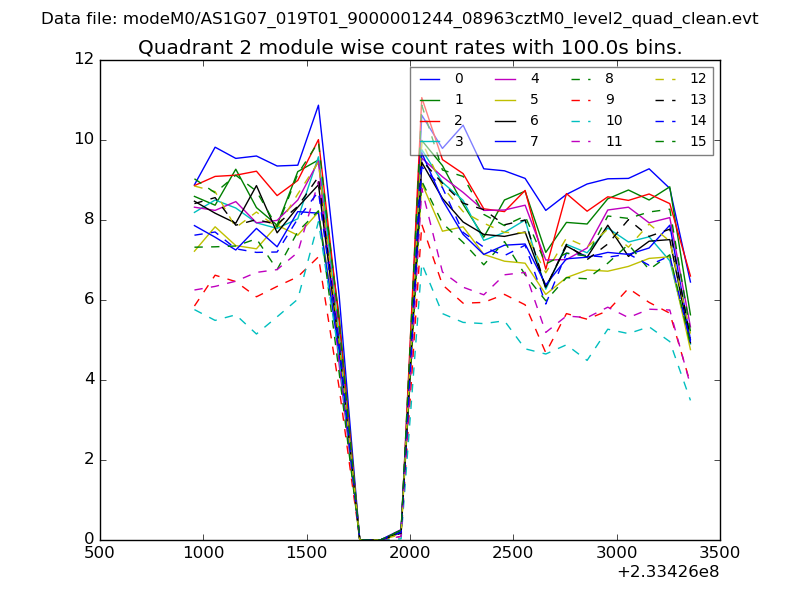

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

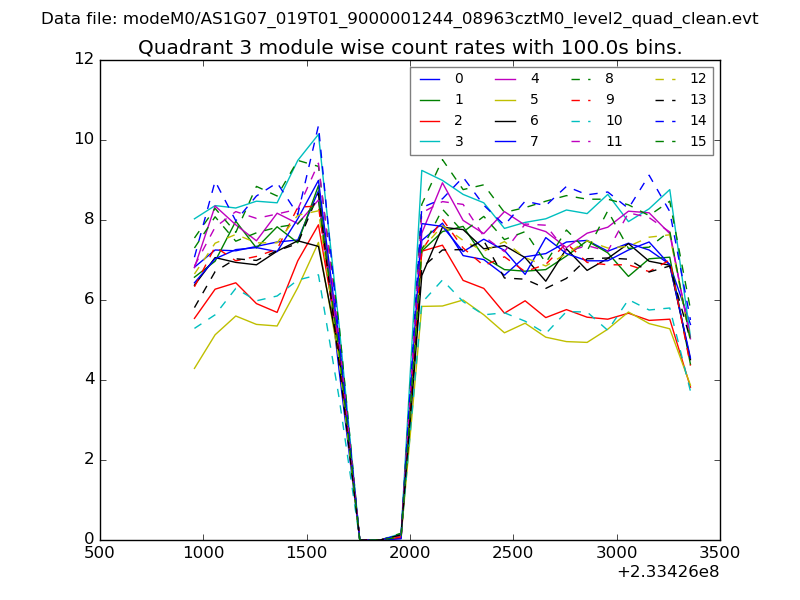

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

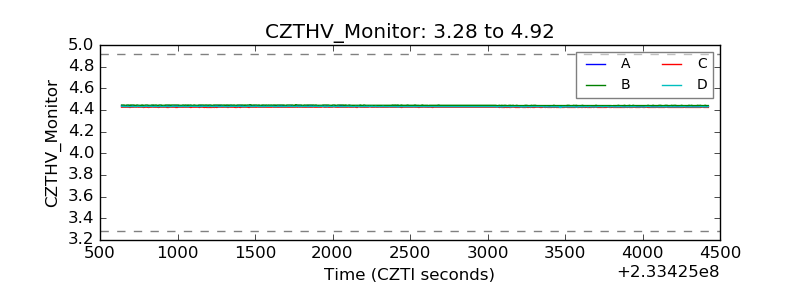

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

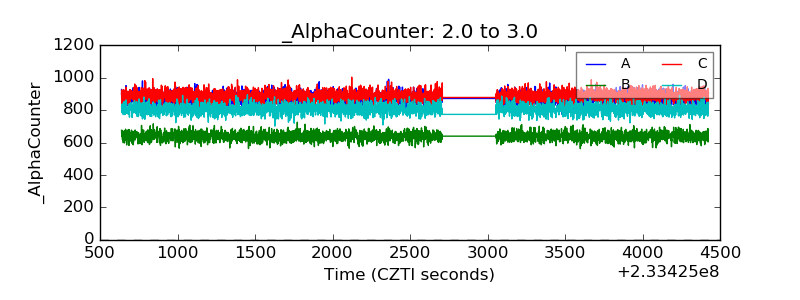

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

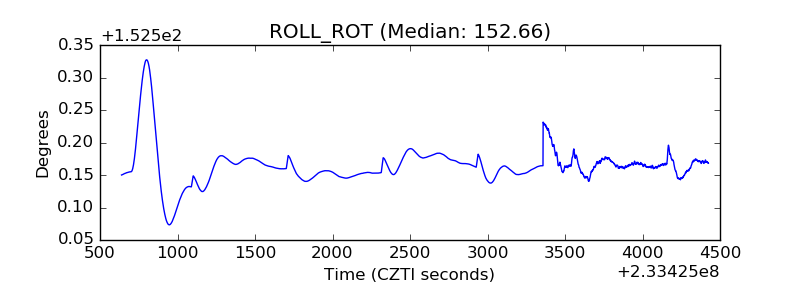

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

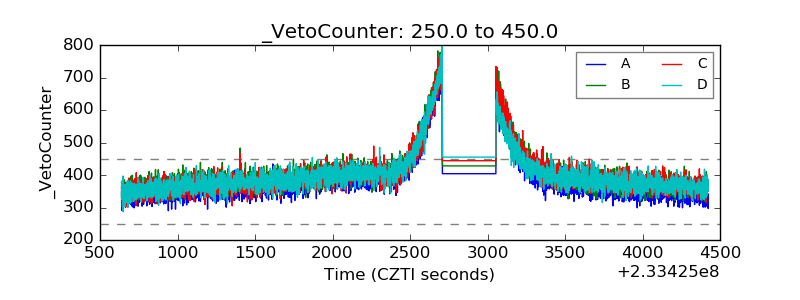

| Veto Counter |  |
