| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_019T01_9000001244_08964cztM0_level2.evt | modeM0/AS1G07_019T01_9000001244_08964cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,090,240 | 98,447,040 |
| Size | 543.7 MB | 93.9 MB |
| Events in quadrant A | 3,596,735 | 631,627 |
| Events in quadrant B | 4,302,500 | 620,023 |
| Events in quadrant C | 3,402,043 | 628,508 |
| Events in quadrant D | 5,470,405 | 594,323 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15618 | 2 |
| B | 0 | 17785 | 1 |
| C | 0 | 15388 | 1 |
| D | 0 | 21156 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7277 | 54 | 0.742064% |
| B | 7277 | 333 | 4.576062% |
| C | 7277 | 75 | 1.030644% |
| D | 7277 | 291 | 3.998901% |

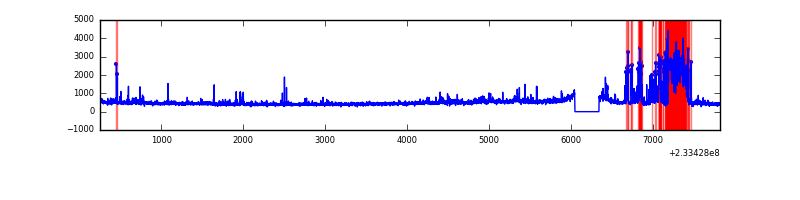

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 7278 | 8 | 8 | 0.11% | 0.11% |  |
| B | 7572 | 7278 | 255 | 255 | 3.37% | 3.50% |  |
| C | 7572 | 7278 | 47 | 47 | 0.62% | 0.65% |  |
| D | 7572 | 7278 | 176 | 176 | 2.32% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 261280 | 1501.06 | 840 | 817 | 173.5 |
| A | 5 | 16 | 47222 | 267.43 | 840 | 817 | 173.5 |
| A | 15 | 174 | 18455 | 101.65 | 840 | 817 | 173.5 |
| B | 10 | 252 | 832601 | 5263.5 | 833 | 810 | 158.0 |
| B | 4 | 48 | 75669 | 473.7 | 833 | 810 | 158.0 |
| B | 6 | 51 | 35544 | 219.79 | 833 | 810 | 158.0 |
| C | 4 | 254 | 206512 | 1078.79 | 818 | 822 | 190.7 |
| C | 13 | 61 | 6217 | 28.3 | 818 | 822 | 190.7 |
| C | 4 | 238 | 2487 | 8.73 | 818 | 822 | 190.7 |
| D | 1 | 52 | 822881 | 4139.15 | 810 | 785 | 198.6 |
| D | 13 | 104 | 515240 | 2590.22 | 810 | 785 | 198.6 |
| D | 8 | 195 | 445468 | 2238.92 | 810 | 785 | 198.6 |

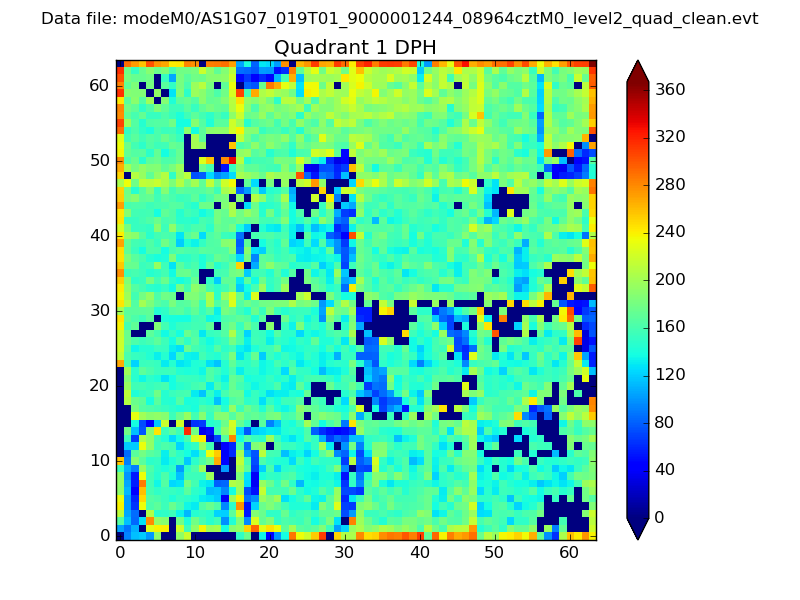

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

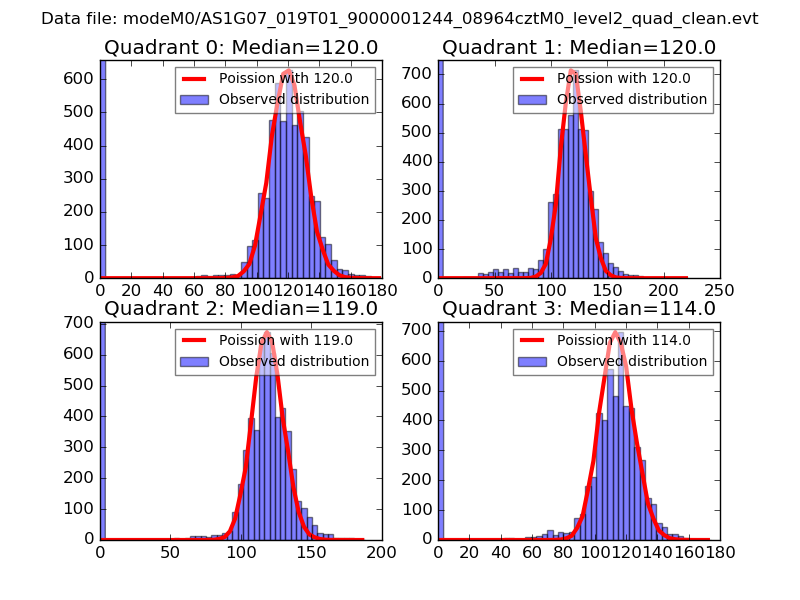

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

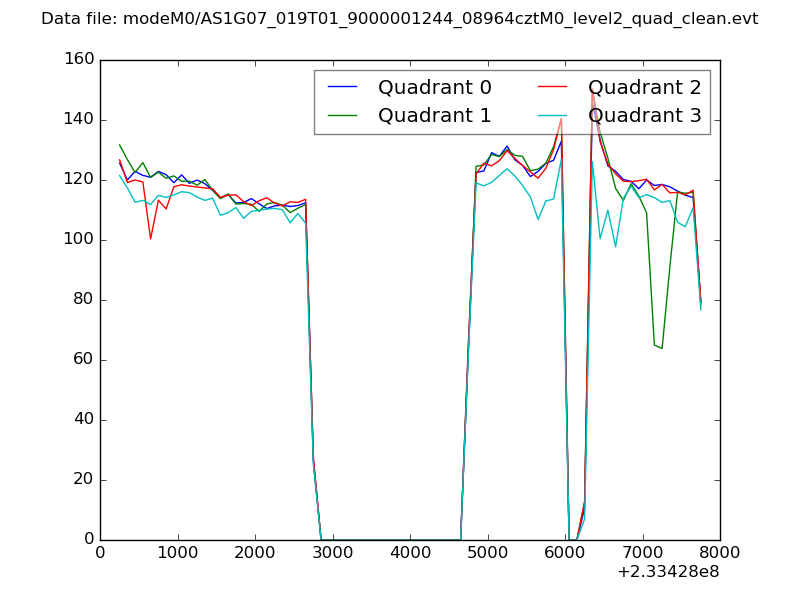

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

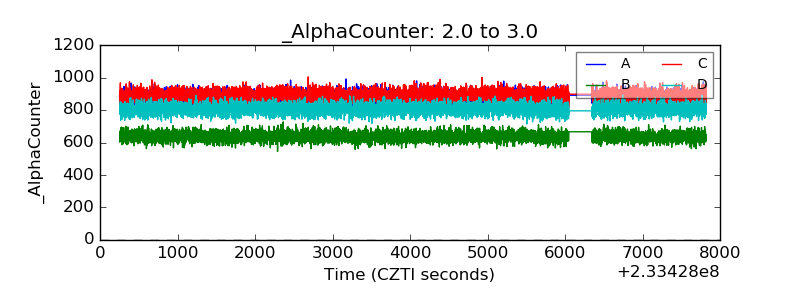

| Alpha Counter |  |

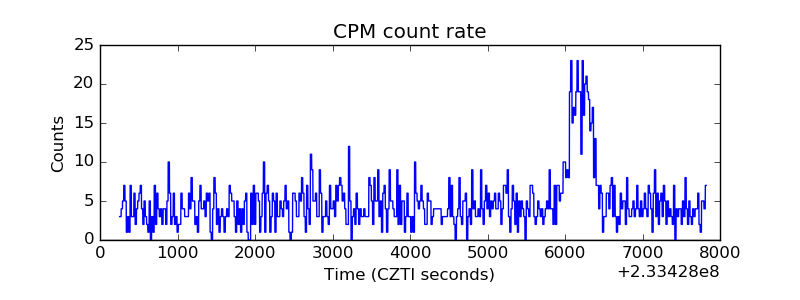

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

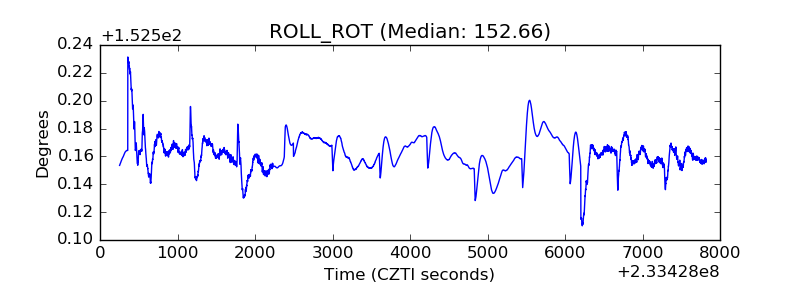

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
