| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_019T01_9000001244_08969cztM0_level2.evt | modeM0/AS1G07_019T01_9000001244_08969cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,736,960 | 64,952,640 |
| Size | 443.2 MB | 61.9 MB |
| Events in quadrant A | 3,569,057 | 381,427 |
| Events in quadrant B | 3,542,679 | 379,154 |
| Events in quadrant C | 2,986,195 | 381,219 |
| Events in quadrant D | 3,532,022 | 368,280 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14798 | 2 |
| B | 0 | 14731 | 1 |
| C | 0 | 13363 | 1 |
| D | 0 | 14873 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6540 | 54 | 0.825688% |
| B | 6540 | 186 | 2.844037% |
| C | 6540 | 26 | 0.397554% |
| D | 6540 | 99 | 1.513761% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7560 | 6541 | 11 | 11 | 0.15% | 0.17% |  |
| B | 7560 | 6540 | 99 | 99 | 1.31% | 1.51% |  |
| C | 7560 | 6541 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7560 | 6541 | 75 | 75 | 0.99% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 545757 | 3468.29 | 770 | 755 | 157.1 |
| A | 5 | 16 | 54024 | 338.99 | 770 | 755 | 157.1 |
| A | 0 | 226 | 6976 | 39.59 | 770 | 755 | 157.1 |
| B | 10 | 16 | 445833 | 3053.57 | 767 | 746 | 145.8 |
| B | 0 | 214 | 31852 | 213.41 | 767 | 746 | 145.8 |
| B | 0 | 219 | 28948 | 193.48 | 767 | 746 | 145.8 |
| C | 4 | 254 | 73362 | 418.11 | 746 | 747 | 173.7 |
| C | 13 | 61 | 5696 | 28.5 | 746 | 747 | 173.7 |
| C | 14 | 67 | 2682 | 11.14 | 746 | 747 | 173.7 |
| D | 13 | 29 | 243677 | 1241.47 | 735 | 718 | 195.7 |
| D | 8 | 195 | 237648 | 1210.66 | 735 | 718 | 195.7 |
| D | 13 | 104 | 133311 | 677.52 | 735 | 718 | 195.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

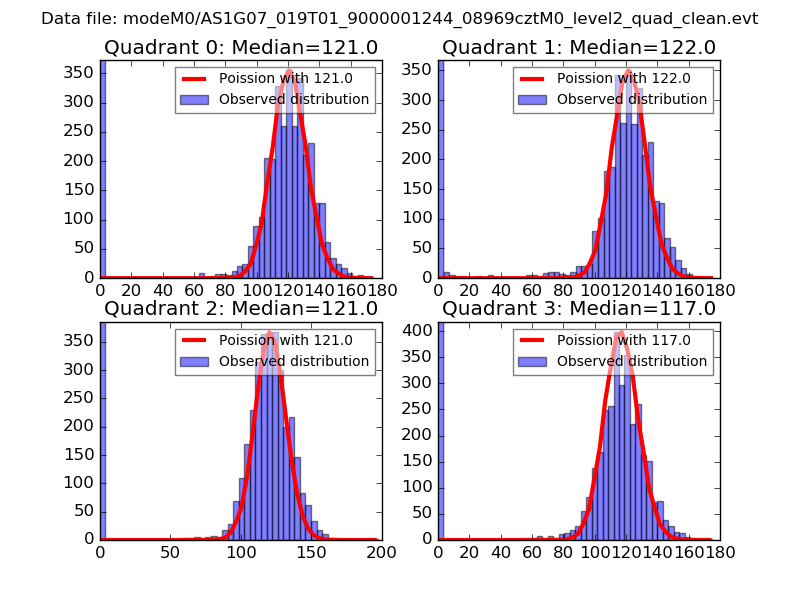

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

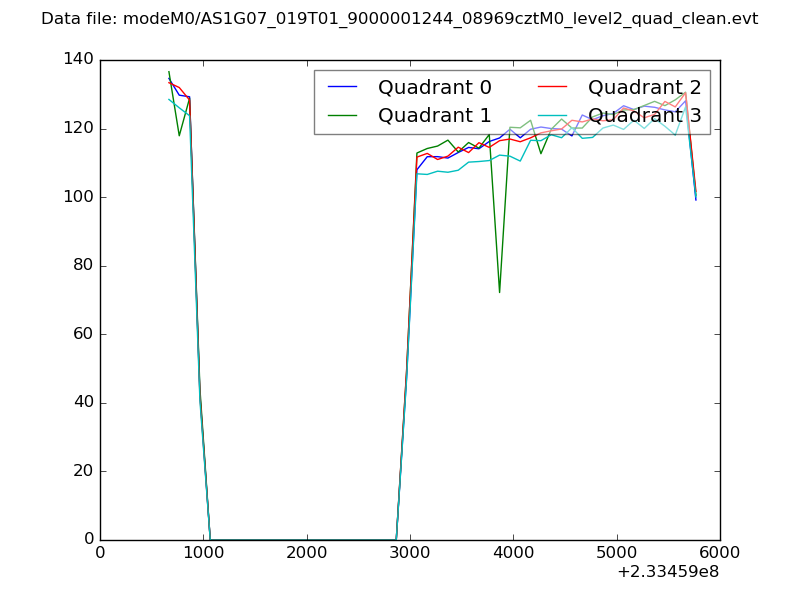

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

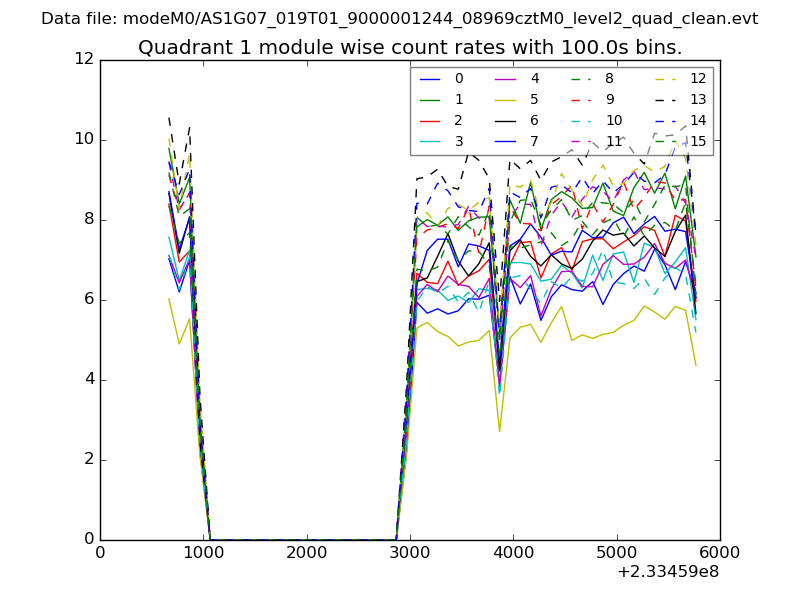

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

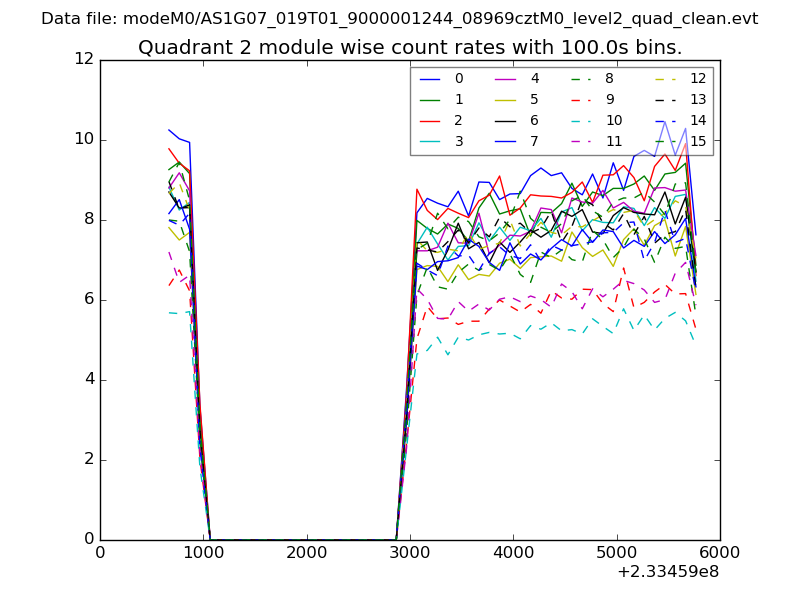

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

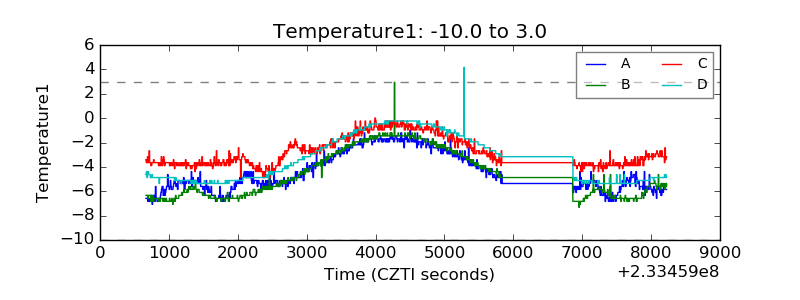

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

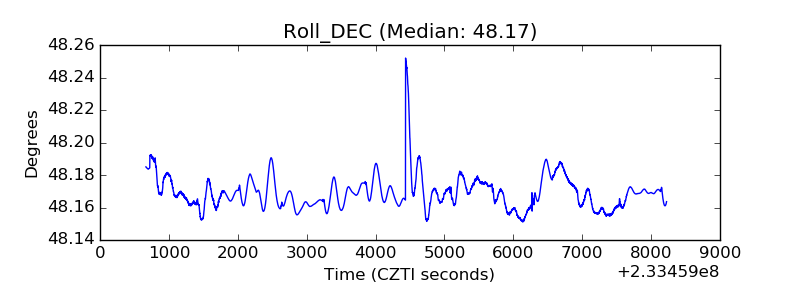

| _Roll_DEC |  |

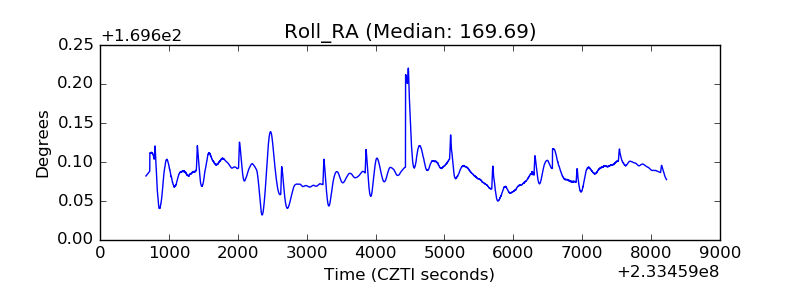

| _Roll_RA |  |
| Veto Counter |  |
