| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_019T01_9000001244_08971cztM0_level2.evt | modeM0/AS1G07_019T01_9000001244_08971cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,789,440 | 65,090,880 |
| Size | 433.7 MB | 62.1 MB |
| Events in quadrant A | 3,669,949 | 383,799 |
| Events in quadrant B | 3,298,064 | 389,845 |
| Events in quadrant C | 3,005,366 | 382,267 |
| Events in quadrant D | 3,364,946 | 368,191 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14860 | 3 |
| B | 0 | 13793 | 2 |
| C | 0 | 13183 | 2 |
| D | 0 | 14232 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6402 | 95 | 1.483911% |
| B | 6402 | 107 | 1.671353% |
| C | 6402 | 54 | 0.843486% |
| D | 6402 | 128 | 1.999375% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6402 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7527 | 6402 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7527 | 6403 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7527 | 6402 | 77 | 77 | 1.02% | 1.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 576154 | 3596.55 | 788 | 771 | 160.0 |
| A | 5 | 16 | 49924 | 307.24 | 788 | 771 | 160.0 |
| A | 0 | 226 | 7275 | 40.65 | 788 | 771 | 160.0 |
| B | 10 | 16 | 133363 | 883.67 | 791 | 771 | 150.0 |
| B | 0 | 219 | 35391 | 230.73 | 791 | 771 | 150.0 |
| B | 0 | 214 | 22027 | 141.66 | 791 | 771 | 150.0 |
| C | 4 | 254 | 42556 | 237.9 | 758 | 763 | 175.7 |
| C | 13 | 61 | 5870 | 29.07 | 758 | 763 | 175.7 |
| C | 14 | 67 | 5621 | 27.65 | 758 | 763 | 175.7 |
| D | 13 | 29 | 174331 | 927.95 | 757 | 732 | 187.1 |
| D | 1 | 52 | 79731 | 422.28 | 757 | 732 | 187.1 |
| D | 8 | 195 | 74319 | 393.35 | 757 | 732 | 187.1 |

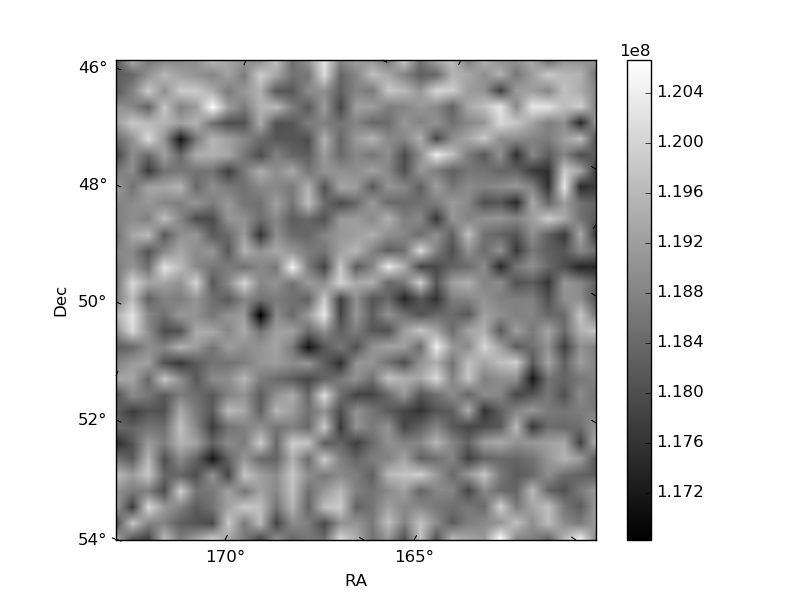

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

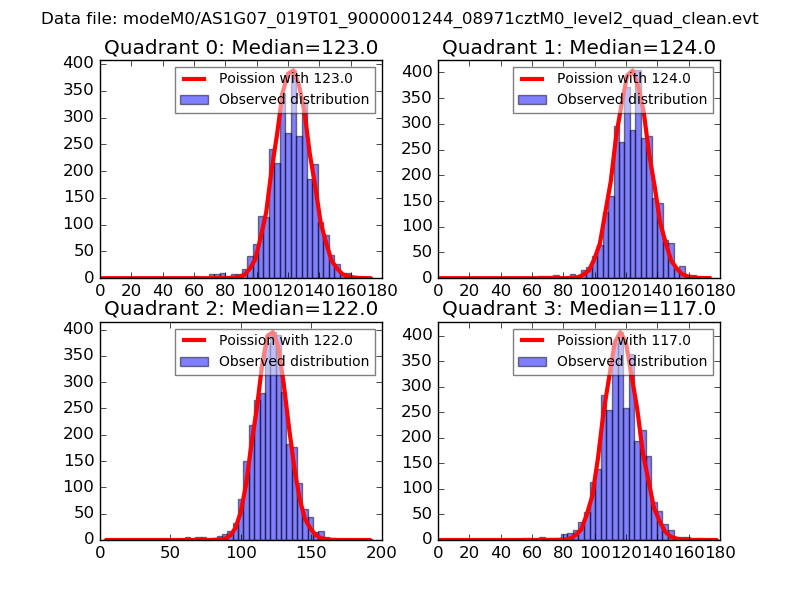

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

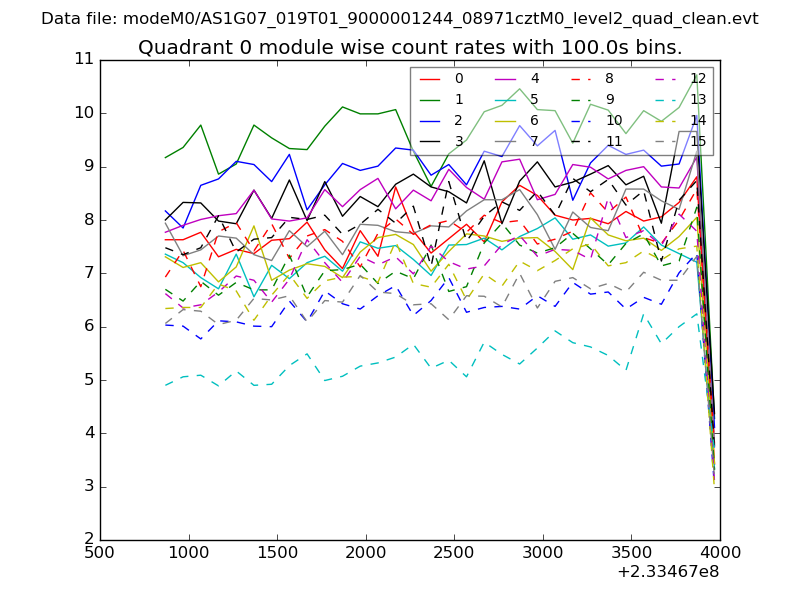

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

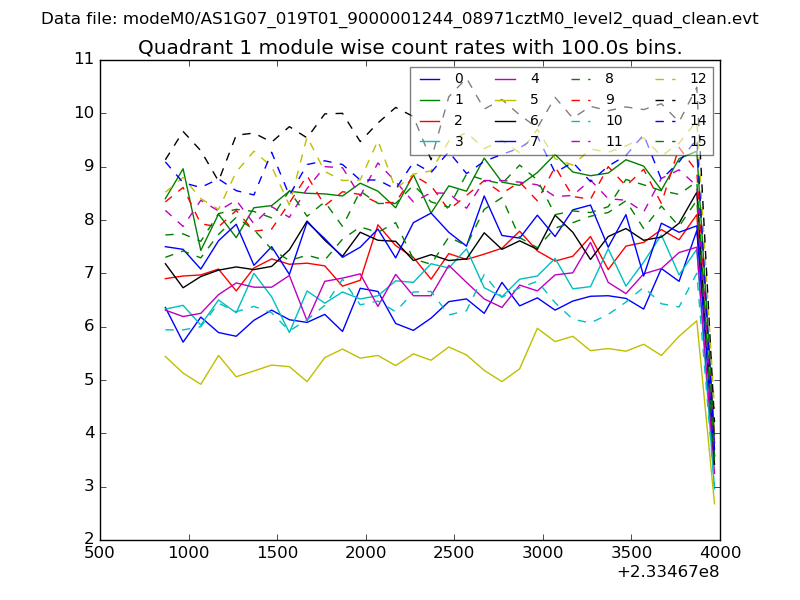

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

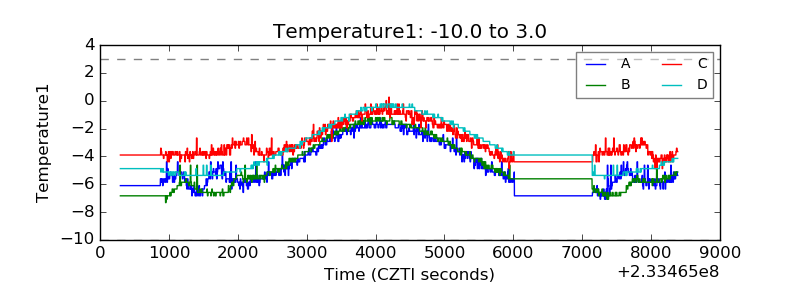

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

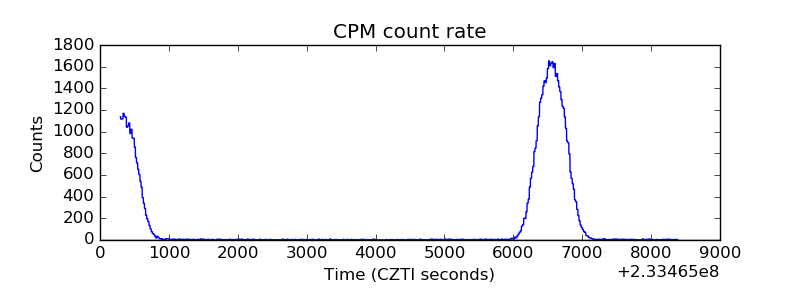

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

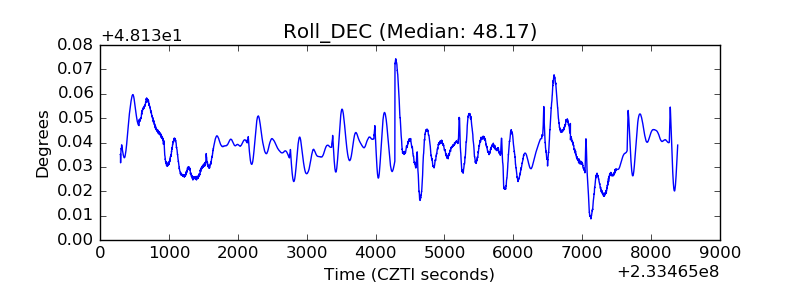

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
