| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_025T08_9000001248_08986cztM0_level2.evt | modeM0/AS1A03_025T08_9000001248_08986cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,146,560 | 65,923,200 |
| Size | 416.9 MB | 62.9 MB |
| Events in quadrant A | 3,581,891 | 392,608 |
| Events in quadrant B | 3,141,049 | 399,390 |
| Events in quadrant C | 2,976,614 | 389,403 |
| Events in quadrant D | 3,113,398 | 377,139 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14566 | 5 |
| B | 0 | 13151 | 4 |
| C | 0 | 12864 | 2 |
| D | 0 | 13439 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6263 | 96 | 1.532812% |
| B | 6263 | 66 | 1.053808% |
| C | 6264 | 32 | 0.510856% |
| D | 6265 | 74 | 1.181165% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

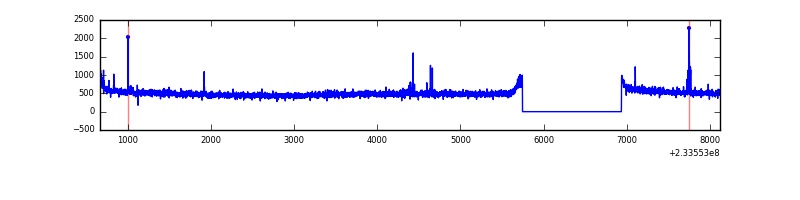

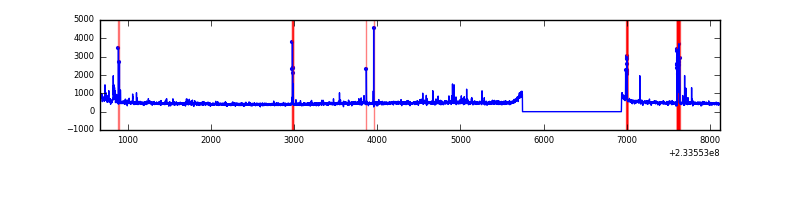

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7454 | 6264 | 30 | 30 | 0.40% | 0.48% |  |
| B | 7454 | 6264 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7454 | 6265 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7455 | 6266 | 37 | 37 | 0.50% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 391769 | 2443.84 | 791 | 776 | 160.0 |
| A | 15 | 174 | 142326 | 884.74 | 791 | 776 | 160.0 |
| A | 0 | 226 | 7450 | 41.71 | 791 | 776 | 160.0 |
| B | 12 | 111 | 16556 | 104.45 | 796 | 780 | 151.0 |
| B | 0 | 219 | 15773 | 99.26 | 796 | 780 | 151.0 |
| B | 11 | 111 | 13305 | 82.92 | 796 | 780 | 151.0 |
| C | 13 | 61 | 5705 | 27.91 | 763 | 767 | 176.9 |
| C | 3 | 202 | 1863 | 6.2 | 763 | 767 | 176.9 |
| C | -1 | -1 | -1 | -1.0 | 763 | 767 | 176.9 |
| D | 1 | 52 | 71078 | 372.44 | 753 | 734 | 188.9 |
| D | 13 | 104 | 69224 | 362.63 | 753 | 734 | 188.9 |
| D | 2 | 14 | 62878 | 329.03 | 753 | 734 | 188.9 |

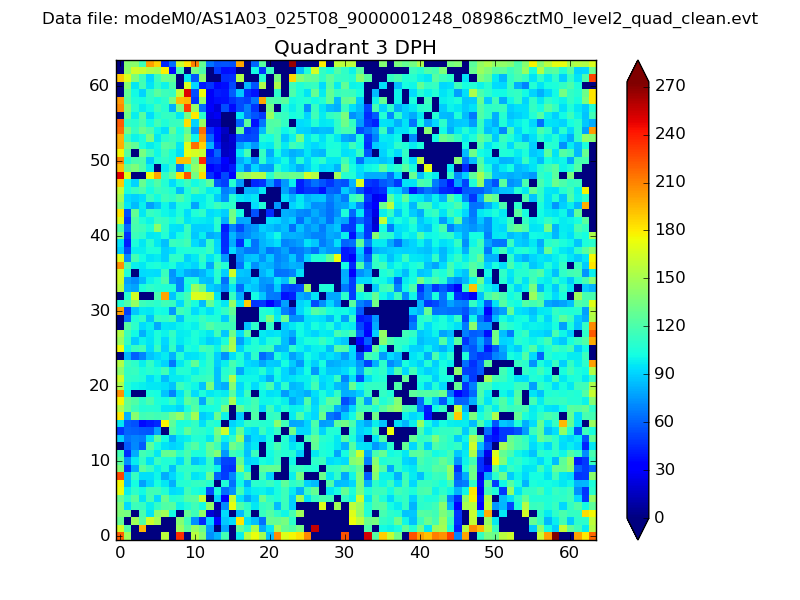

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

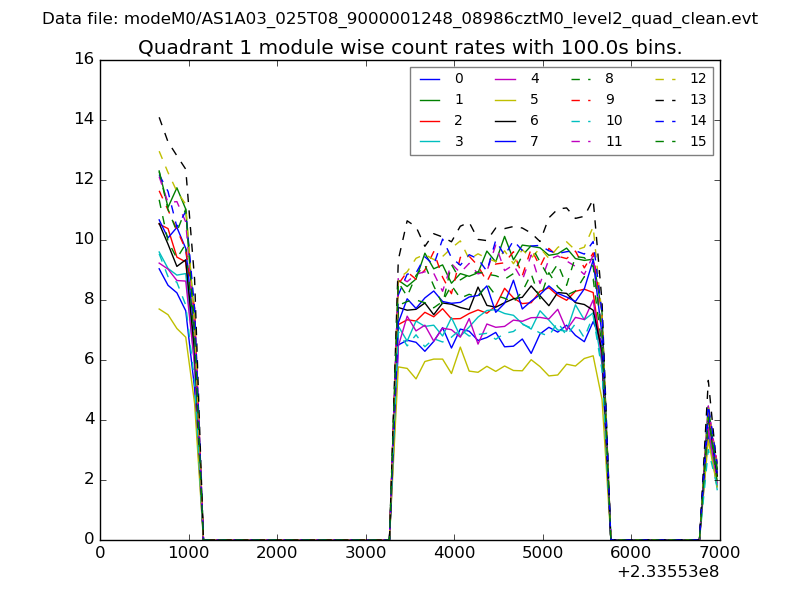

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

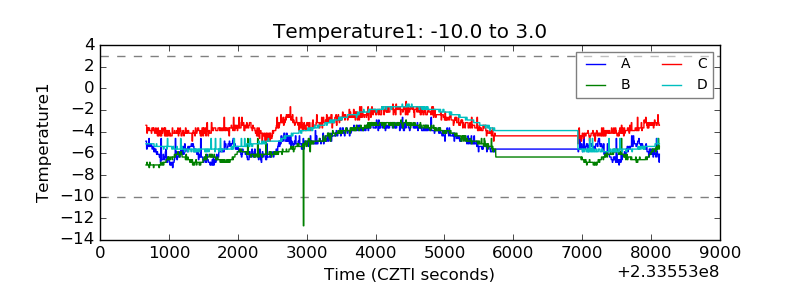

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

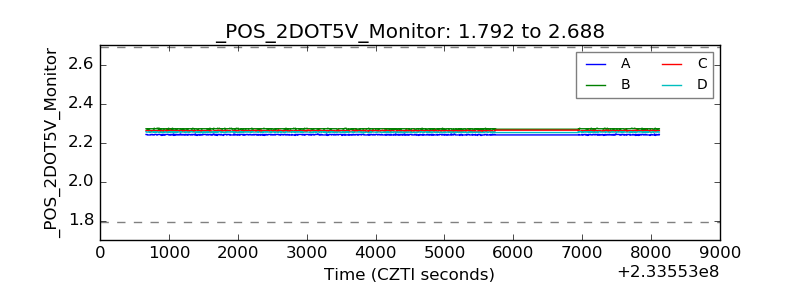

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

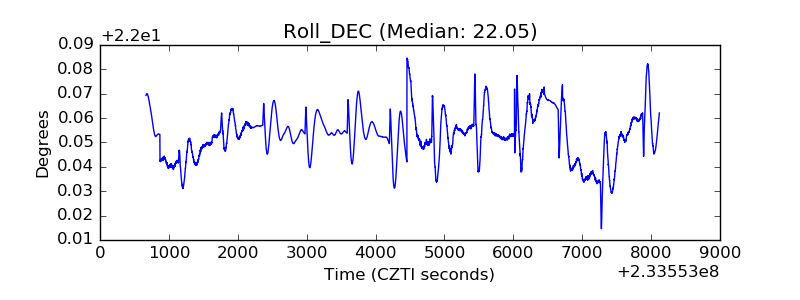

| _Roll_DEC |  |

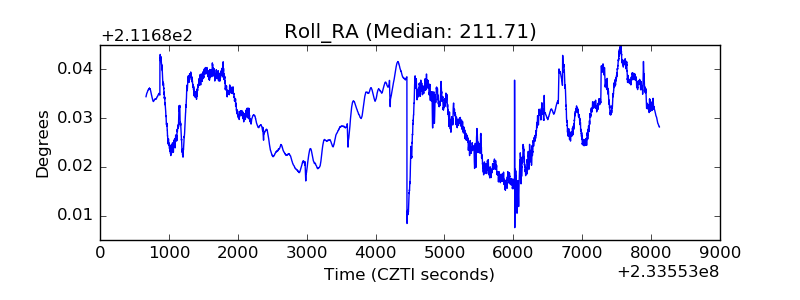

| _Roll_RA |  |
| Veto Counter |  |
