| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_037T01_9000001252_08998cztM0_level2.evt | modeM0/AS1C02_037T01_9000001252_08998cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,971,520 | 64,909,440 |
| Size | 467.3 MB | 61.9 MB |
| Events in quadrant A | 3,841,485 | 383,045 |
| Events in quadrant B | 3,573,941 | 379,561 |
| Events in quadrant C | 3,109,670 | 372,172 |
| Events in quadrant D | 3,860,592 | 364,915 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15492 | 3 |
| B | 0 | 14788 | 2 |
| C | 0 | 13701 | 2 |
| D | 0 | 15804 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6674 | 63 | 0.943962% |
| B | 6674 | 153 | 2.292478% |
| C | 6674 | 29 | 0.434522% |
| D | 6674 | 73 | 1.093797% |

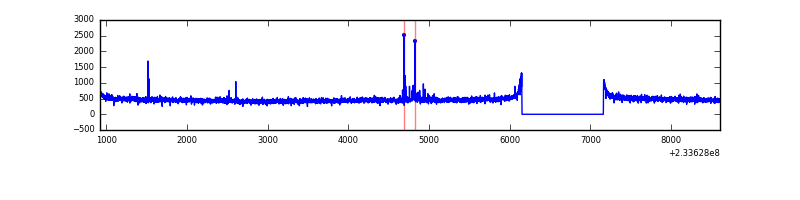

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6674 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7684 | 6675 | 71 | 71 | 0.92% | 1.06% |  |
| C | 7684 | 6675 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7684 | 6675 | 39 | 39 | 0.51% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 594895 | 3561.7 | 816 | 799 | 166.8 |
| A | 3 | 1 | 32182 | 188.15 | 816 | 799 | 166.8 |
| A | 13 | 251 | 26704 | 155.3 | 816 | 799 | 166.8 |
| B | 10 | 16 | 255425 | 1629.86 | 815 | 794 | 156.2 |
| B | 4 | 173 | 28588 | 177.91 | 815 | 794 | 156.2 |
| B | 0 | 246 | 26514 | 164.63 | 815 | 794 | 156.2 |
| C | 14 | 234 | 26637 | 141.54 | 786 | 792 | 182.6 |
| C | 13 | 61 | 6037 | 28.73 | 786 | 792 | 182.6 |
| C | 9 | 68 | 5638 | 26.54 | 786 | 792 | 182.6 |
| D | 1 | 52 | 466408 | 2406.37 | 787 | 764 | 193.5 |
| D | 6 | 225 | 95374 | 488.93 | 787 | 764 | 193.5 |
| D | 7 | 71 | 77961 | 398.94 | 787 | 764 | 193.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

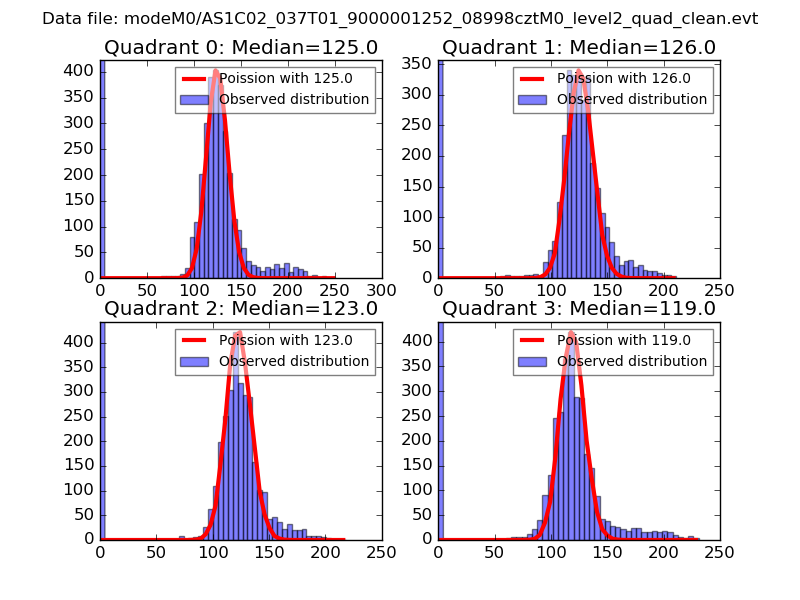

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

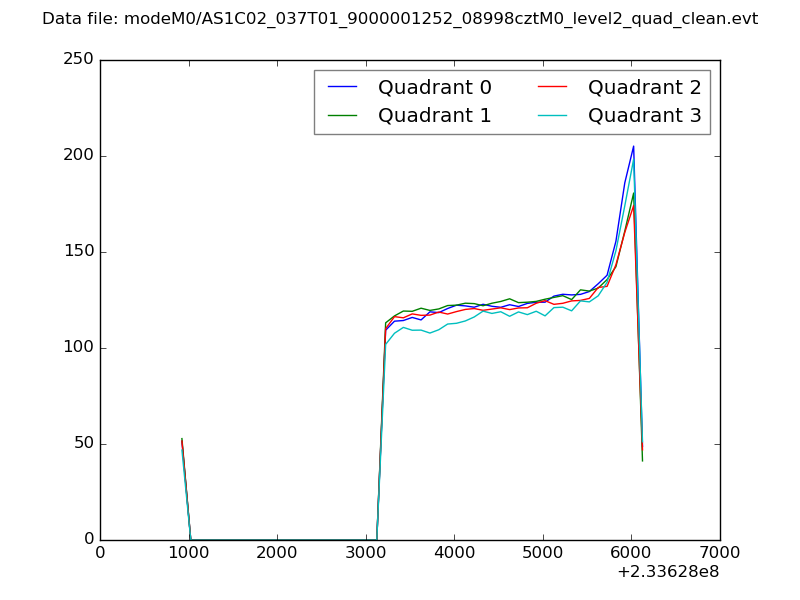

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

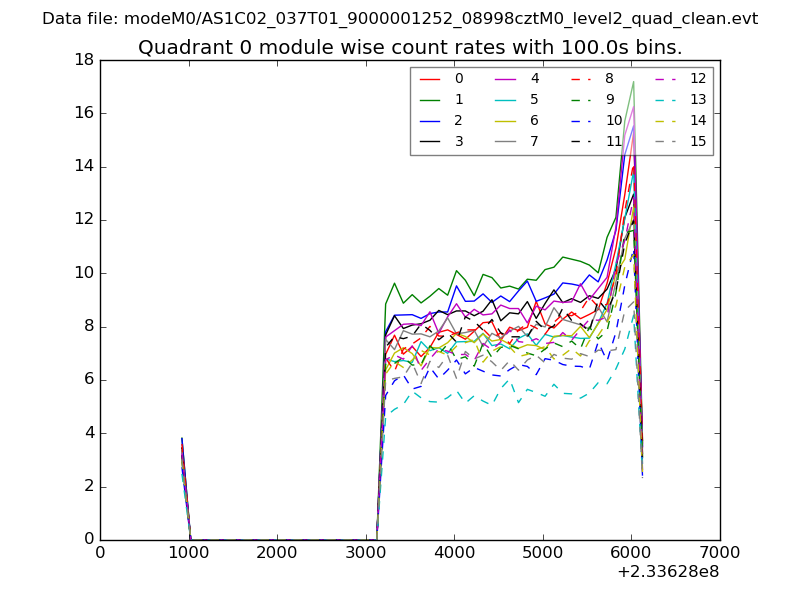

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

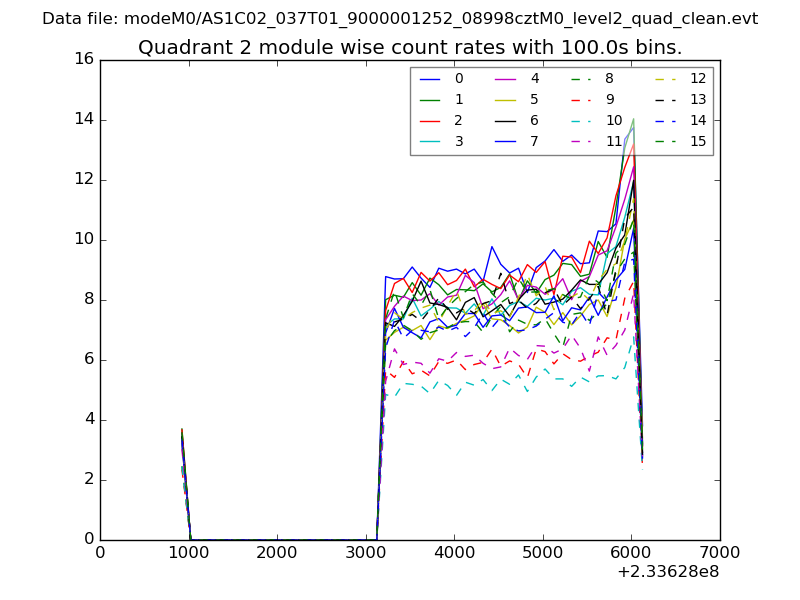

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

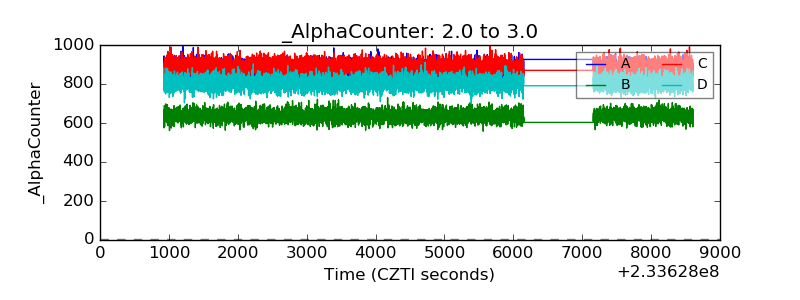

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
