| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_037T01_9000001252_09008cztM0_level2.evt | modeM0/AS1C02_037T01_9000001252_09008cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,584,960 | 99,172,800 |
| Size | 527.9 MB | 94.6 MB |
| Events in quadrant A | 3,990,993 | 632,284 |
| Events in quadrant B | 4,762,004 | 617,248 |
| Events in quadrant C | 3,335,728 | 629,174 |
| Events in quadrant D | 4,167,101 | 602,073 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16782 | 3 |
| B | 0 | 19167 | 2 |
| C | 0 | 15346 | 2 |
| D | 0 | 17508 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7509 | 44 | 0.585964% |
| B | 7509 | 386 | 5.140498% |
| C | 7509 | 26 | 0.346251% |
| D | 7509 | 114 | 1.518178% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

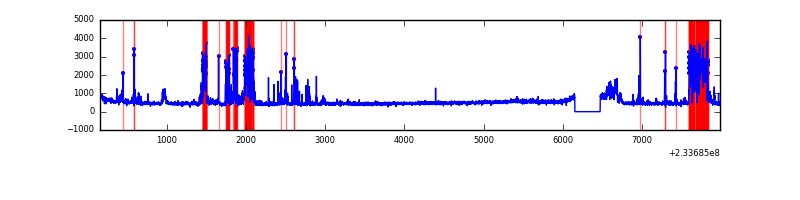

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 7510 | 9 | 9 | 0.11% | 0.12% |  |
| B | 7829 | 7510 | 309 | 309 | 3.95% | 4.11% |  |
| C | 7829 | 7510 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7829 | 7510 | 94 | 94 | 1.20% | 1.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 536238 | 2983.04 | 877 | 860 | 179.5 |
| A | 15 | 174 | 40145 | 218.89 | 877 | 860 | 179.5 |
| A | 5 | 16 | 10721 | 54.94 | 877 | 860 | 179.5 |
| B | 10 | 16 | 1117678 | 6622.64 | 867 | 845 | 168.6 |
| B | 0 | 230 | 194357 | 1147.49 | 867 | 845 | 168.6 |
| B | 0 | 214 | 43340 | 251.99 | 867 | 845 | 168.6 |
| C | 13 | 61 | 6438 | 27.92 | 853 | 857 | 199.9 |
| C | 14 | 238 | 5716 | 24.31 | 853 | 857 | 199.9 |
| C | 8 | 222 | 3785 | 14.65 | 853 | 857 | 199.9 |
| D | 1 | 52 | 466128 | 2194.48 | 852 | 823 | 212.0 |
| D | 6 | 225 | 192931 | 906.02 | 852 | 823 | 212.0 |
| D | 7 | 71 | 91890 | 429.49 | 852 | 823 | 212.0 |

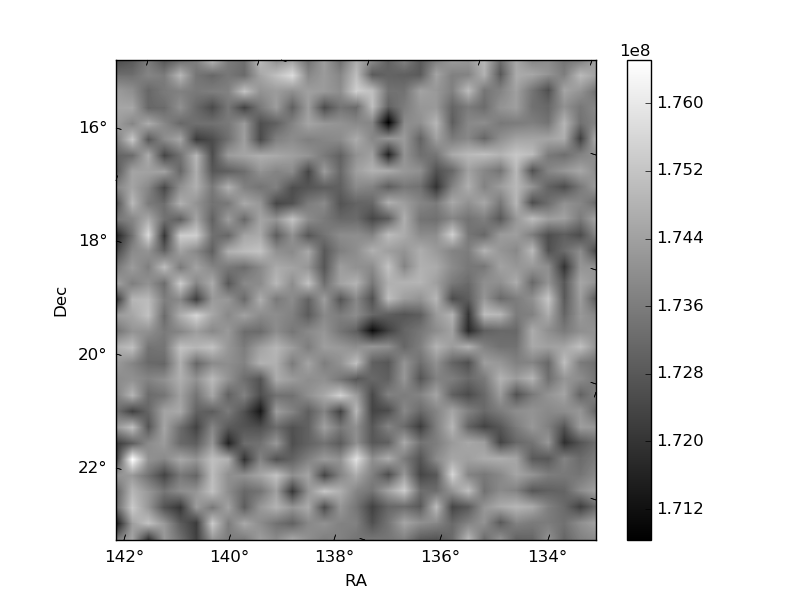

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

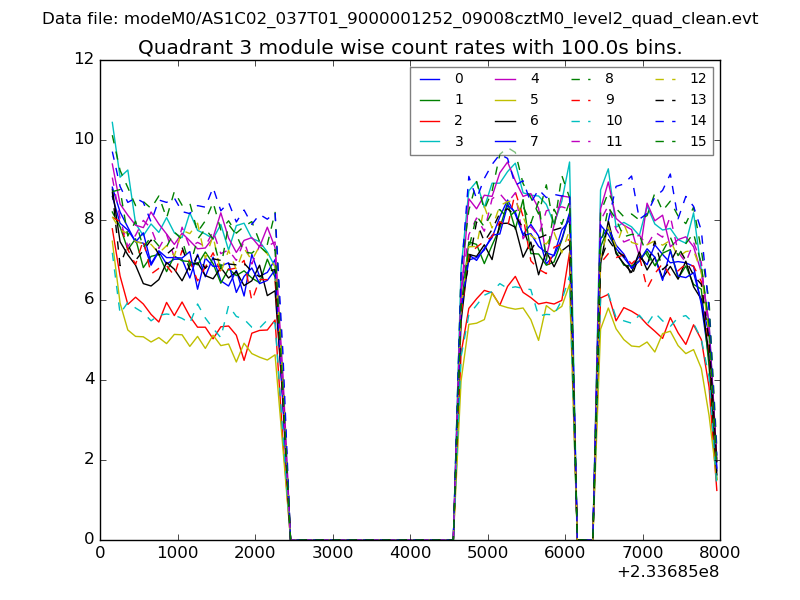

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

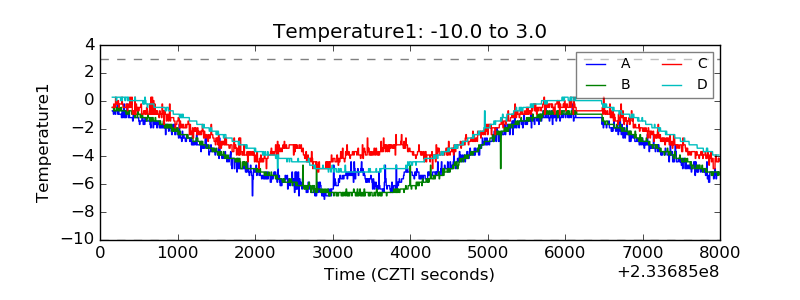

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

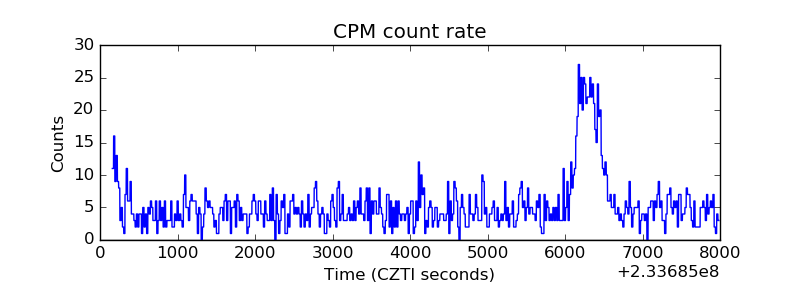

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

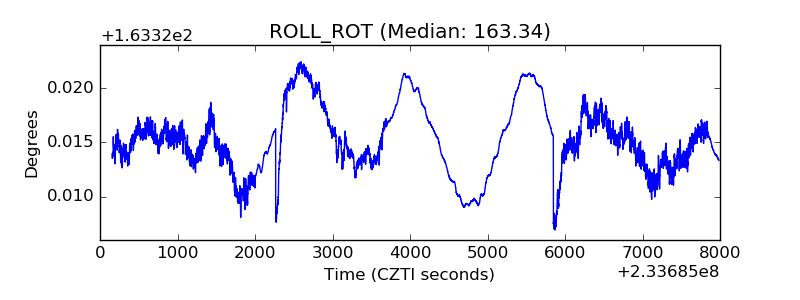

| _ROLL_ROT |  |

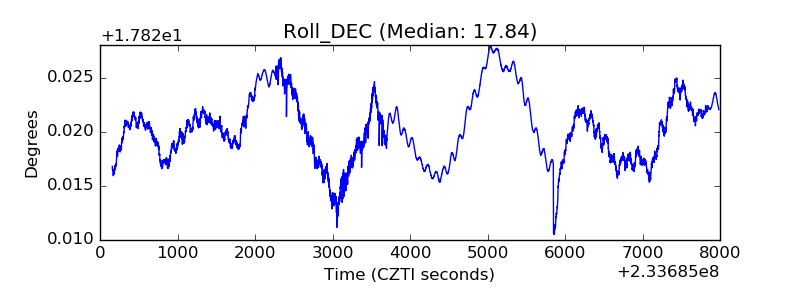

| _Roll_DEC |  |
| _Roll_RA |  |

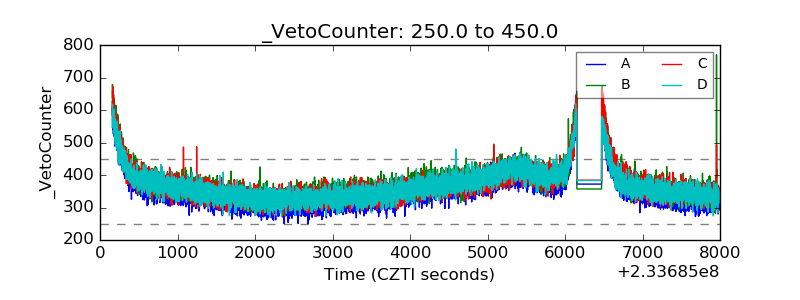

| Veto Counter |  |
