| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_172T01_9000001250_08993cztM0_level2.evt | modeM0/AS1T01_172T01_9000001250_08993cztM0_level2_quad_clean.evt |
| Size (bytes) | 312,353,280 | 60,431,040 |
| Size | 297.9 MB | 57.6 MB |
| Events in quadrant A | 3,166,621 | 381,205 |
| Events in quadrant B | 2,034,950 | 388,747 |
| Events in quadrant C | 1,843,624 | 387,738 |
| Events in quadrant D | 2,129,527 | 377,860 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12338 | 6 |
| B | 0 | 8857 | 3 |
| C | 0 | 8481 | 1 |
| D | 0 | 9203 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4175 | 169 | 4.047904% |
| B | 4175 | 37 | 0.886228% |
| C | 4176 | 12 | 0.287356% |
| D | 4174 | 39 | 0.934356% |

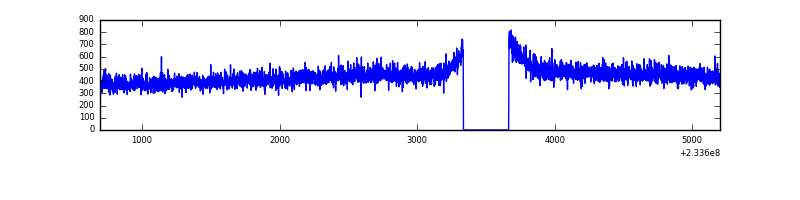

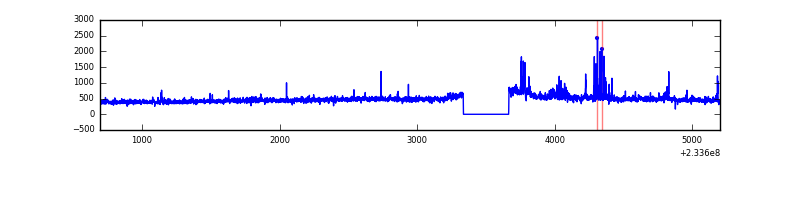

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4506 | 4177 | 31 | 31 | 0.69% | 0.74% |  |
| B | 4506 | 4177 | 2 | 2 | 0.04% | 0.05% |  |
| C | 4506 | 4177 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4506 | 4177 | 17 | 17 | 0.38% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1284897 | 12836.81 | 486 | 475 | 100.1 |
| A | 15 | 174 | 6678 | 61.99 | 486 | 475 | 100.1 |
| A | 0 | 226 | 4609 | 41.31 | 486 | 475 | 100.1 |
| B | 0 | 213 | 31324 | 320.62 | 491 | 480 | 96.2 |
| B | 0 | 219 | 24168 | 246.23 | 491 | 480 | 96.2 |
| B | 4 | 173 | 19198 | 194.57 | 491 | 480 | 96.2 |
| C | 13 | 61 | 3650 | 28.74 | 472 | 473 | 110.6 |
| C | 14 | 67 | 1272 | 7.23 | 472 | 473 | 110.6 |
| C | 3 | 202 | 1209 | 6.66 | 472 | 473 | 110.6 |
| D | 1 | 52 | 136404 | 1105.02 | 471 | 457 | 123.0 |
| D | 2 | 14 | 53242 | 429.05 | 471 | 457 | 123.0 |
| D | 7 | 71 | 36907 | 296.28 | 471 | 457 | 123.0 |

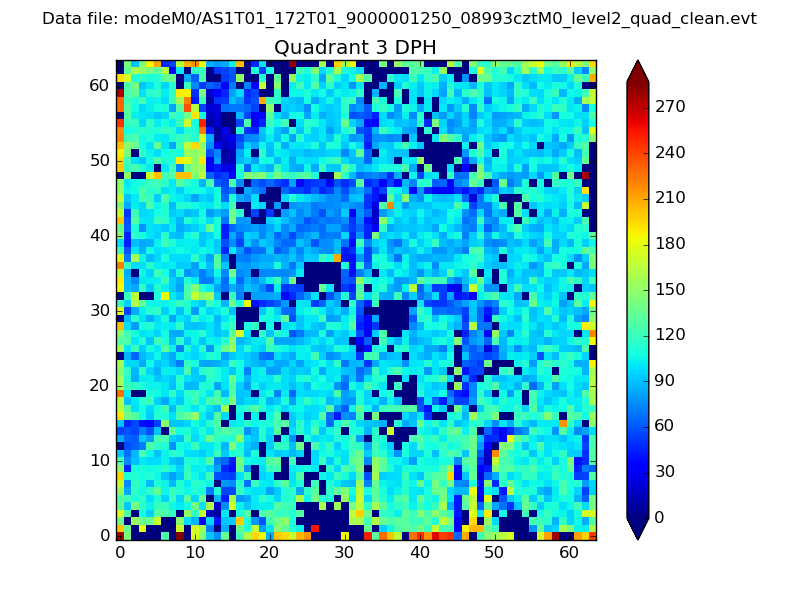

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

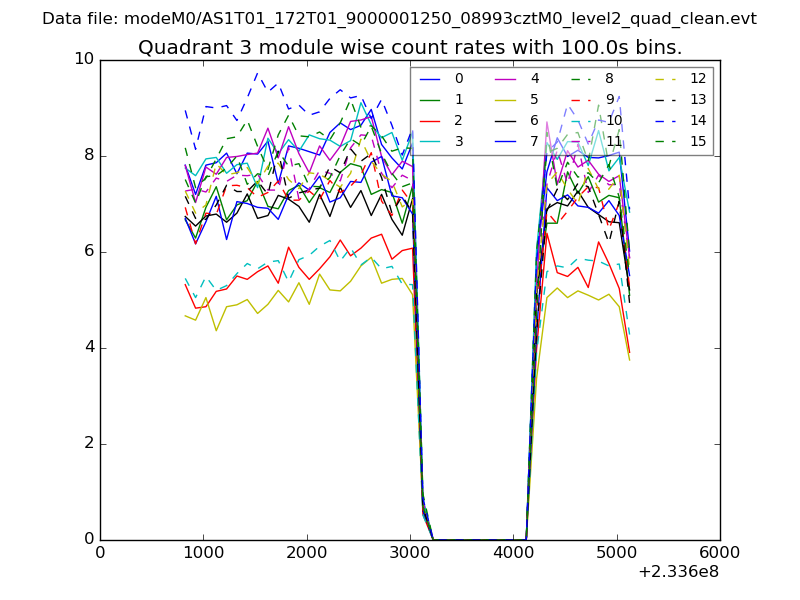

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

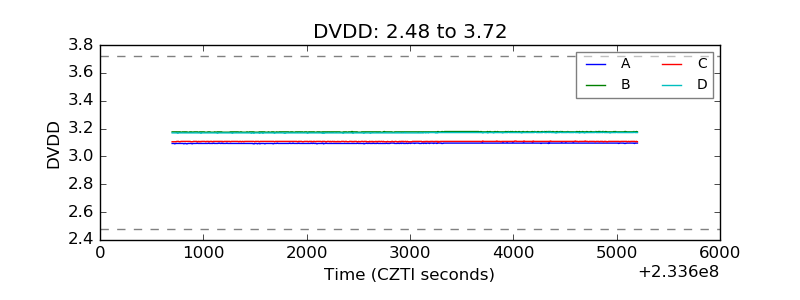

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

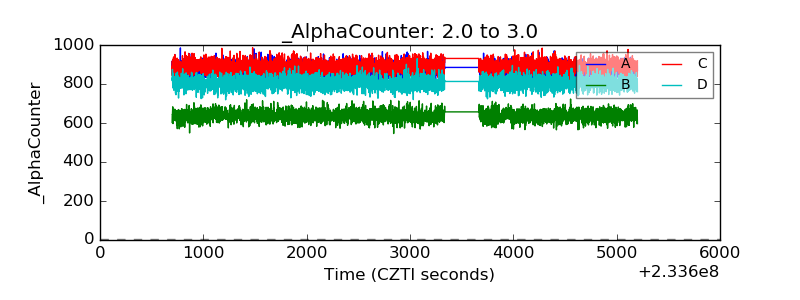

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

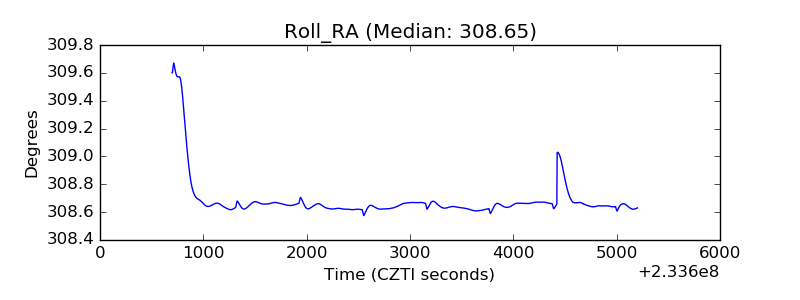

| _Roll_RA |  |
| Veto Counter |  |
