| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_029T02_9000001256_09030cztM0_level2.evt | modeM0/AS1G07_029T02_9000001256_09030cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,365,120 | 63,123,840 |
| Size | 533.5 MB | 60.2 MB |
| Events in quadrant A | 3,685,120 | 370,843 |
| Events in quadrant B | 3,347,072 | 377,139 |
| Events in quadrant C | 3,094,605 | 364,750 |
| Events in quadrant D | 6,374,710 | 346,983 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14861 | 3 |
| B | 0 | 13827 | 2 |
| C | 0 | 13324 | 2 |
| D | 0 | 23251 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6469 | 56 | 0.865667% |
| B | 6469 | 63 | 0.973875% |
| C | 6469 | 21 | 0.324625% |
| D | 6469 | 1275 | 19.709383% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

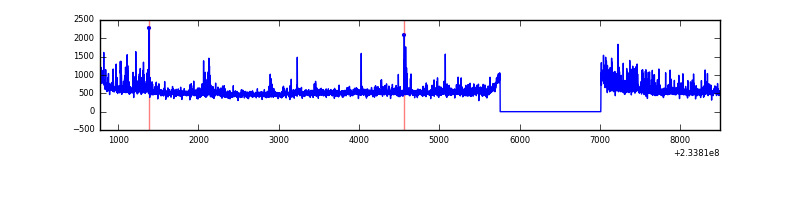

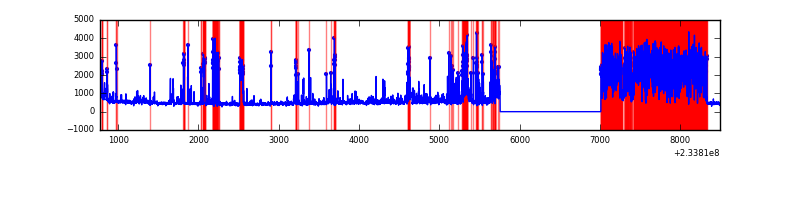

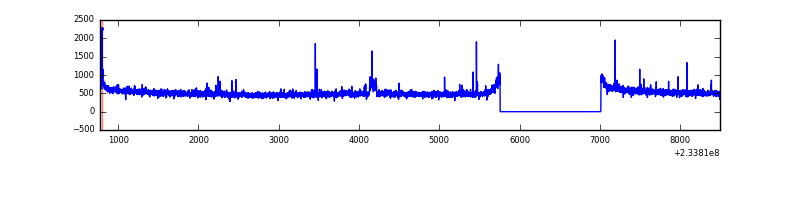

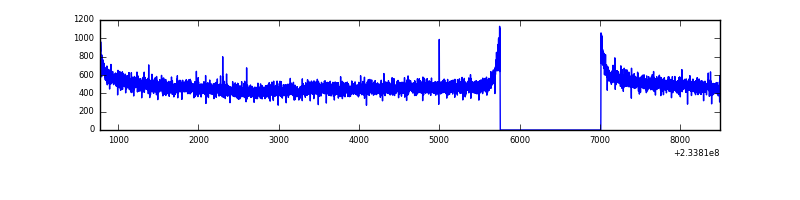

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7724 | 6470 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7724 | 6470 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7724 | 6470 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7724 | 6470 | 1123 | 1123 | 14.54% | 17.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 391535 | 2341.54 | 830 | 814 | 166.9 |
| A | 1 | 162 | 56971 | 336.54 | 830 | 814 | 166.9 |
| A | 1 | 178 | 12822 | 71.96 | 830 | 814 | 166.9 |
| B | 5 | 255 | 28874 | 179.82 | 833 | 816 | 156.0 |
| B | 4 | 48 | 27741 | 172.56 | 833 | 816 | 156.0 |
| B | 12 | 111 | 16593 | 101.11 | 833 | 816 | 156.0 |
| C | 13 | 61 | 6204 | 29.52 | 793 | 798 | 183.1 |
| C | 3 | 202 | 1952 | 6.3 | 793 | 798 | 183.1 |
| C | 14 | 67 | 1815 | 5.55 | 793 | 798 | 183.1 |
| D | 1 | 52 | 3305796 | 18733.98 | 731 | 713 | 176.4 |
| D | 6 | 225 | 164485 | 928.3 | 731 | 713 | 176.4 |
| D | 2 | 14 | 39667 | 220.8 | 731 | 713 | 176.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

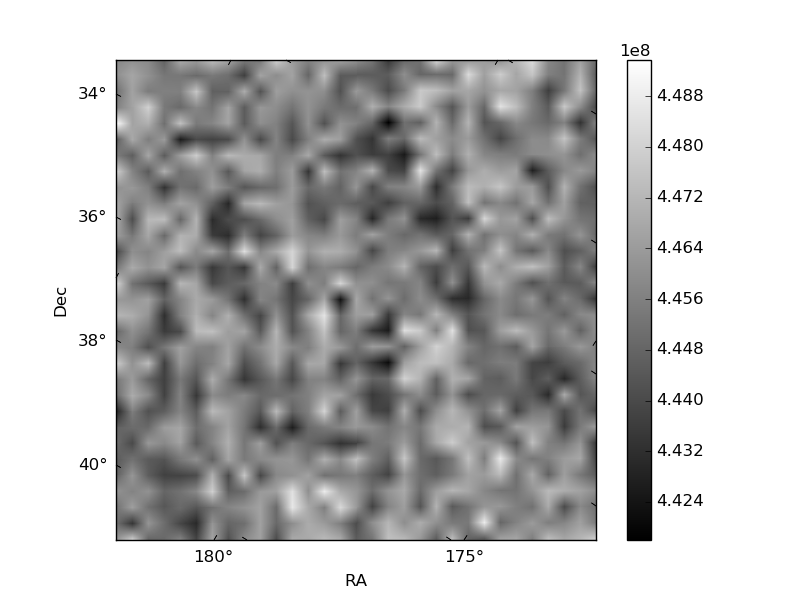

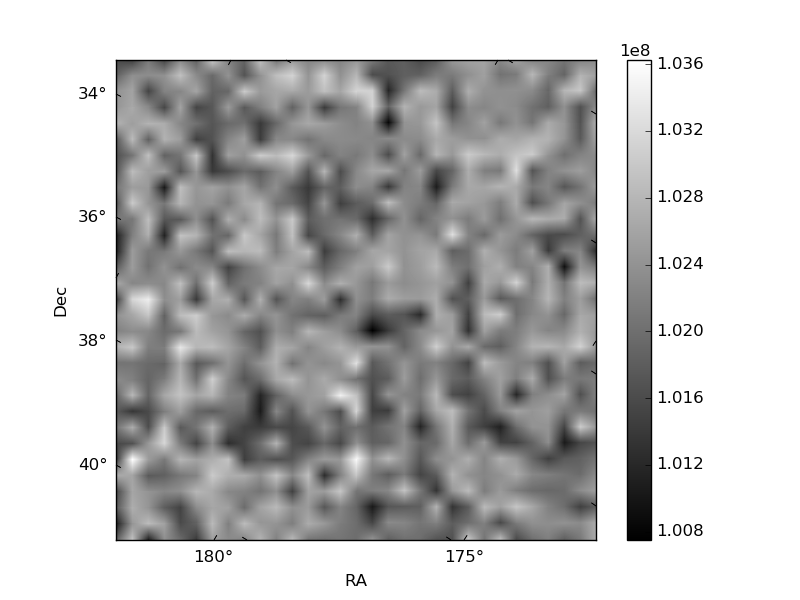

| Plot type | Count rate plots | Images |
|---|---|---|

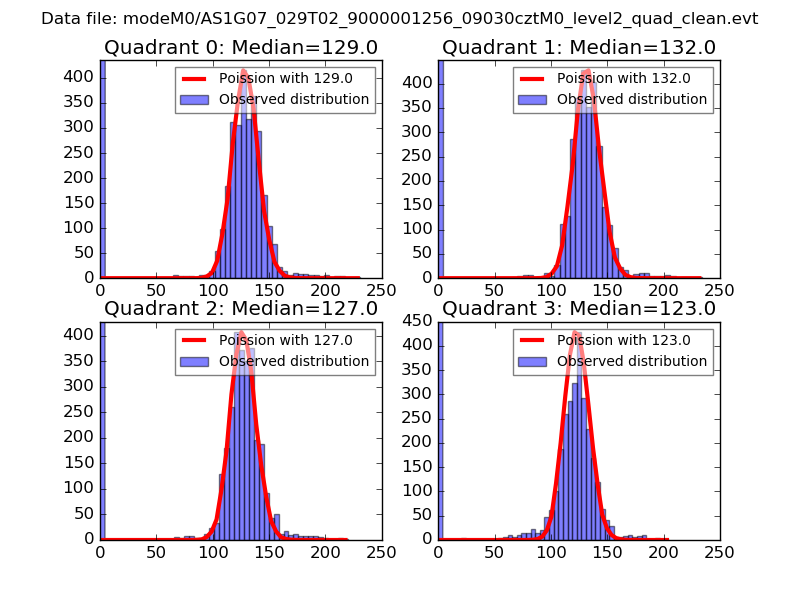

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

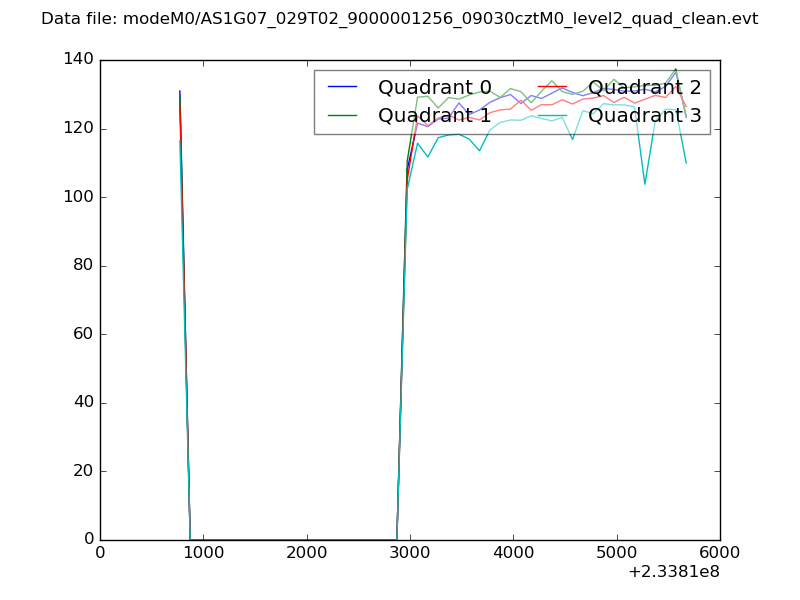

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

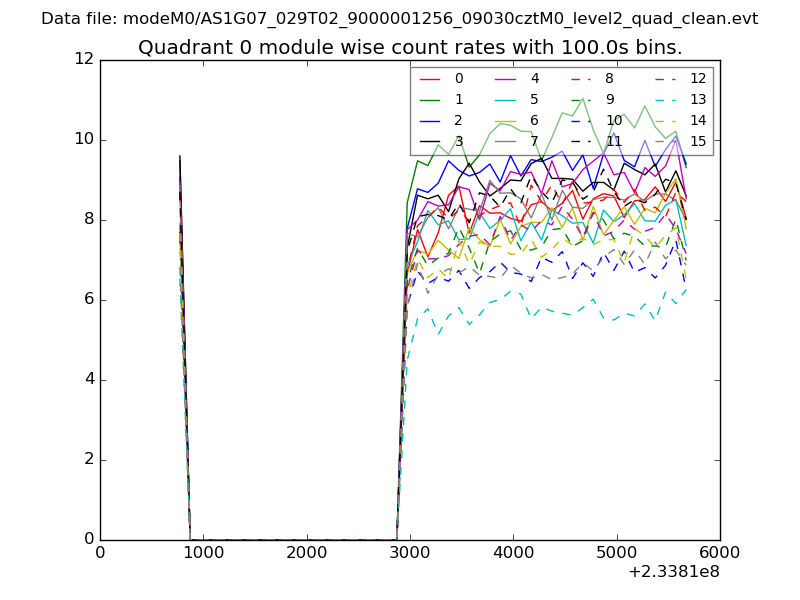

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

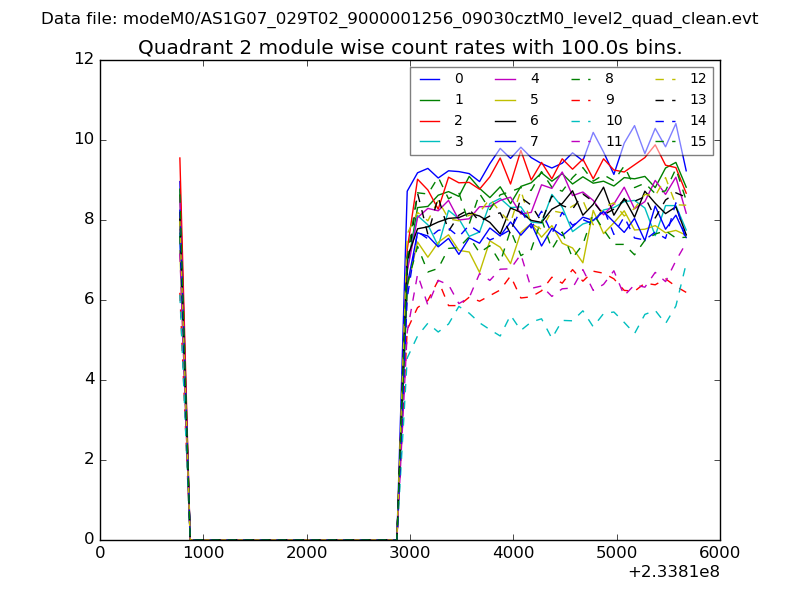

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

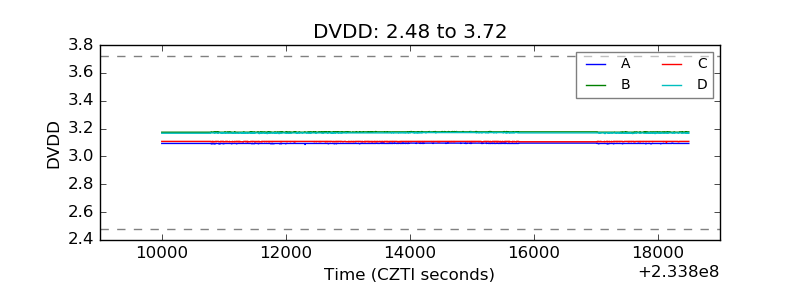

| D_VDD |  |

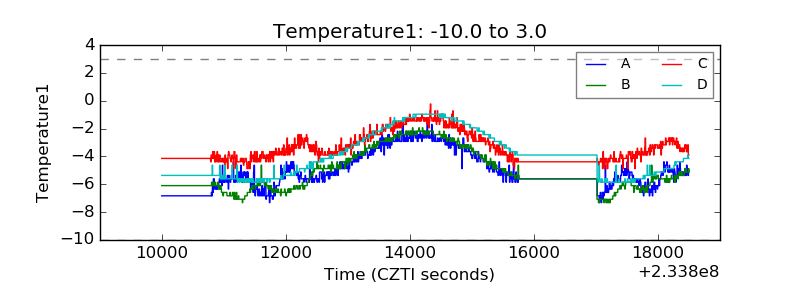

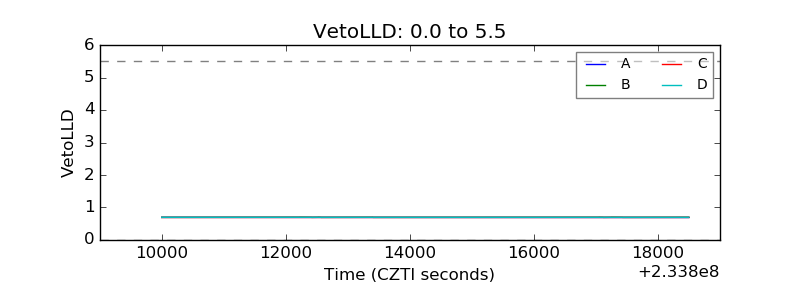

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

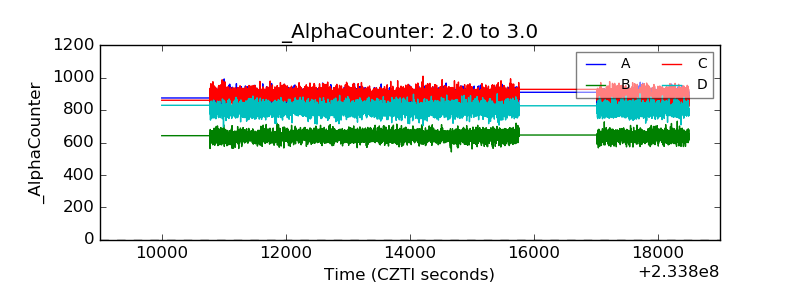

| Alpha Counter |  |

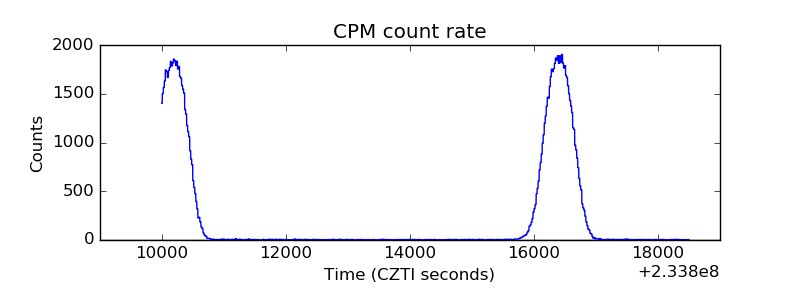

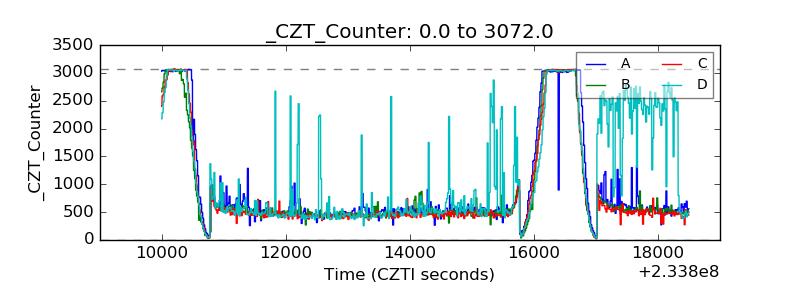

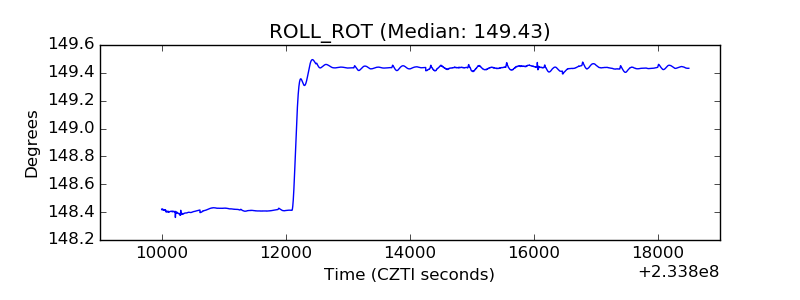

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

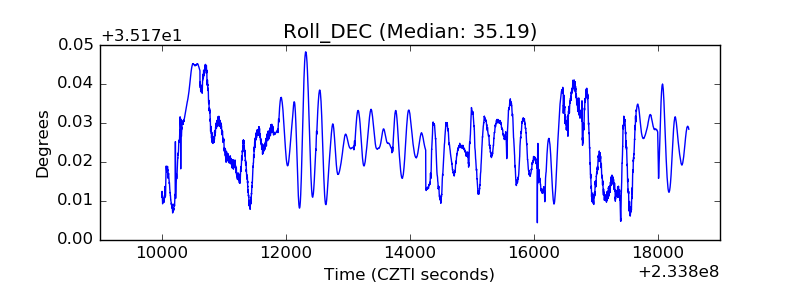

| _Roll_DEC |  |

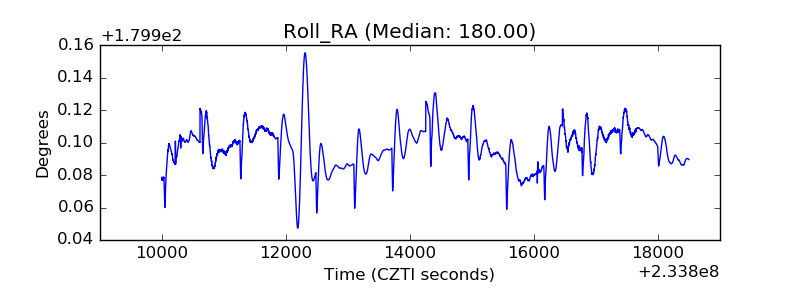

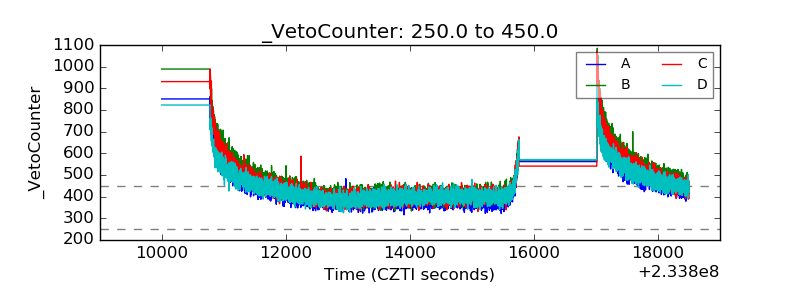

| _Roll_RA |  |
| Veto Counter |  |
