| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_029T02_9000001256_09034cztM0_level2.evt | modeM0/AS1G07_029T02_9000001256_09034cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,460,160 | 96,382,080 |
| Size | 542.1 MB | 91.9 MB |
| Events in quadrant A | 4,950,404 | 622,959 |
| Events in quadrant B | 3,416,201 | 637,171 |
| Events in quadrant C | 3,121,215 | 619,186 |
| Events in quadrant D | 5,260,186 | 558,459 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19326 | 2 |
| B | 0 | 14593 | 1 |
| C | 0 | 14078 | 1 |
| D | 0 | 20141 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6901 | 270 | 3.912476% |
| B | 6901 | 125 | 1.811332% |
| C | 6901 | 90 | 1.304159% |
| D | 6901 | 719 | 10.418780% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7681 | 6901 | 69 | 69 | 0.90% | 1.00% |  |
| B | 7681 | 6902 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7681 | 6901 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7681 | 6901 | 571 | 571 | 7.43% | 8.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1394316 | 8294.65 | 824 | 805 | 168.0 |
| A | 5 | 16 | 202026 | 1197.74 | 824 | 805 | 168.0 |
| A | 1 | 162 | 81596 | 480.9 | 824 | 805 | 168.0 |
| B | 6 | 51 | 53974 | 338.99 | 826 | 808 | 156.8 |
| B | 10 | 16 | 31908 | 198.29 | 826 | 808 | 156.8 |
| B | 4 | 80 | 24689 | 152.26 | 826 | 808 | 156.8 |
| C | 13 | 61 | 5979 | 27.79 | 799 | 801 | 186.3 |
| C | 14 | 67 | 3960 | 16.95 | 799 | 801 | 186.3 |
| C | 3 | 202 | 2050 | 6.7 | 799 | 801 | 186.3 |
| D | 1 | 52 | 1754655 | 9061.82 | 759 | 738 | 193.6 |
| D | 2 | 14 | 175162 | 901.18 | 759 | 738 | 193.6 |
| D | 6 | 225 | 170587 | 877.55 | 759 | 738 | 193.6 |

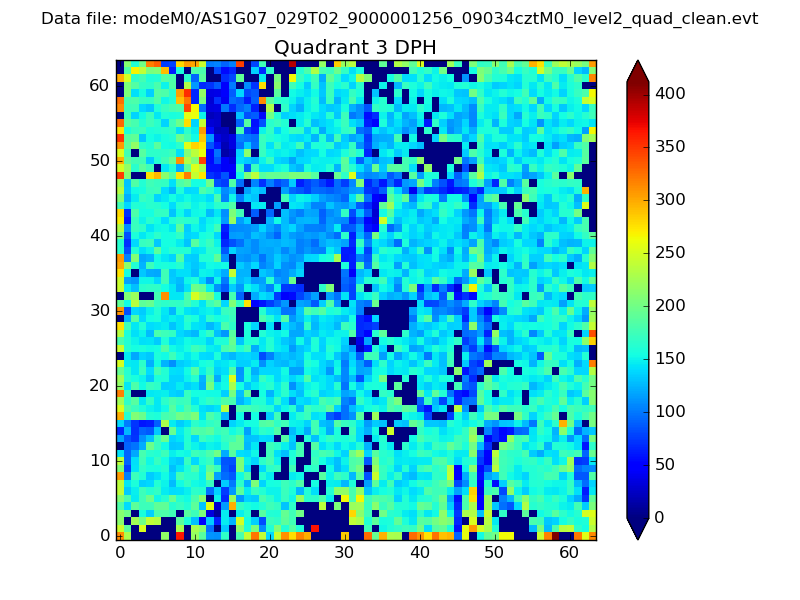

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

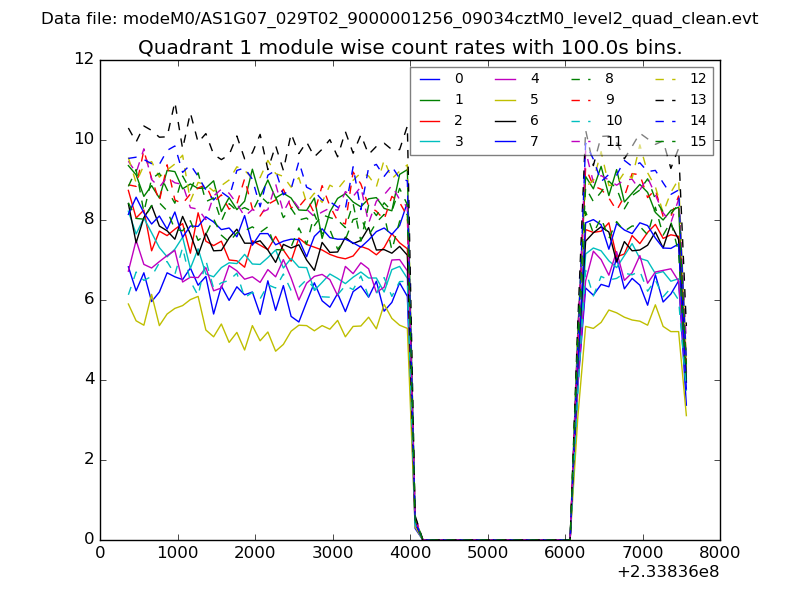

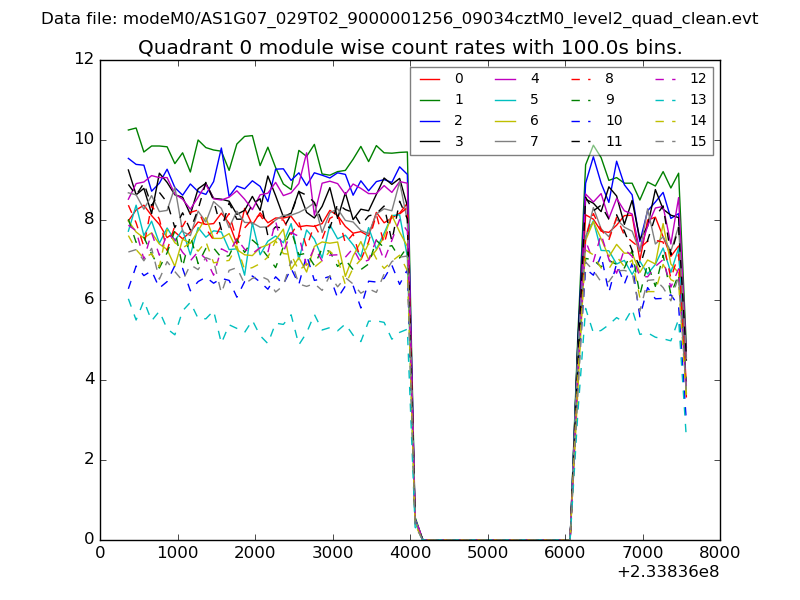

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

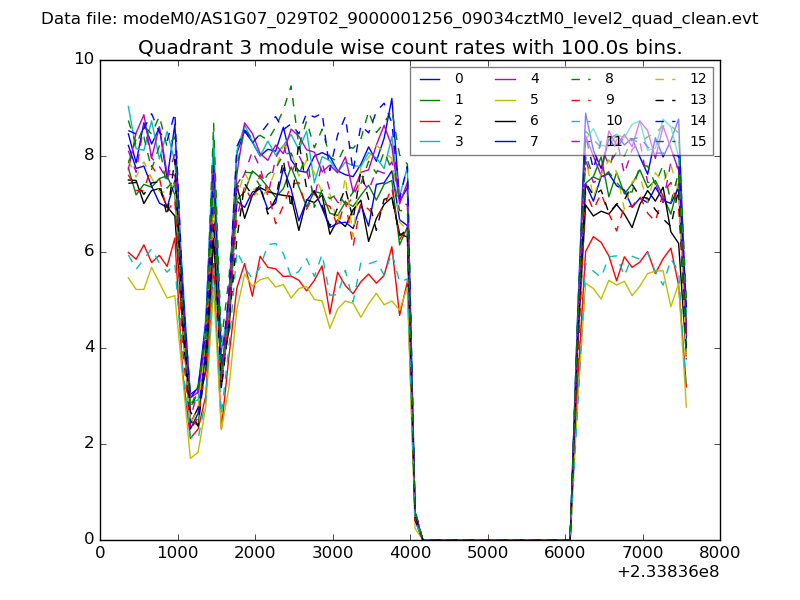

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

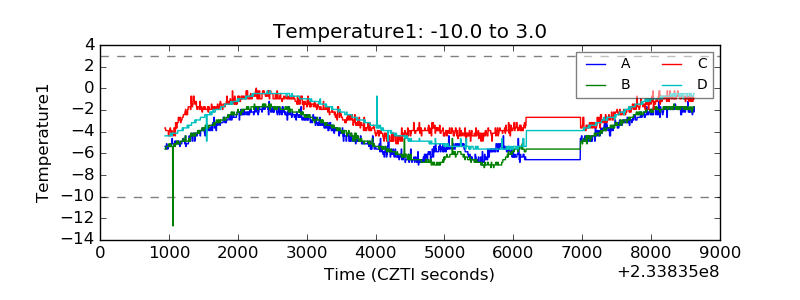

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

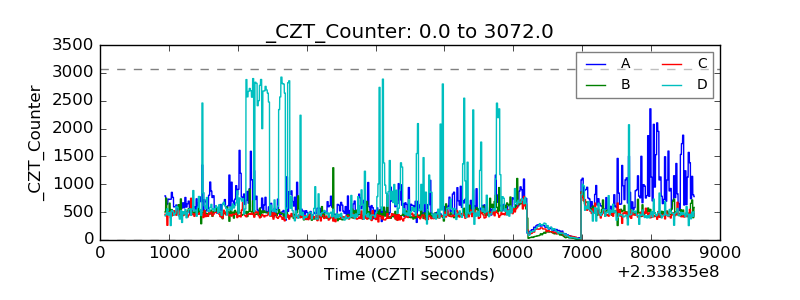

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

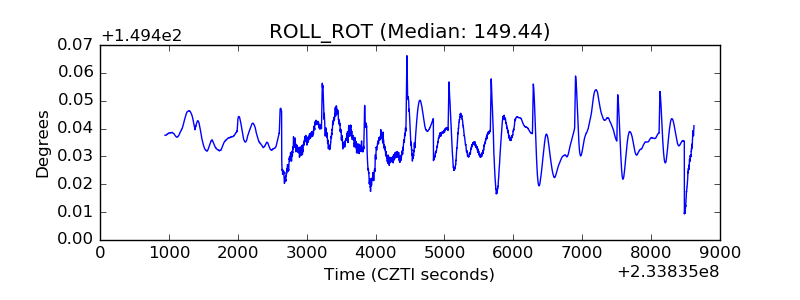

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

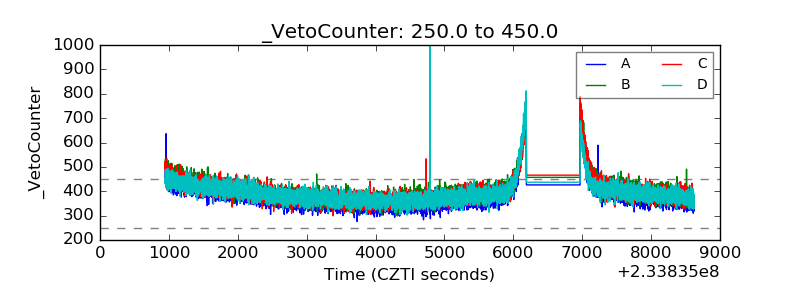

| Veto Counter |  |
