| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_029T02_9000001256_09037cztM0_level2.evt | modeM0/AS1G07_029T02_9000001256_09037cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,987,200 | 97,634,880 |
| Size | 542.6 MB | 93.1 MB |
| Events in quadrant A | 5,150,208 | 606,290 |
| Events in quadrant B | 3,717,756 | 629,501 |
| Events in quadrant C | 3,301,002 | 620,180 |
| Events in quadrant D | 4,563,192 | 587,627 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 151 | 1 |
| B | 0 | 152 | 2 |
| C | 0 | 151 | 1 |
| D | 0 | 152 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20694 | 413 |
| B | 0 | 16198 | 279 |
| C | 0 | 15341 | 275 |
| D | 0 | 19111 | 427 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7353 | 512 | 6.963144% |
| B | 7358 | 94 | 1.277521% |
| C | 7358 | 26 | 0.353357% |
| D | 7354 | 338 | 4.596138% |

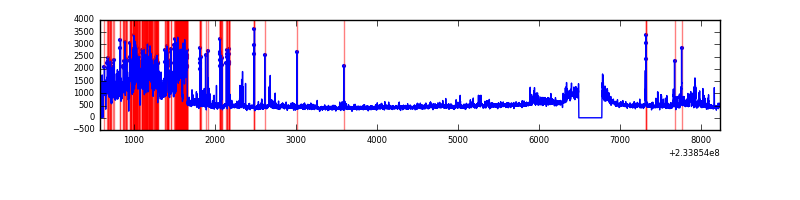

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7651 | 7363 | 292 | 292 | 3.82% | 3.97% |  |
| B | 7658 | 7370 | 18 | 18 | 0.24% | 0.24% |  |
| C | 7654 | 7366 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7656 | 7363 | 205 | 205 | 2.68% | 2.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1448781 | 8308.4 | 850 | 831 | 174.3 |
| A | 5 | 16 | 237286 | 1356.79 | 850 | 831 | 174.3 |
| A | 3 | 1 | 101475 | 577.5 | 850 | 831 | 174.3 |
| B | 4 | 48 | 114172 | 678.75 | 863 | 841 | 167.0 |
| B | 10 | 16 | 64439 | 380.89 | 863 | 841 | 167.0 |
| B | 6 | 51 | 34931 | 204.17 | 863 | 841 | 167.0 |
| C | 8 | 128 | 12035 | 57.17 | 839 | 843 | 195.8 |
| C | 8 | 112 | 6876 | 30.82 | 839 | 843 | 195.8 |
| C | 13 | 61 | 6318 | 27.97 | 839 | 843 | 195.8 |
| D | 6 | 225 | 1104784 | 4997.09 | 827 | 807 | 220.9 |
| D | 2 | 14 | 75044 | 336.03 | 827 | 807 | 220.9 |
| D | 1 | 52 | 71589 | 320.39 | 827 | 807 | 220.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

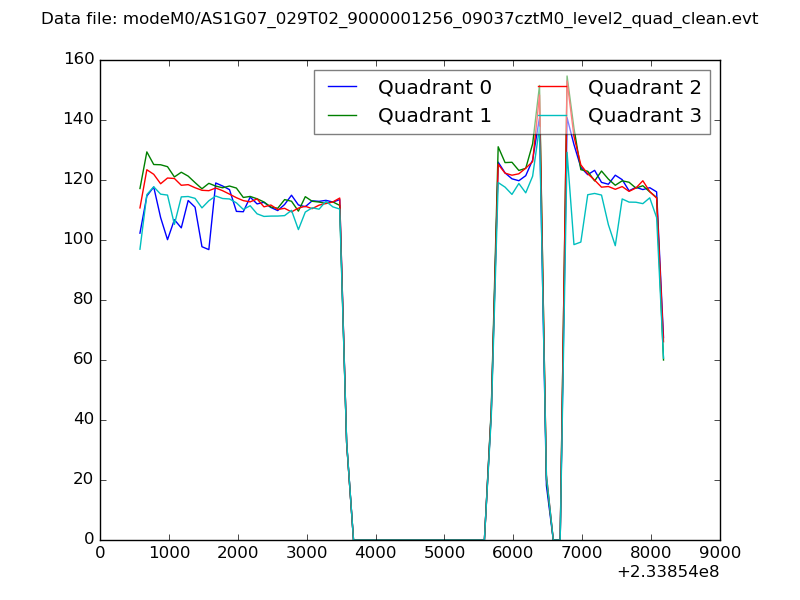

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

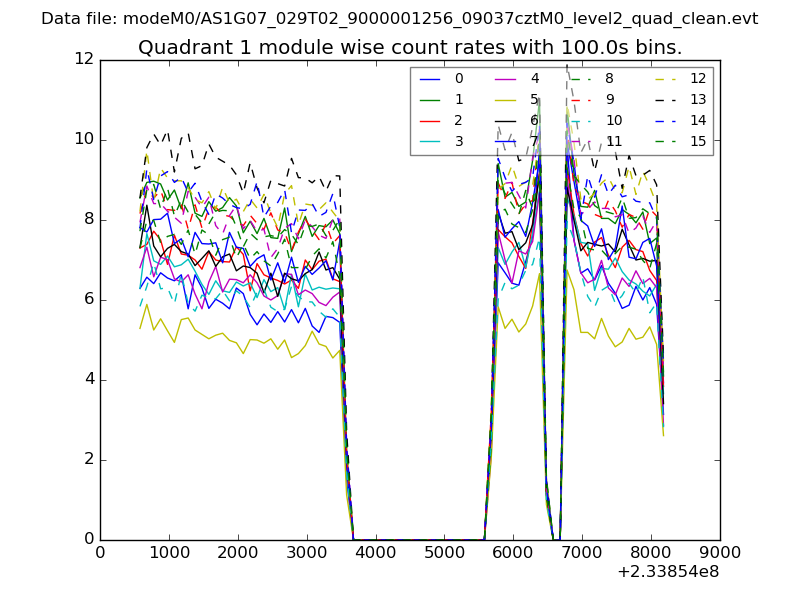

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

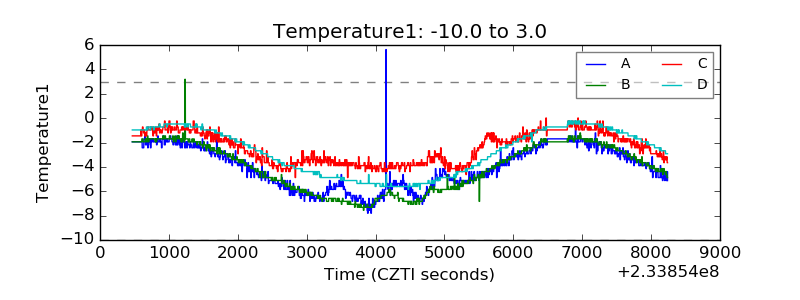

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

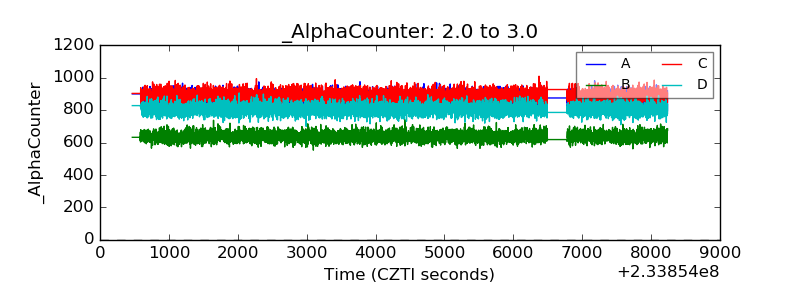

| Alpha Counter |  |
| _CPM_Rate |  |

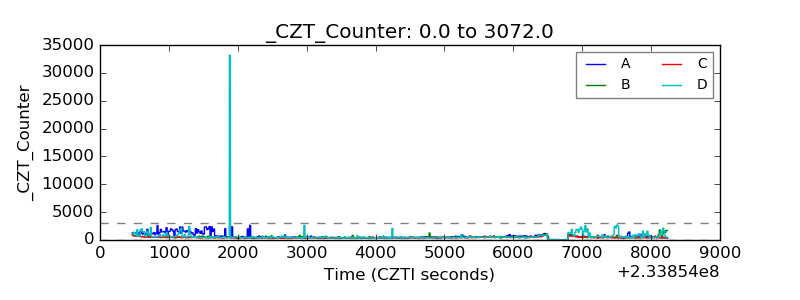

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

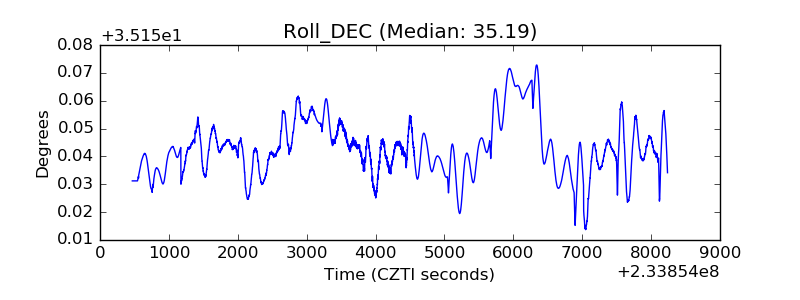

| _Roll_DEC |  |

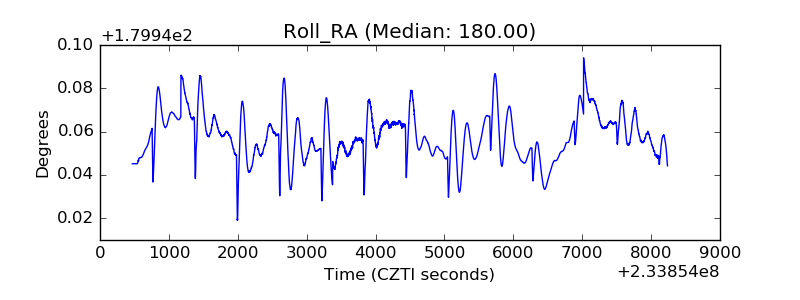

| _Roll_RA |  |
| Veto Counter |  |
