| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_046T01_9000001260_09047cztM0_level2.evt | modeM0/AS1A03_046T01_9000001260_09047cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,821,120 | 69,082,560 |
| Size | 425.2 MB | 65.9 MB |
| Events in quadrant A | 3,914,495 | 415,378 |
| Events in quadrant B | 2,946,727 | 430,327 |
| Events in quadrant C | 2,859,766 | 424,211 |
| Events in quadrant D | 3,374,124 | 404,197 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 4 |
| B | 0 | 130 | 6 |
| C | 0 | 130 | 6 |
| D | 0 | 130 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17018 | 1266 |
| B | 0 | 13383 | 864 |
| C | 0 | 13231 | 763 |
| D | 0 | 15030 | 1228 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5928 | 211 | 3.559379% |
| B | 5982 | 165 | 2.758275% |
| C | 6018 | 132 | 2.193420% |
| D | 5932 | 195 | 3.287256% |

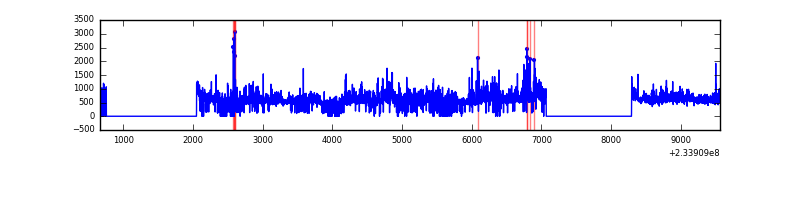

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8901 | 6269 | 10 | 10 | 0.11% | 0.16% |  |
| B | 8902 | 6302 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8902 | 6298 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8902 | 6264 | 54 | 54 | 0.61% | 0.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 473065 | 3199.01 | 739 | 724 | 147.7 |
| A | 1 | 162 | 247710 | 1672.75 | 739 | 724 | 147.7 |
| A | 1 | 178 | 116225 | 782.25 | 739 | 724 | 147.7 |
| B | 12 | 111 | 14762 | 100.53 | 746 | 727 | 139.6 |
| B | 10 | 16 | 12387 | 83.52 | 746 | 727 | 139.6 |
| B | 11 | 111 | 11847 | 79.65 | 746 | 727 | 139.6 |
| C | 13 | 61 | 5518 | 28.72 | 732 | 733 | 166.6 |
| C | 9 | 68 | 3435 | 16.22 | 732 | 733 | 166.6 |
| C | 12 | 4 | 1804 | 6.43 | 732 | 733 | 166.6 |
| D | 1 | 52 | 408112 | 2370.34 | 719 | 699 | 171.9 |
| D | 2 | 14 | 100693 | 581.77 | 719 | 699 | 171.9 |
| D | 7 | 71 | 87499 | 505.0 | 719 | 699 | 171.9 |

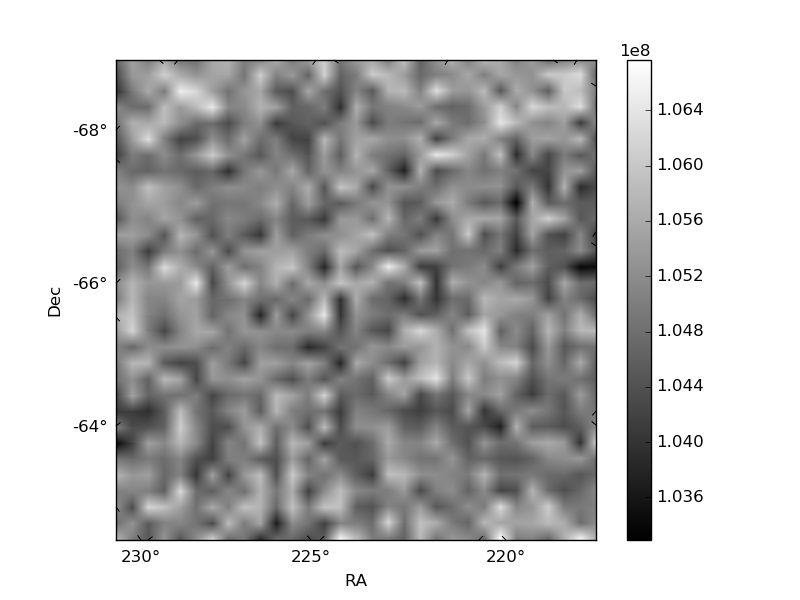

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

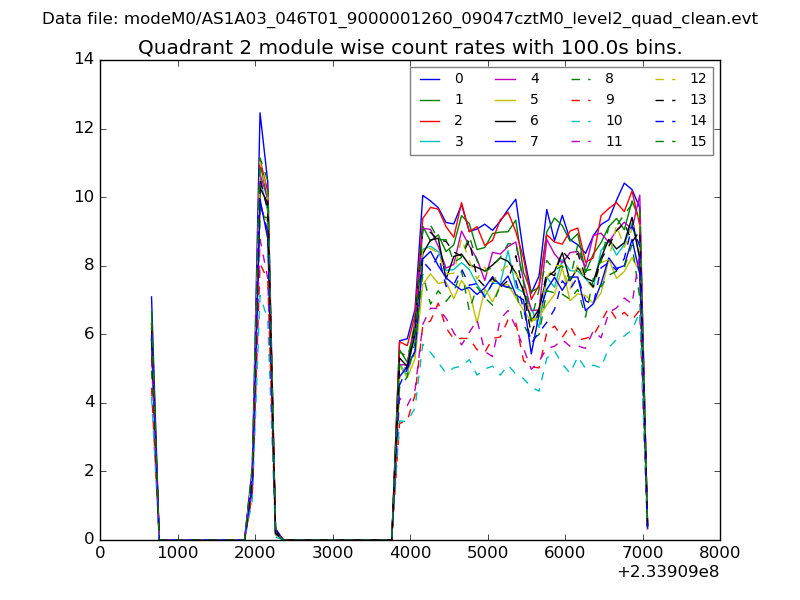

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

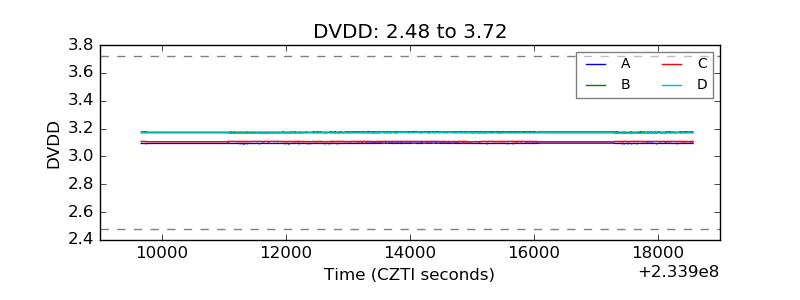

| D_VDD |  |

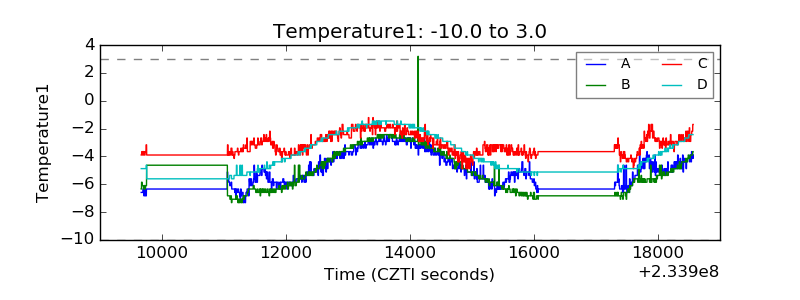

| Temperature 1 |  |
| Veto HV Monitor |  |

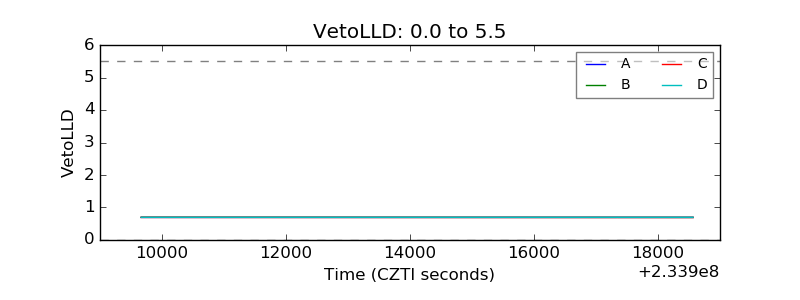

| Veto LLD |  |

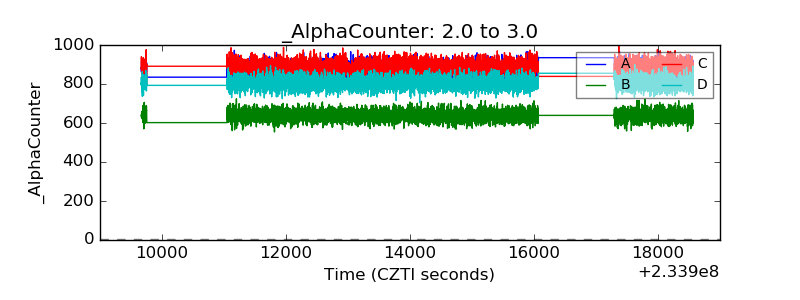

| Alpha Counter |  |

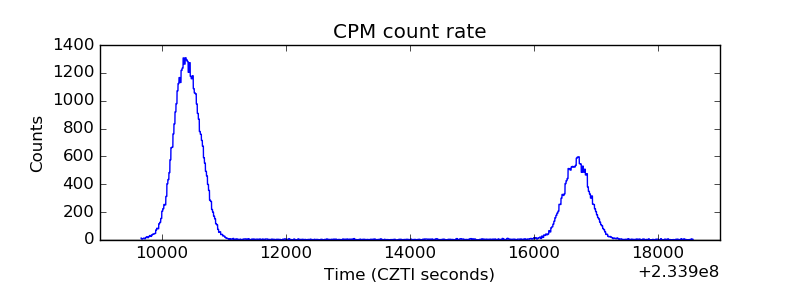

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
