| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_070T02_9000001262_09070cztM0_level2.evt | modeM0/AS1G07_070T02_9000001262_09070cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,510,720 | 91,537,920 |
| Size | 406.8 MB | 87.3 MB |
| Events in quadrant A | 3,280,188 | 577,666 |
| Events in quadrant B | 3,059,355 | 586,848 |
| Events in quadrant C | 2,933,460 | 582,720 |
| Events in quadrant D | 3,190,633 | 560,464 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14076 | 5 |
| B | 0 | 13680 | 2 |
| C | 0 | 13497 | 4 |
| D | 0 | 14348 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6659 | 20 | 0.300345% |
| B | 6660 | 23 | 0.345345% |
| C | 6659 | 8 | 0.120138% |
| D | 6659 | 88 | 1.321520% |

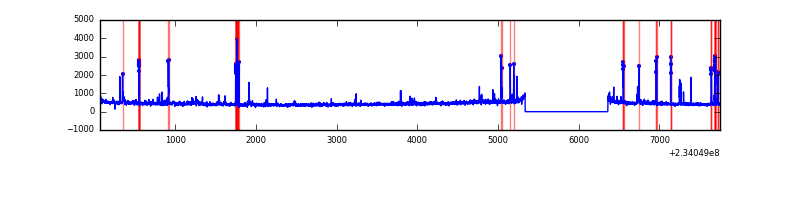

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7685 | 6661 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7685 | 6661 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7685 | 6661 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7685 | 6661 | 68 | 68 | 0.88% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 312452 | 2021.72 | 762 | 745 | 154.2 |
| A | 1 | 162 | 15100 | 93.11 | 762 | 745 | 154.2 |
| A | 5 | 16 | 11984 | 72.9 | 762 | 745 | 154.2 |
| B | 12 | 111 | 16248 | 105.23 | 771 | 752 | 147.3 |
| B | 4 | 80 | 13987 | 89.88 | 771 | 752 | 147.3 |
| B | 11 | 111 | 13095 | 83.82 | 771 | 752 | 147.3 |
| C | 14 | 234 | 6715 | 34.31 | 750 | 752 | 173.8 |
| C | 13 | 61 | 5537 | 27.53 | 750 | 752 | 173.8 |
| C | 3 | 202 | 1832 | 6.21 | 750 | 752 | 173.8 |
| D | 2 | 14 | 167535 | 863.11 | 738 | 718 | 193.3 |
| D | 7 | 71 | 67846 | 347.32 | 738 | 718 | 193.3 |
| D | 6 | 225 | 53245 | 271.77 | 738 | 718 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

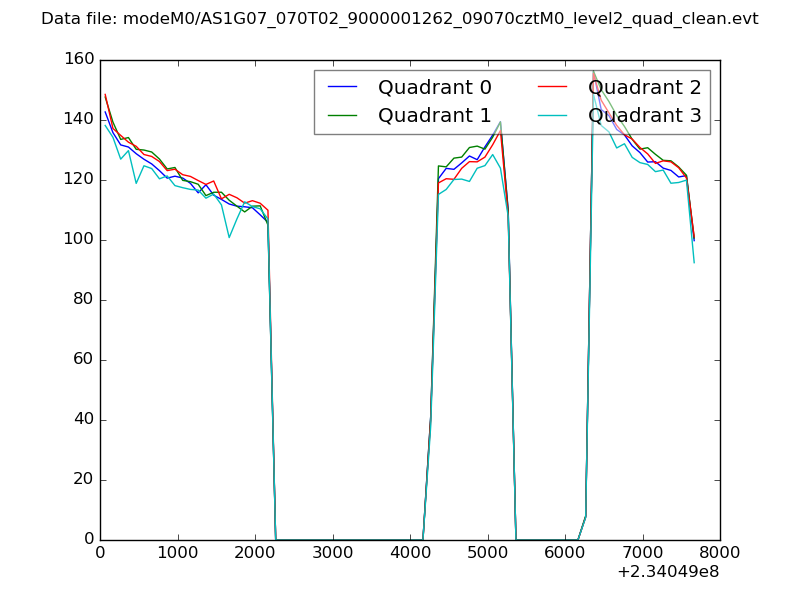

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

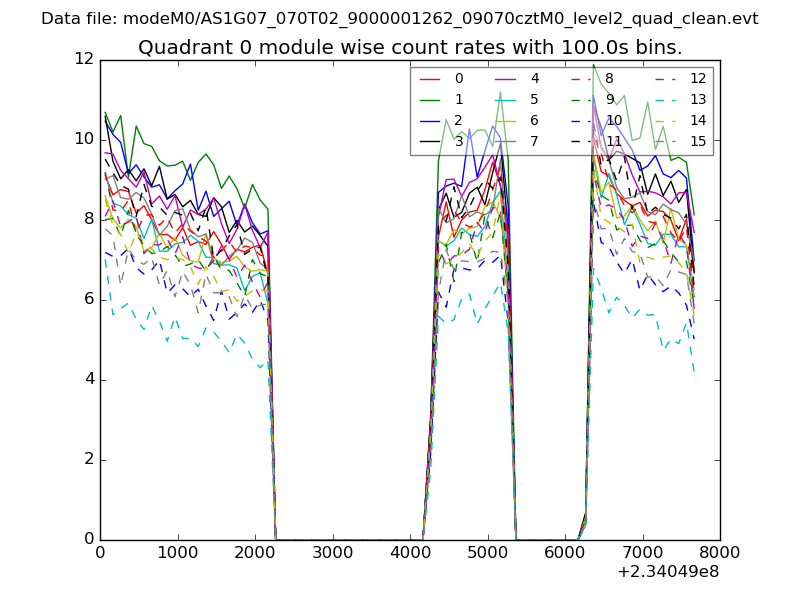

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

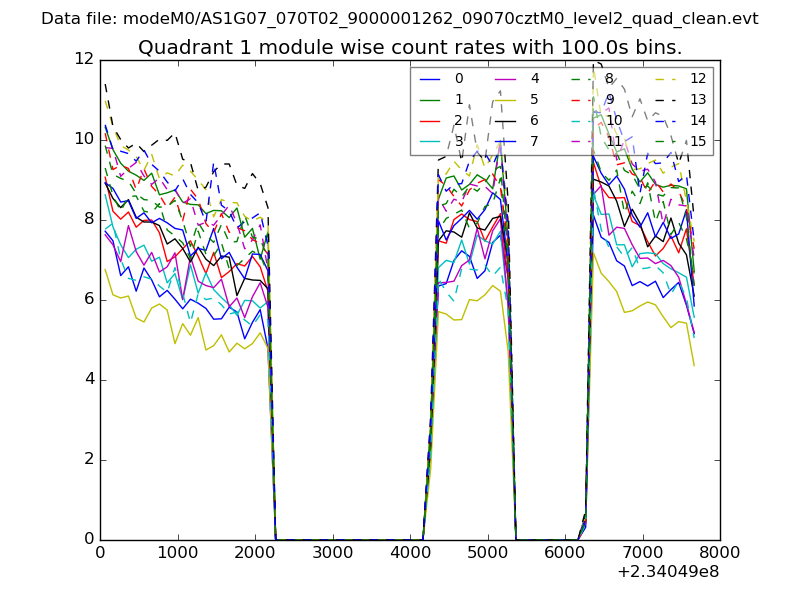

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

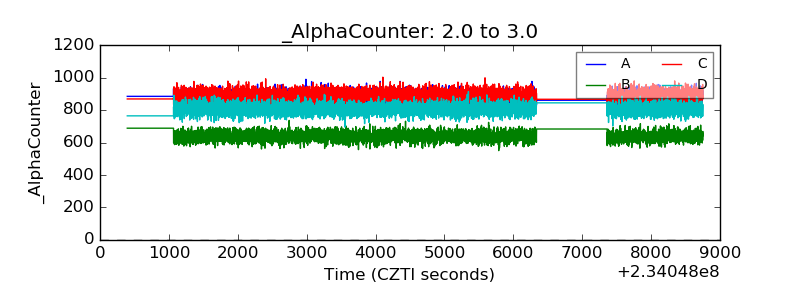

| Alpha Counter |  |
| _CPM_Rate |  |

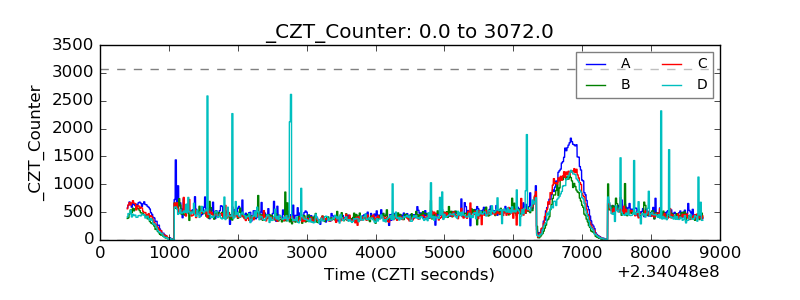

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

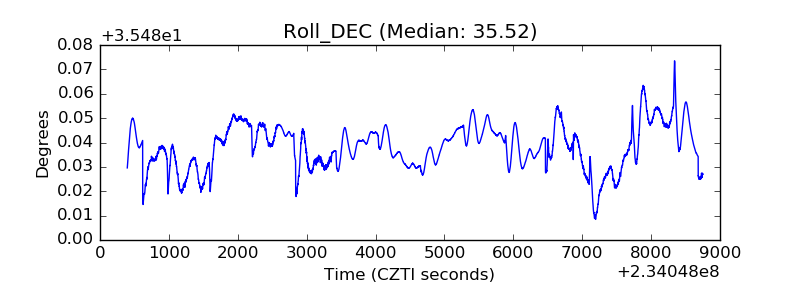

| _Roll_DEC |  |

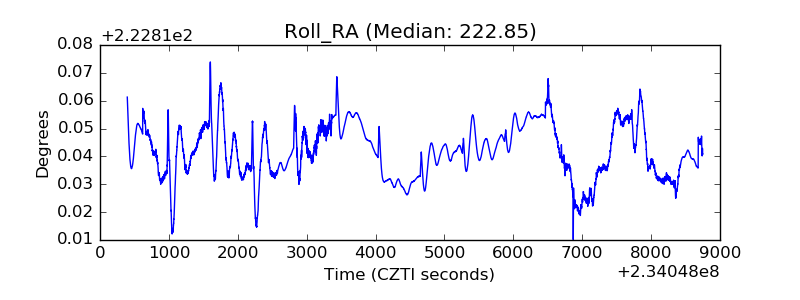

| _Roll_RA |  |
| Veto Counter |  |
