| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_120T01_9000001266_09092cztM0_level2.evt | modeM0/AS1A03_120T01_9000001266_09092cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,992,640 | 87,183,360 |
| Size | 547.4 MB | 83.1 MB |
| Events in quadrant A | 3,831,446 | 547,372 |
| Events in quadrant B | 3,522,600 | 558,302 |
| Events in quadrant C | 3,272,850 | 542,339 |
| Events in quadrant D | 6,269,341 | 492,004 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15722 | 3 |
| B | 0 | 15008 | 2 |
| C | 0 | 14700 | 2 |
| D | 0 | 23385 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7176 | 163 | 2.271460% |
| B | 7176 | 167 | 2.327202% |
| C | 7176 | 102 | 1.421405% |
| D | 7176 | 1045 | 14.562430% |

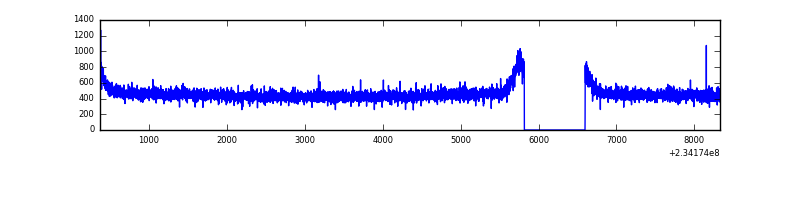

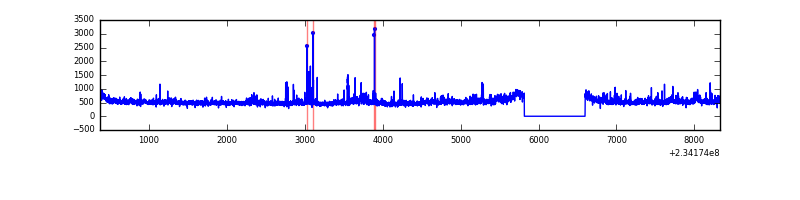

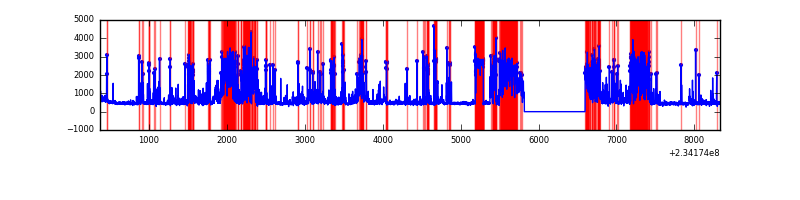

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

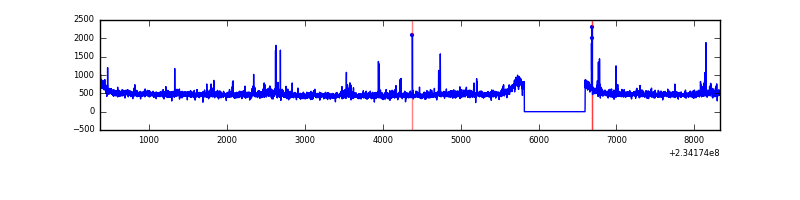

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7956 | 7176 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7956 | 7176 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7956 | 7176 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7956 | 7176 | 824 | 824 | 10.36% | 11.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 391006 | 2214.02 | 868 | 848 | 176.2 |
| A | 1 | 162 | 36866 | 204.39 | 868 | 848 | 176.2 |
| A | 5 | 16 | 35466 | 196.45 | 868 | 848 | 176.2 |
| B | 4 | 173 | 76297 | 449.93 | 870 | 848 | 167.7 |
| B | 0 | 219 | 46319 | 271.16 | 870 | 848 | 167.7 |
| B | 12 | 111 | 18413 | 104.75 | 870 | 848 | 167.7 |
| C | 13 | 61 | 6365 | 28.42 | 838 | 843 | 194.3 |
| C | 8 | 222 | 2755 | 9.84 | 838 | 843 | 194.3 |
| C | 3 | 254 | 2256 | 7.27 | 838 | 843 | 194.3 |
| D | 12 | 233 | 2112173 | 10607.78 | 785 | 762 | 199.0 |
| D | 10 | 172 | 755971 | 3794.19 | 785 | 762 | 199.0 |
| D | 7 | 71 | 191750 | 959.53 | 785 | 762 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

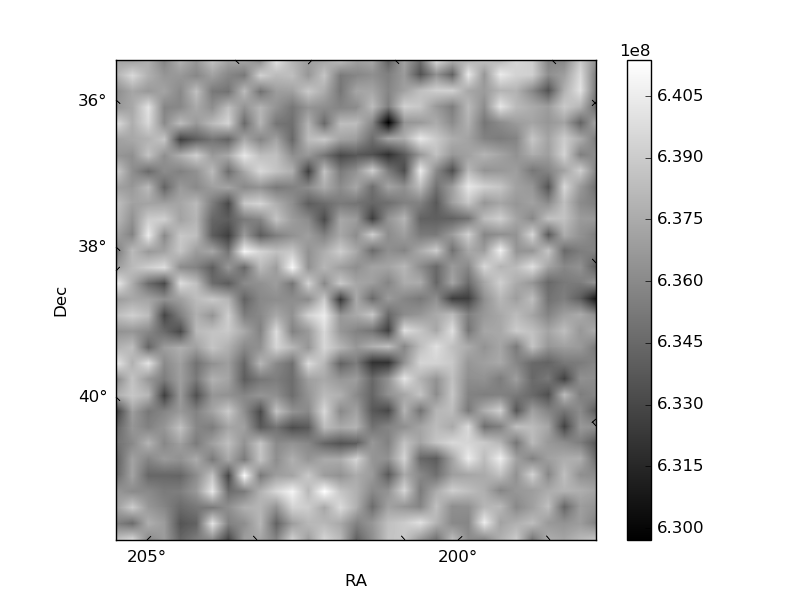

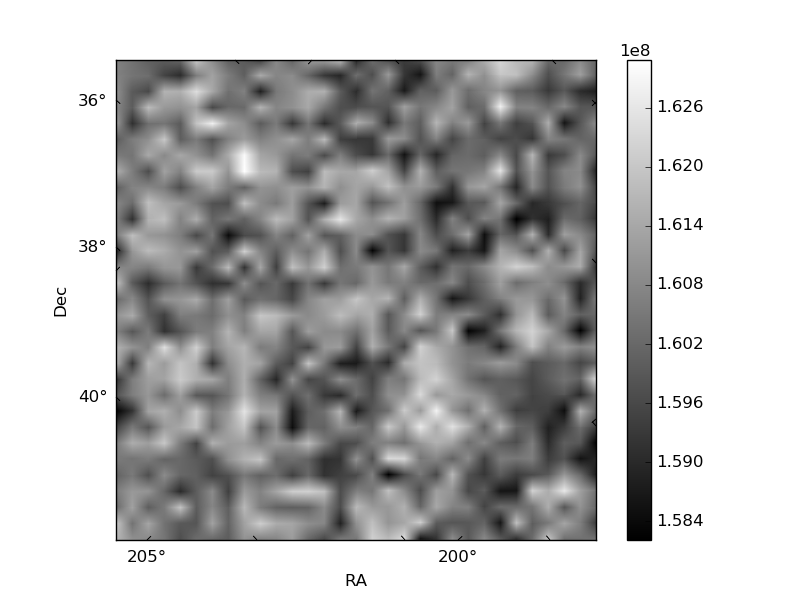

| Plot type | Count rate plots | Images |
|---|---|---|

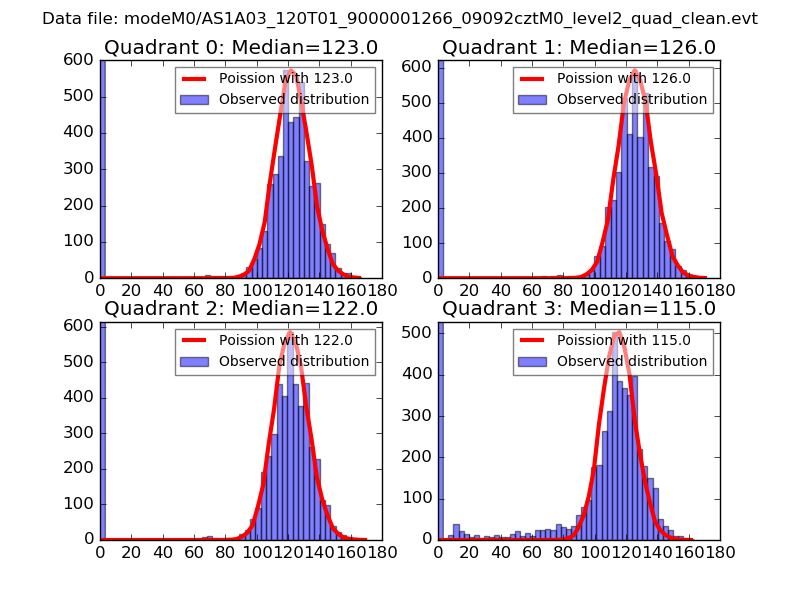

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

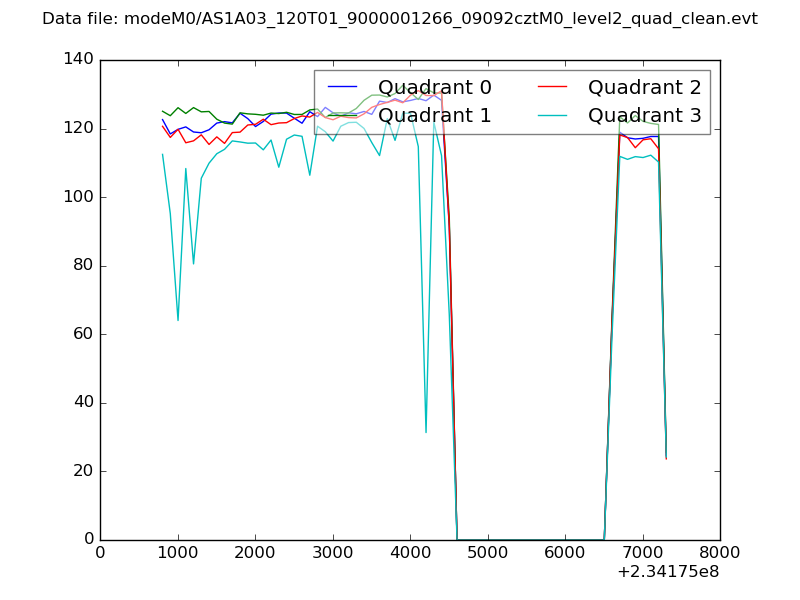

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

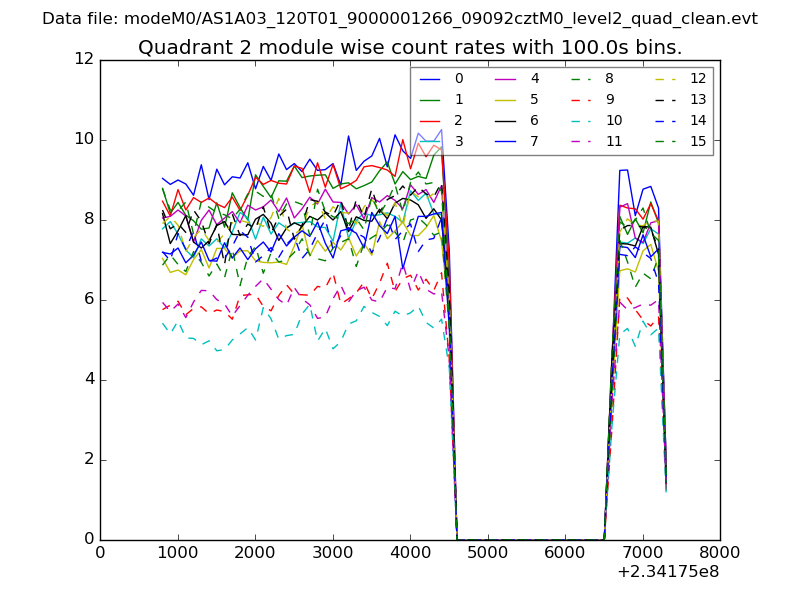

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

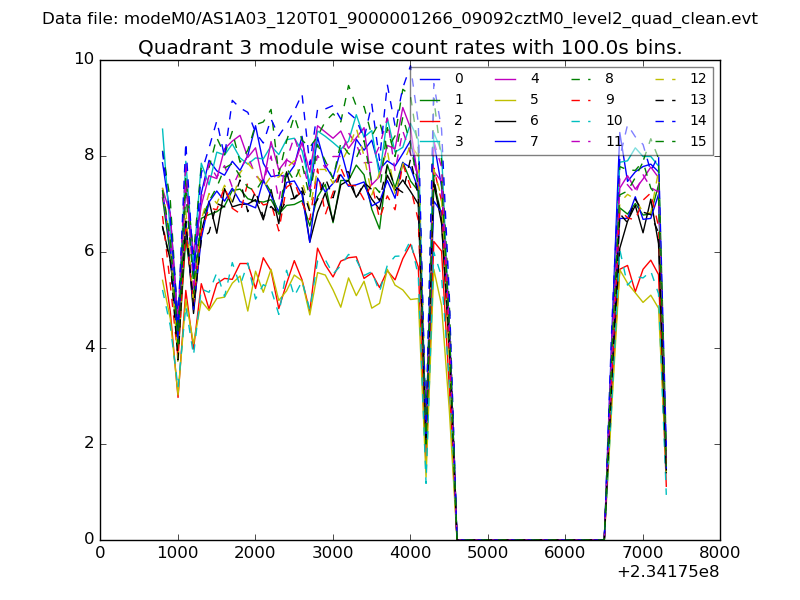

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

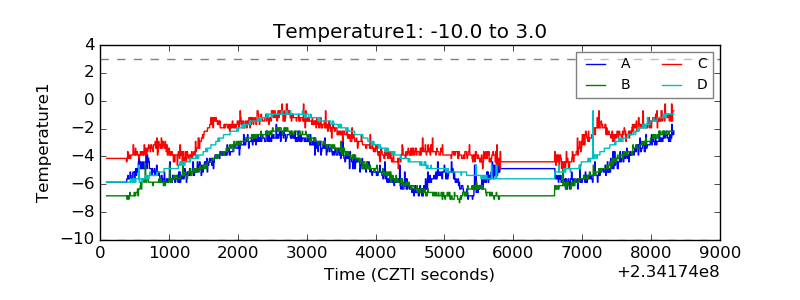

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

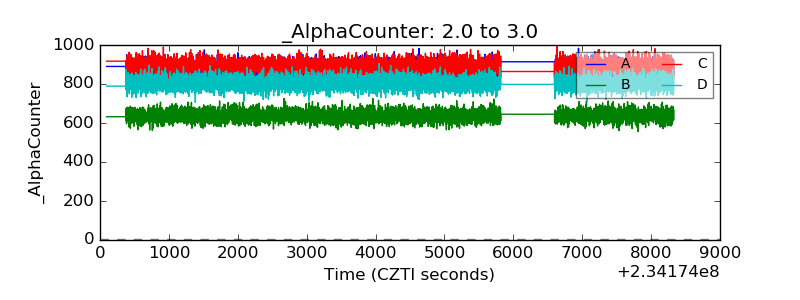

| Alpha Counter |  |

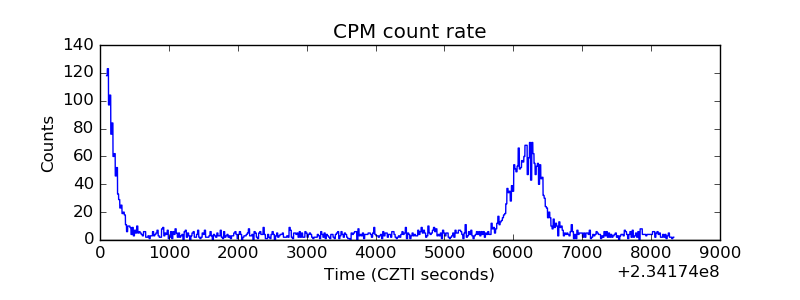

| _CPM_Rate |  |

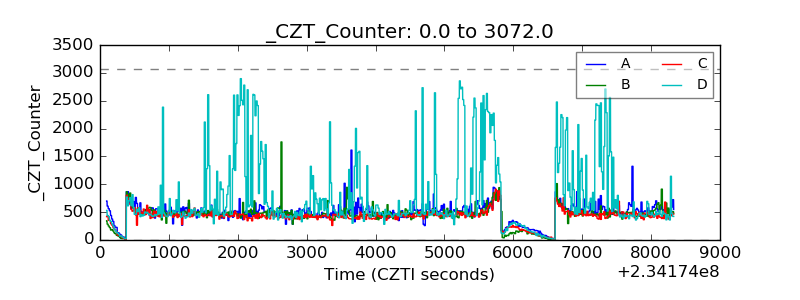

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

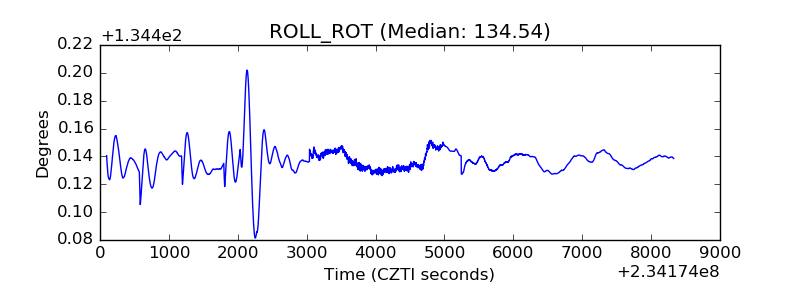

| _ROLL_ROT |  |

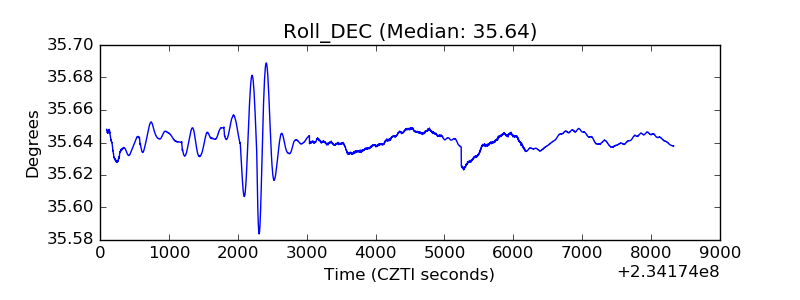

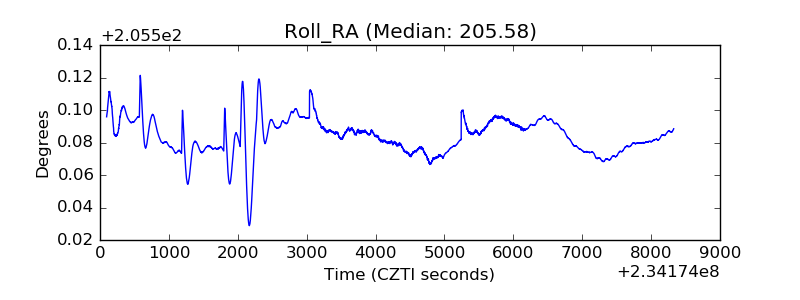

| _Roll_DEC |  |
| _Roll_RA |  |

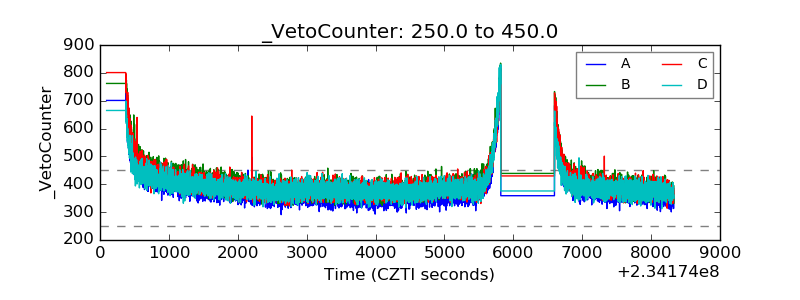

| Veto Counter |  |
