| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_120T01_9000001266_09101cztM0_level2.evt | modeM0/AS1A03_120T01_9000001266_09101cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,685,440 | 87,269,760 |
| Size | 404.1 MB | 83.2 MB |
| Events in quadrant A | 3,170,663 | 556,693 |
| Events in quadrant B | 3,050,577 | 568,645 |
| Events in quadrant C | 2,908,000 | 554,490 |
| Events in quadrant D | 3,271,716 | 521,867 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13796 | 264 |
| B | 0 | 13441 | 256 |
| C | 0 | 13304 | 252 |
| D | 0 | 14493 | 342 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 6 |
| B | 0 | 132 | 4 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6319 | 35 | 0.553885% |
| B | 6320 | 41 | 0.648734% |
| C | 6320 | 37 | 0.585443% |
| D | 6312 | 136 | 2.154626% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6429 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7576 | 6431 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7576 | 6431 | 11 | 11 | 0.15% | 0.17% |  |
| D | 7576 | 6422 | 119 | 119 | 1.57% | 1.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 278744 | 1846.57 | 741 | 725 | 150.6 |
| A | 15 | 174 | 16496 | 104.75 | 741 | 725 | 150.6 |
| A | 12 | 236 | 8565 | 52.07 | 741 | 725 | 150.6 |
| B | 0 | 229 | 62369 | 430.52 | 749 | 732 | 143.2 |
| B | 0 | 214 | 45389 | 311.92 | 749 | 732 | 143.2 |
| B | 12 | 111 | 15534 | 103.39 | 749 | 732 | 143.2 |
| C | 14 | 234 | 83247 | 492.76 | 724 | 727 | 167.5 |
| C | 13 | 61 | 5379 | 27.78 | 724 | 727 | 167.5 |
| C | 12 | 4 | 2241 | 9.04 | 724 | 727 | 167.5 |
| D | 2 | 14 | 340944 | 1828.61 | 705 | 687 | 186.1 |
| D | 1 | 52 | 70104 | 373.06 | 705 | 687 | 186.1 |
| D | 8 | 195 | 63341 | 336.72 | 705 | 687 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

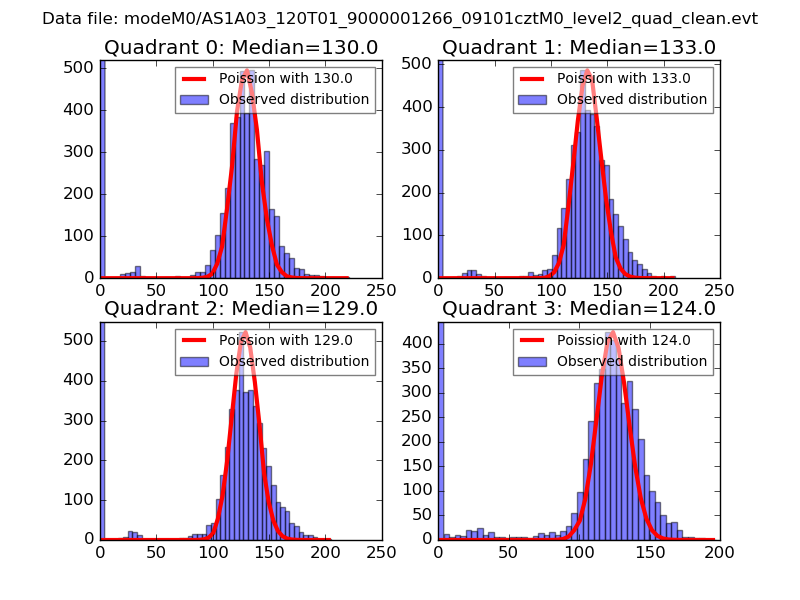

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

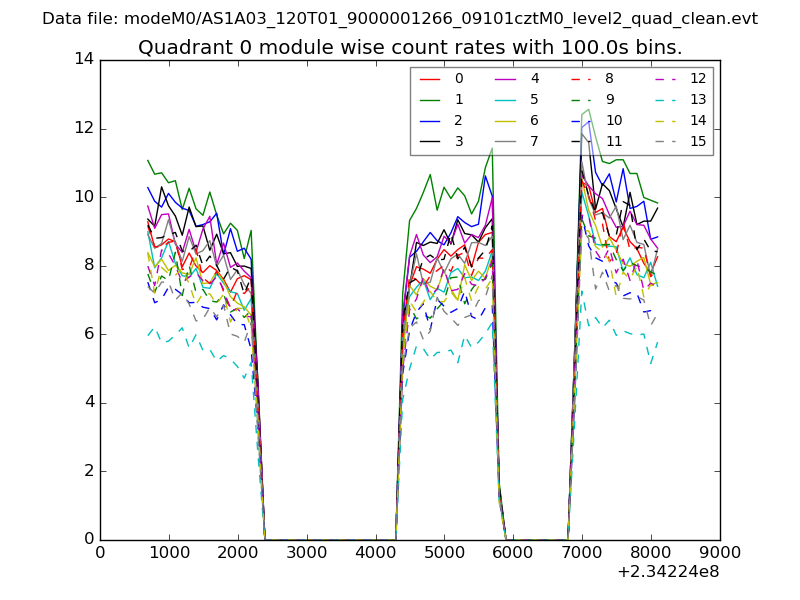

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

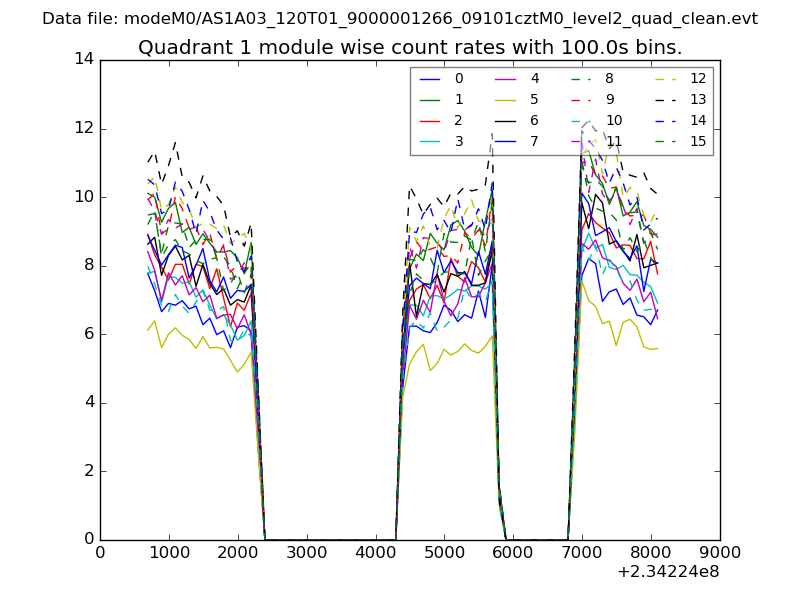

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

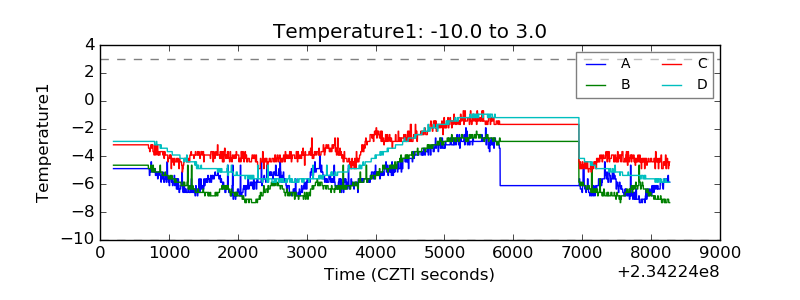

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

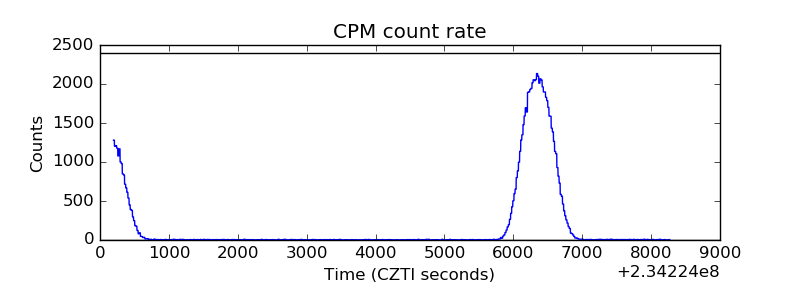

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

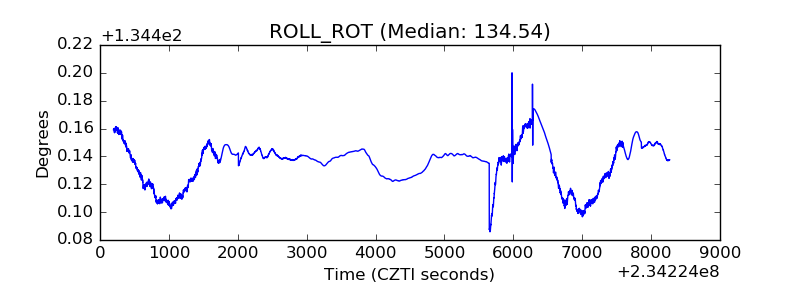

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

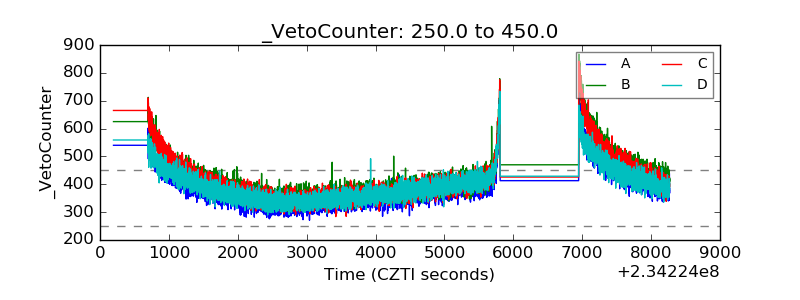

| Veto Counter |  |
