| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_057T04_9000001264_09078cztM0_level2.evt | modeM0/AS1G07_057T04_9000001264_09078cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,207,040 | 84,015,360 |
| Size | 477.0 MB | 80.1 MB |
| Events in quadrant A | 4,405,308 | 513,271 |
| Events in quadrant B | 3,441,889 | 524,870 |
| Events in quadrant C | 3,239,272 | 514,482 |
| Events in quadrant D | 3,584,459 | 501,583 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 2 |
| B | 0 | 144 | 2 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17976 | 374 |
| B | 0 | 14941 | 236 |
| C | 0 | 14733 | 248 |
| D | 0 | 15603 | 289 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 1 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7010 | 208 | 2.967190% |
| B | 7052 | 167 | 2.368123% |
| C | 7046 | 113 | 1.603747% |
| D | 7031 | 134 | 1.905846% |

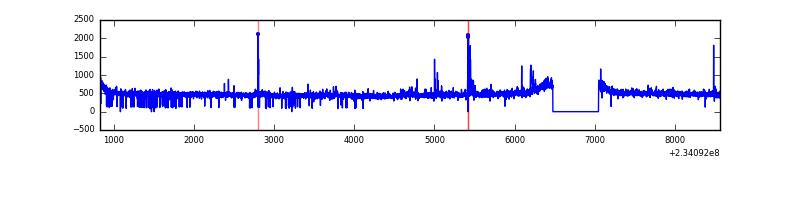

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7737 | 7157 | 13 | 13 | 0.17% | 0.18% |  |
| B | 7737 | 7161 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7737 | 7158 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7737 | 7150 | 26 | 26 | 0.34% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1027659 | 5886.24 | 847 | 829 | 174.4 |
| A | 1 | 162 | 56959 | 321.76 | 847 | 829 | 174.4 |
| A | 5 | 16 | 28007 | 155.8 | 847 | 829 | 174.4 |
| B | 0 | 214 | 29066 | 174.75 | 853 | 833 | 161.6 |
| B | 4 | 48 | 27218 | 163.31 | 853 | 833 | 161.6 |
| B | 0 | 85 | 23891 | 142.72 | 853 | 833 | 161.6 |
| C | 13 | 61 | 6367 | 28.79 | 829 | 830 | 192.3 |
| C | 14 | 234 | 4671 | 19.97 | 829 | 830 | 192.3 |
| C | 12 | 4 | 2504 | 8.7 | 829 | 830 | 192.3 |
| D | 1 | 52 | 175783 | 828.49 | 825 | 802 | 211.2 |
| D | 13 | 104 | 105048 | 493.58 | 825 | 802 | 211.2 |
| D | 8 | 195 | 40167 | 186.38 | 825 | 802 | 211.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

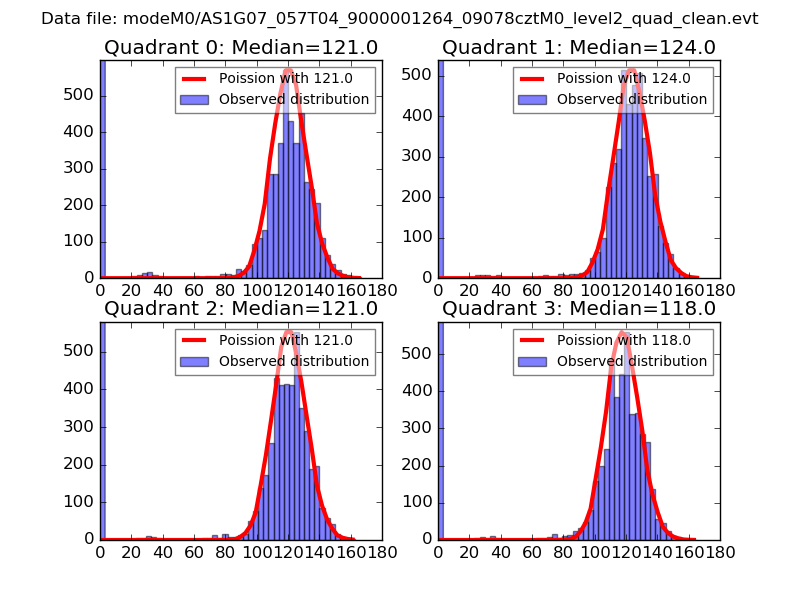

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

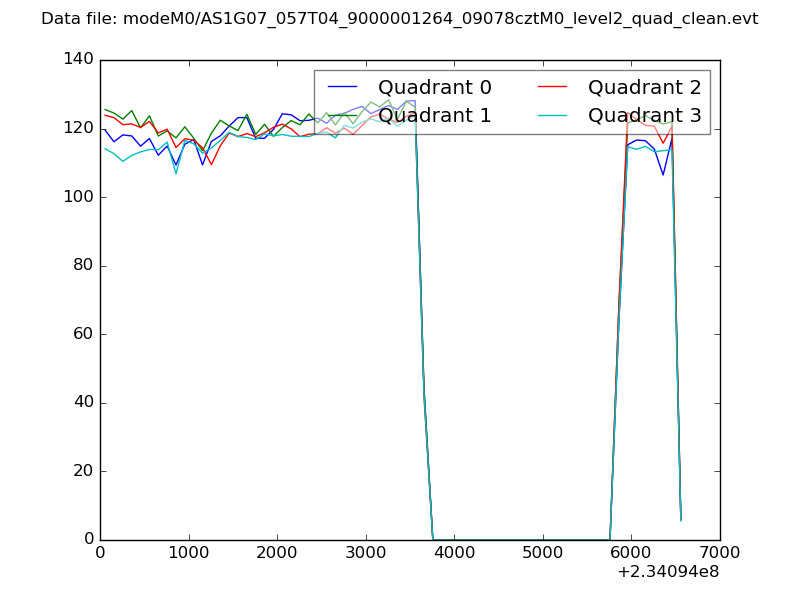

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

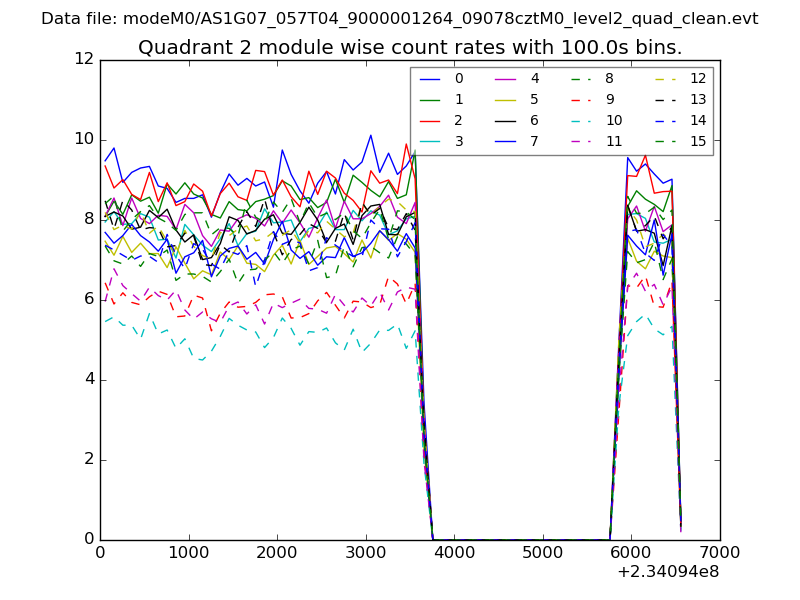

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

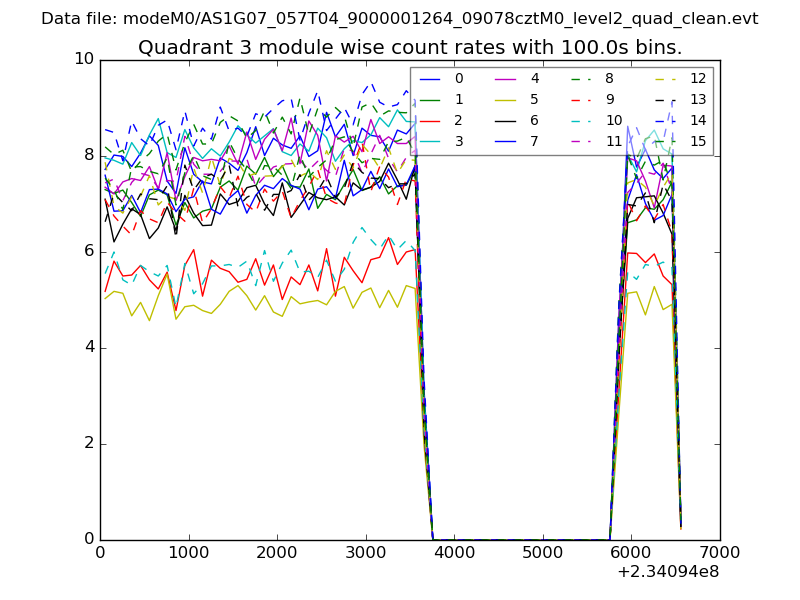

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

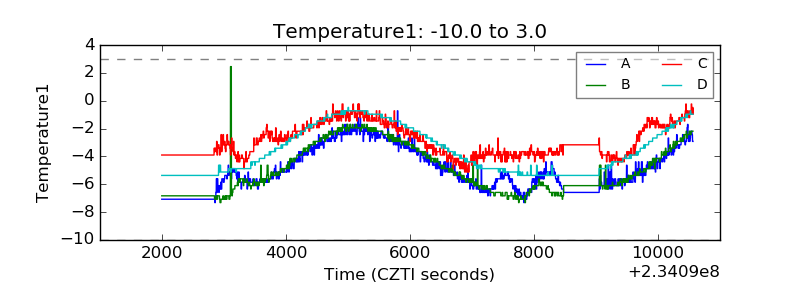

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

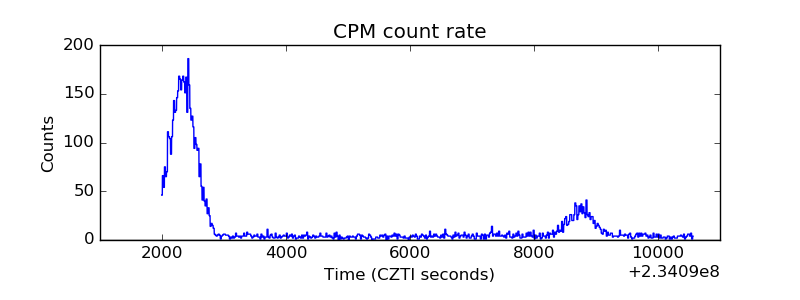

| _CPM_Rate |  |

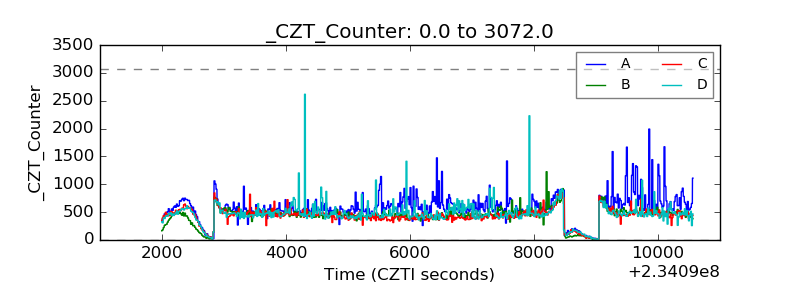

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
