| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_028T01_9000001272_09130cztM0_level2.evt | modeM0/AS1G07_028T01_9000001272_09130cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,218,880 | 91,889,280 |
| Size | 515.2 MB | 87.6 MB |
| Events in quadrant A | 4,676,536 | 584,206 |
| Events in quadrant B | 3,260,069 | 599,972 |
| Events in quadrant C | 4,326,017 | 576,784 |
| Events in quadrant D | 3,647,495 | 558,241 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18481 | 22 |
| B | 0 | 14028 | 10 |
| C | 0 | 17159 | 19 |
| D | 0 | 15611 | 46 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6644 | 194 | 2.919928% |
| B | 6646 | 63 | 0.947939% |
| C | 6644 | 91 | 1.369657% |
| D | 6641 | 189 | 2.845957% |

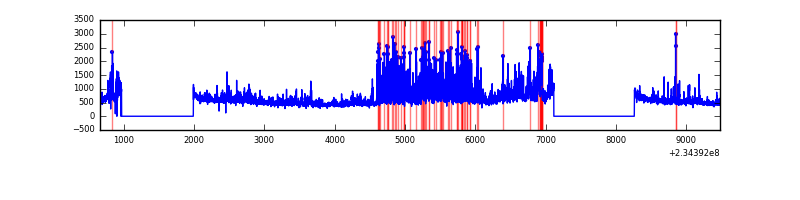

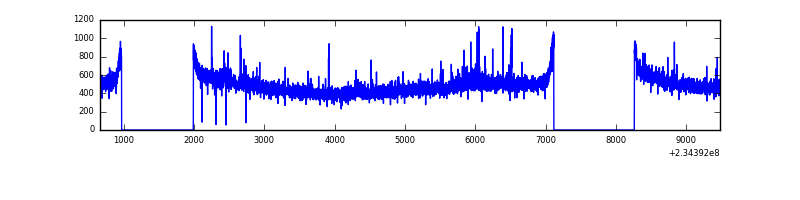

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8815 | 6648 | 72 | 72 | 0.82% | 1.08% |  |
| B | 8815 | 6650 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8815 | 6651 | 106 | 106 | 1.20% | 1.59% |  |
| D | 8815 | 6648 | 146 | 146 | 1.66% | 2.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1423750 | 8708.25 | 806 | 789 | 163.4 |
| A | 1 | 162 | 72131 | 436.6 | 806 | 789 | 163.4 |
| A | 15 | 223 | 26840 | 159.43 | 806 | 789 | 163.4 |
| B | 0 | 214 | 60468 | 381.22 | 821 | 801 | 156.5 |
| B | 12 | 111 | 17784 | 108.51 | 821 | 801 | 156.5 |
| B | 11 | 111 | 14183 | 85.5 | 821 | 801 | 156.5 |
| C | 9 | 68 | 1185026 | 6413.63 | 793 | 797 | 184.6 |
| C | 14 | 234 | 49441 | 263.45 | 793 | 797 | 184.6 |
| C | 13 | 61 | 5958 | 27.95 | 793 | 797 | 184.6 |
| D | 1 | 52 | 479863 | 2483.54 | 782 | 762 | 192.9 |
| D | 2 | 14 | 139890 | 721.2 | 782 | 762 | 192.9 |
| D | 5 | 97 | 33293 | 168.63 | 782 | 762 | 192.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

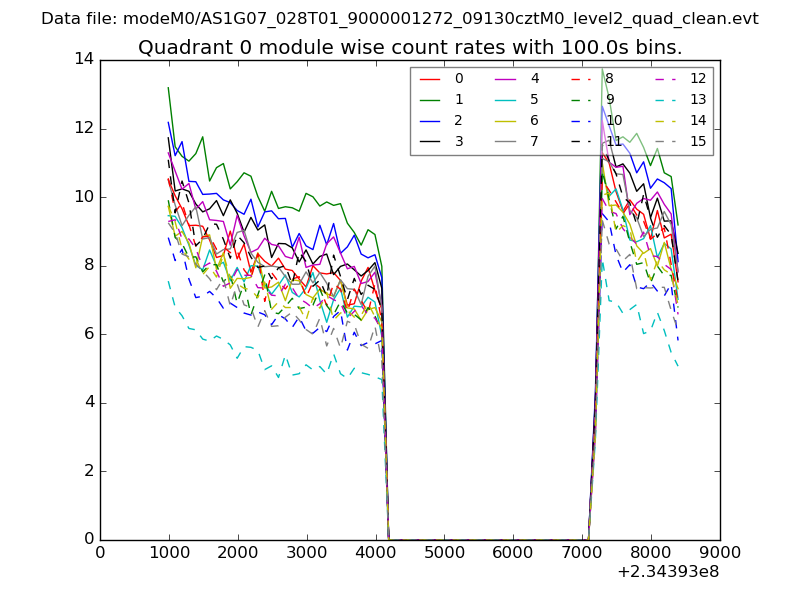

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

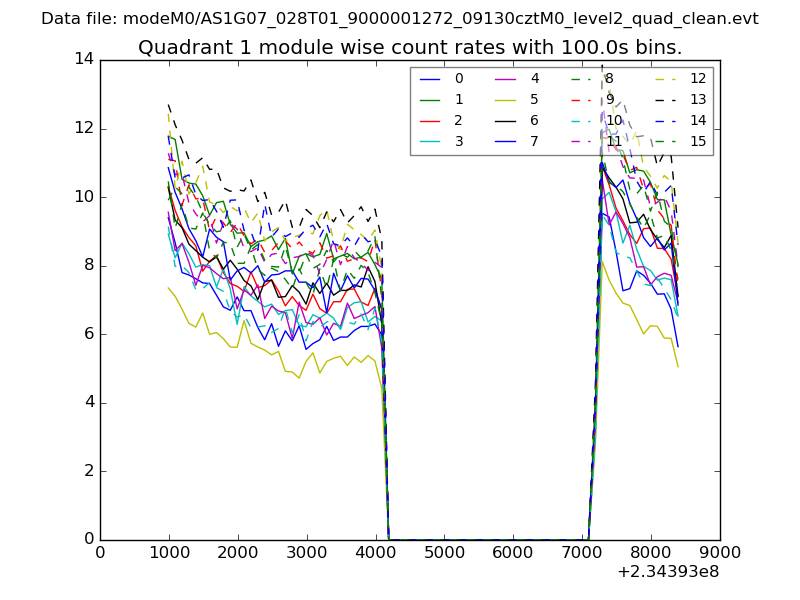

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

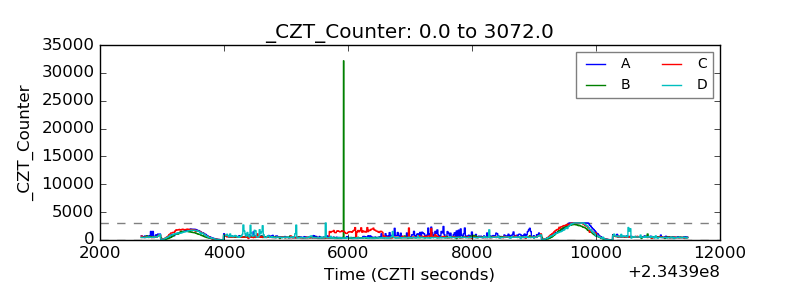

| CZT Counter |  |
| +2.5 Volts monitor |  |

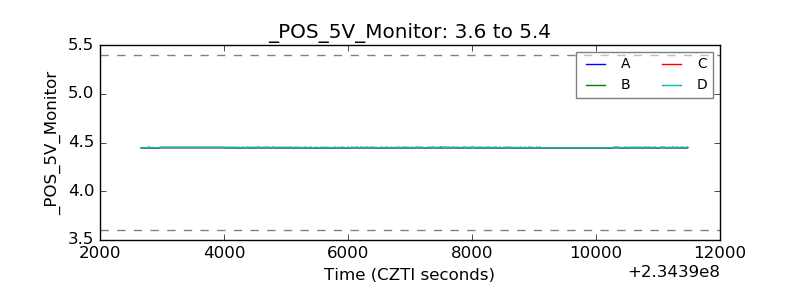

| +5 Volts monitor |  |
| _ROLL_ROT |  |

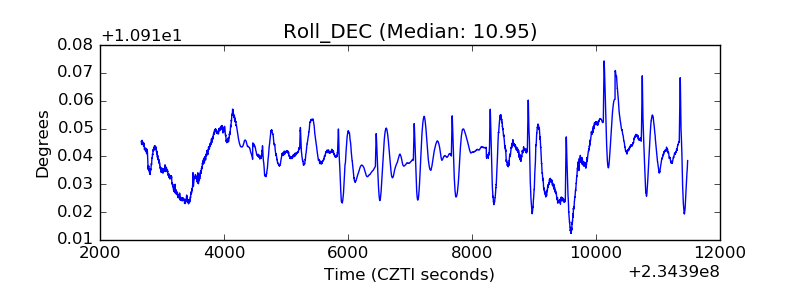

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
