| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_052T01_9000001270_09124cztM0_level2.evt | modeM0/AS1G07_052T01_9000001270_09124cztM0_level2_quad_clean.evt |
| Size (bytes) | 330,456,960 | 58,602,240 |
| Size | 315.1 MB | 55.9 MB |
| Events in quadrant A | 2,954,681 | 362,066 |
| Events in quadrant B | 2,310,610 | 364,907 |
| Events in quadrant C | 2,167,381 | 357,914 |
| Events in quadrant D | 2,248,437 | 352,771 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11865 | 2 |
| B | 0 | 9961 | 3 |
| C | 0 | 9757 | 1 |
| D | 0 | 10020 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 2 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4789 | 94 | 1.962831% |
| B | 4788 | 62 | 1.294904% |
| C | 4789 | 42 | 0.877010% |
| D | 4789 | 52 | 1.085822% |

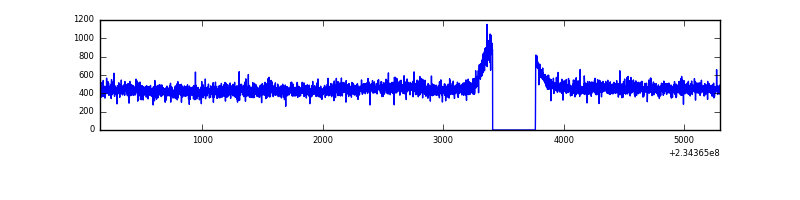

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5144 | 4789 | 27 | 27 | 0.52% | 0.56% |  |
| B | 5144 | 4789 | 3 | 3 | 0.06% | 0.06% |  |
| C | 5144 | 4789 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5144 | 4789 | 11 | 11 | 0.21% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 509978 | 4374.33 | 569 | 556 | 116.5 |
| A | 15 | 223 | 138552 | 1184.95 | 569 | 556 | 116.5 |
| A | 15 | 239 | 36903 | 312.11 | 569 | 556 | 116.5 |
| B | 10 | 16 | 55147 | 488.59 | 572 | 556 | 111.7 |
| B | 0 | 214 | 28657 | 251.5 | 572 | 556 | 111.7 |
| B | 12 | 111 | 12519 | 107.07 | 572 | 556 | 111.7 |
| C | 8 | 128 | 7714 | 55.06 | 551 | 552 | 130.1 |
| C | 13 | 61 | 4223 | 28.22 | 551 | 552 | 130.1 |
| C | 8 | 112 | 3916 | 25.86 | 551 | 552 | 130.1 |
| D | 1 | 52 | 60487 | 437.39 | 550 | 535 | 137.1 |
| D | 7 | 71 | 43186 | 311.17 | 550 | 535 | 137.1 |
| D | 11 | 129 | 23353 | 166.47 | 550 | 535 | 137.1 |

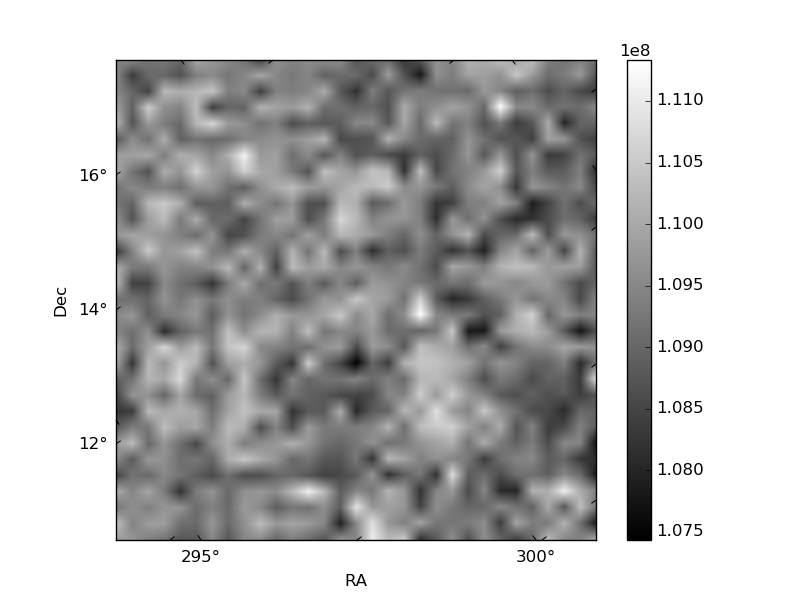

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

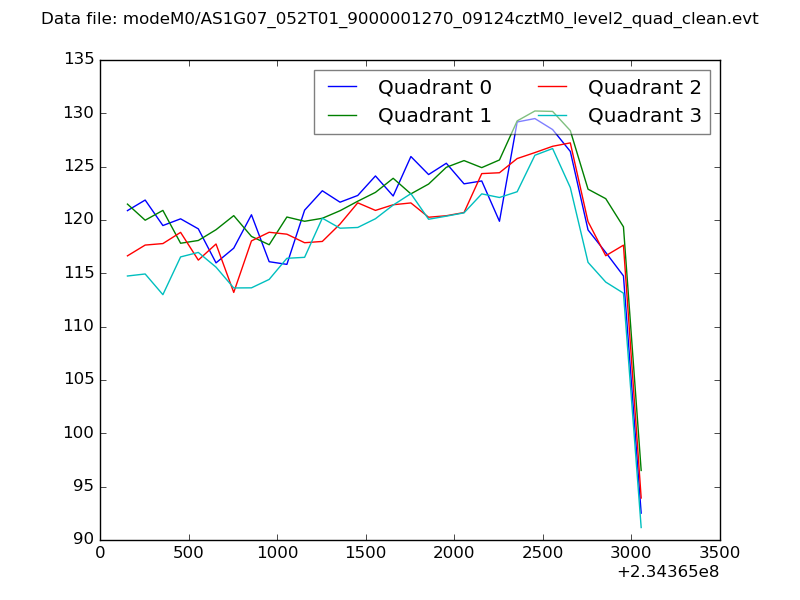

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

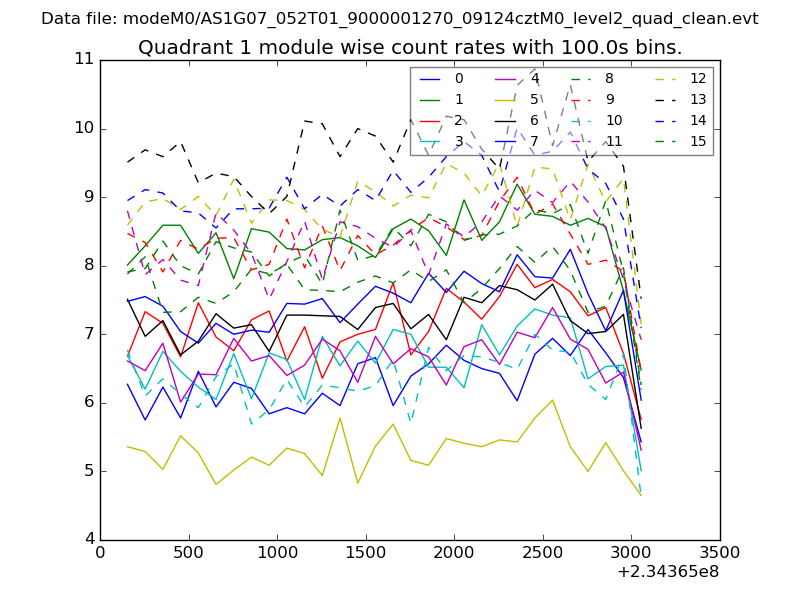

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

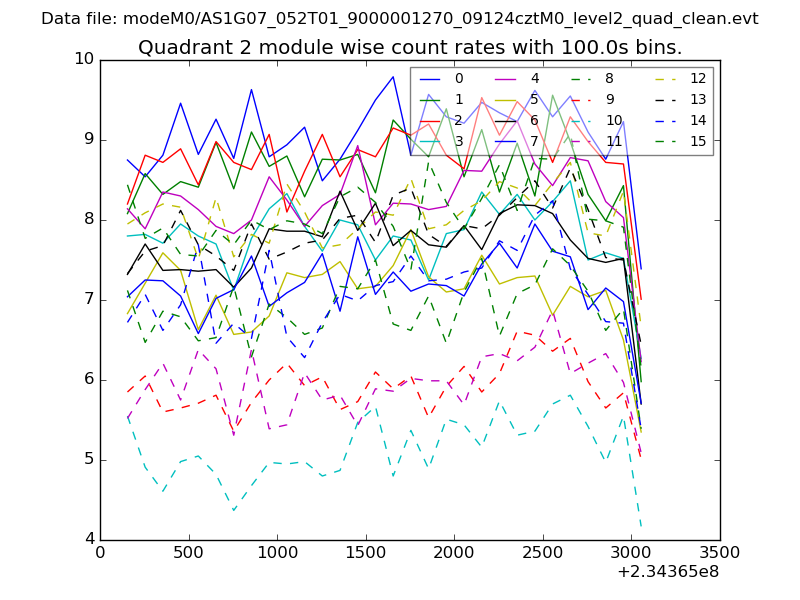

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

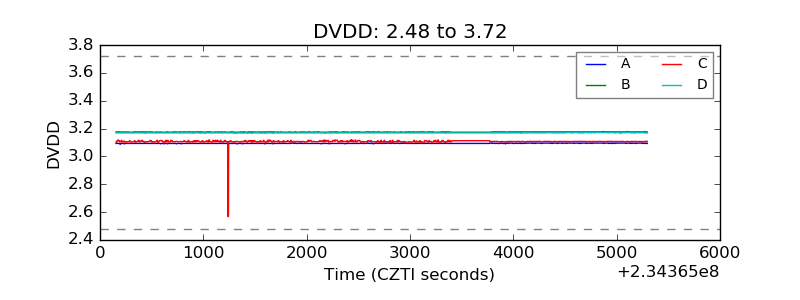

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

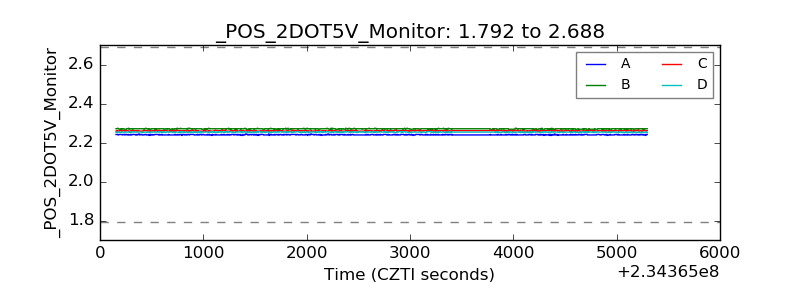

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

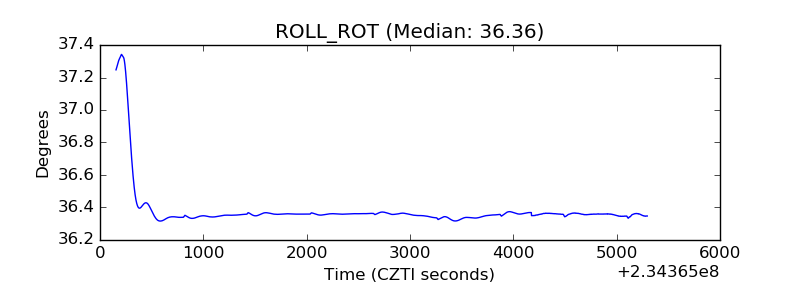

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
