| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_052T01_9000001270_09127cztM0_level2.evt | modeM0/AS1G07_052T01_9000001270_09127cztM0_level2_quad_clean.evt |
| Size (bytes) | 952,208,640 | 155,980,800 |
| Size | 908.1 MB | 148.8 MB |
| Events in quadrant A | 8,082,627 | 967,651 |
| Events in quadrant B | 6,299,666 | 973,235 |
| Events in quadrant C | 6,136,279 | 946,317 |
| Events in quadrant D | 7,420,903 | 919,649 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32503 | 39 |
| B | 0 | 27424 | 37 |
| C | 0 | 27450 | 47 |
| D | 0 | 31278 | 45 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 272 | 0 |
| B | 0 | 272 | 0 |
| C | 0 | 272 | 0 |
| D | 0 | 272 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13279 | 278 | 2.093531% |
| B | 13274 | 173 | 1.303300% |
| C | 13269 | 152 | 1.145527% |
| D | 13272 | 442 | 3.330319% |

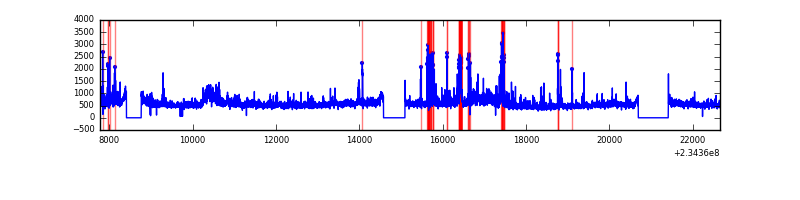

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14881 | 13291 | 85 | 85 | 0.57% | 0.64% |  |
| B | 14881 | 13291 | 3 | 3 | 0.02% | 0.02% |  |
| C | 14881 | 13290 | 21 | 21 | 0.14% | 0.16% |  |
| D | 14881 | 13289 | 331 | 331 | 2.22% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1371386 | 4327.57 | 1578 | 1549 | 316.5 |
| A | 15 | 223 | 214868 | 673.91 | 1578 | 1549 | 316.5 |
| A | 1 | 162 | 123647 | 385.73 | 1578 | 1549 | 316.5 |
| B | 0 | 214 | 123942 | 402.62 | 1583 | 1543 | 304.0 |
| B | 12 | 111 | 34343 | 107.89 | 1583 | 1543 | 304.0 |
| B | 11 | 111 | 28141 | 87.49 | 1583 | 1543 | 304.0 |
| C | 9 | 68 | 101121 | 279.94 | 1524 | 1528 | 355.8 |
| C | 14 | 234 | 89338 | 246.82 | 1524 | 1528 | 355.8 |
| C | 13 | 61 | 11456 | 27.91 | 1524 | 1528 | 355.8 |
| D | 1 | 52 | 1515018 | 3904.94 | 1514 | 1471 | 387.6 |
| D | 7 | 71 | 81798 | 207.24 | 1514 | 1471 | 387.6 |
| D | 2 | 234 | 54729 | 137.4 | 1514 | 1471 | 387.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

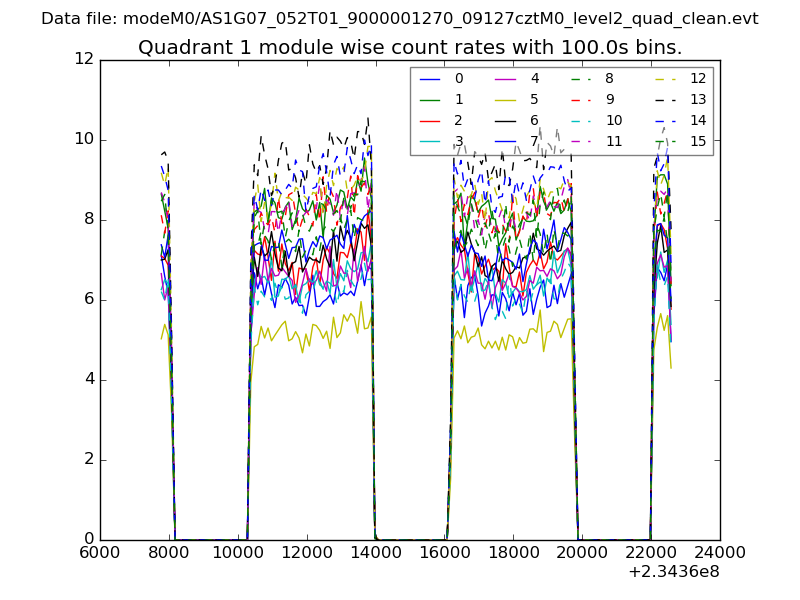

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

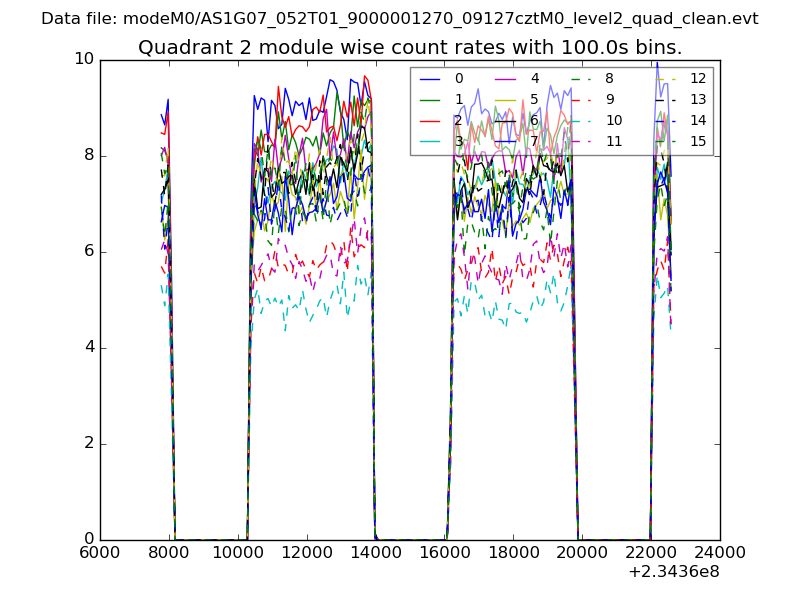

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

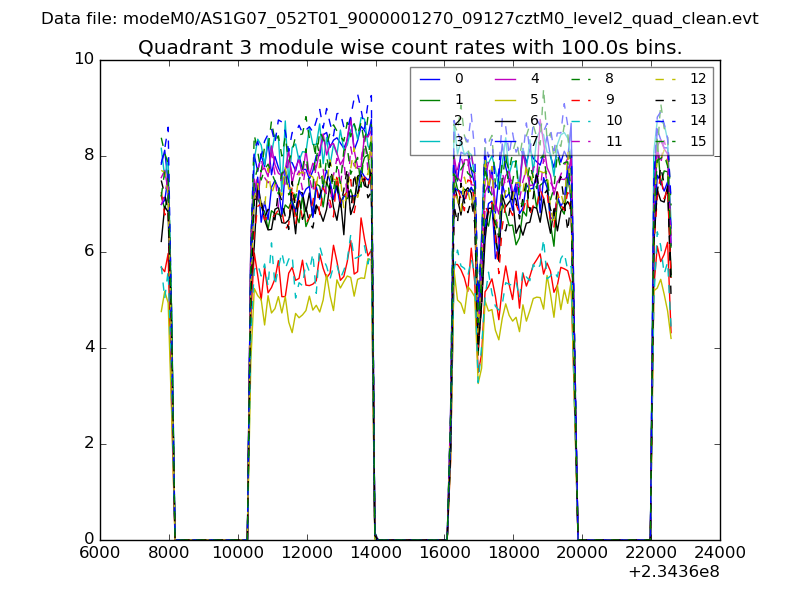

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

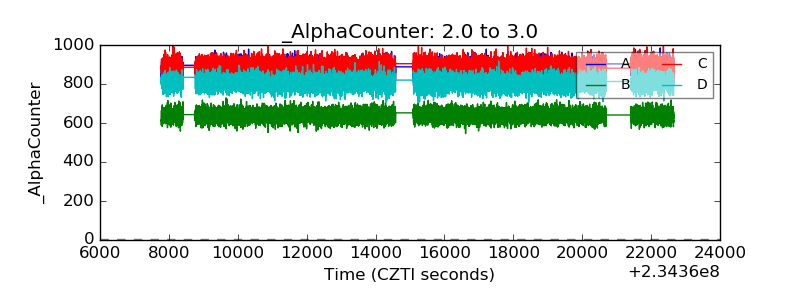

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

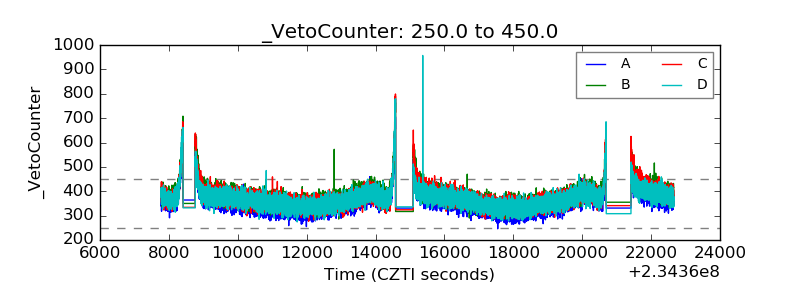

| Veto Counter |  |
