| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_042T01_9000001278_09159cztM0_level2.evt | modeM0/AS1C02_042T01_9000001278_09159cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,847,360 | 95,440,320 |
| Size | 403.3 MB | 91.0 MB |
| Events in quadrant A | 3,435,562 | 611,725 |
| Events in quadrant B | 3,218,383 | 624,063 |
| Events in quadrant C | 2,813,568 | 623,717 |
| Events in quadrant D | 2,913,936 | 595,164 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14691 | 3 |
| B | 0 | 13768 | 2 |
| C | 0 | 12790 | 2 |
| D | 0 | 13296 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6247 | 60 | 0.960461% |
| B | 6247 | 82 | 1.312630% |
| C | 6247 | 28 | 0.448215% |
| D | 6247 | 34 | 0.544261% |

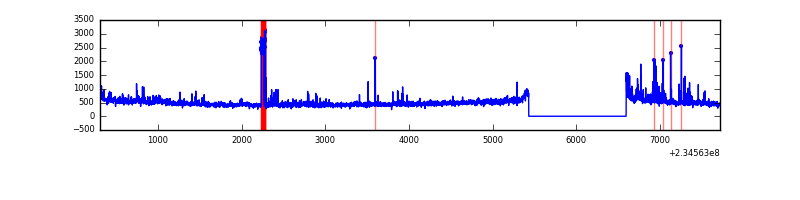

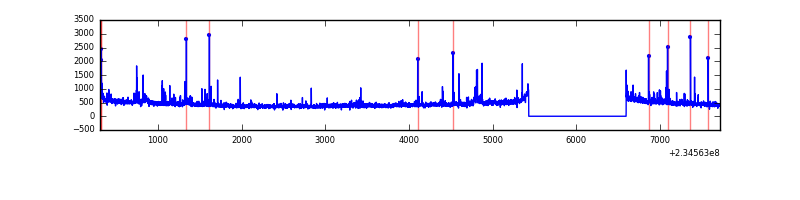

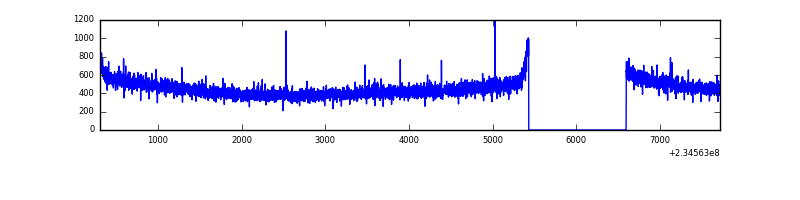

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7412 | 6247 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7412 | 6247 | 43 | 43 | 0.58% | 0.69% |  |
| C | 7412 | 6247 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7412 | 6247 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 536392 | 3654.71 | 721 | 706 | 146.6 |
| A | 1 | 162 | 67939 | 458.7 | 721 | 706 | 146.6 |
| A | 13 | 251 | 12783 | 82.4 | 721 | 706 | 146.6 |
| B | 8 | 234 | 169365 | 1229.38 | 730 | 712 | 137.2 |
| B | 0 | 85 | 71878 | 518.76 | 730 | 712 | 137.2 |
| B | 0 | 219 | 38890 | 278.29 | 730 | 712 | 137.2 |
| C | 9 | 68 | 5598 | 29.26 | 718 | 723 | 166.6 |
| C | 13 | 61 | 5527 | 28.84 | 718 | 723 | 166.6 |
| C | 8 | 208 | 3389 | 16.0 | 718 | 723 | 166.6 |
| D | 7 | 71 | 45974 | 239.91 | 704 | 687 | 188.8 |
| D | 1 | 52 | 37973 | 197.53 | 704 | 687 | 188.8 |
| D | 2 | 14 | 27540 | 142.26 | 704 | 687 | 188.8 |

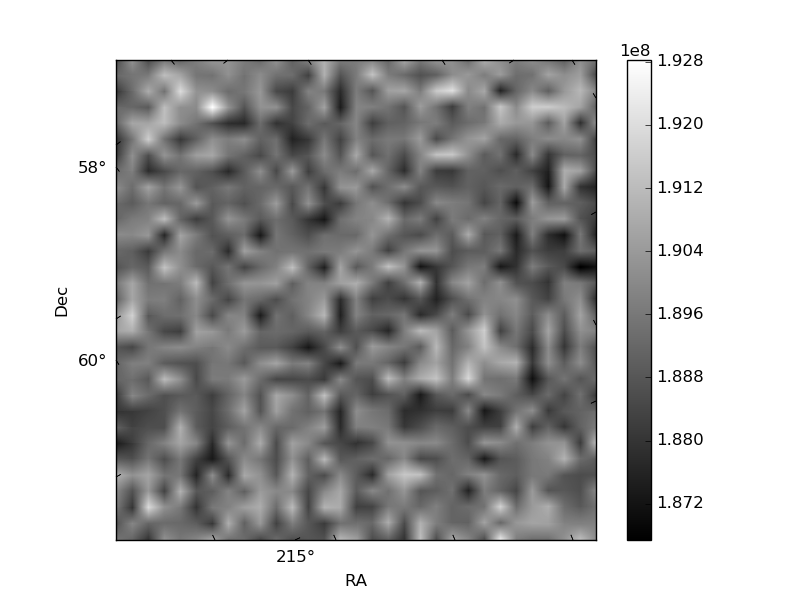

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

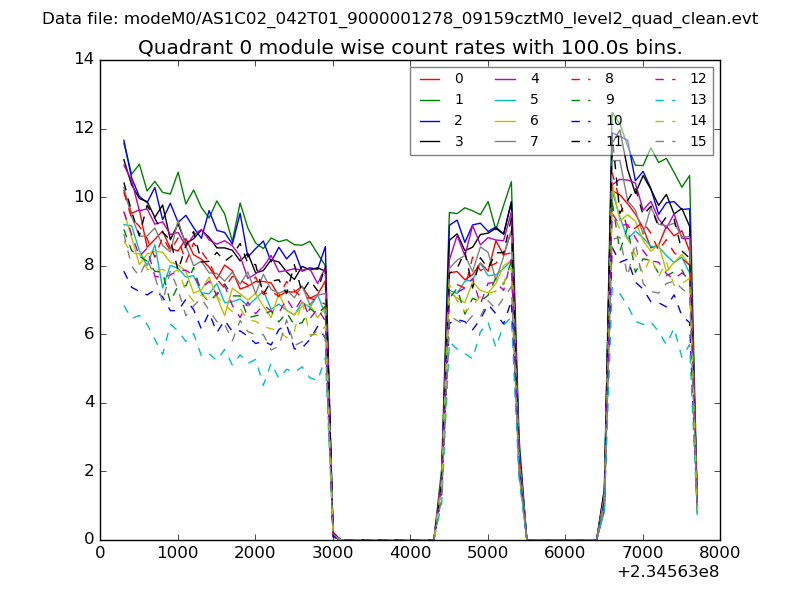

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

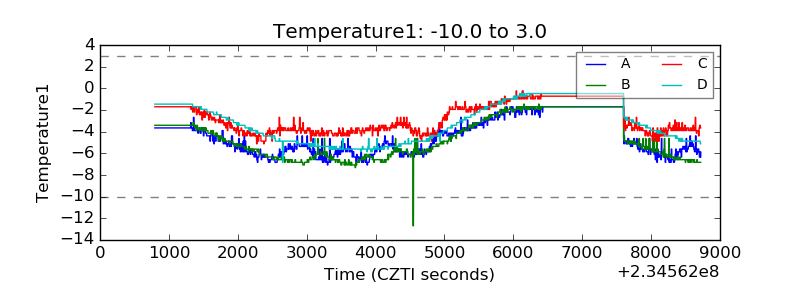

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

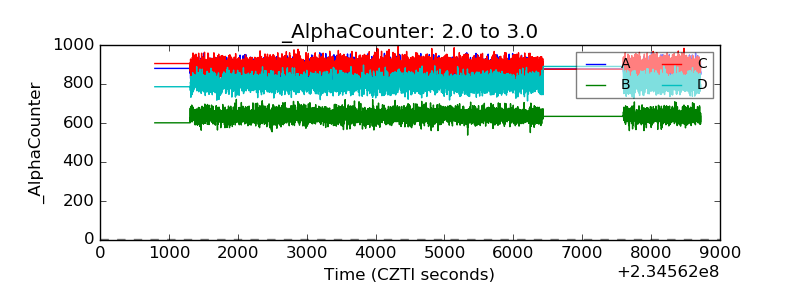

| Alpha Counter |  |

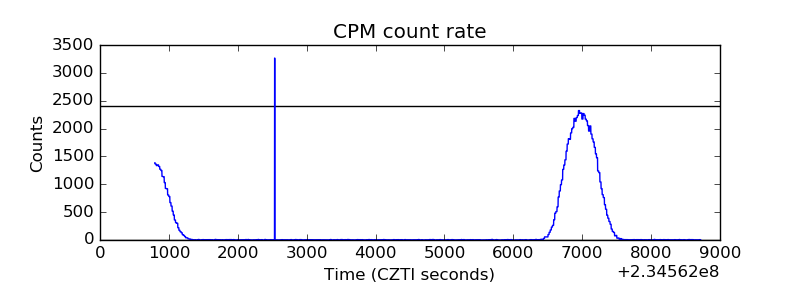

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
