| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_027T01_9000001280_09165cztM0_level2.evt | modeM0/AS1C02_027T01_9000001280_09165cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,908,800 | 125,262,720 |
| Size | 440.5 MB | 119.5 MB |
| Events in quadrant A | 3,537,108 | 823,134 |
| Events in quadrant B | 3,706,056 | 835,527 |
| Events in quadrant C | 3,025,442 | 841,589 |
| Events in quadrant D | 3,250,366 | 812,104 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14904 | 2 |
| B | 0 | 15543 | 1 |
| C | 0 | 14069 | 1 |
| D | 0 | 14596 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6918 | 182 | 2.630818% |
| B | 6918 | 196 | 2.833189% |
| C | 6918 | 110 | 1.590055% |
| D | 6918 | 146 | 2.110437% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7408 | 6918 | 34 | 34 | 0.46% | 0.49% |  |
| B | 7408 | 6918 | 29 | 29 | 0.39% | 0.42% |  |
| C | 7408 | 6918 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7408 | 6918 | 13 | 13 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 280030 | 1753.19 | 785 | 770 | 159.3 |
| A | 5 | 16 | 118040 | 736.22 | 785 | 770 | 159.3 |
| A | 1 | 162 | 50587 | 312.75 | 785 | 770 | 159.3 |
| B | 8 | 234 | 324276 | 2182.84 | 786 | 766 | 148.2 |
| B | 10 | 16 | 98419 | 658.9 | 786 | 766 | 148.2 |
| B | 0 | 214 | 51134 | 339.85 | 786 | 766 | 148.2 |
| C | 8 | 128 | 6383 | 31.77 | 771 | 771 | 176.7 |
| C | 13 | 61 | 5708 | 27.95 | 771 | 771 | 176.7 |
| C | 8 | 222 | 3151 | 13.47 | 771 | 771 | 176.7 |
| D | 13 | 169 | 133765 | 674.72 | 768 | 747 | 197.1 |
| D | 7 | 71 | 71261 | 357.68 | 768 | 747 | 197.1 |
| D | 13 | 104 | 54354 | 271.92 | 768 | 747 | 197.1 |

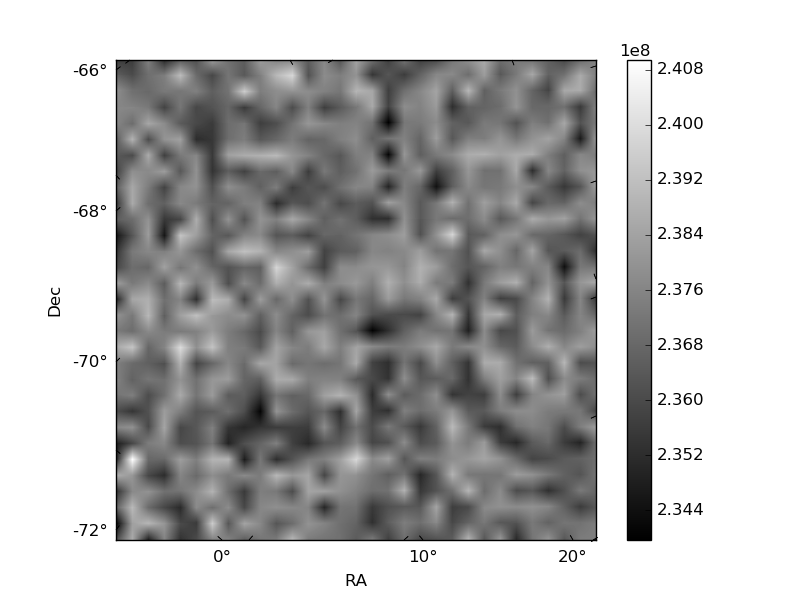

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

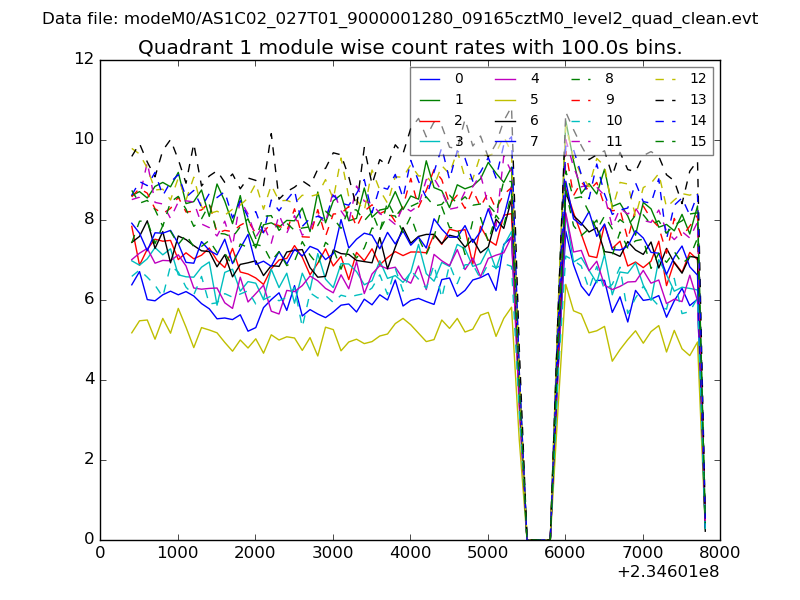

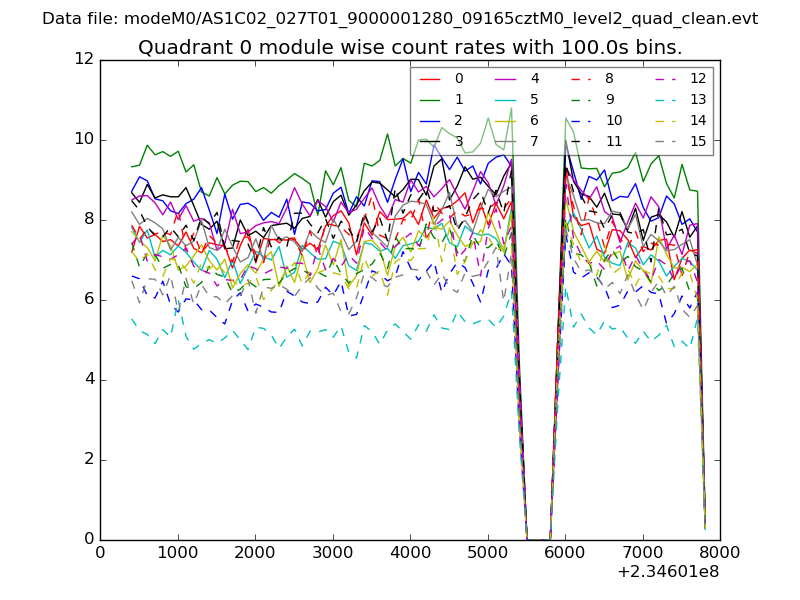

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

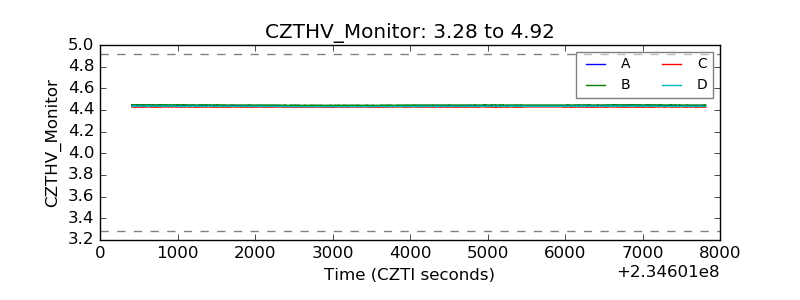

| CZT HV Monitor |  |
| D_VDD |  |

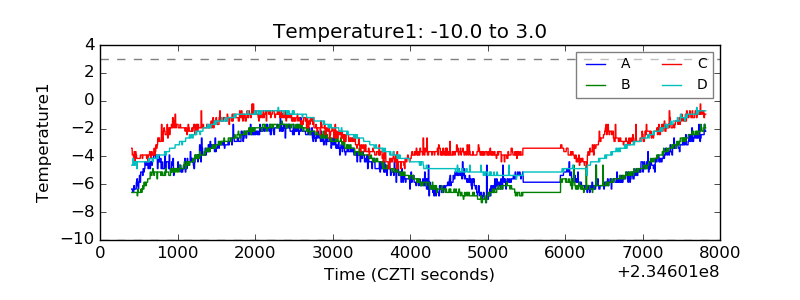

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

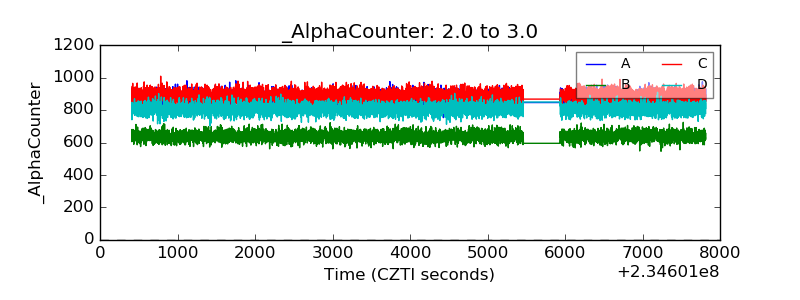

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

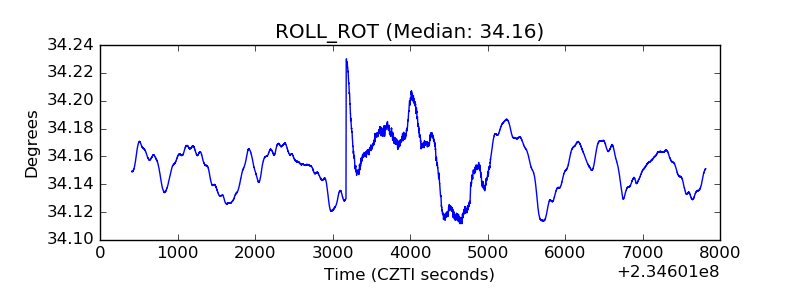

| _ROLL_ROT |  |
| _Roll_DEC |  |

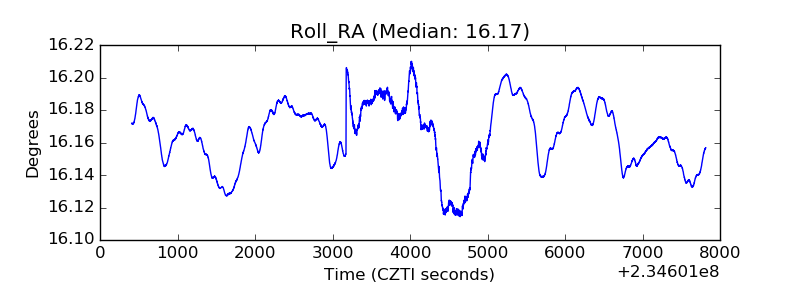

| _Roll_RA |  |
| Veto Counter |  |
