| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_041T02_9000001282_09175cztM0_level2.evt | modeM0/AS1C02_041T02_9000001282_09175cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,485,760 | 89,334,720 |
| Size | 452.5 MB | 85.2 MB |
| Events in quadrant A | 3,983,826 | 572,418 |
| Events in quadrant B | 3,229,752 | 589,860 |
| Events in quadrant C | 2,975,789 | 568,947 |
| Events in quadrant D | 3,755,510 | 537,232 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16096 | 7 |
| B | 0 | 13596 | 4 |
| C | 0 | 12893 | 2 |
| D | 0 | 15313 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6257 | 58 | 0.926962% |
| B | 6258 | 62 | 0.990732% |
| C | 6259 | 26 | 0.415402% |
| D | 6258 | 129 | 2.061361% |

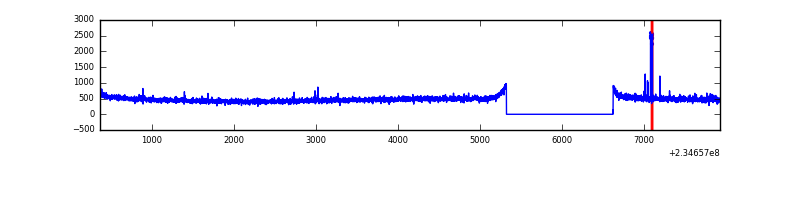

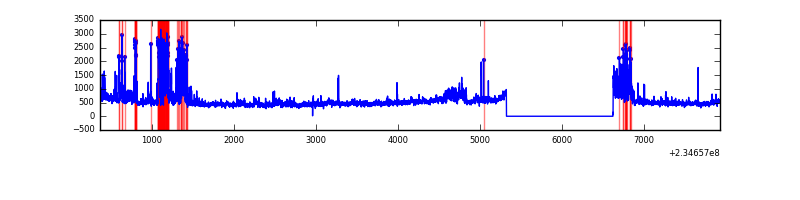

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6260 | 14 | 14 | 0.19% | 0.22% |  |
| B | 7559 | 6260 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7559 | 6260 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7559 | 6260 | 120 | 120 | 1.59% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 887026 | 5690.9 | 773 | 760 | 155.7 |
| A | 1 | 162 | 37982 | 239.01 | 773 | 760 | 155.7 |
| A | 13 | 251 | 29292 | 183.21 | 773 | 760 | 155.7 |
| B | 0 | 230 | 52384 | 350.91 | 785 | 769 | 147.1 |
| B | 8 | 234 | 29258 | 193.68 | 785 | 769 | 147.1 |
| B | 0 | 229 | 28362 | 187.59 | 785 | 769 | 147.1 |
| C | 9 | 68 | 41101 | 234.93 | 750 | 755 | 171.7 |
| C | 13 | 61 | 5658 | 28.55 | 750 | 755 | 171.7 |
| C | 12 | 4 | 3658 | 16.9 | 750 | 755 | 171.7 |
| D | 1 | 52 | 608829 | 3169.14 | 734 | 716 | 191.9 |
| D | 12 | 233 | 191932 | 996.51 | 734 | 716 | 191.9 |
| D | 2 | 14 | 72539 | 374.3 | 734 | 716 | 191.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

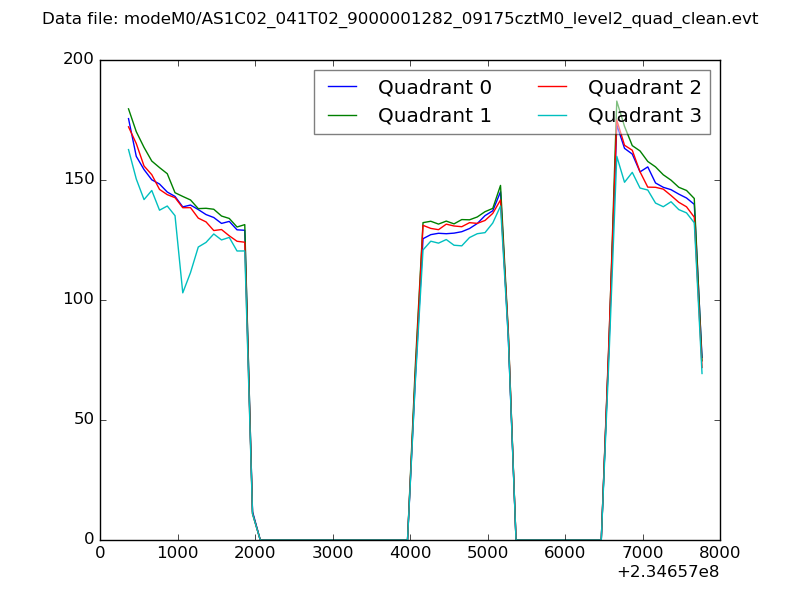

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

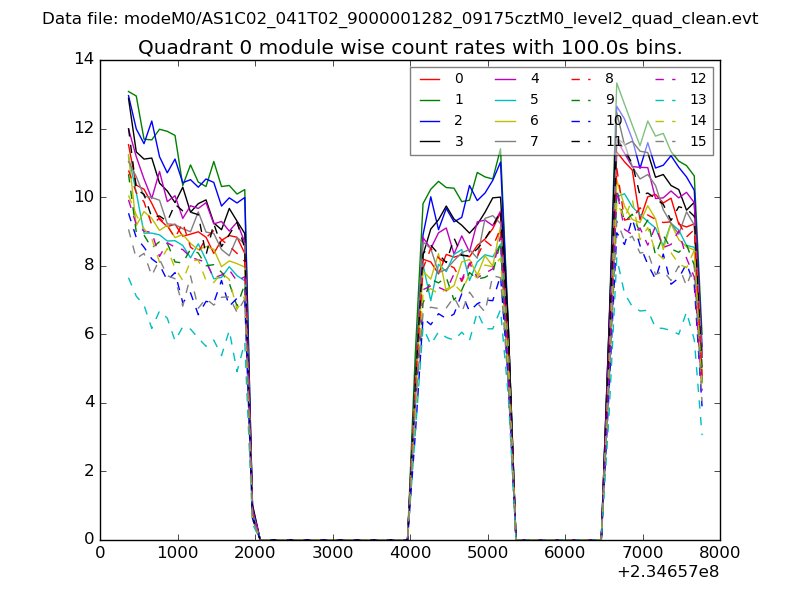

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

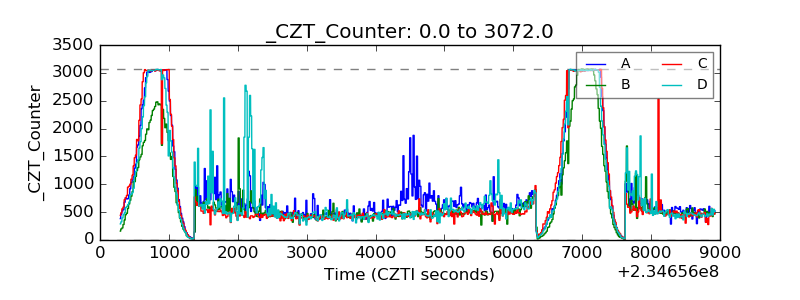

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

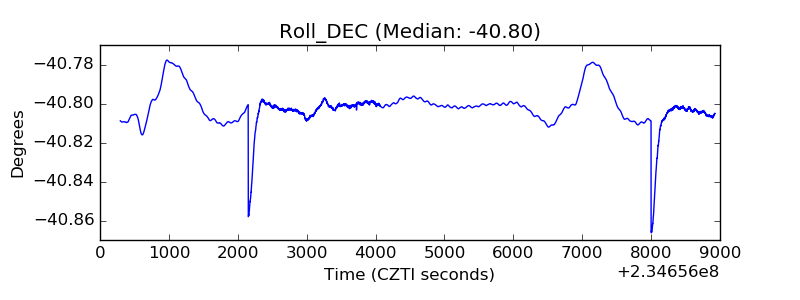

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
