| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_041T02_9000001282_09178cztM0_level2.evt | modeM0/AS1C02_041T02_9000001282_09178cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,102,400 | 66,974,400 |
| Size | 439.7 MB | 63.9 MB |
| Events in quadrant A | 3,425,919 | 394,503 |
| Events in quadrant B | 3,310,192 | 399,989 |
| Events in quadrant C | 3,254,158 | 393,175 |
| Events in quadrant D | 3,527,557 | 381,483 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14099 | 3 |
| B | 0 | 13855 | 2 |
| C | 0 | 13703 | 2 |
| D | 0 | 14624 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6573 | 55 | 0.836756% |
| B | 6573 | 82 | 1.247528% |
| C | 6573 | 38 | 0.578123% |
| D | 6573 | 72 | 1.095390% |

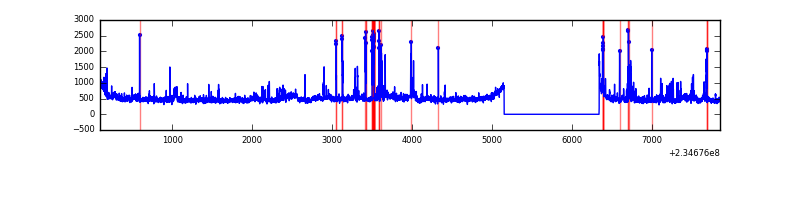

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7762 | 6573 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7762 | 6573 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7762 | 6573 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7762 | 6573 | 43 | 43 | 0.55% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 125864 | 759.58 | 808 | 792 | 164.7 |
| A | 1 | 162 | 69684 | 418.39 | 808 | 792 | 164.7 |
| A | 15 | 174 | 44218 | 263.73 | 808 | 792 | 164.7 |
| B | 8 | 234 | 49794 | 318.12 | 817 | 798 | 154.0 |
| B | 0 | 229 | 23946 | 150.3 | 817 | 798 | 154.0 |
| B | 0 | 214 | 23278 | 145.96 | 817 | 798 | 154.0 |
| C | 9 | 68 | 160885 | 881.32 | 792 | 795 | 181.6 |
| C | 13 | 61 | 6071 | 29.05 | 792 | 795 | 181.6 |
| C | 14 | 67 | 2508 | 9.43 | 792 | 795 | 181.6 |
| D | 1 | 52 | 480719 | 2357.15 | 783 | 762 | 203.6 |
| D | 2 | 14 | 29778 | 142.5 | 783 | 762 | 203.6 |
| D | 2 | 234 | 24812 | 118.11 | 783 | 762 | 203.6 |

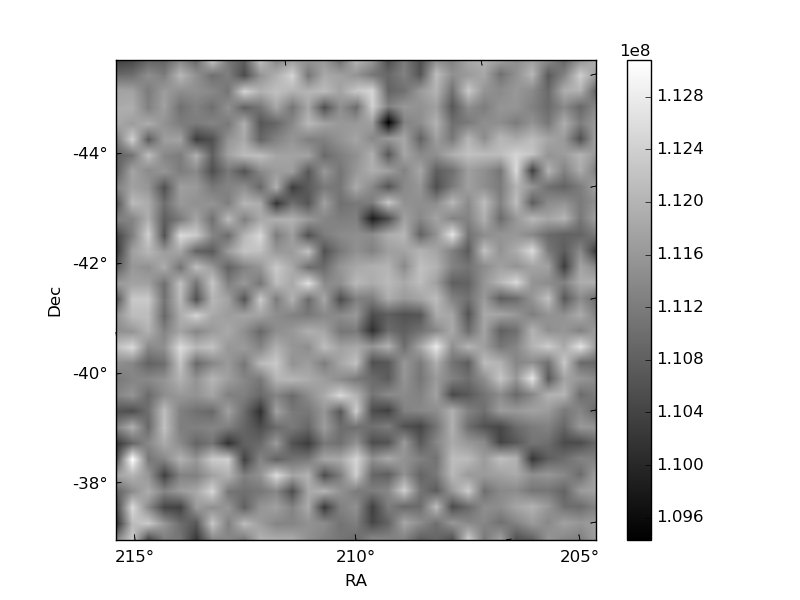

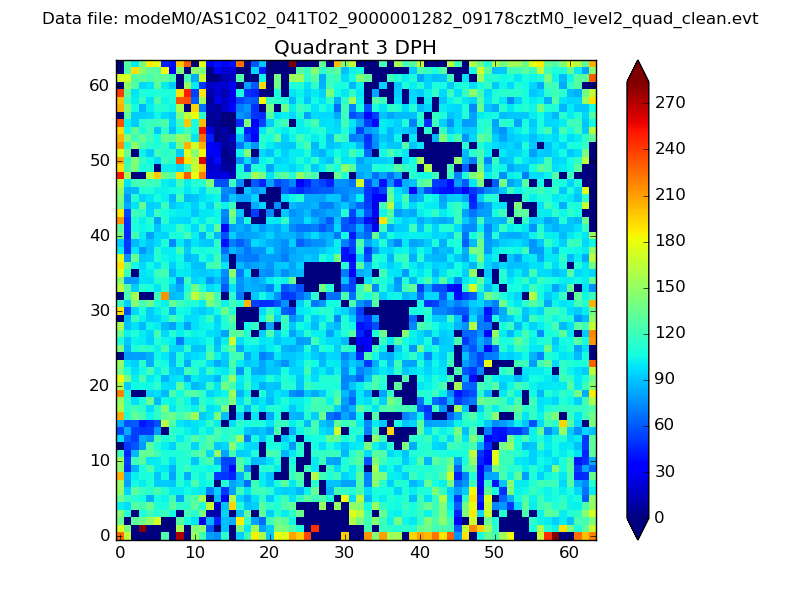

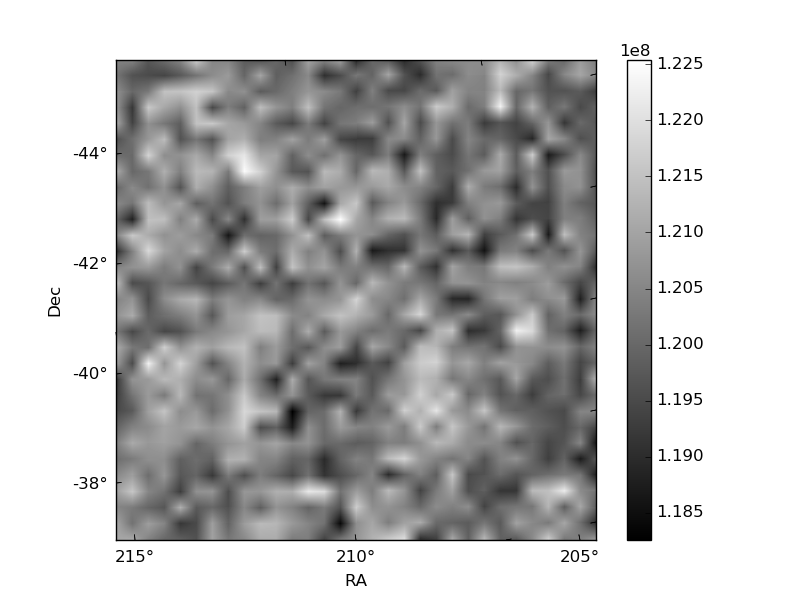

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

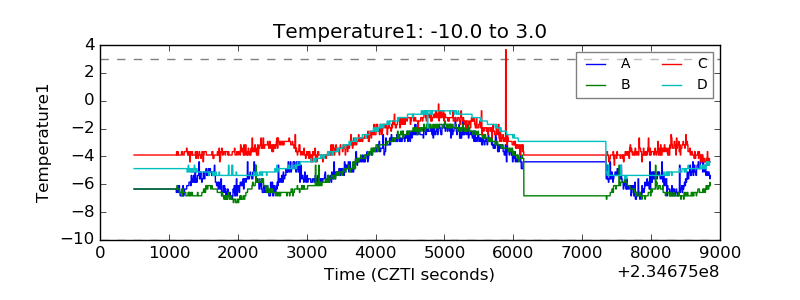

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

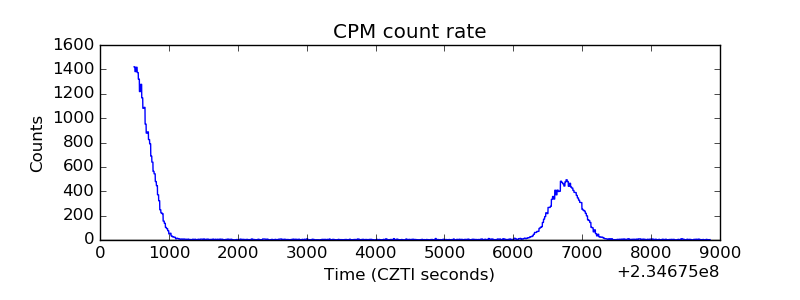

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

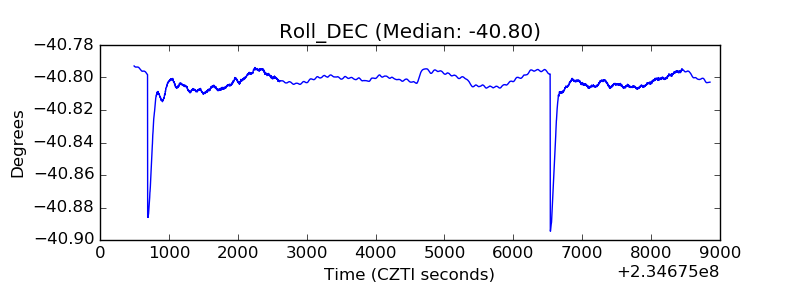

| _Roll_DEC |  |
| _Roll_RA |  |

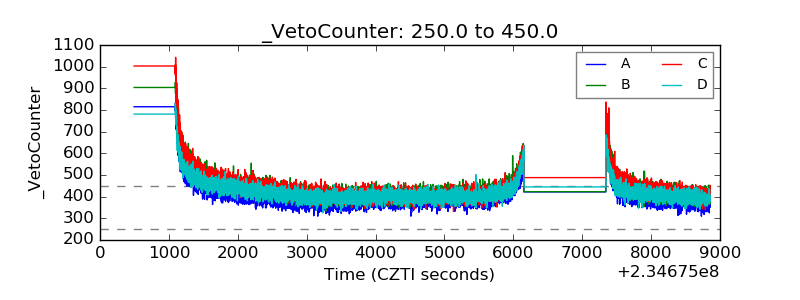

| Veto Counter |  |
