| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_042T02_9000001284_09196cztM0_level2.evt | modeM0/AS1C02_042T02_9000001284_09196cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,405,760 | 92,465,280 |
| Size | 528.7 MB | 88.2 MB |
| Events in quadrant A | 4,990,486 | 567,931 |
| Events in quadrant B | 3,719,680 | 581,718 |
| Events in quadrant C | 3,515,078 | 567,177 |
| Events in quadrant D | 4,046,644 | 552,231 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20003 | 2 |
| B | 0 | 15936 | 1 |
| C | 0 | 15723 | 1 |
| D | 0 | 17288 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7631 | 343 | 4.494824% |
| B | 7631 | 261 | 3.420259% |
| C | 7631 | 187 | 2.450531% |
| D | 7630 | 346 | 4.534731% |

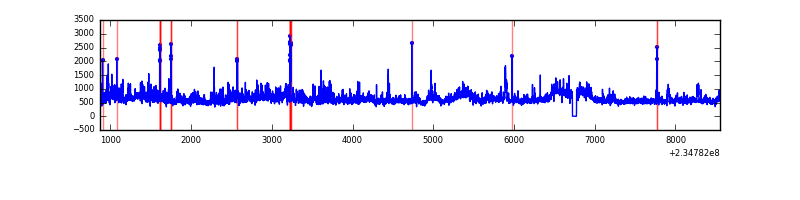

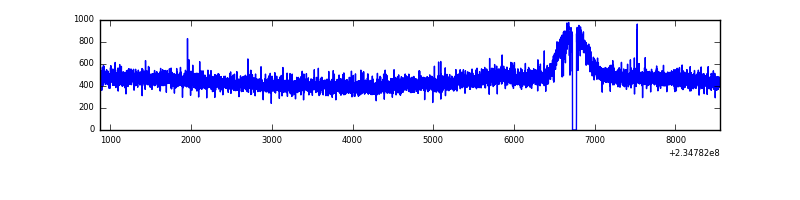

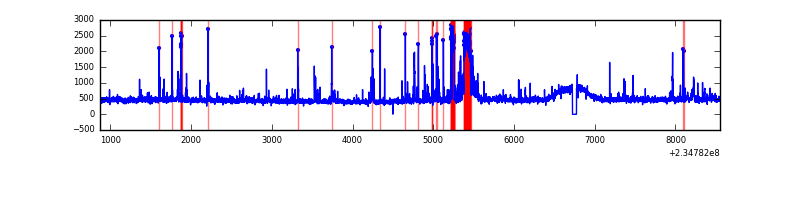

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7681 | 7631 | 24 | 24 | 0.31% | 0.31% |  |
| B | 7681 | 7631 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7681 | 7631 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7680 | 7630 | 125 | 125 | 1.63% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1243729 | 6578.03 | 922 | 901 | 188.9 |
| A | 1 | 162 | 90903 | 476.36 | 922 | 901 | 188.9 |
| A | 5 | 16 | 30071 | 154.39 | 922 | 901 | 188.9 |
| B | 0 | 214 | 32618 | 176.38 | 927 | 903 | 179.8 |
| B | 0 | 245 | 28478 | 153.36 | 927 | 903 | 179.8 |
| B | 0 | 219 | 22865 | 122.14 | 927 | 903 | 179.8 |
| C | 13 | 61 | 6676 | 27.49 | 899 | 902 | 210.0 |
| C | 8 | 222 | 5054 | 19.77 | 899 | 902 | 210.0 |
| C | 14 | 234 | 3382 | 11.81 | 899 | 902 | 210.0 |
| D | 12 | 248 | 240947 | 1019.82 | 895 | 870 | 235.4 |
| D | 7 | 71 | 156893 | 662.77 | 895 | 870 | 235.4 |
| D | 9 | 64 | 57997 | 242.67 | 895 | 870 | 235.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

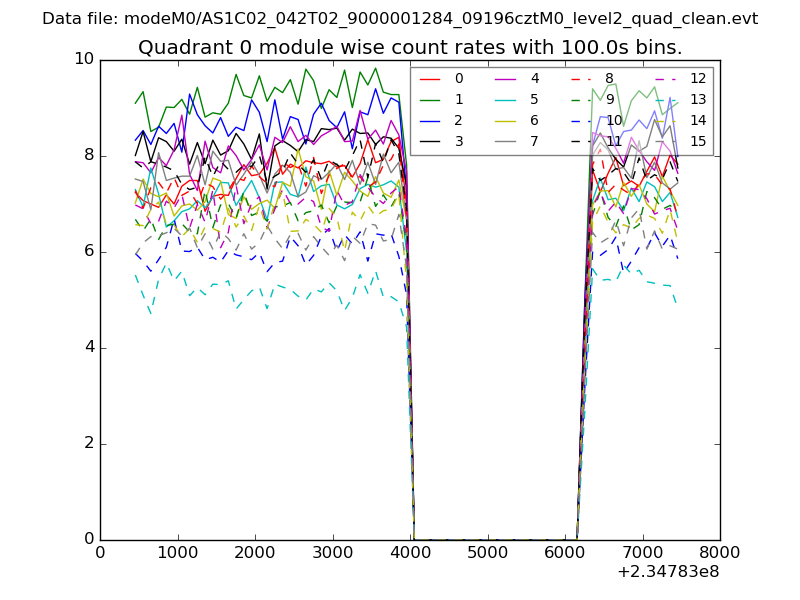

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

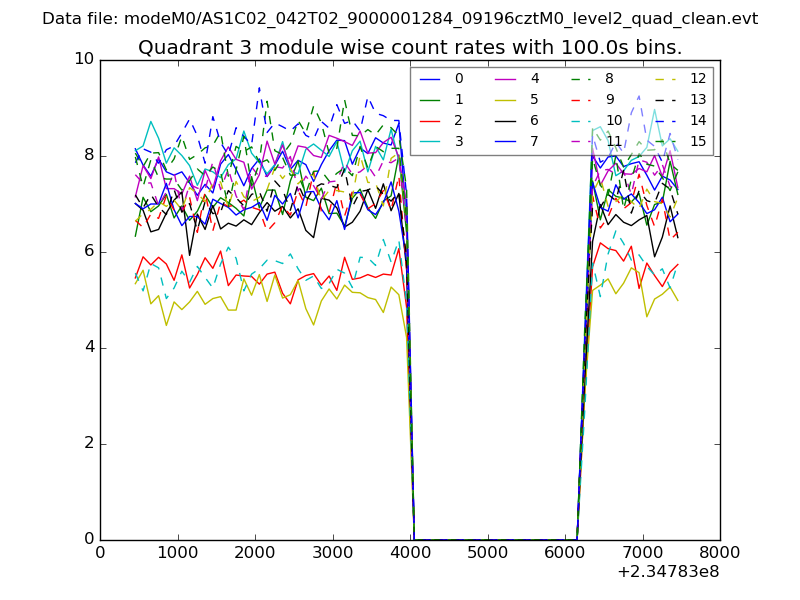

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

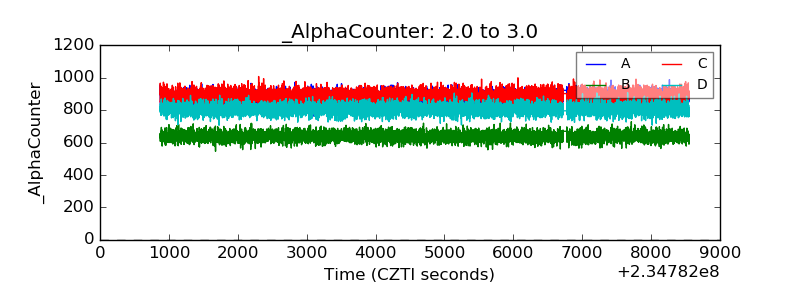

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

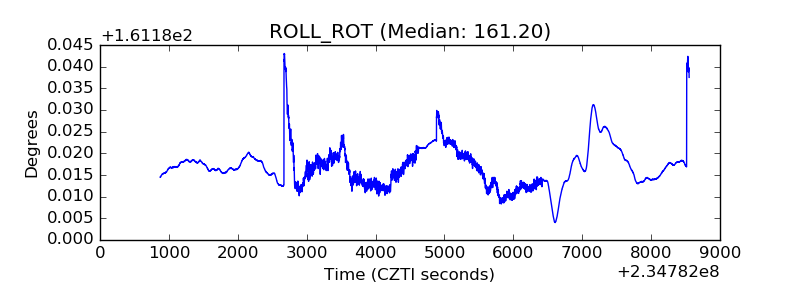

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

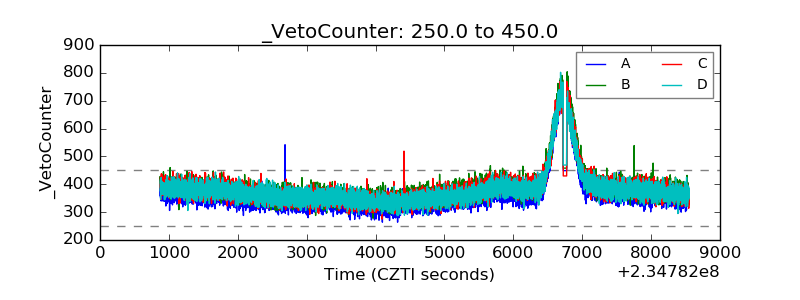

| Veto Counter |  |
