| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_042T02_9000001284_09205cztM0_level2.evt | modeM0/AS1C02_042T02_9000001284_09205cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,647,680 | 72,385,920 |
| Size | 451.7 MB | 69.0 MB |
| Events in quadrant A | 4,115,200 | 439,887 |
| Events in quadrant B | 3,151,052 | 464,424 |
| Events in quadrant C | 3,044,116 | 443,975 |
| Events in quadrant D | 3,619,723 | 417,000 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16216 | 6 |
| B | 0 | 12989 | 5 |
| C | 0 | 12678 | 2 |
| D | 0 | 14749 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6106 | 202 | 3.308221% |
| B | 6106 | 24 | 0.393056% |
| C | 6107 | 11 | 0.180121% |
| D | 6107 | 108 | 1.768462% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7481 | 6107 | 147 | 147 | 1.96% | 2.41% |  |
| B | 7481 | 6107 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7482 | 6107 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7482 | 6107 | 101 | 101 | 1.35% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 629544 | 4060.84 | 774 | 760 | 154.8 |
| A | 15 | 174 | 283756 | 1827.65 | 774 | 760 | 154.8 |
| A | 1 | 162 | 92110 | 589.96 | 774 | 760 | 154.8 |
| B | 4 | 48 | 20882 | 134.93 | 792 | 776 | 149.0 |
| B | 12 | 111 | 15590 | 99.41 | 792 | 776 | 149.0 |
| B | 0 | 214 | 14925 | 94.95 | 792 | 776 | 149.0 |
| C | 3 | 233 | 97599 | 556.26 | 754 | 761 | 174.1 |
| C | 13 | 61 | 5785 | 28.86 | 754 | 761 | 174.1 |
| C | 8 | 222 | 2563 | 10.35 | 754 | 761 | 174.1 |
| D | 1 | 52 | 485524 | 2505.68 | 738 | 720 | 193.5 |
| D | 4 | 95 | 154094 | 792.7 | 738 | 720 | 193.5 |
| D | 7 | 71 | 88707 | 454.76 | 738 | 720 | 193.5 |

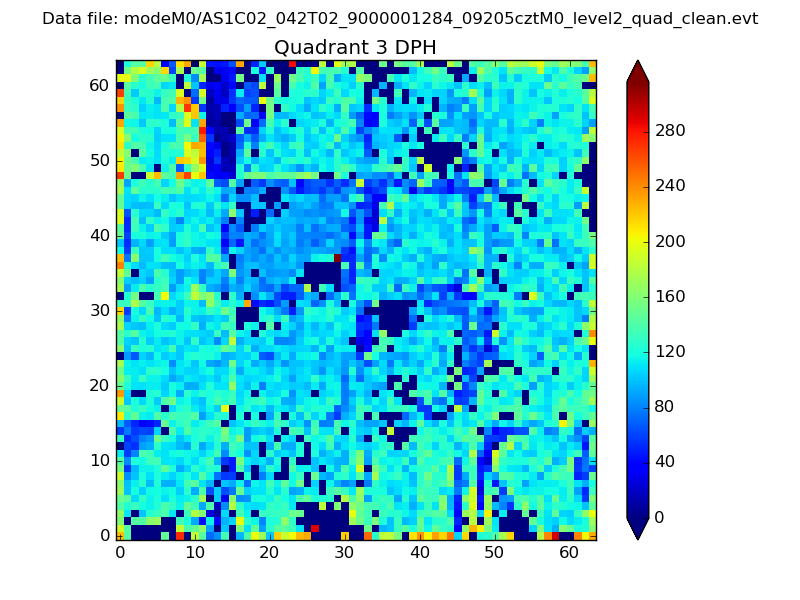

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

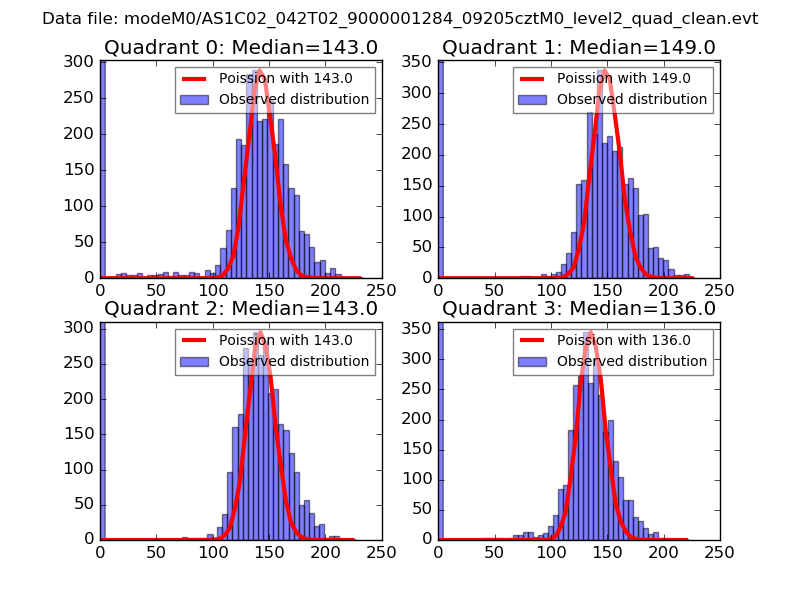

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

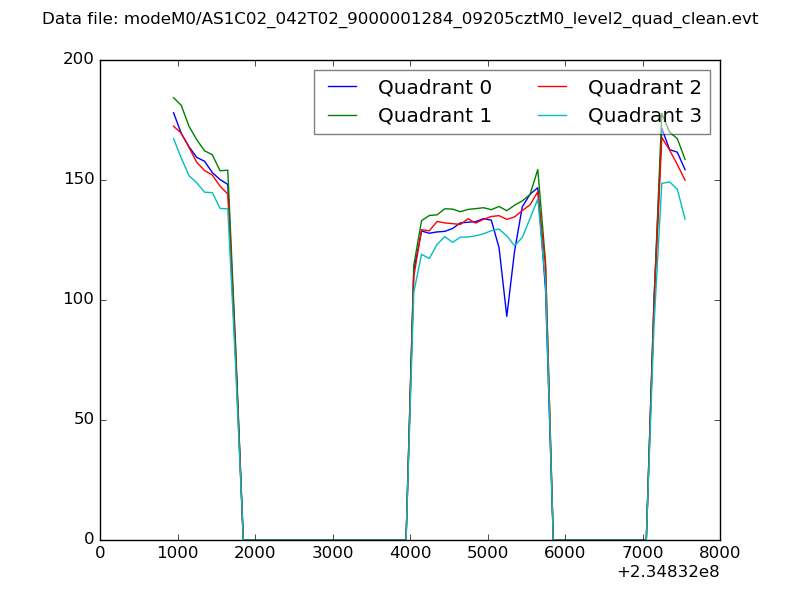

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

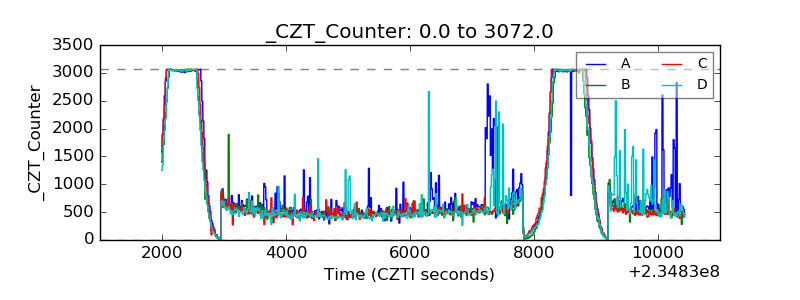

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
