| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001286_09223cztM0_level2.evt | modeM0/AS1A02_178T01_9000001286_09223cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,757,760 | 76,896,000 |
| Size | 510.9 MB | 73.3 MB |
| Events in quadrant A | 4,737,597 | 454,802 |
| Events in quadrant B | 3,618,305 | 463,206 |
| Events in quadrant C | 3,432,135 | 454,079 |
| Events in quadrant D | 3,937,230 | 443,315 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18909 | 3 |
| B | 0 | 15537 | 2 |
| C | 0 | 15361 | 2 |
| D | 0 | 16806 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7375 | 210 | 2.847458% |
| B | 7375 | 159 | 2.155932% |
| C | 7375 | 100 | 1.355932% |
| D | 7375 | 158 | 2.142373% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8936 | 7379 | 68 | 68 | 0.76% | 0.92% |  |
| B | 8936 | 7379 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8936 | 7379 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8936 | 7379 | 73 | 73 | 0.82% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 831798 | 4489.36 | 899 | 881 | 185.1 |
| A | 5 | 16 | 187022 | 1005.7 | 899 | 881 | 185.1 |
| A | 1 | 162 | 102718 | 550.21 | 899 | 881 | 185.1 |
| B | 0 | 245 | 25759 | 142.1 | 909 | 888 | 175.0 |
| B | 0 | 214 | 25607 | 141.23 | 909 | 888 | 175.0 |
| B | 12 | 111 | 19178 | 104.5 | 909 | 888 | 175.0 |
| C | 13 | 61 | 6701 | 28.17 | 878 | 883 | 206.6 |
| C | 14 | 67 | 4327 | 16.67 | 878 | 883 | 206.6 |
| C | 8 | 222 | 3730 | 13.78 | 878 | 883 | 206.6 |
| D | 1 | 52 | 419134 | 1789.92 | 868 | 848 | 233.7 |
| D | 7 | 71 | 98323 | 417.11 | 868 | 848 | 233.7 |
| D | 8 | 195 | 60753 | 256.34 | 868 | 848 | 233.7 |

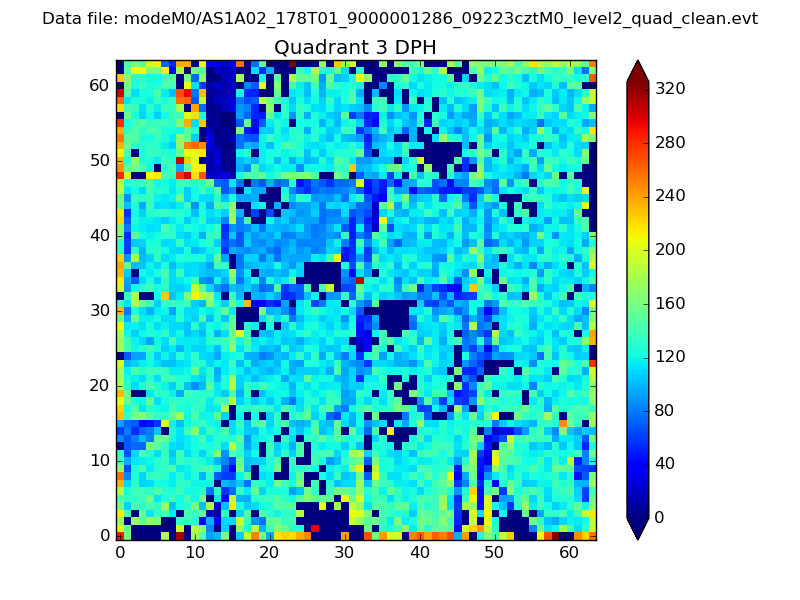

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

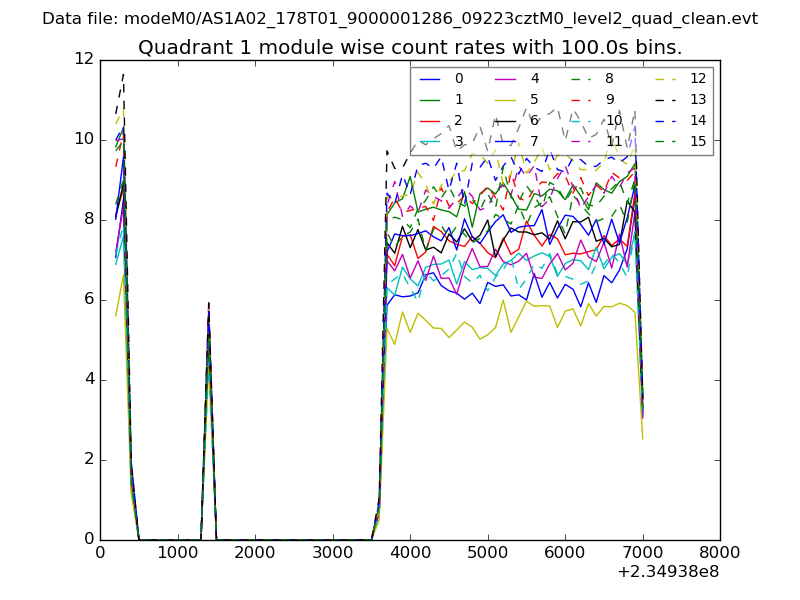

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

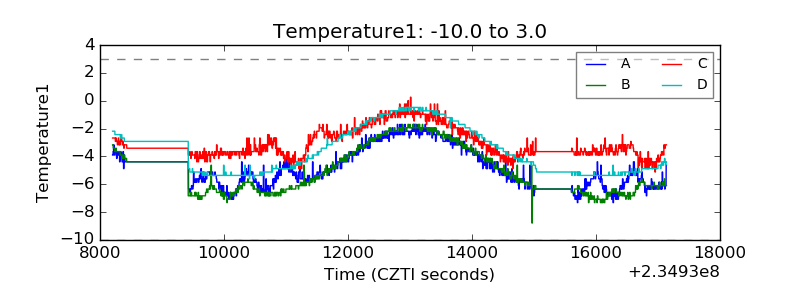

| Temperature 1 |  |

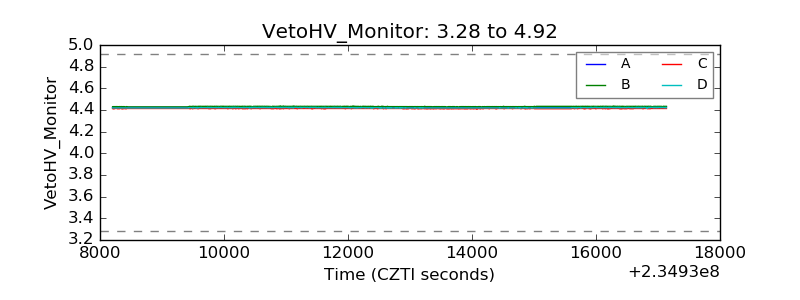

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

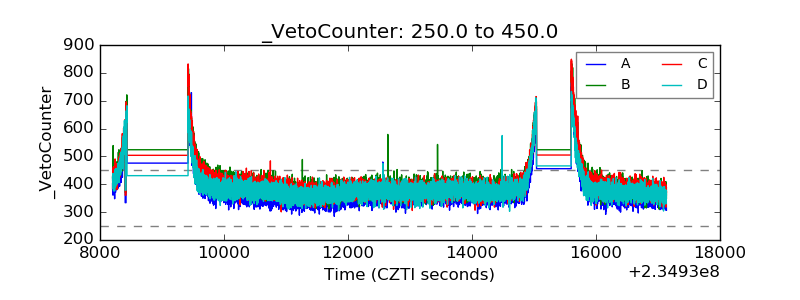

| Veto Counter |  |
