| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001286_09224cztM0_level2.evt | modeM0/AS1A02_178T01_9000001286_09224cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,775,360 | 73,330,560 |
| Size | 506.2 MB | 69.9 MB |
| Events in quadrant A | 4,860,863 | 425,033 |
| Events in quadrant B | 3,638,679 | 433,465 |
| Events in quadrant C | 3,523,128 | 424,412 |
| Events in quadrant D | 3,541,621 | 415,408 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 4 |
| B | 0 | 156 | 2 |
| C | 0 | 156 | 4 |
| D | 0 | 156 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20036 | 736 |
| B | 0 | 16209 | 517 |
| C | 0 | 16191 | 456 |
| D | 0 | 16335 | 510 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7474 | 407 | 5.445545% |
| B | 7482 | 310 | 4.143277% |
| C | 7515 | 260 | 3.459747% |
| D | 7490 | 243 | 3.244326% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7814 | 7716 | 68 | 68 | 0.87% | 0.88% |  |
| B | 7814 | 7719 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7814 | 7717 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7814 | 7715 | 4 | 4 | 0.05% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 924702 | 4940.82 | 909 | 887 | 187.0 |
| A | 5 | 16 | 190131 | 1012.13 | 909 | 887 | 187.0 |
| A | 15 | 174 | 90757 | 480.65 | 909 | 887 | 187.0 |
| B | 12 | 111 | 20101 | 107.25 | 922 | 896 | 179.1 |
| B | 11 | 111 | 16021 | 84.47 | 922 | 896 | 179.1 |
| B | 0 | 214 | 15805 | 83.26 | 922 | 896 | 179.1 |
| C | 14 | 234 | 8927 | 38.18 | 899 | 900 | 210.2 |
| C | 13 | 61 | 6875 | 28.42 | 899 | 900 | 210.2 |
| C | 14 | 67 | 4573 | 17.47 | 899 | 900 | 210.2 |
| D | 2 | 152 | 39719 | 164.72 | 888 | 867 | 235.9 |
| D | 1 | 52 | 33851 | 139.84 | 888 | 867 | 235.9 |
| D | 7 | 71 | 31814 | 131.21 | 888 | 867 | 235.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

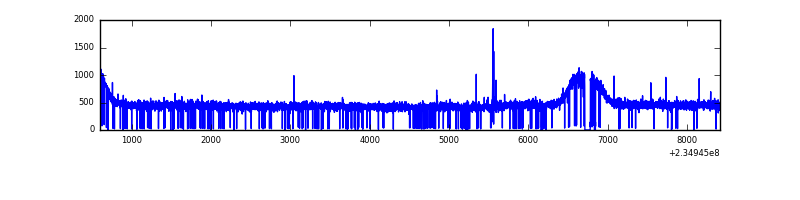

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

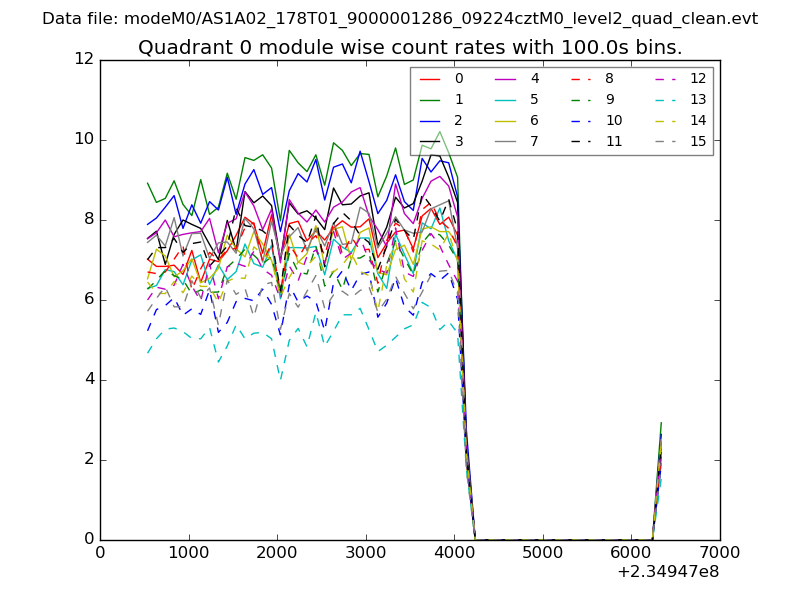

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

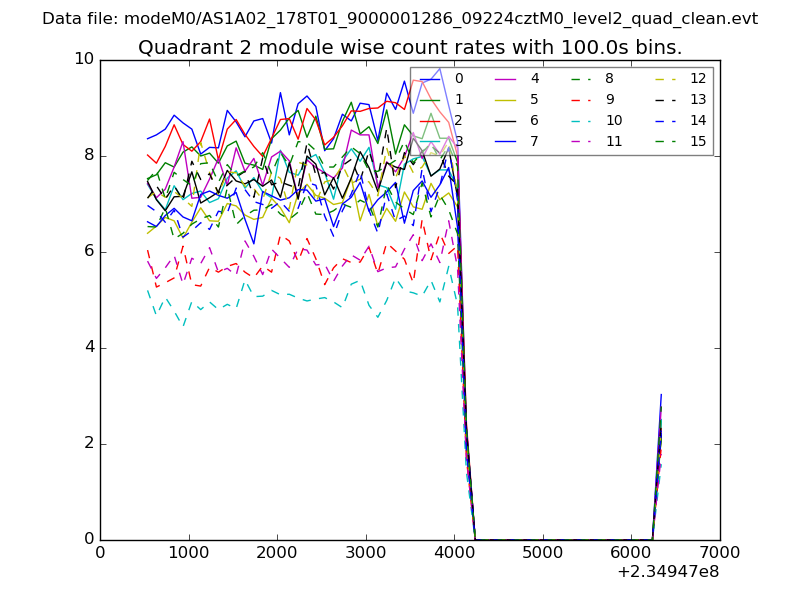

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

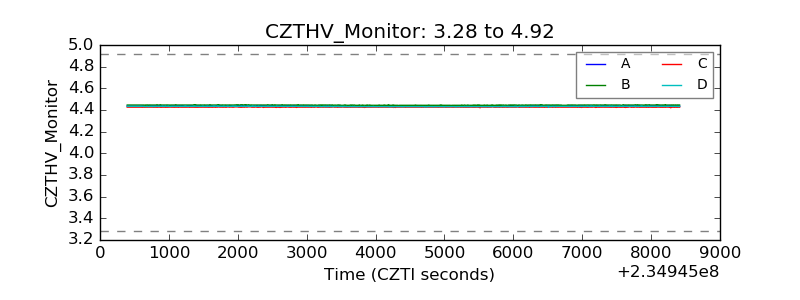

| CZT HV Monitor |  |
| D_VDD |  |

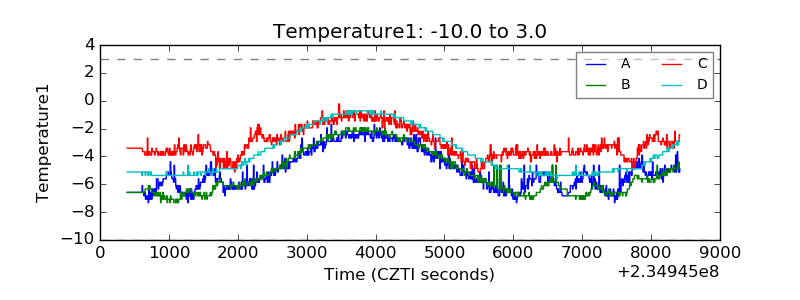

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

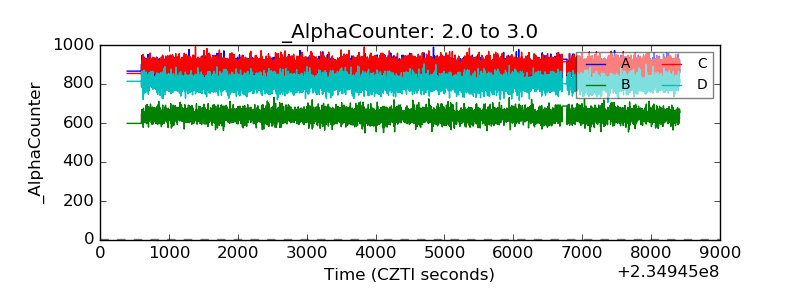

| Alpha Counter |  |
| _CPM_Rate |  |

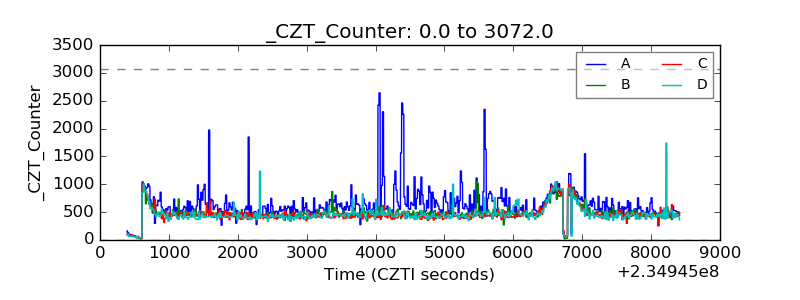

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

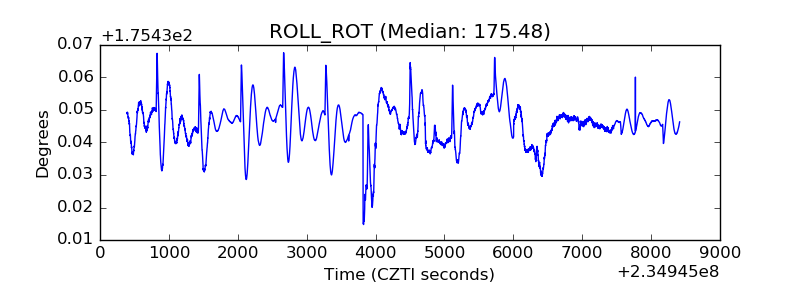

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
