| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_091T02_9000001292_09248cztM0_level2.evt | modeM0/AS1A03_091T02_9000001292_09248cztM0_level2_quad_clean.evt |
| Size (bytes) | 351,365,760 | 58,469,760 |
| Size | 335.1 MB | 55.8 MB |
| Events in quadrant A | 2,891,623 | 362,049 |
| Events in quadrant B | 2,506,928 | 372,367 |
| Events in quadrant C | 2,270,492 | 357,276 |
| Events in quadrant D | 2,644,691 | 341,201 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11754 | 104 |
| B | 0 | 10601 | 77 |
| C | 0 | 9990 | 68 |
| D | 0 | 11193 | 82 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 2 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4804 | 25 | 0.520400% |
| B | 4808 | 24 | 0.499168% |
| C | 4811 | 10 | 0.207857% |
| D | 4813 | 33 | 0.685643% |

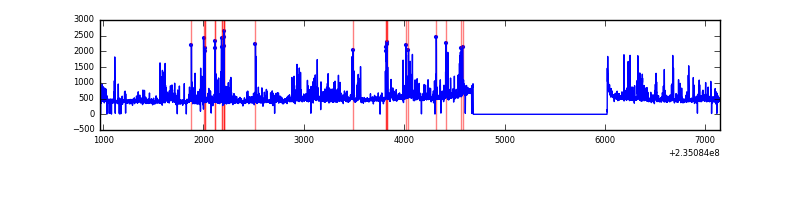

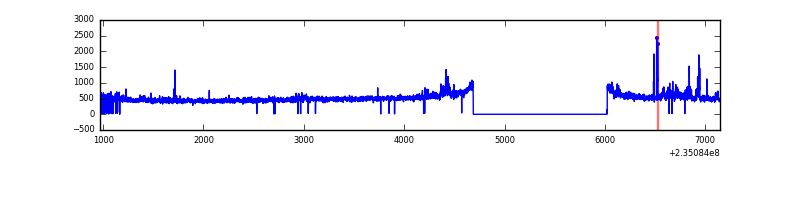

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6178 | 4842 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6178 | 4842 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6178 | 4843 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6178 | 4844 | 23 | 23 | 0.37% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 584276 | 4789.5 | 595 | 584 | 121.9 |
| A | 13 | 251 | 12585 | 98.47 | 595 | 584 | 121.9 |
| A | 0 | 226 | 5686 | 41.86 | 595 | 584 | 121.9 |
| B | 4 | 173 | 44353 | 379.02 | 602 | 589 | 115.5 |
| B | 0 | 219 | 29904 | 253.89 | 602 | 589 | 115.5 |
| B | 0 | 245 | 28760 | 243.98 | 602 | 589 | 115.5 |
| C | 14 | 234 | 22453 | 163.63 | 574 | 579 | 133.7 |
| C | 13 | 61 | 4452 | 28.97 | 574 | 579 | 133.7 |
| C | 8 | 222 | 4118 | 26.47 | 574 | 579 | 133.7 |
| D | 1 | 52 | 239763 | 1561.69 | 564 | 552 | 153.2 |
| D | 2 | 136 | 151745 | 987.07 | 564 | 552 | 153.2 |
| D | 12 | 233 | 53949 | 348.6 | 564 | 552 | 153.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

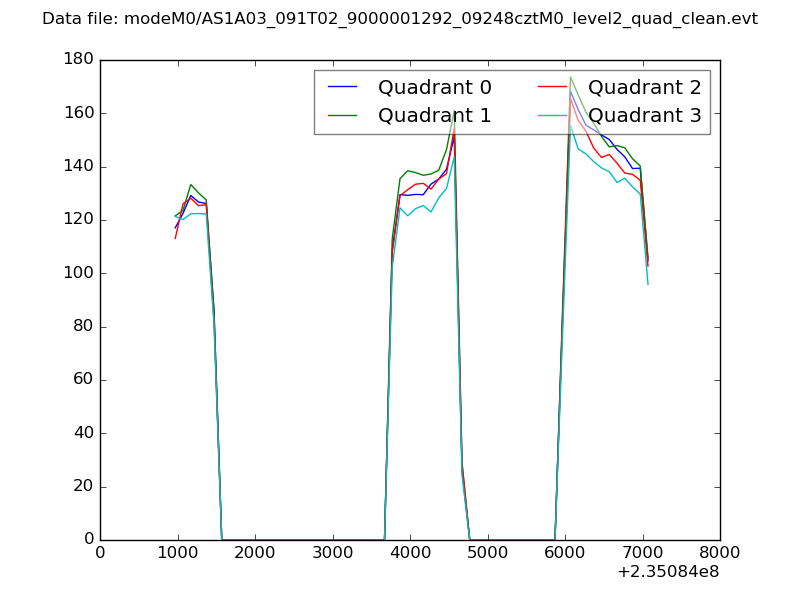

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

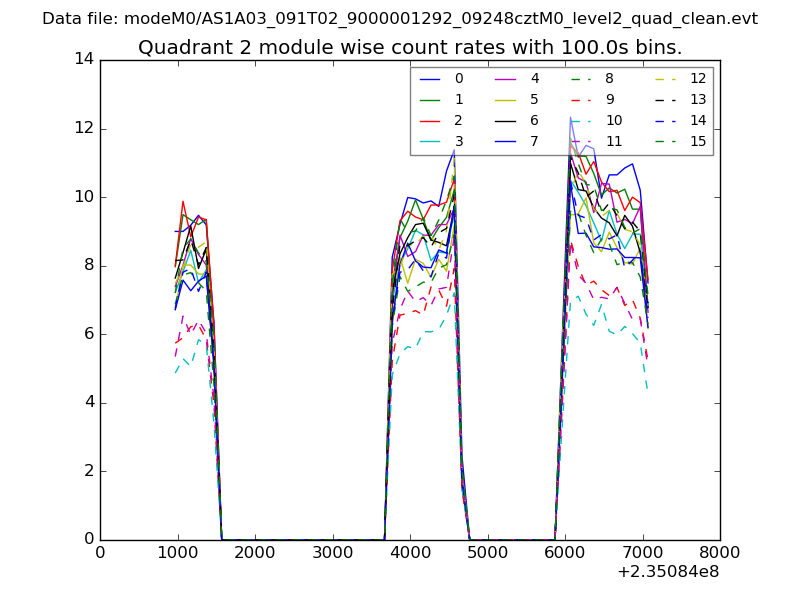

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

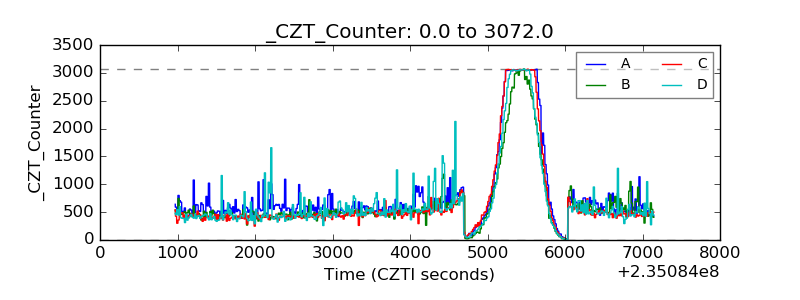

| CZT HV Monitor |  |
| D_VDD |  |

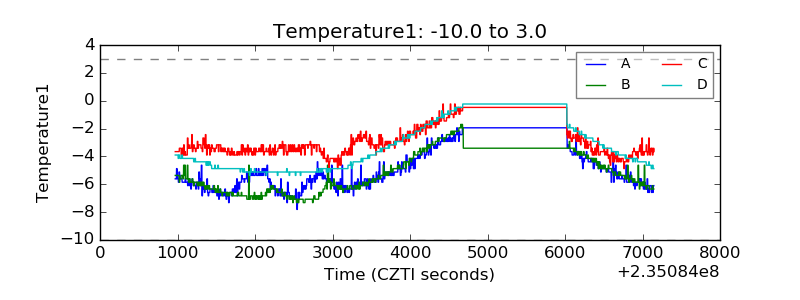

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

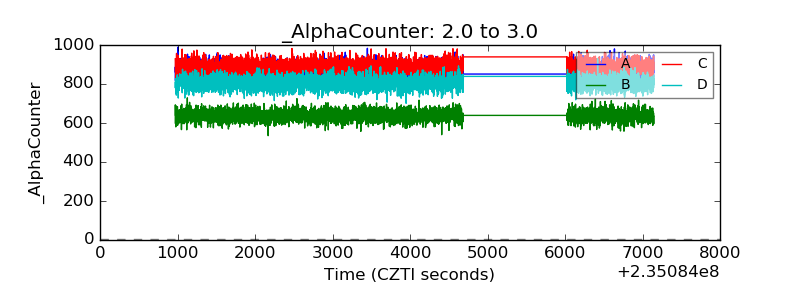

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

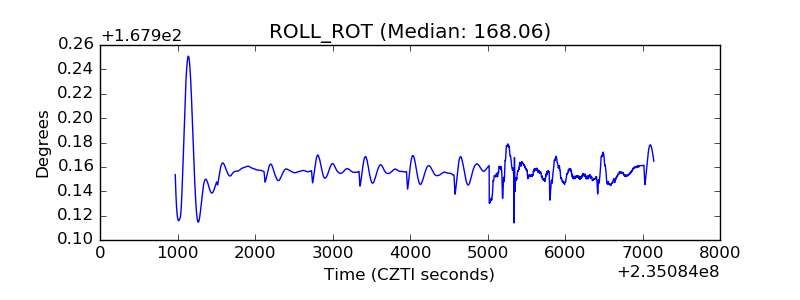

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
