| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_003T01_9000001290_09247cztM0_level2.evt | modeM0/AS1G07_003T01_9000001290_09247cztM0_level2_quad_clean.evt |
| Size (bytes) | 414,089,280 | 77,803,200 |
| Size | 394.9 MB | 74.2 MB |
| Events in quadrant A | 3,416,209 | 494,476 |
| Events in quadrant B | 3,002,965 | 503,541 |
| Events in quadrant C | 2,729,633 | 488,014 |
| Events in quadrant D | 3,001,583 | 468,997 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14148 | 209 |
| B | 0 | 12810 | 180 |
| C | 0 | 12091 | 114 |
| D | 0 | 13084 | 190 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 1 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 2 |
| B | 0 | 120 | 4 |
| C | 0 | 120 | 2 |
| D | 0 | 120 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5722 | 59 | 1.031108% |
| B | 5739 | 41 | 0.714410% |
| C | 5756 | 29 | 0.503822% |
| D | 5738 | 63 | 1.097944% |

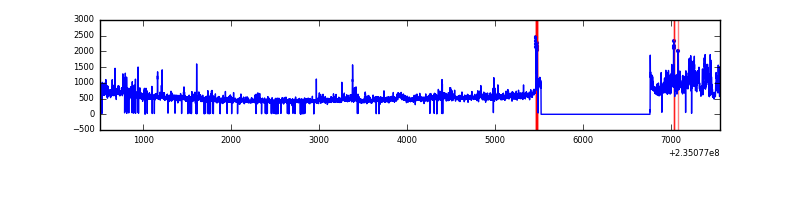

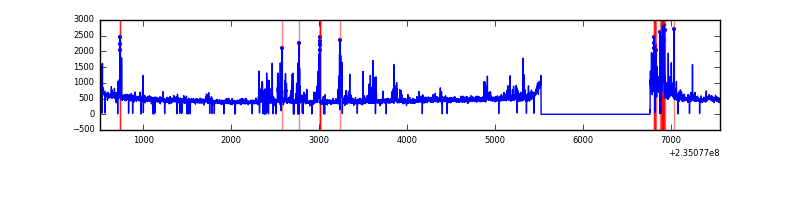

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7050 | 5809 | 14 | 14 | 0.20% | 0.24% |  |
| B | 7050 | 5808 | 7 | 7 | 0.10% | 0.12% |  |
| C | 7050 | 5810 | 9 | 9 | 0.13% | 0.15% |  |
| D | 7050 | 5810 | 38 | 38 | 0.54% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 605371 | 4169.93 | 710 | 696 | 145.0 |
| A | 13 | 251 | 46740 | 317.52 | 710 | 696 | 145.0 |
| A | 5 | 16 | 15401 | 101.4 | 710 | 696 | 145.0 |
| B | 4 | 173 | 88960 | 647.78 | 715 | 700 | 136.2 |
| B | 4 | 48 | 55333 | 400.98 | 715 | 700 | 136.2 |
| B | 0 | 219 | 30338 | 217.53 | 715 | 700 | 136.2 |
| C | 14 | 234 | 55845 | 347.31 | 684 | 689 | 158.8 |
| C | 13 | 61 | 5147 | 28.07 | 684 | 689 | 158.8 |
| C | 8 | 222 | 4469 | 23.8 | 684 | 689 | 158.8 |
| D | 12 | 233 | 200459 | 1119.07 | 673 | 656 | 178.5 |
| D | 1 | 52 | 124784 | 695.23 | 673 | 656 | 178.5 |
| D | 7 | 71 | 84835 | 471.48 | 673 | 656 | 178.5 |

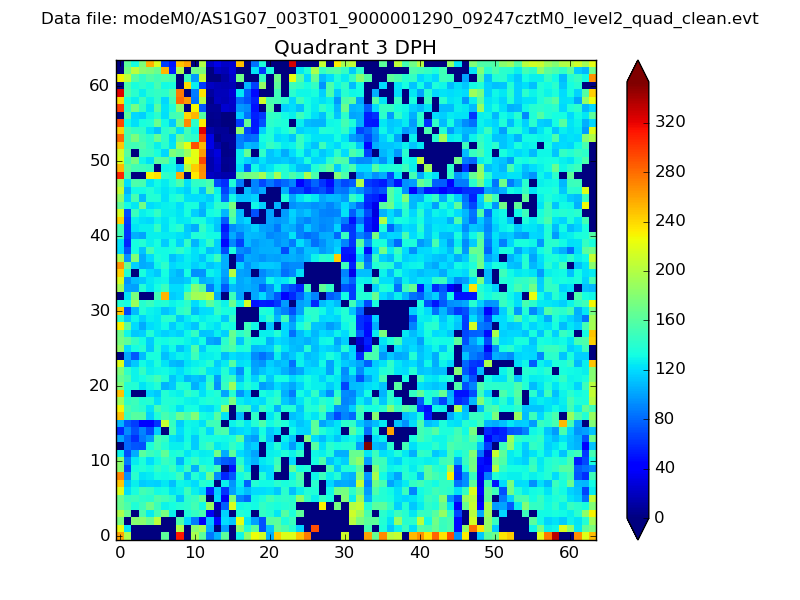

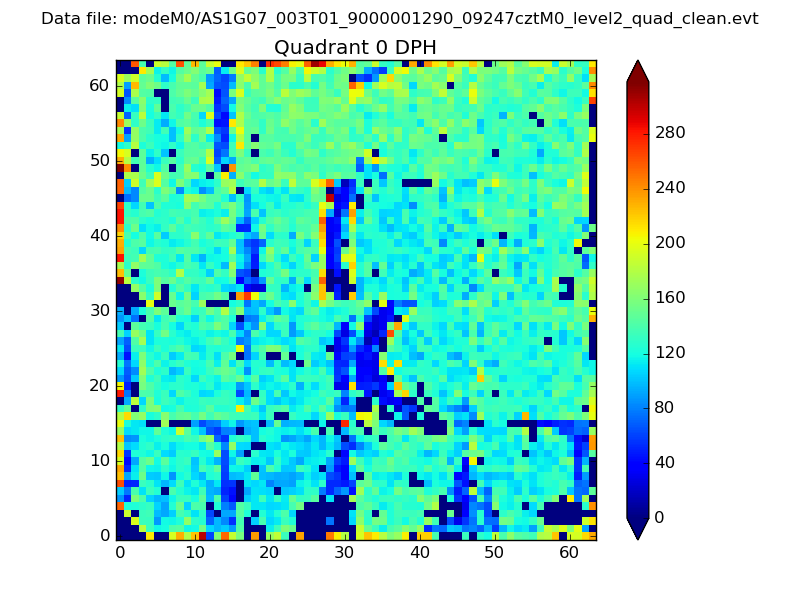

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

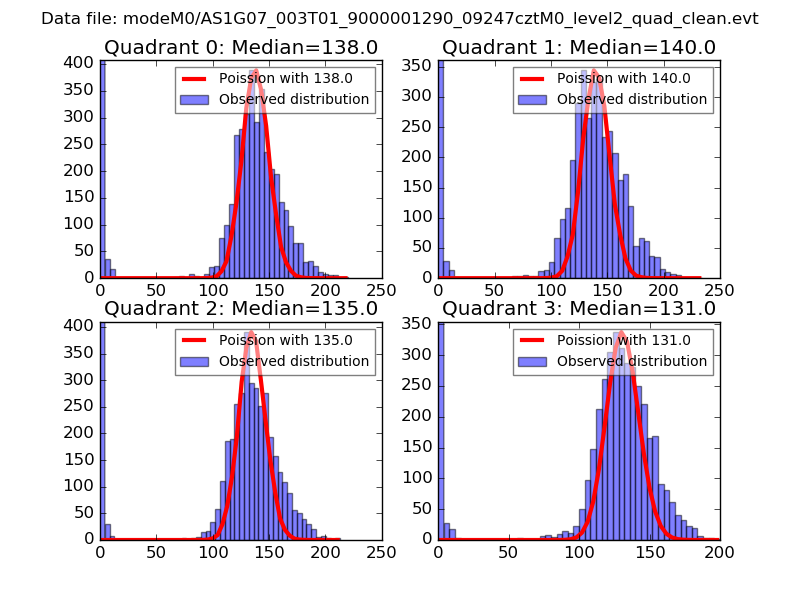

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

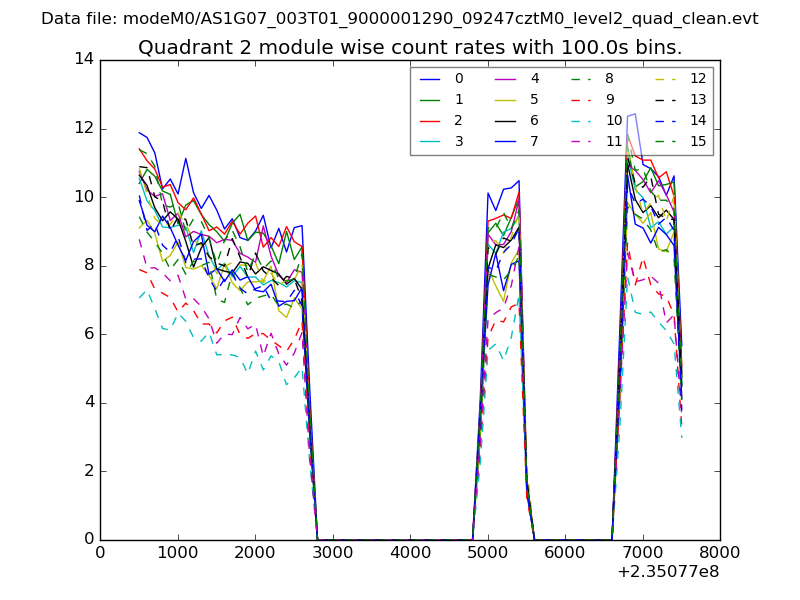

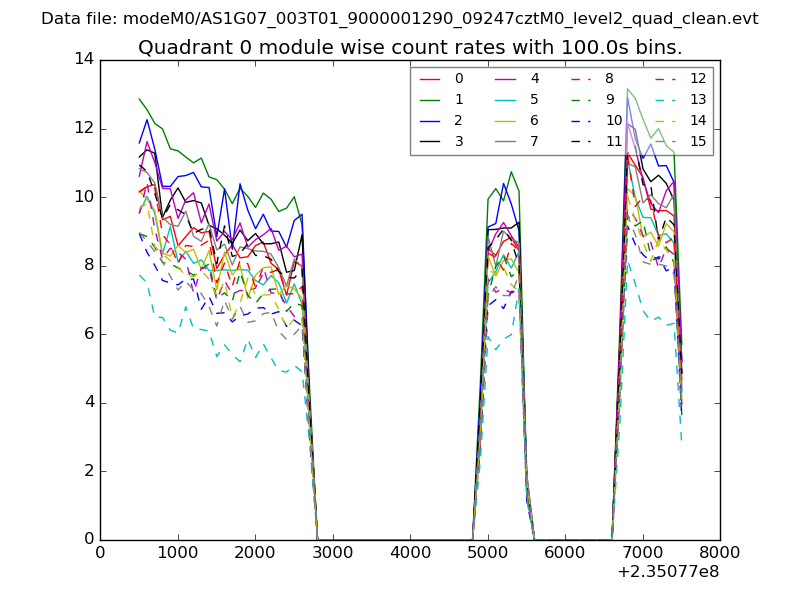

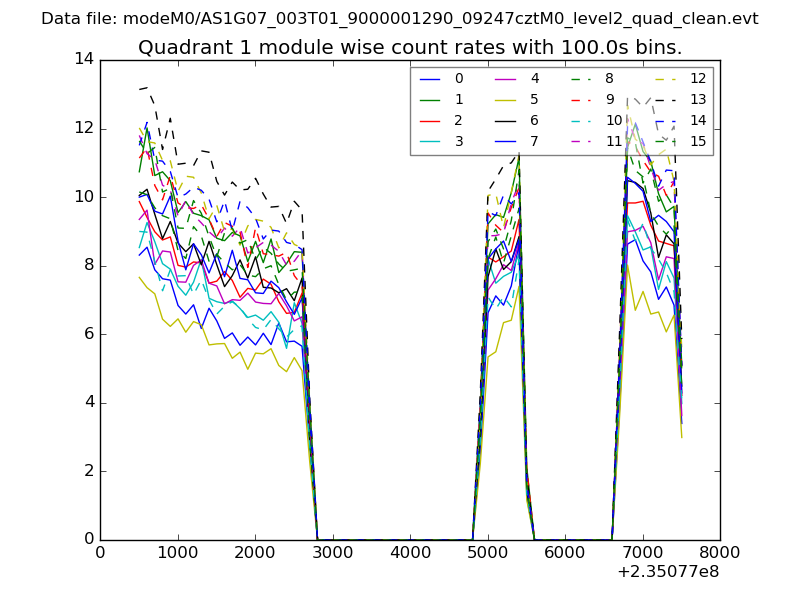

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
